1708
переход к группе запчастей

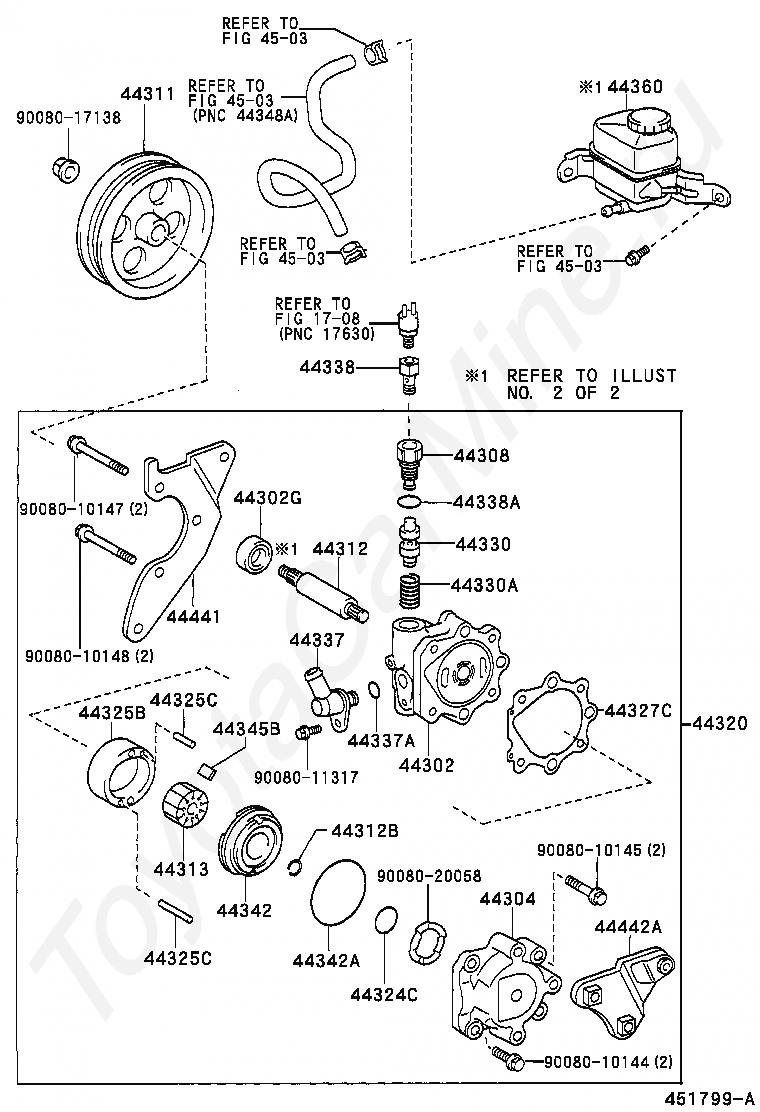

44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302G
SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44308
UNION SUB-ASSY, PRESSURE PORT
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44324C
RING, O(FOR PUMP HOUSING REAR)
44325B
RING, VANE PUMP CAM
44325C
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44325C
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327C
GASKET, VANE PUMP HOUSING
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338
UNION, PRESSURE PORT
44338A
RING, O(FOR PRESSURE PORT UNION)
44342
PLATE, VANE PUMP SIDE, REAR
44342A
RING, O(FOR VANE PUMP SIDE PLATE REAR)
44360
RESERVOIR ASSY, VANE PUMP OIL
44441
BRACKET, PUMP, FRONT
44442A
BRACKET, VANE PUMP, REAR
