Европа

Модель

COROLLA HB/LB

VIN

Дата

1992/05

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Кузов

POUNDS

Класс

GLI TYPE

Фрейм

EE101

КПП

механика МКПП, 5 скоростей

Опции

5 дверей правый руль

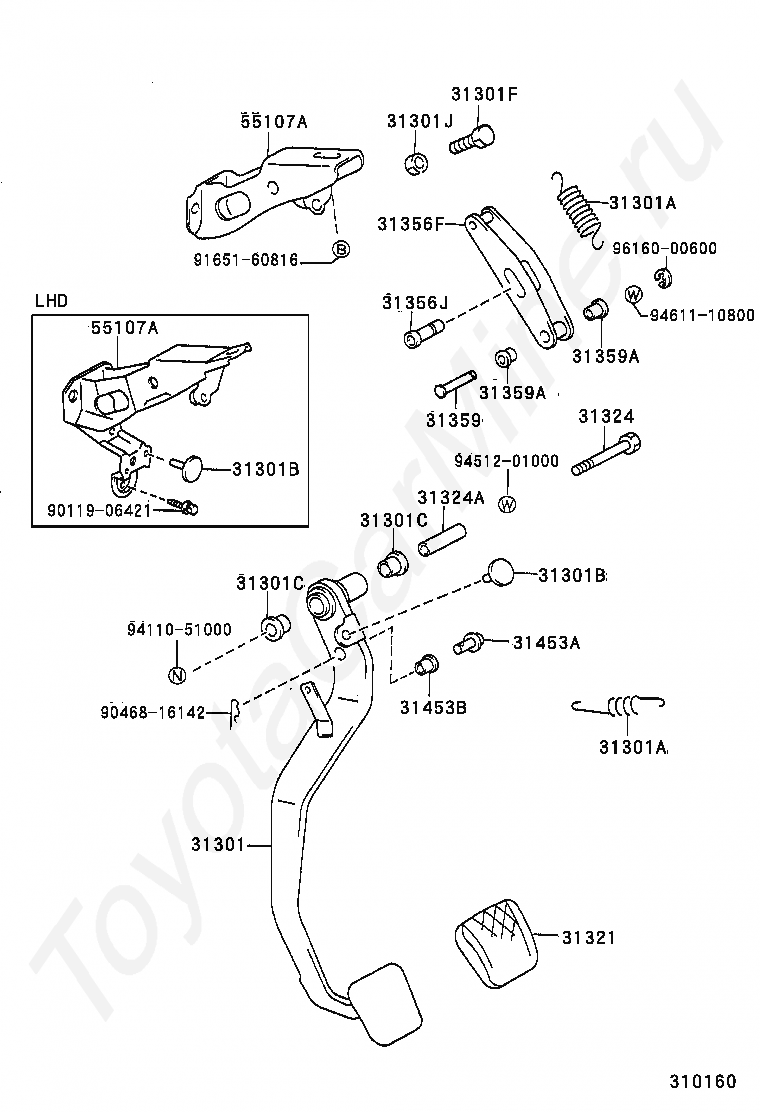

Педаль сцепления TOYOTA COROLLA HB/LB

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31321

PAD, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31356F

PLATE, CLUTCH PEDAL OVER CENTER, NO.1

31356J

COLLAR(FOR CLUTCH PEDAL OVER CENTER PLATE NO.1)

31359

PIN, CLUTCH PEDAL OVER CENTER SPRING

31359A

BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)

31359A

BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

55107A

SUPPORT SUB-ASSY, CLUTCH PEDAL

55107A

SUPPORT SUB-ASSY, CLUTCH PEDAL

9011906421

Крепеж

9046816142

Крепеж

9165160816

Крепеж

9411051000

Крепеж

9451201000

Крепеж

9461110800

Крепеж

9616000600

Крепеж

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31321

PAD, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31356F

PLATE, CLUTCH PEDAL OVER CENTER, NO.1

31356J

COLLAR(FOR CLUTCH PEDAL OVER CENTER PLATE NO.1)

31359

PIN, CLUTCH PEDAL OVER CENTER SPRING

31359A

BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)

31359A

BUSH(FOR CLUTCH PEDAL OVER CENTER SPRING PIN)

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

55107A

SUPPORT SUB-ASSY, CLUTCH PEDAL

55107A

SUPPORT SUB-ASSY, CLUTCH PEDAL

9011906421

Крепеж

9046816142

Крепеж

9165160816

Крепеж

9411051000

Крепеж

9451201000

Крепеж

9461110800

Крепеж

9616000600

Крепеж

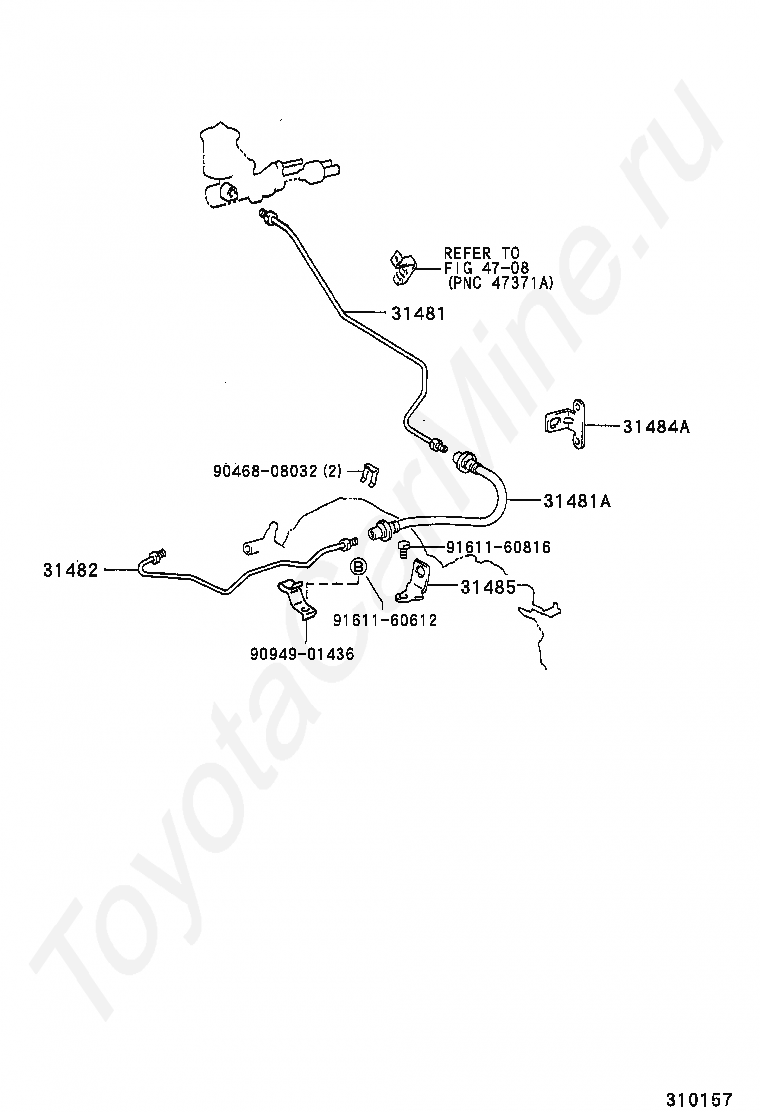

Код

Описание

31481

TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

31481A

HOSE, CLUTCH, NO.1

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31484A

BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

31485

BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

4708

переход к группе запчастей

9046808032

Крепеж

9094901436

Крепеж

9161160612

Крепеж

9161160816

Крепеж
