Ближний Восток

Модель

COROLLA (S.AMERICA)

VIN

Дата

2011/05

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Класс

XEI TYPE

Фрейм

ZZE142

КПП

механика

Опции

левый руль сжатый газ Венесуэла 487W

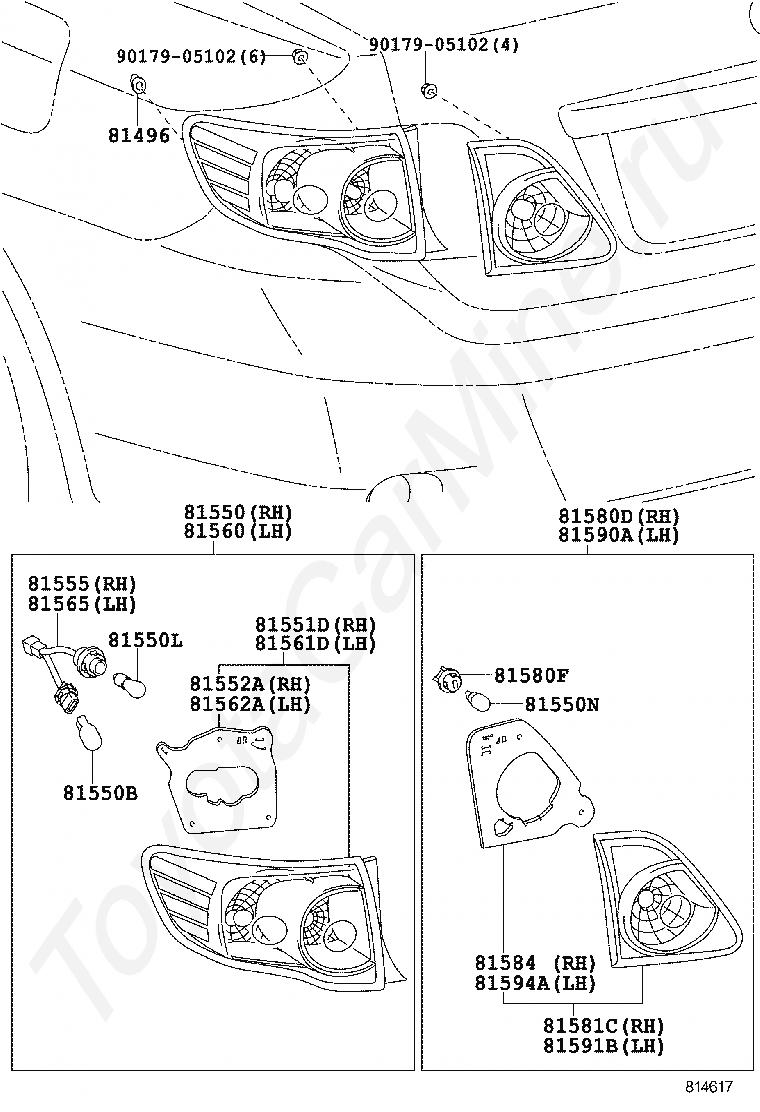

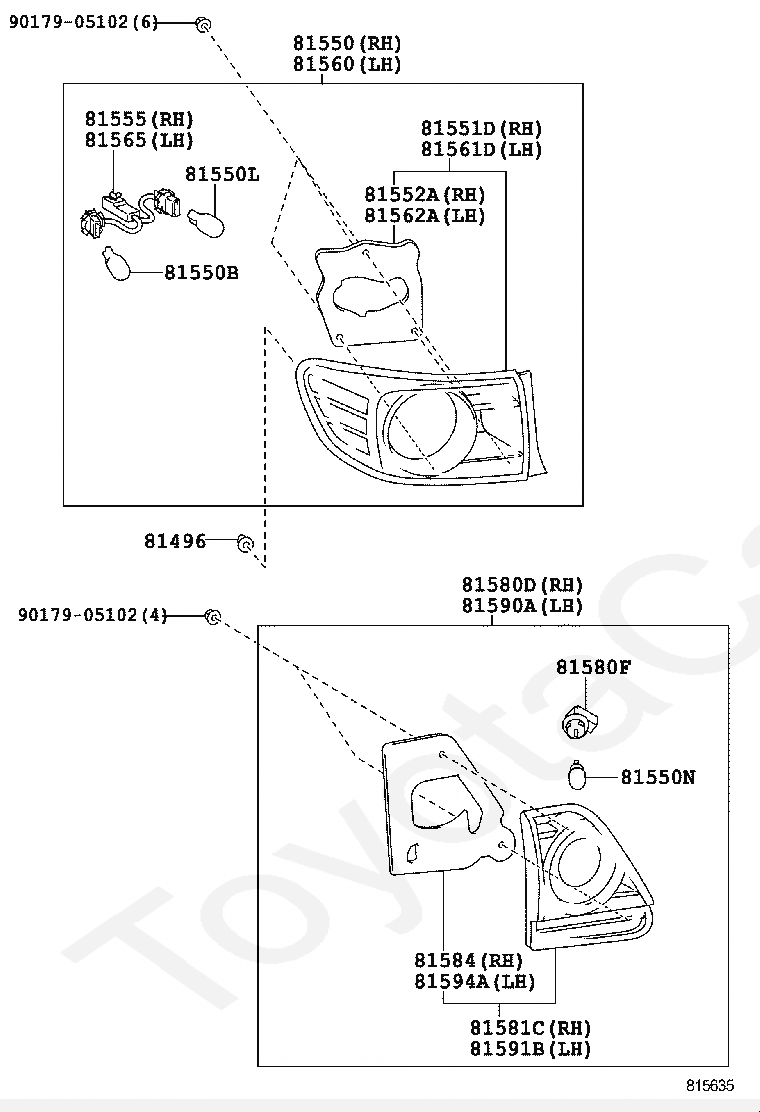

Задние фонари TOYOTA COROLLA (S.AMERICA)

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550

LAMP ASSY, REAR COMBINATION, RH

81550B

BULB(FOR REAR COMBINATION LAMP)

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81552A

GASKET, REAR COMBINATION LAMP, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81562A

GASKET, REAR COMBINATION LAMP, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580D

LAMP ASSY, REAR, RH

81580F

SOCKET PLUG, REAR LAMP

81581C

LENS AND BODY, REAR LAMP, RH

81584

PACKING, REAR LAMP RH

81590A

LAMP ASSY, REAR, LH

81591B

LENS AND BODY, REAR LAMP, LH

81594A

GASKET, REAR LAMP LH

9017905102

Крепеж

9017905102

Крепеж

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550

LAMP ASSY, REAR COMBINATION, RH

81550B

BULB(FOR REAR COMBINATION LAMP)

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81552A

GASKET, REAR COMBINATION LAMP, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81562A

GASKET, REAR COMBINATION LAMP, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580D

LAMP ASSY, REAR, RH

81580F

SOCKET PLUG, REAR LAMP

81581C

LENS AND BODY, REAR LAMP, RH

81584

PACKING, REAR LAMP RH

81590A

LAMP ASSY, REAR, LH

81591B

LENS AND BODY, REAR LAMP, LH

81594A

GASKET, REAR LAMP LH

9017905102

Крепеж

9017905102

Крепеж
