Ближний Восток

Модель

COROLLA (ASIA/INDIA)

VIN

Дата

2001/05

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Класс

1.8G TYPE

Фрейм

ZZE122

КПП

автомат

Опции

правый руль FOR THAILAND

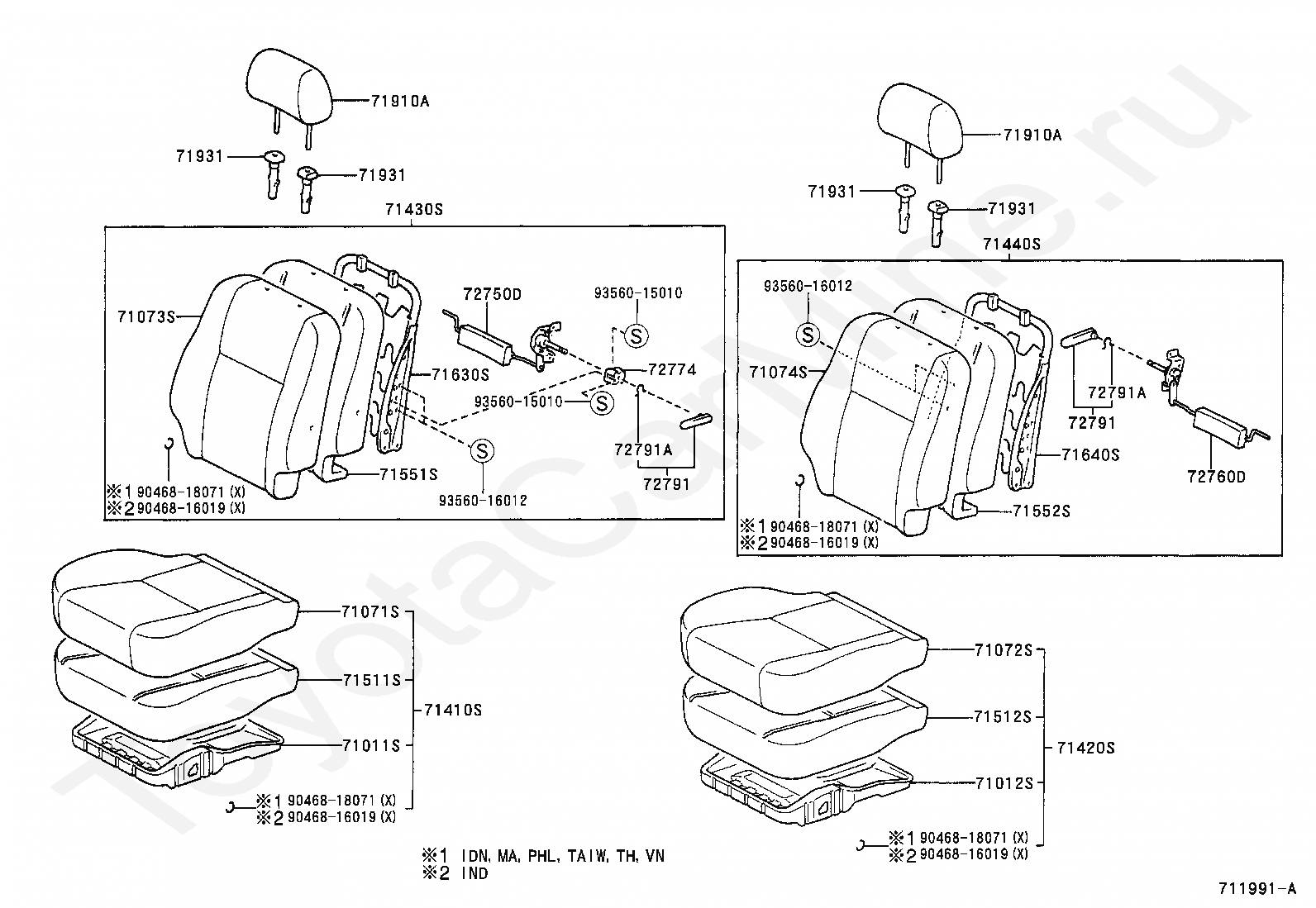

Передние кресла TOYOTA COROLLA (ASIA/INDIA)

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

72774

PROTECTOR, LUMBAR SUPPORT SPRING

72791

LEVER, LUMBAR SUPPORT

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

9046816019

Крепеж

9046816019

Крепеж

9046816019

Крепеж

9046816019

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9356015010

Крепеж

9356015010

Крепеж

9356016012

Крепеж

9356016012

Крепеж

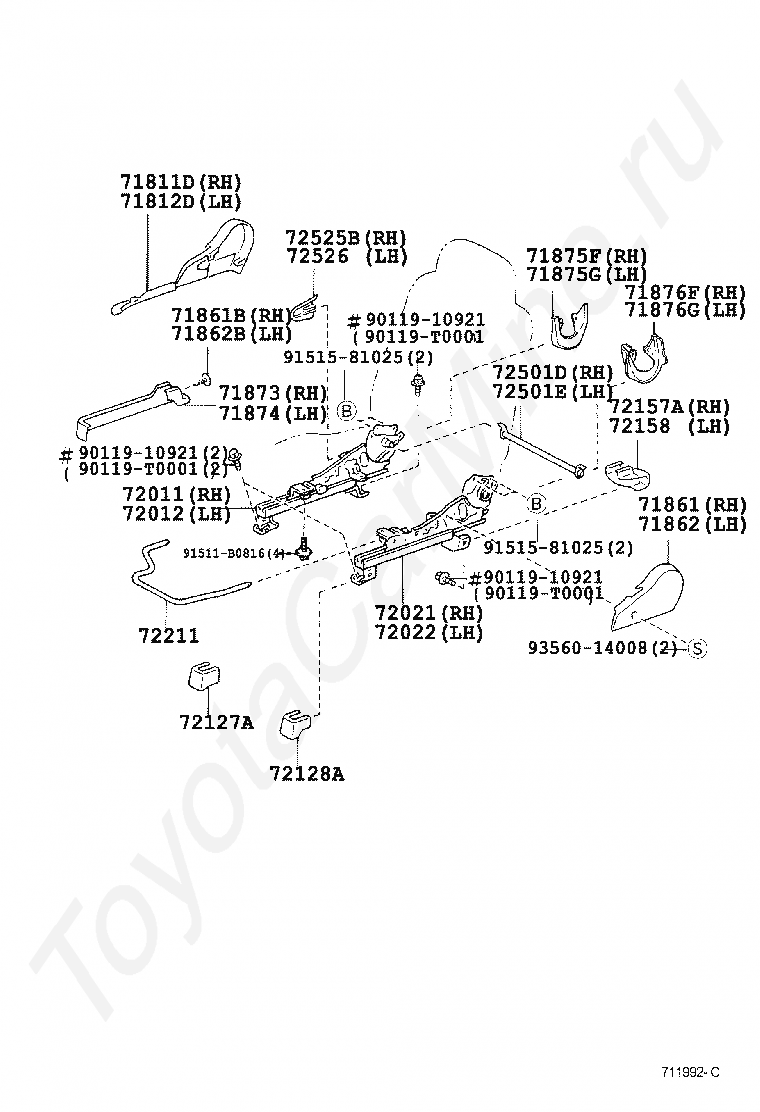

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9356014008

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9356014008

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9356014008

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72409

SHAFT SUB-ASSY, VERTICAL ADJUSTING

72457

KNOB, VERTICAL SEAT ADJUSTER

72472

SPACER, VERTICAL ADJUSTER, NO.1

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9356014008

Крепеж

9616000500

Крепеж

9616000600

Крепеж

9616000600

Крепеж

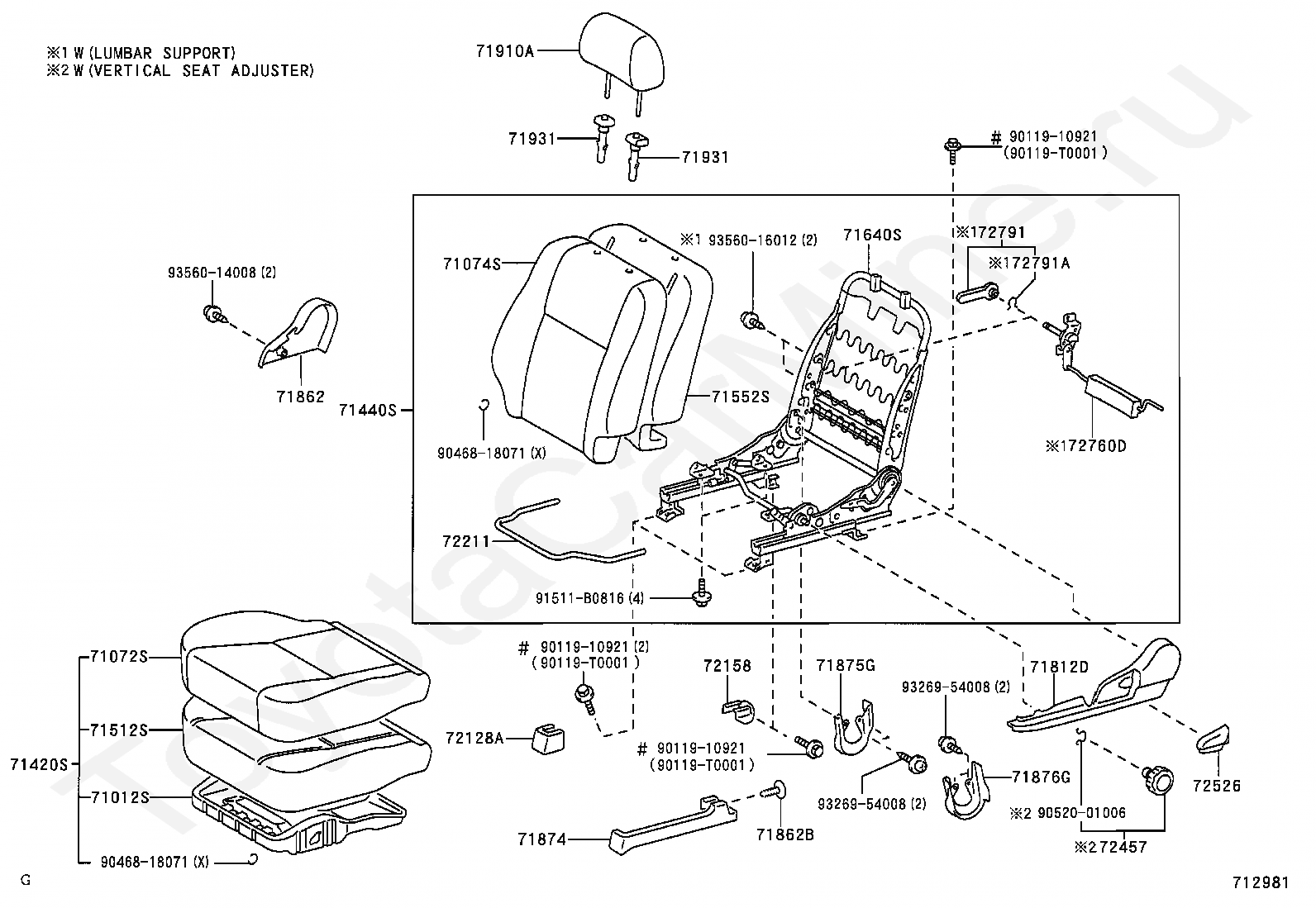

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72457

KNOB, VERTICAL SEAT ADJUSTER

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

9326954008

Крепеж

9326954008

Крепеж

9356014008

Крепеж

9356016012

Крепеж

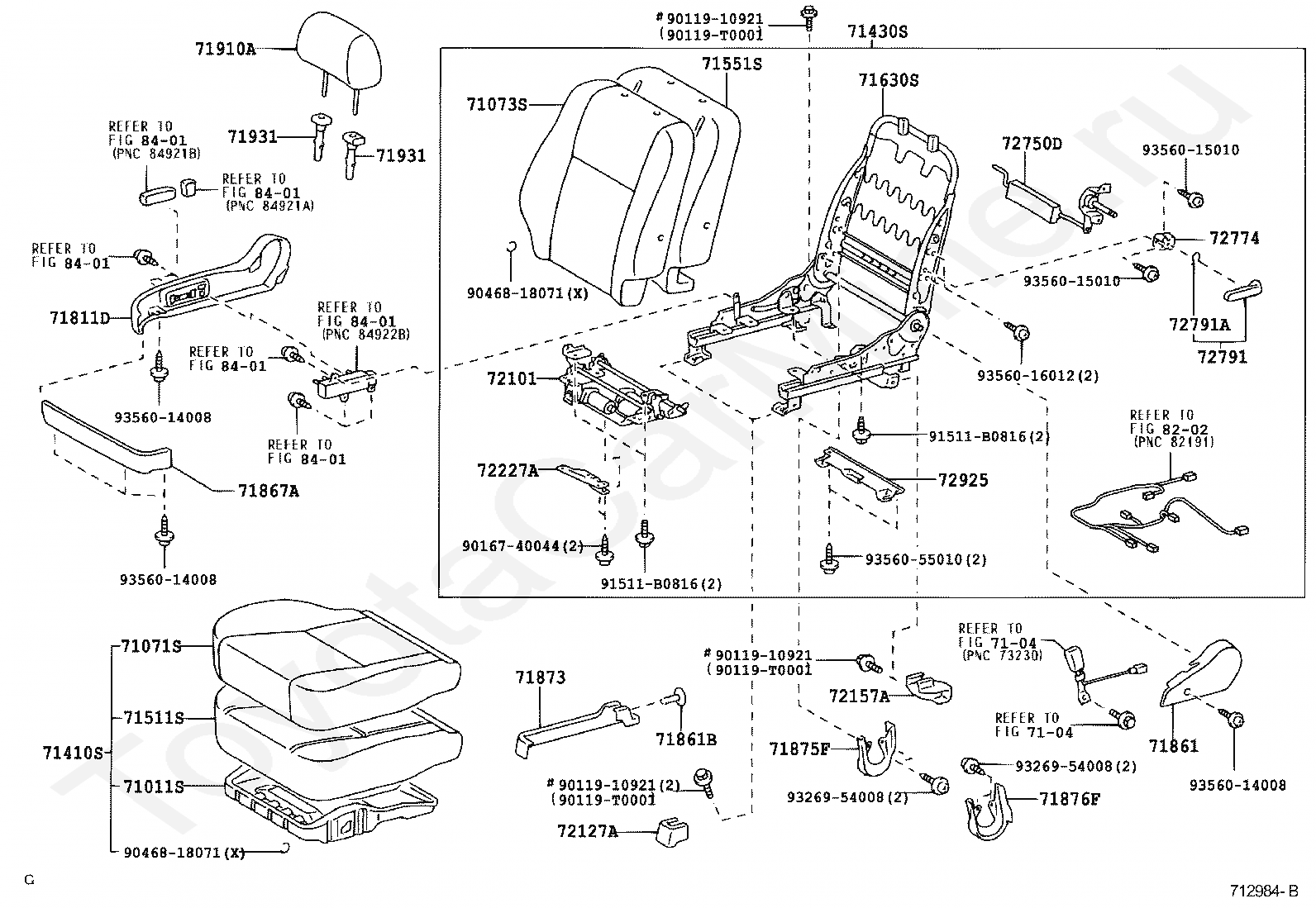

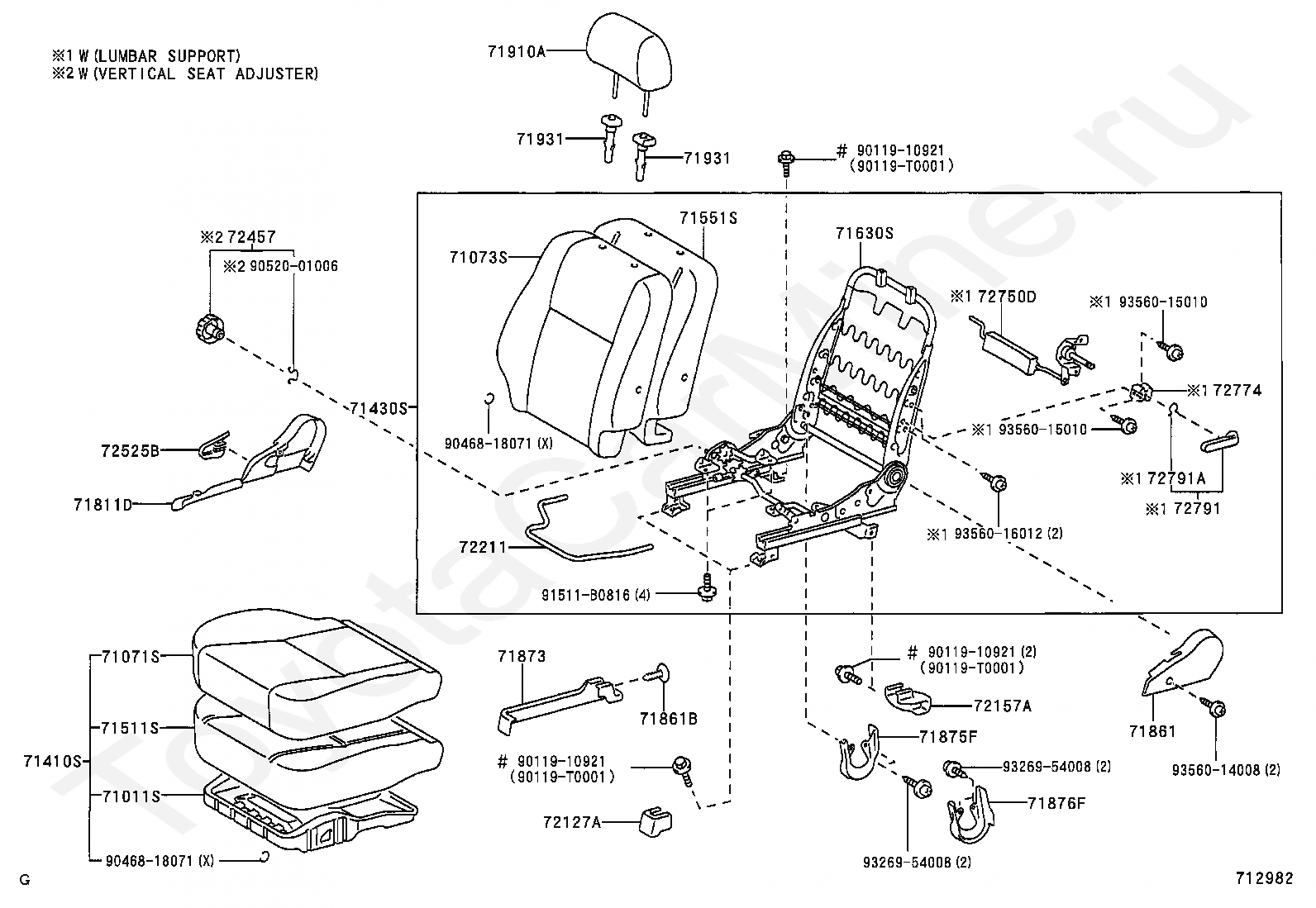

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72457

KNOB, VERTICAL SEAT ADJUSTER

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72774

PROTECTOR, LUMBAR SUPPORT SPRING

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

9326954008

Крепеж

9326954008

Крепеж

9356014008

Крепеж

9356015010

Крепеж

9356015010

Крепеж

9356016012

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72101

BRACKET SUB-ASSY, OUTER SEAT TRACK, LOWER FRONT

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72227A

BRACKET, SEAT TRACK, NO.2 RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72774

PROTECTOR, LUMBAR SUPPORT SPRING

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

72925

COVER, FRONT SEAT CUSHION

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9046818071

Крепеж

9046818071

Крепеж

91511B0816

Крепеж

91511B0816

Крепеж

9326954008

Крепеж

9326954008

Крепеж

9356014008

Крепеж

9356014008

Крепеж

9356014008

Крепеж

9356015010

Крепеж

9356015010

Крепеж

9356016012

Крепеж

9356055010

Крепеж

Передние кресла TOYOTA COROLLA (ASIA/INDIA)

Купить

Поиск
