Ближний Восток

Модель

COROLLA (S.AMERICA)

VIN

Дата

2007/05

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Кузов

универсал

Класс

SE-G TYPE

Фрейм

ZZE122

КПП

автомат

Опции

левый руль Бразилия HIGH EFFICIENCY TWIN CAM(FLEX FUEL)

Реле и кнопки TOYOTA COROLLA (S.AMERICA)

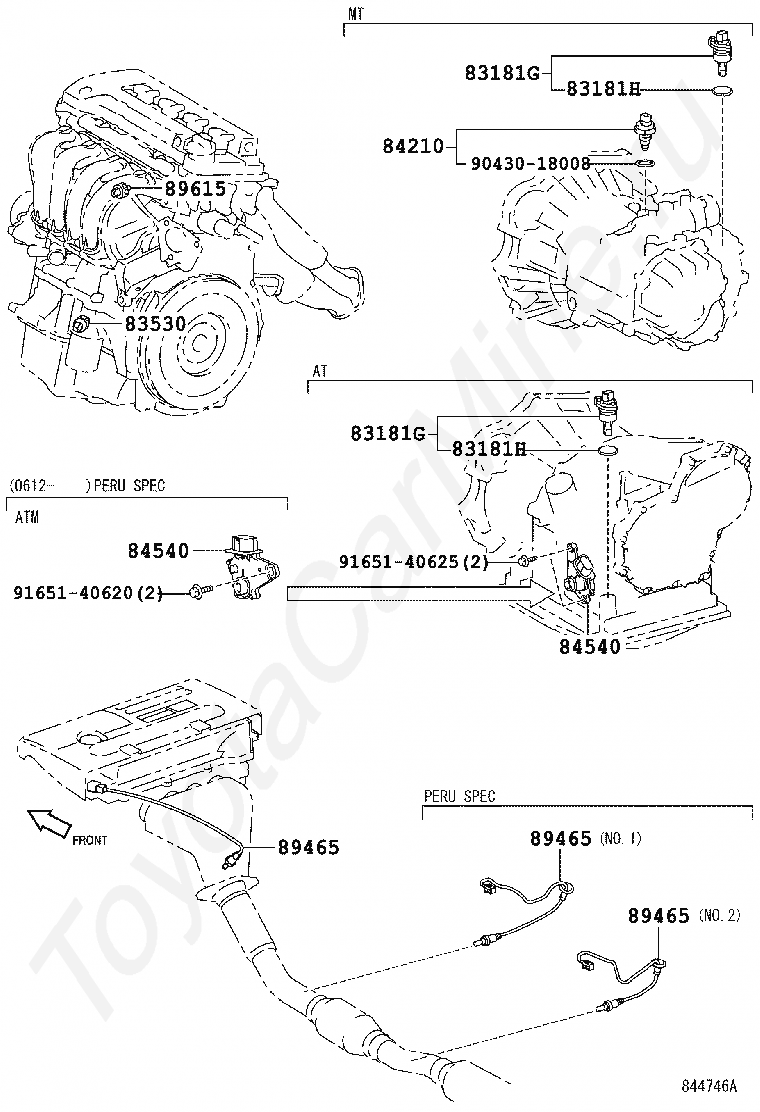

Код

Описание

83181G

SENSOR, SPEEDOMETER

83181G

SENSOR, SPEEDOMETER

83181H

RING, O (FOR SPEEDOMETER SENSOR)

83181H

RING, O (FOR SPEEDOMETER SENSOR)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

84540

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89615

SENSOR, KNOCK CONTROL

9043018008

Крепеж

9165140620

Крепеж

9165140625

Крепеж

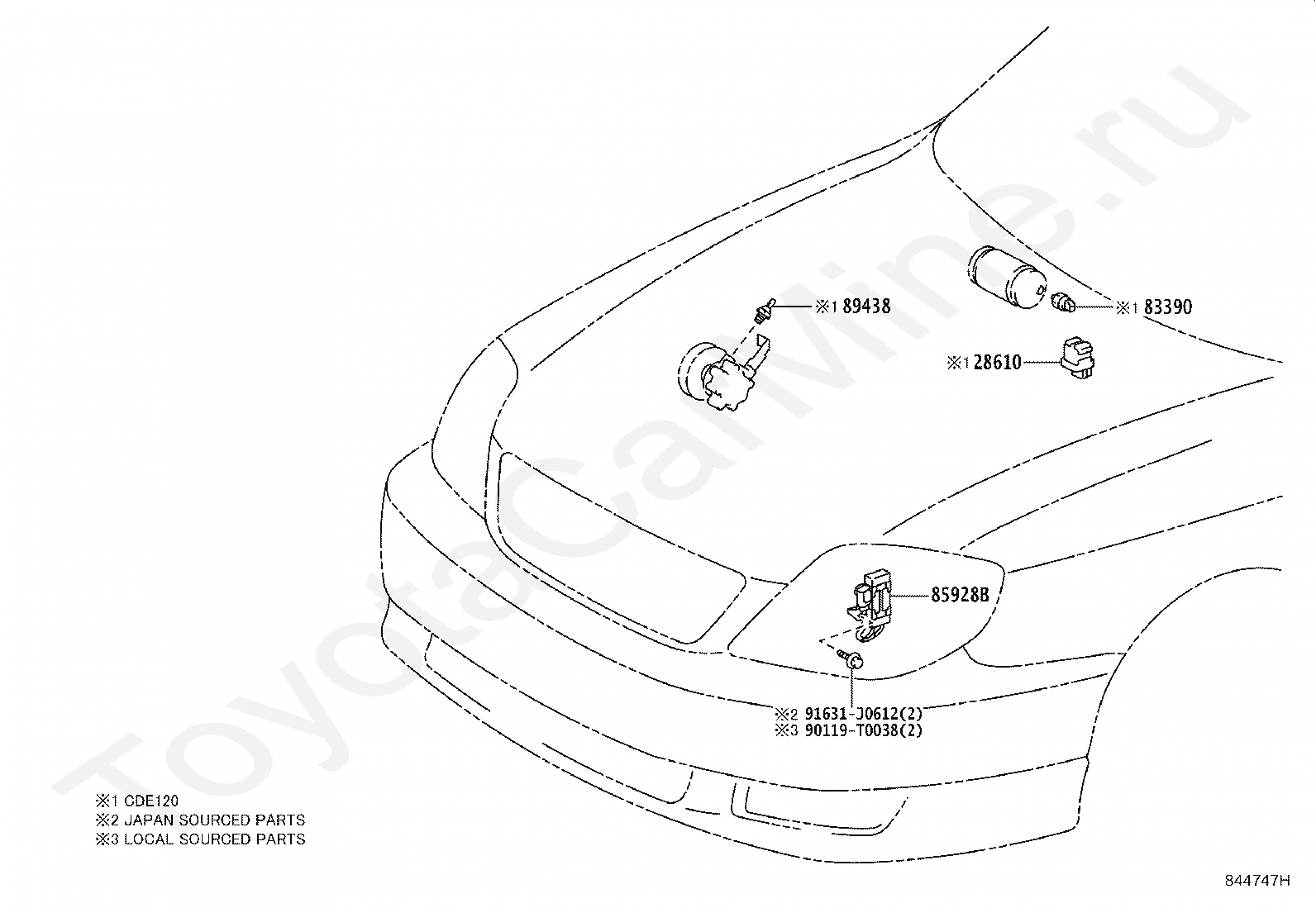

Код

Описание

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

83390

SWITCH ASSY, VACUUM WARNING

85928B

RESISTOR, COOLING FAN

89438

SWITCH, POWER STEERING OIL PRESSURE

90119T0038

Крепеж

91631J0612

Крепеж

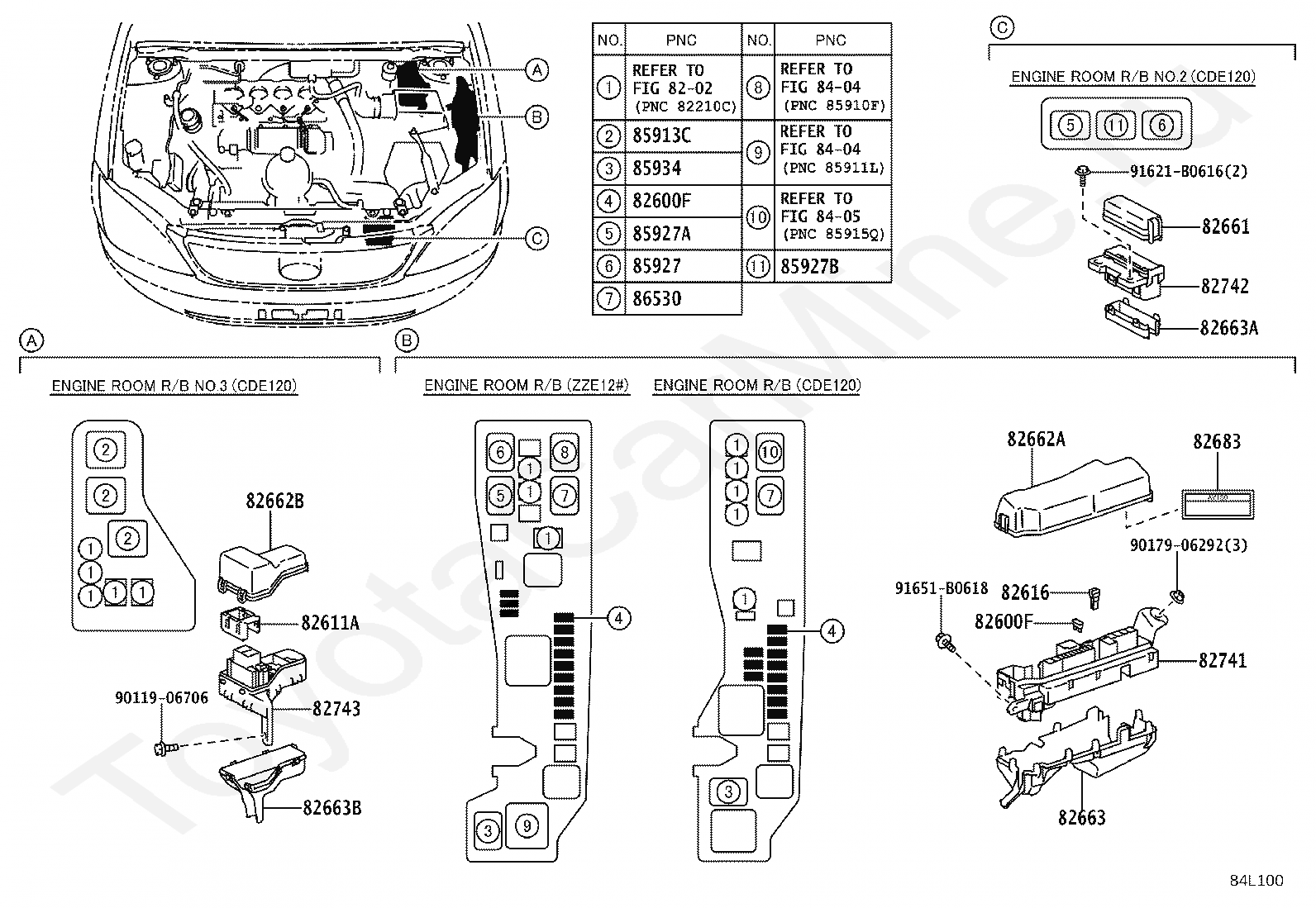

Код

Описание

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82611A

COVER, FUSE BLOCK, NO.2

82616

PULLER, FUSE

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82683

PLATE, FUSE BLOCK CAUTION

82741

BLOCK, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

82743

BLOCK, ENGINE ROOM RELAY, NO.3

8404

переход к группе запчастей

8404

переход к группе запчастей

8405

переход к группе запчастей

85913C

RELAY, HEATER, NO.1

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

85934

RELAY, MAGNET-CLUTCH

86530

RELAY ASSY, HORN

9011906706

Крепеж

9017906292

Крепеж

91621B0616

Крепеж

91651B0618

Крепеж

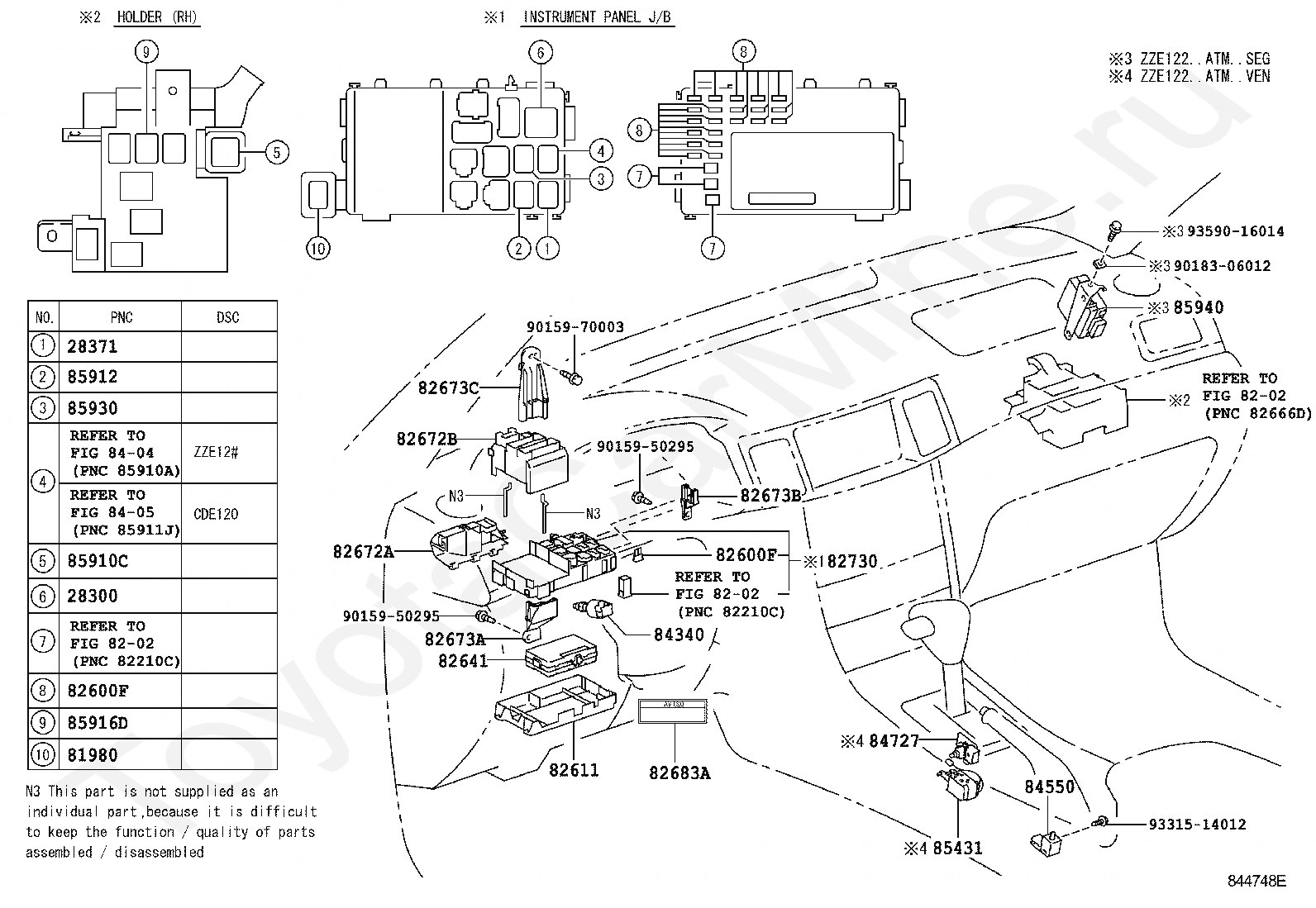

Код

Описание

28300

RELAY ASSY, STARTER

28371

RELAY, IGNITION, NO.1

81980

FLASHER ASSY, TURN SIGNAL

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82611

COVER, FUSE BLOCK

82641

RELAY, INTEGRATION NO.1

82672A

COVER, JUNCTION BLOCK

82672B

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

82683A

PLATE, FUSE BLOCK CAUTION

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

8404

переход к группе запчастей

8405

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84727

SWITCH, SHIFT LOCK CONTROL

85431

SOLENOID, SHIFT LOCK

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85930

RELAY ASSY, POWER WINDOW

85940

RELAY ASSY, WINDSHIELD WIPER

9015950295

Крепеж

9015950295

Крепеж

9015970003

Крепеж

9018306012

Крепеж

9331514012

Крепеж

9359016014

Крепеж

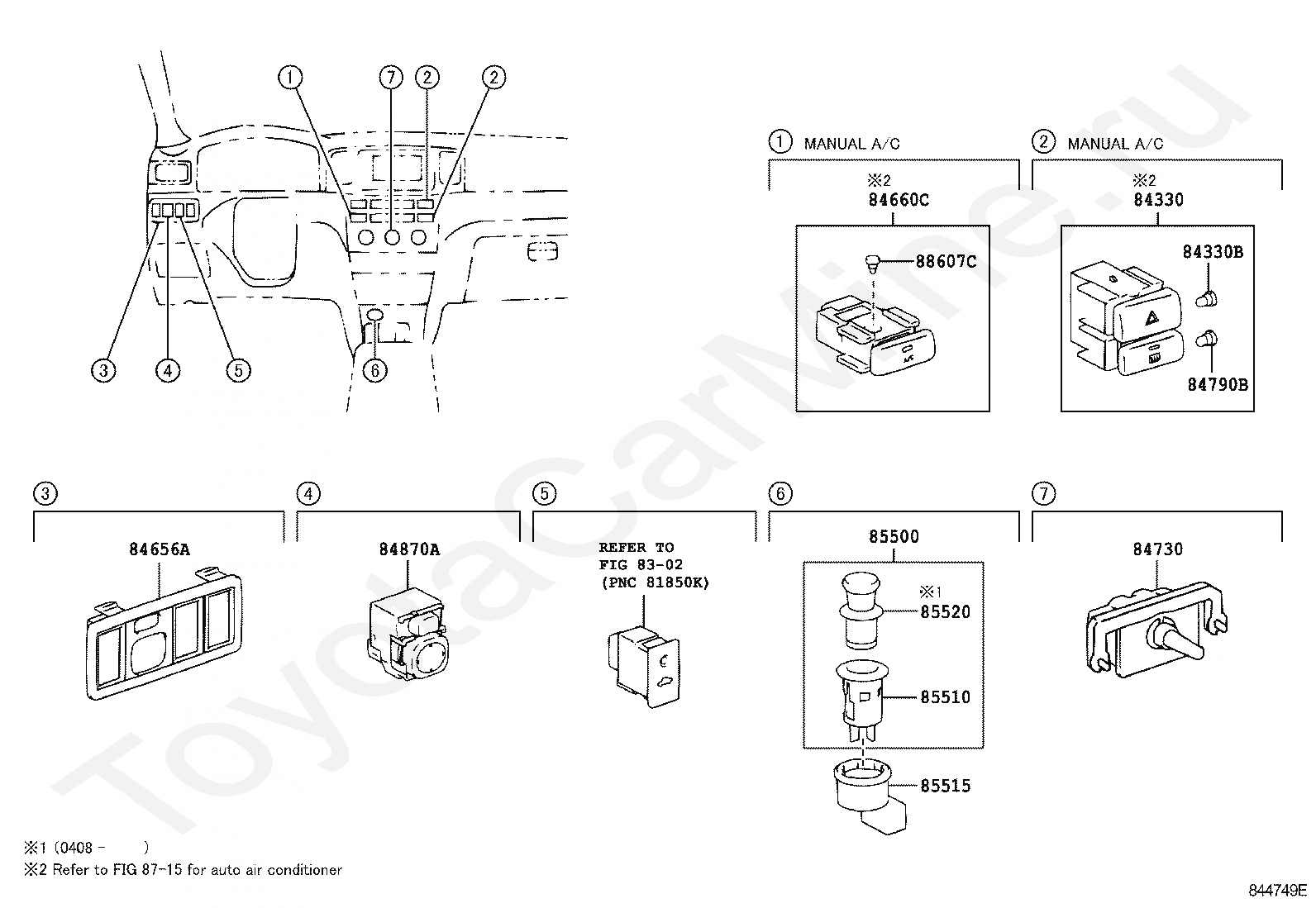

Код

Описание

8302

переход к группе запчастей

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84656A

BEZEL, SWITCH

84660C

SWITCH, COOLER

84730

SWITCH ASSY, HEATER BLOWER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

85500

LIGHTER ASSY, CIGARETTE

85510

SOCKET & RETAINER ASSY, CIGARLIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

88607C

LAMP SUB-ASSY, INDICATOR

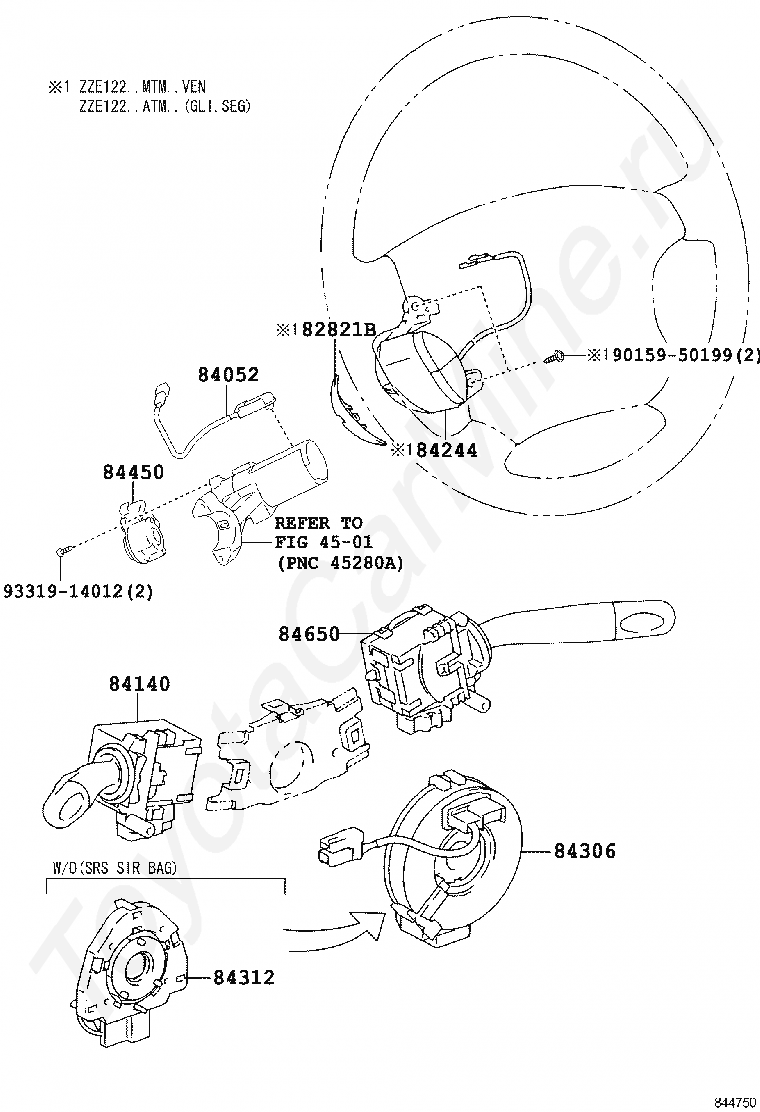

Код

Описание

4501

переход к группе запчастей

82821B

COVER, CONNECTOR

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84244

SWITCH, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

9015950199

Крепеж

9331914012

Крепеж

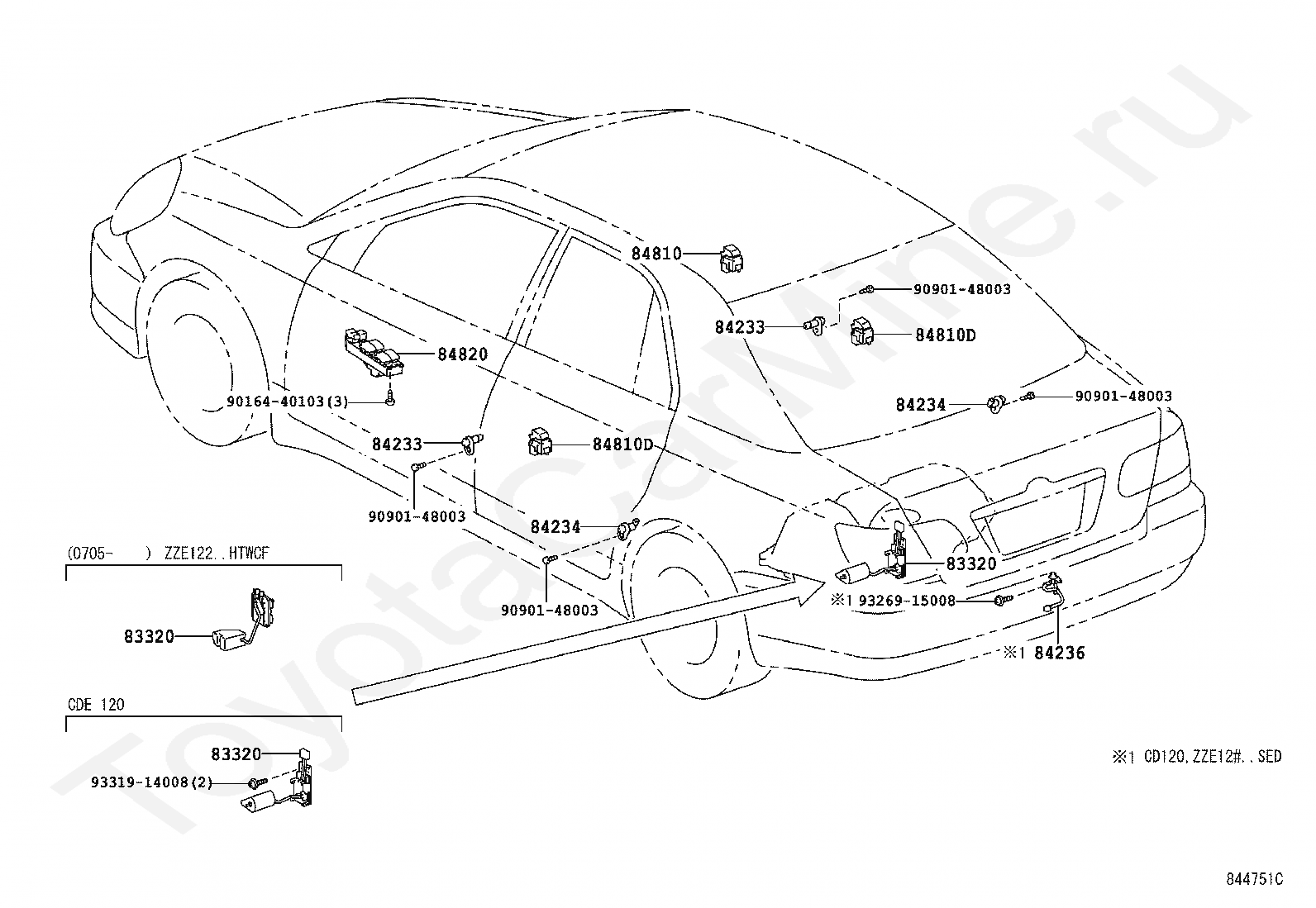

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

9016440103

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9326915008

Крепеж

9331914008

Крепеж

Реле и кнопки TOYOTA COROLLA (S.AMERICA)
