Модель

COROLLA/ALTIS SED/WG

VIN

Дата

2001/10

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

XLI TYPE

Фрейм

ZZE122

КПП

механика

Опции

левый руль GENERAL COUNTRIES

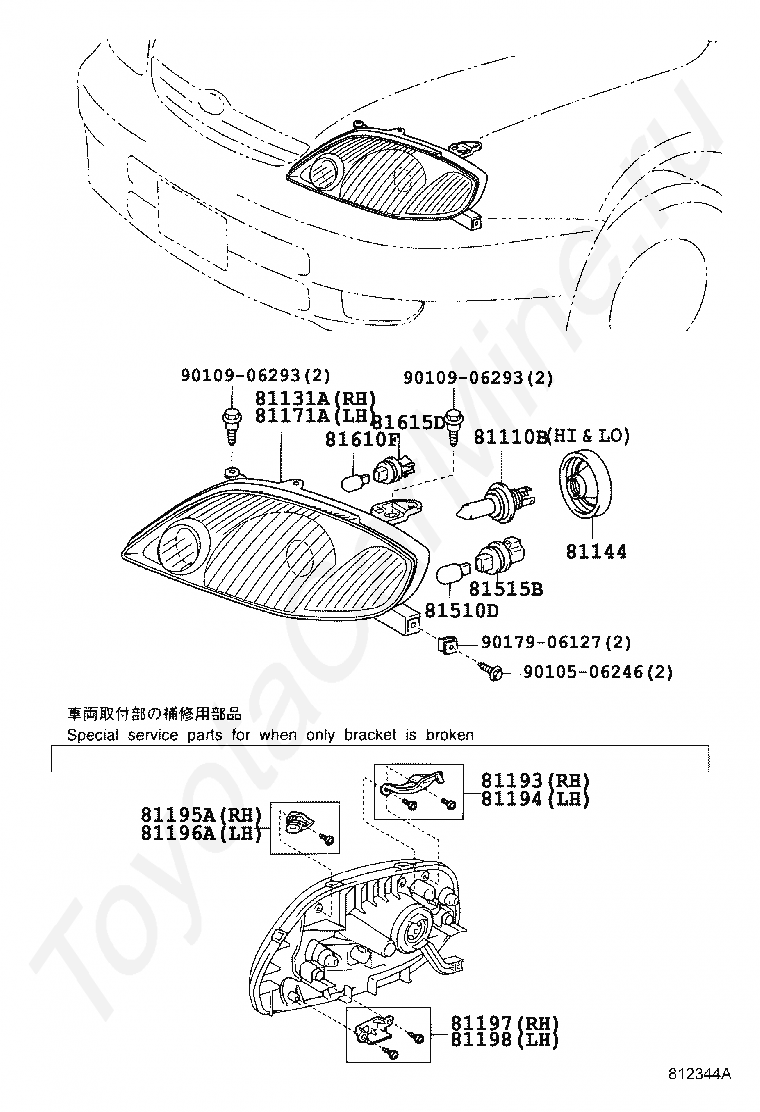

Фары TOYOTA COROLLA/ALTIS SED/WG

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9010506246

Крепеж

9010906293

Крепеж

9010906293

Крепеж

9017906127

Крепеж

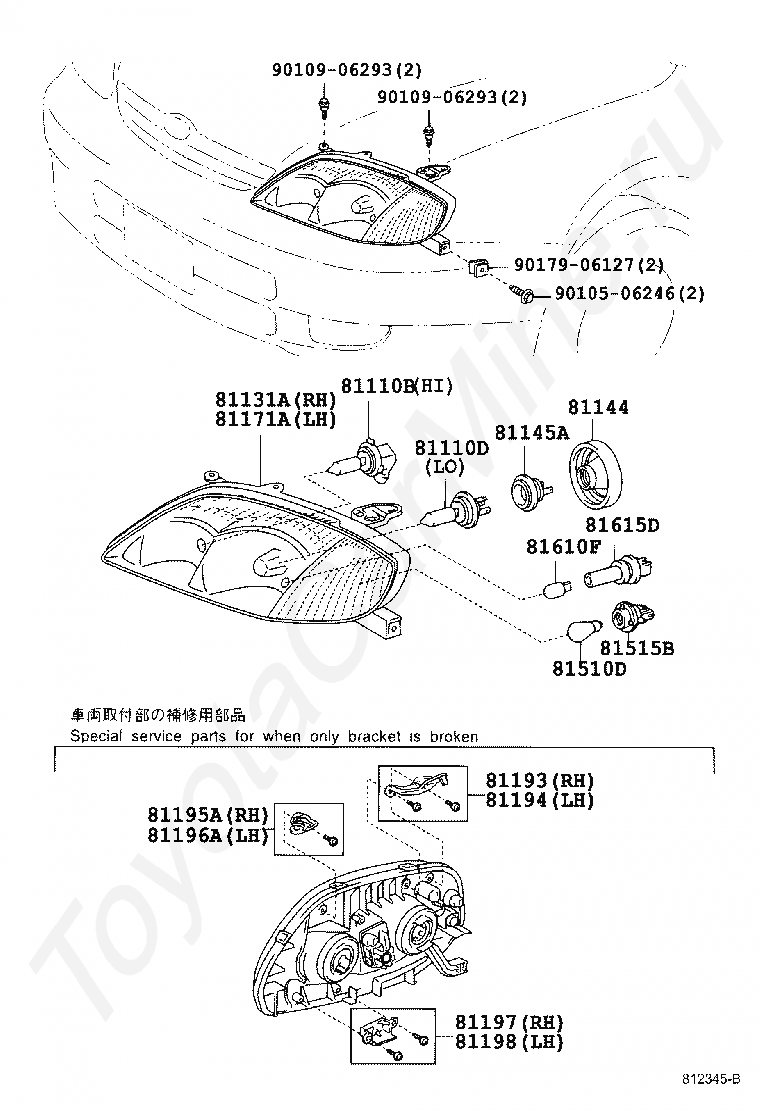

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81131A

UNIT, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81145A

ADAPTER ASSY

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9010506246

Крепеж

9010906293

Крепеж

9010906293

Крепеж

9017906127

Крепеж

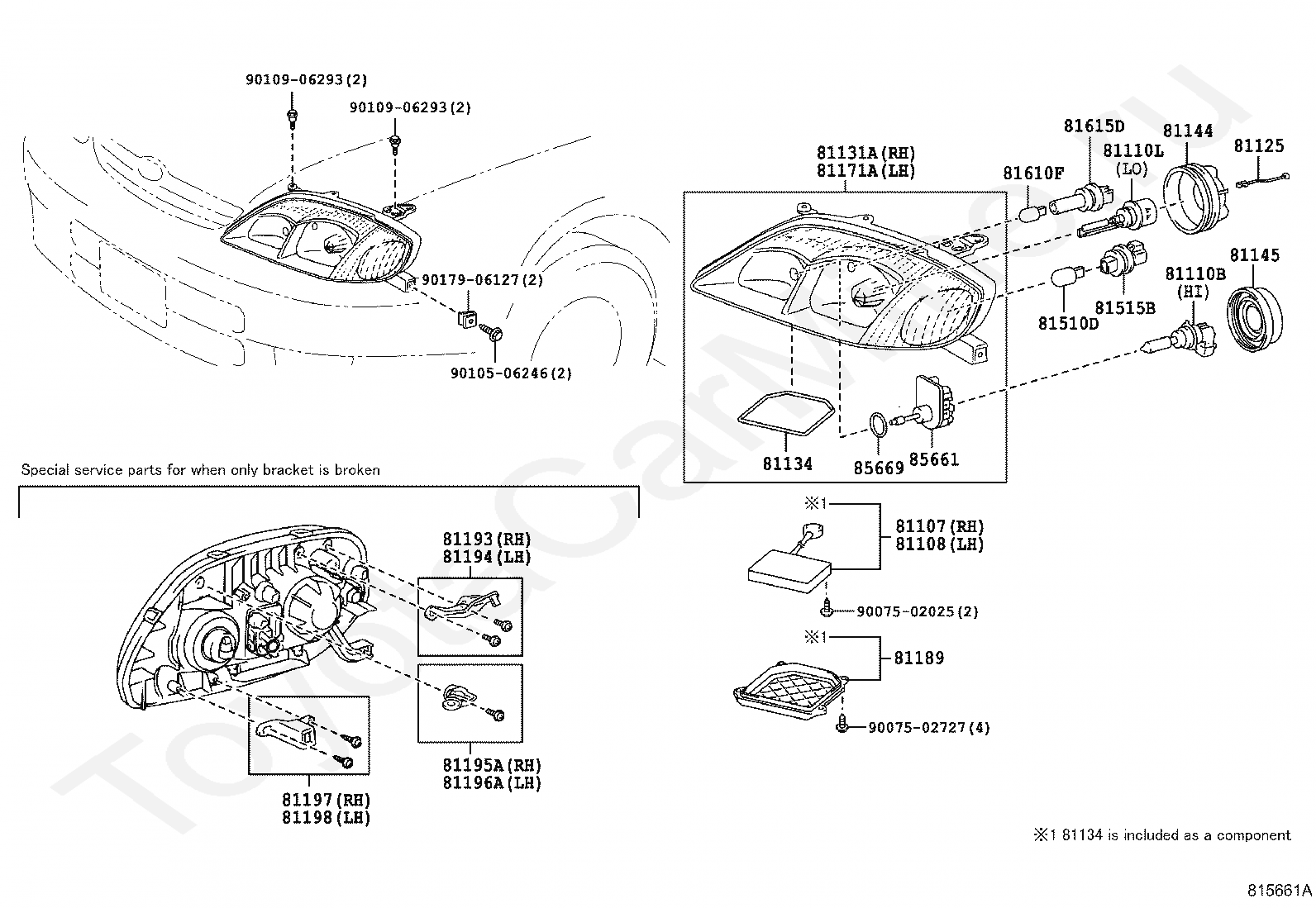

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81125

CORD, HEADLAMP

81131A

UNIT, HEADLAMP, RH

81134

GASKET, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81171A

UNIT, HEADLAMP, LH

81189

COVER, HEADLAMP

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502025

Крепеж

9007502727

Крепеж

9010506246

Крепеж

9010906293

Крепеж

9010906293

Крепеж

9017906127

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9010506246

Крепеж

9010906293

Крепеж

9010906293

Крепеж

9017906127

Крепеж

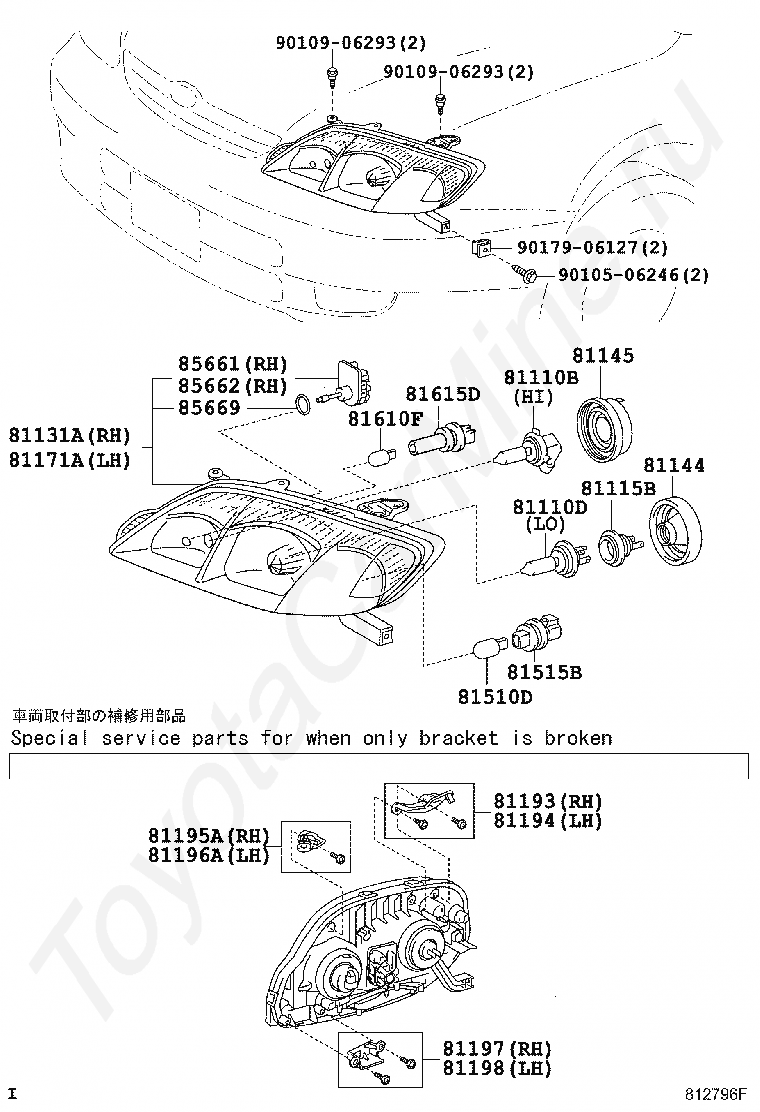

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81115B

SOCKET,HEADLAMP, NO.1

81131A

UNIT, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81145

COVER, HEADLAMP, NO.2

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010506246

Крепеж

9010906293

Крепеж

9010906293

Крепеж

9017906127

Крепеж

Фары TOYOTA COROLLA/ALTIS SED/WG
