Каталог

Европа

Модель

COROLLA HB/LB

VIN

Дата

1997/04

Двигатель

2 литра, дизель, EFI

Кузов

хетчбэк

Класс

STANDARD TYPE

Фрейм

CE110

КПП

механика МКПП, 5 скоростей

Опции

JAPAN PRODUCT левый руль

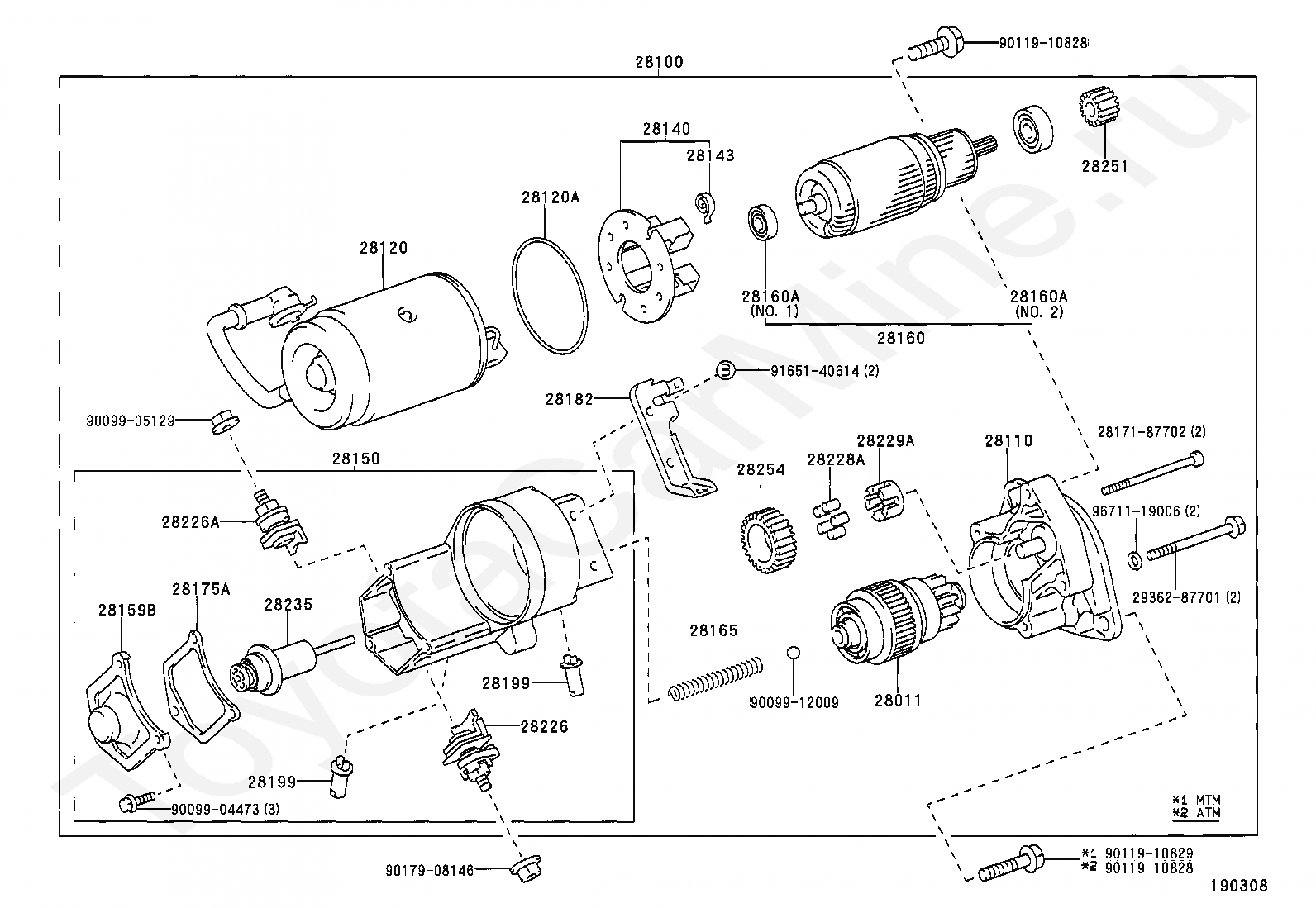

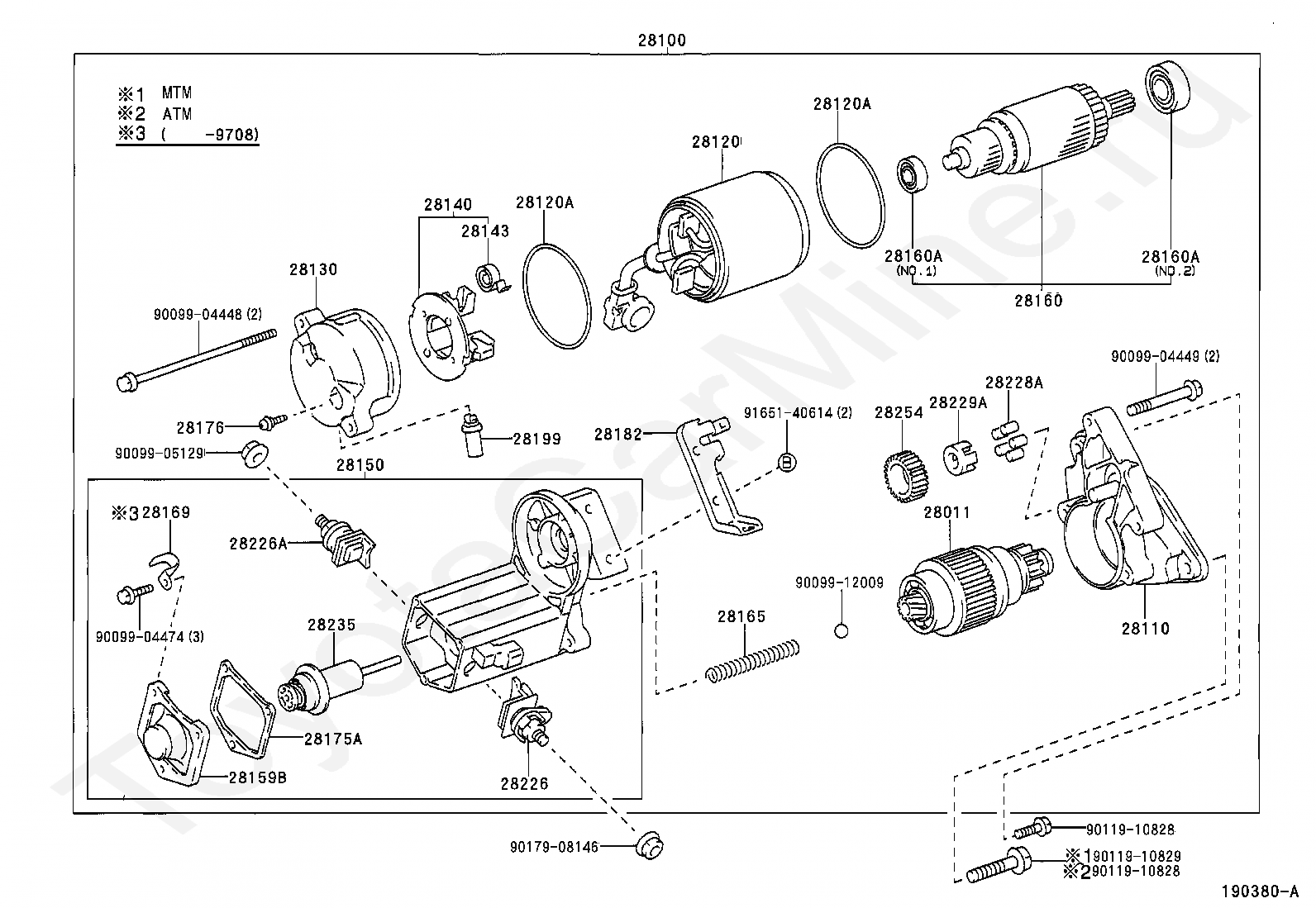

Стартер TOYOTA COROLLA HB/LB

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28120

YOKE ASSY, STARTER

28120A

RING, O(FOR STARTER YOKE)

28120A

RING, O(FOR STARTER YOKE)

28130

FRAME ASSY, STARTER COMMUTATOR END

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28169

CLAMP, STARTER MOTOR LEAD WIRE

28175A

GASKET, MAGNET SWITCH COVER

28176

SCREW, STARTER

28182

STAY, STARTER COMMUTATOR END FRAME

28199

COVER, STARTER

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228A

ROLLER, STARTER CLUTCH

28229A

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28254

PINION, STARTER IDLE GEAR

9009904448

Крепеж

9009904449

Крепеж

9009904474

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9011910828

Крепеж

9011910828

Крепеж

9011910829

Крепеж

9017908146

Крепеж

9165140614

Крепеж

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28120

YOKE ASSY, STARTER

28120A

RING, O(FOR STARTER YOKE)

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

2817187702

Крепеж

28175A

GASKET, MAGNET SWITCH COVER

28182

STAY, STARTER COMMUTATOR END FRAME

28199

COVER, STARTER

28199

COVER, STARTER

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228A

ROLLER, STARTER CLUTCH

28229A

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28251

PINION, STARTER DRIVE

28254

PINION, STARTER IDLE GEAR

2936287701

Крепеж

9009904473

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9011910828

Крепеж

9011910828

Крепеж

9011910829

Крепеж

9017908146

Крепеж

9165140614

Крепеж

9671119006

Крепеж
