Ближний Восток

Модель

COROLLA

VIN

Дата

1980/07

Двигатель

1,8 литра

Кузов

седан

Класс

GL SPECIFICATION

Фрейм

TE72

КПП

автомат АКПП, 3 ступени

Опции

правый руль 4 двери Южная Африка

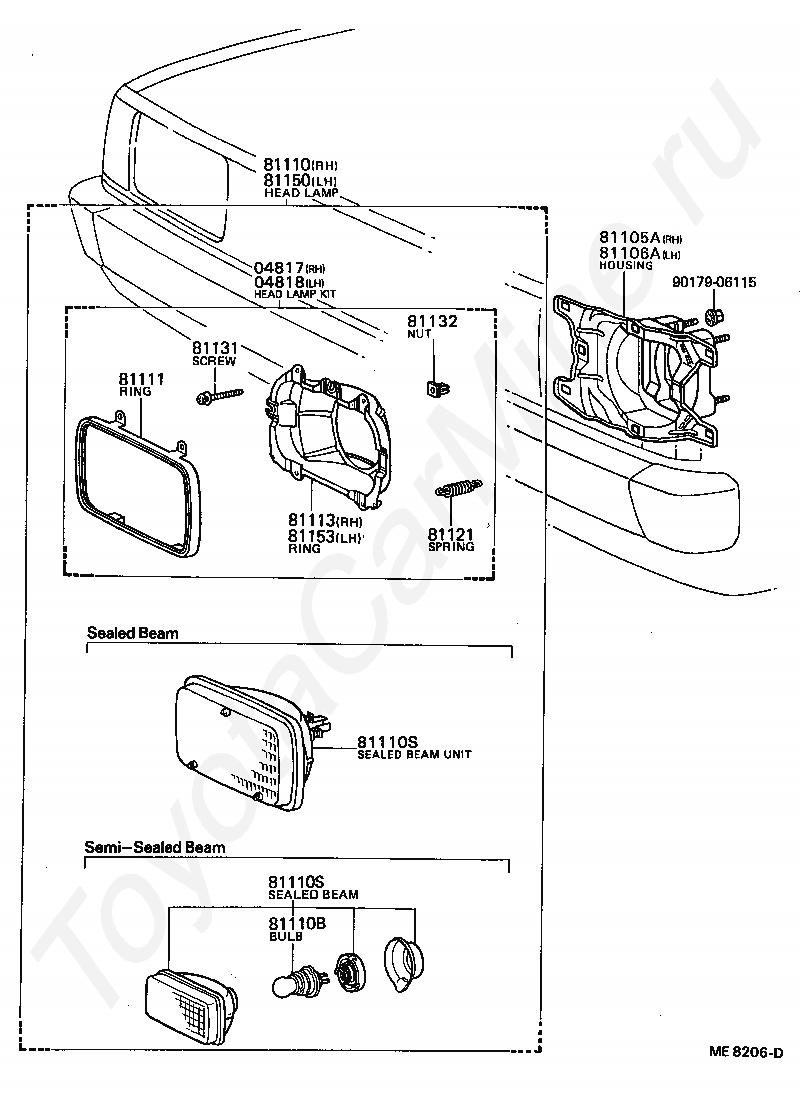

Фары TOYOTA COROLLA

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81105A

BRACKET SUB-ASSY, HEADLAMP, RH

81106A

BRACKET SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111

RING, SEALED BEAM RETAINING

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81132

NUT, HEADLAMP SELF LOCKING

81150

HEADLAMP ASSY, LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9017906115

Крепеж

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81105A

BRACKET SUB-ASSY, HEADLAMP, RH

81106A

BRACKET SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111

RING, SEALED BEAM RETAINING

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81132

NUT, HEADLAMP SELF LOCKING

81150

HEADLAMP ASSY, LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9017906115

Крепеж

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81115A

BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

81116A

BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

81117

PACKING, HEADLAMP HOUSING

81138

SPRING, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81146

LENS, HEADLAMP, RH

81150

HEADLAMP ASSY, LH

81186

LENS, HEADLAMP, LH

9017906115

Крепеж
