Стартер TOYOTA COROLLA

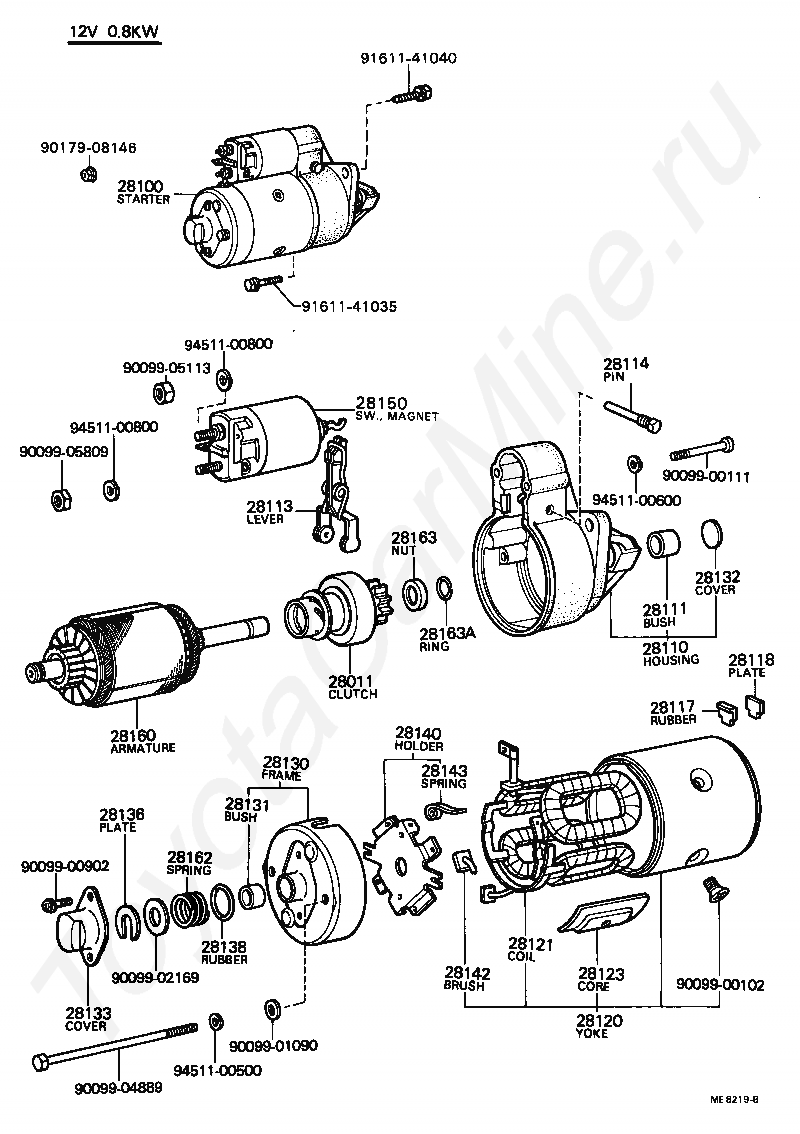

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28114

PIN, STARTER DRIVE LEVER SET

28117

RUBBER(FOR STARTER YOKE)

28118

PLATE(FOR STARTER YOKE)

28120

YOKE ASSY, STARTER

28121

COIL, STARTER FIELD

28123

CORE, STARTER POLE

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28142

BRUSH, STARTER

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

9009900102

Крепеж

9009900111

Крепеж

9009900902

Крепеж

9009901090

Крепеж

9009902169

Крепеж

9009904889

Крепеж

9009905113

Крепеж

9009905809

Крепеж

9017908146

Крепеж

9161141035

Крепеж

9161141040

Крепеж

9451100500

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9451100800

Крепеж

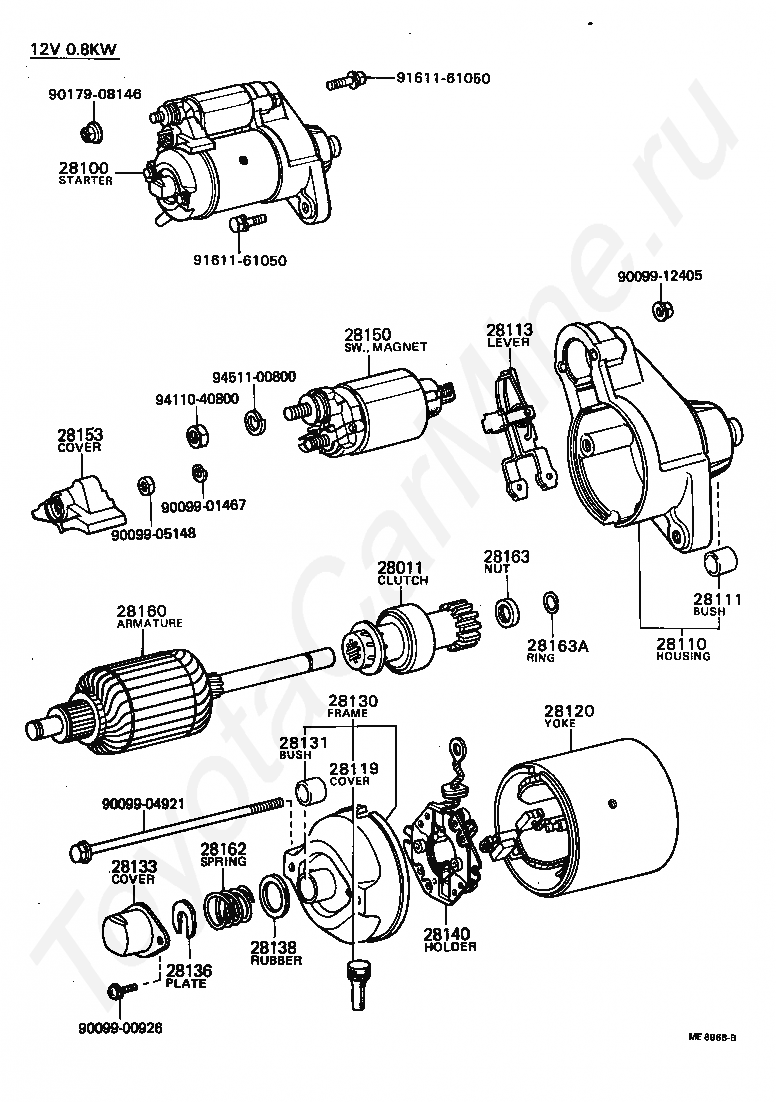

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28153

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

9009900926

Крепеж

9009901467

Крепеж

9009904921

Крепеж

9009905148

Крепеж

9009912405

Крепеж

9017908146

Крепеж

9161161050

Крепеж

9161161050

Крепеж

9411040800

Крепеж

9451100800

Крепеж

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28153

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

9009900926

Крепеж

9009901467

Крепеж

9009904921

Крепеж

9009905148

Крепеж

9009912405

Крепеж

9017908146

Крепеж

9161161050

Крепеж

9161161050

Крепеж

9411040800

Крепеж

9451100800

Крепеж

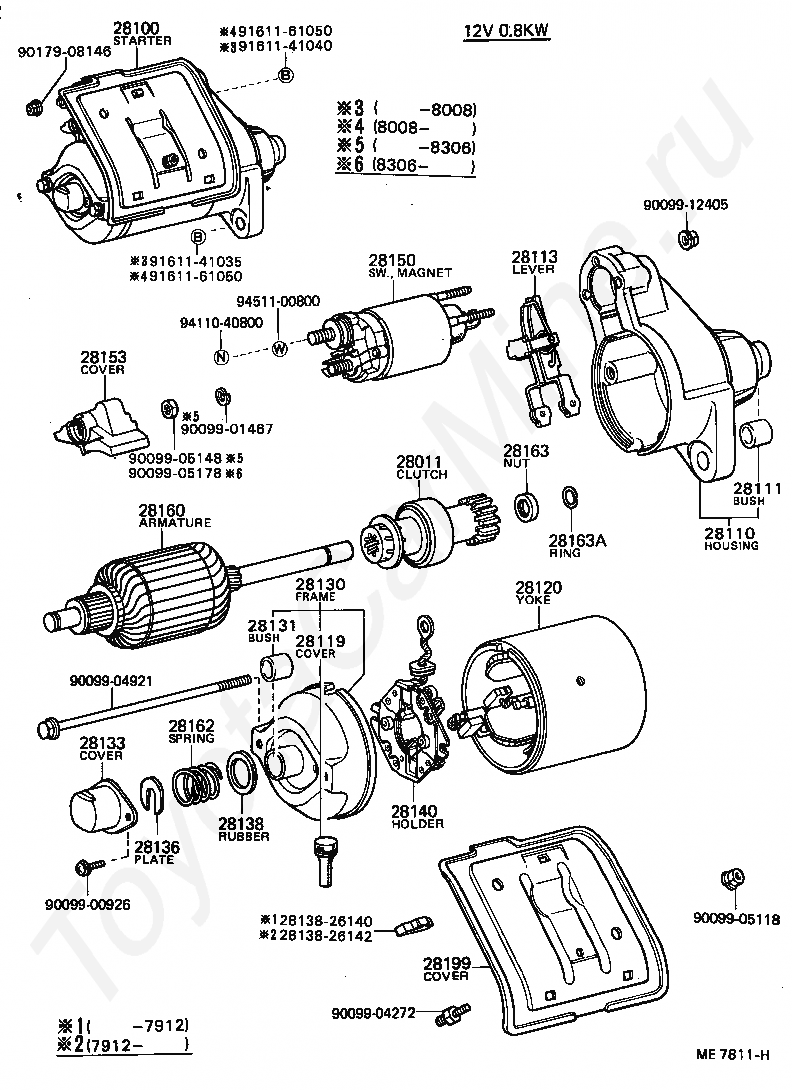

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

2813826140

Крепеж

2813826142

Крепеж

28140

HOLDER ASSY, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28153

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

28199

COVER, STARTER

9009900926

Крепеж

9009901467

Крепеж

9009904272

Крепеж

9009904921

Крепеж

9009905118

Крепеж

9009905148

Крепеж

9009905178

Крепеж

9009912405

Крепеж

9017908146

Крепеж

9161141035

Крепеж

9161141040

Крепеж

9161161050

Крепеж

9161161050

Крепеж

9411040800

Крепеж

9451100800

Крепеж
