Ближний Восток

Модель

COROLLA/TRUENO

VIN

Дата

1977/01

Двигатель

1,6 литра

Кузов

POUNDS

Класс

DELUX SPECIFICATION

Фрейм

TE51

КПП

механика МКПП, 4 ступени

Опции

правый руль T40 TYPE TRANSMISSION (4 SPEED) 2 двери EUR EUG

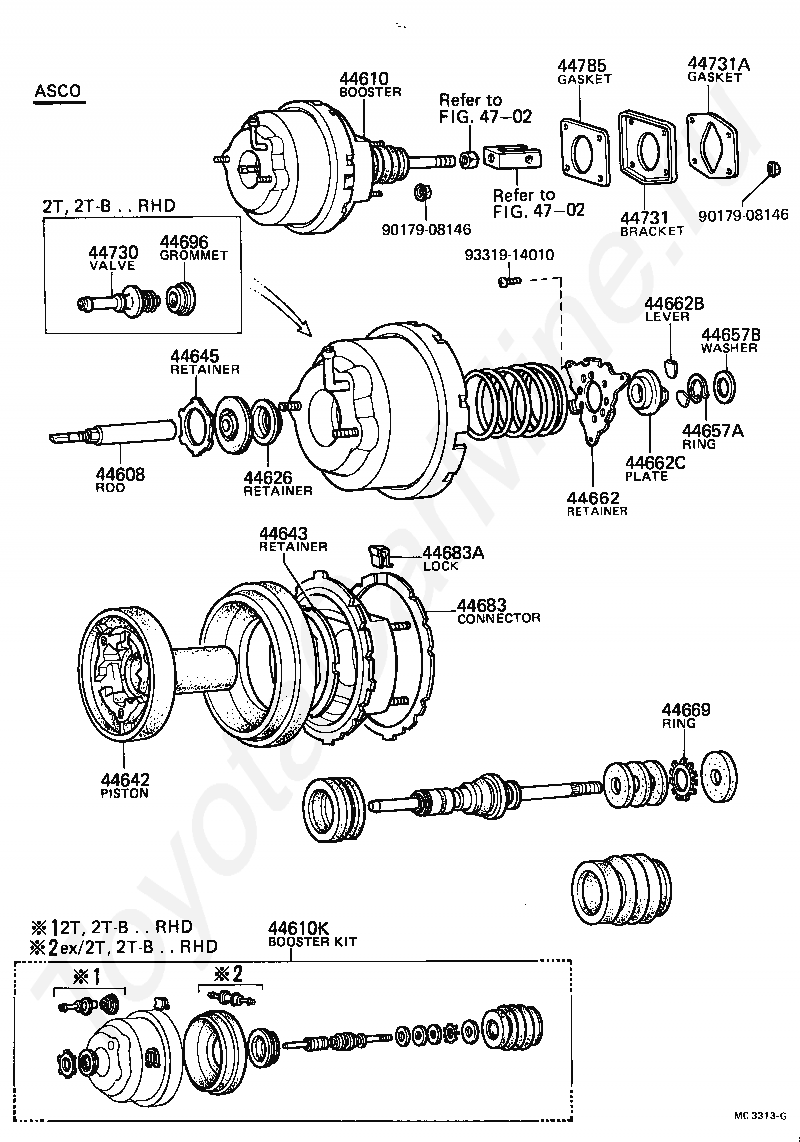

Вакуумный тормозной цилиндр TOYOTA COROLLA/TRUENO

Код

Описание

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44785

GASKET, BRAKE BOOSTER

4702

переход к группе запчастей

4702

переход к группе запчастей

9017908146

Крепеж

9017908146

Крепеж

9331914010

Крепеж

Код

Описание

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44785

GASKET, BRAKE BOOSTER

4702

переход к группе запчастей

4702

переход к группе запчастей

9017908146

Крепеж

9017908146

Крепеж

Код

Описание

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730E

CLAMP, VACUUM CHECK VALVE

44730E

CLAMP, VACUUM CHECK VALVE

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44773

HOSE, VACUUM, NO.2

44773

HOSE, VACUUM, NO.2

44773A

CLIP, NO.1(FOR VACUUM HOSE, NO.2)

44773A

CLIP, NO.1(FOR VACUUM HOSE, NO.2)

44773B

CLIP, NO.2(FOR VACUUM HOSE, NO.2)

44773B

CLIP, NO.2(FOR VACUUM HOSE, NO.2)

44781

BRACKET, HOSE

9165640616

Крепеж
