Каталог

Америка

Модель

COROLLA SED/LB

VIN

Дата

1984/08

Двигатель

1,6 литра

Кузов

POUNDS

Класс

LE TYPE

Фрейм

AE82

КПП

автомат АКПП, 4 ступени

Опции

Канада

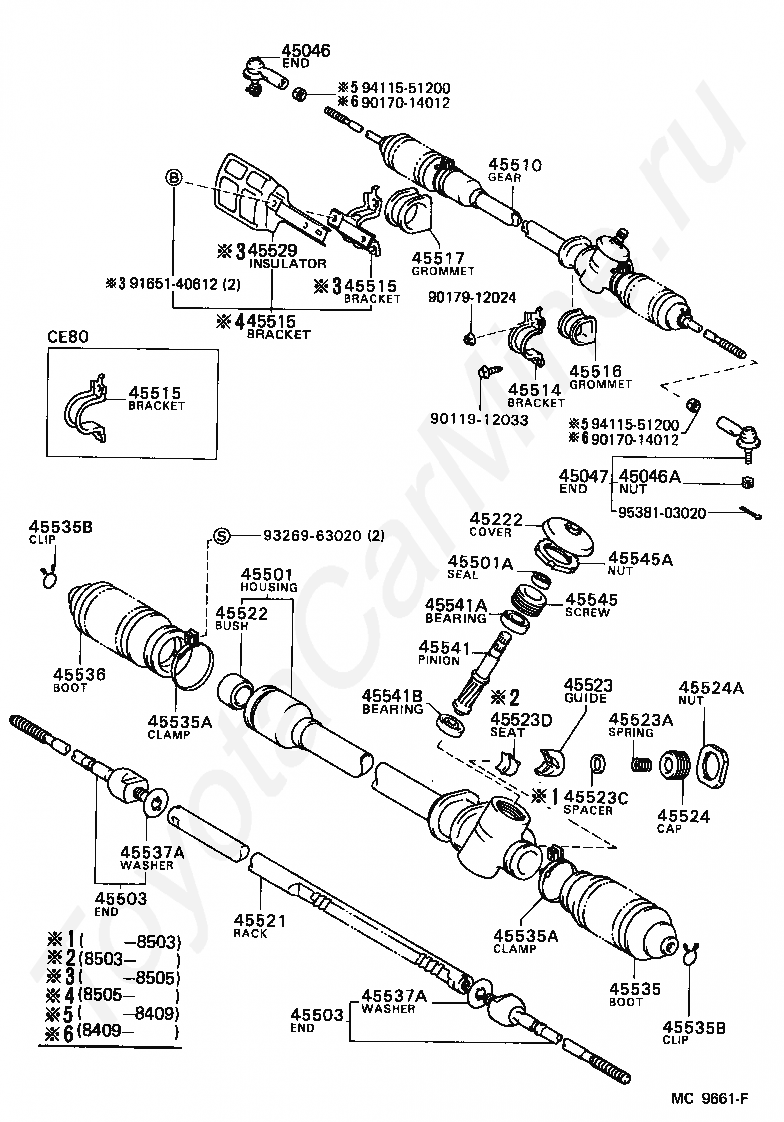

Рулевая рейка и наконечники TOYOTA COROLLA SED/LB







Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45222

COVER, STEERING GEAR DUST

45501

HOUSING SUB-ASSY, STEERING RACK

45501A

SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

45503

END SUB-ASSY, STEERING RACK

45503

END SUB-ASSY, STEERING RACK

45510

GEAR ASSY, STEERING

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45515

BRACKET, STEERING RACK HOUSING, NO.2

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

45521

RACK, STEERING

45522

BUSH, STEERING RACK

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45523C

SPACER(FOR RACK GUIDE)

45523D

SEAT, RACK GUIDE

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45529

INSULATOR, STEERING RACK BOOT HEAT

45535

BOOT, STEERING RACK, NO.1

45535A

CLAMP(FOR STEERING RACK BOOT)

45535A

CLAMP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45536

BOOT, STEERING RACK, NO.2

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45541

PINION, STEERING

45541A

BEARING, RADIAL BALL(FOR STEERING PINION UPPER)

45541B

BEARING, RADIAL BALL(FOR STEERING PINION LOWER)

45545

SCREW, PINION BEARING ADJUSTING

45545A

NUT(FOR PINION BEARING ADJUSTING SCREW)

9011912033

Крепеж

9017014012

Крепеж

9017014012

Крепеж

9017912024

Крепеж

9165140612

Крепеж

9326963020

Крепеж

9411551200

Крепеж

9411551200

Крепеж

9538103020

Крепеж

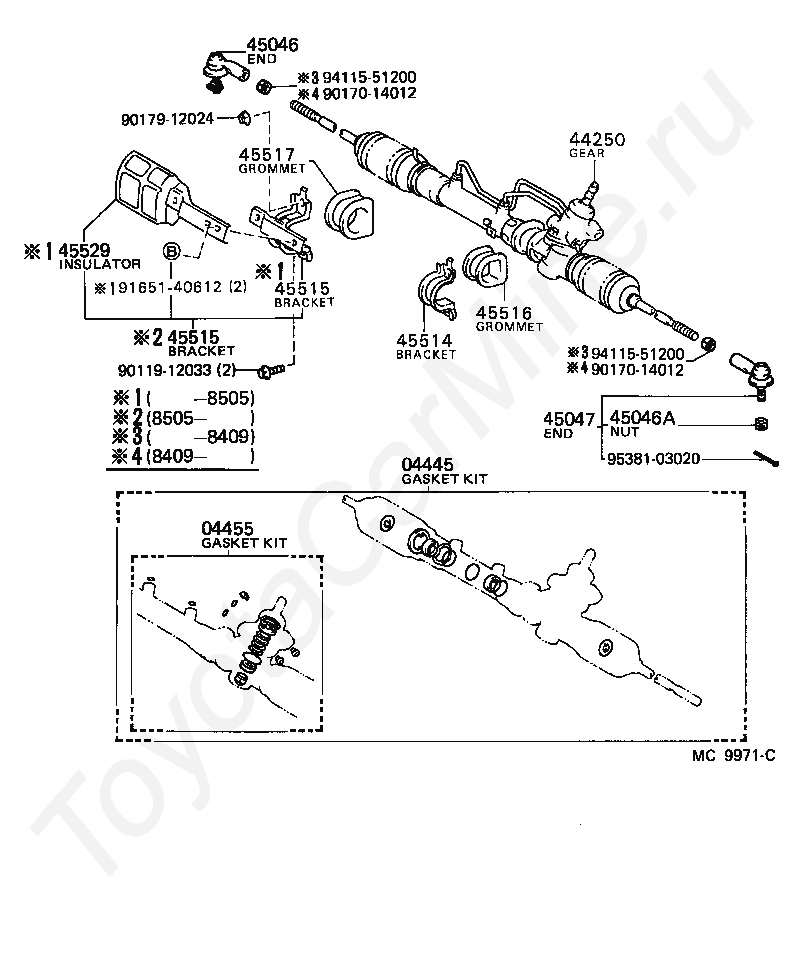

Код

Описание

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

45529

INSULATOR, STEERING RACK BOOT HEAT

9011912033

Крепеж

9017014012

Крепеж

9017014012

Крепеж

9017912024

Крепеж

9165140612

Крепеж

9411551200

Крепеж

9411551200

Крепеж

9538103020

Крепеж

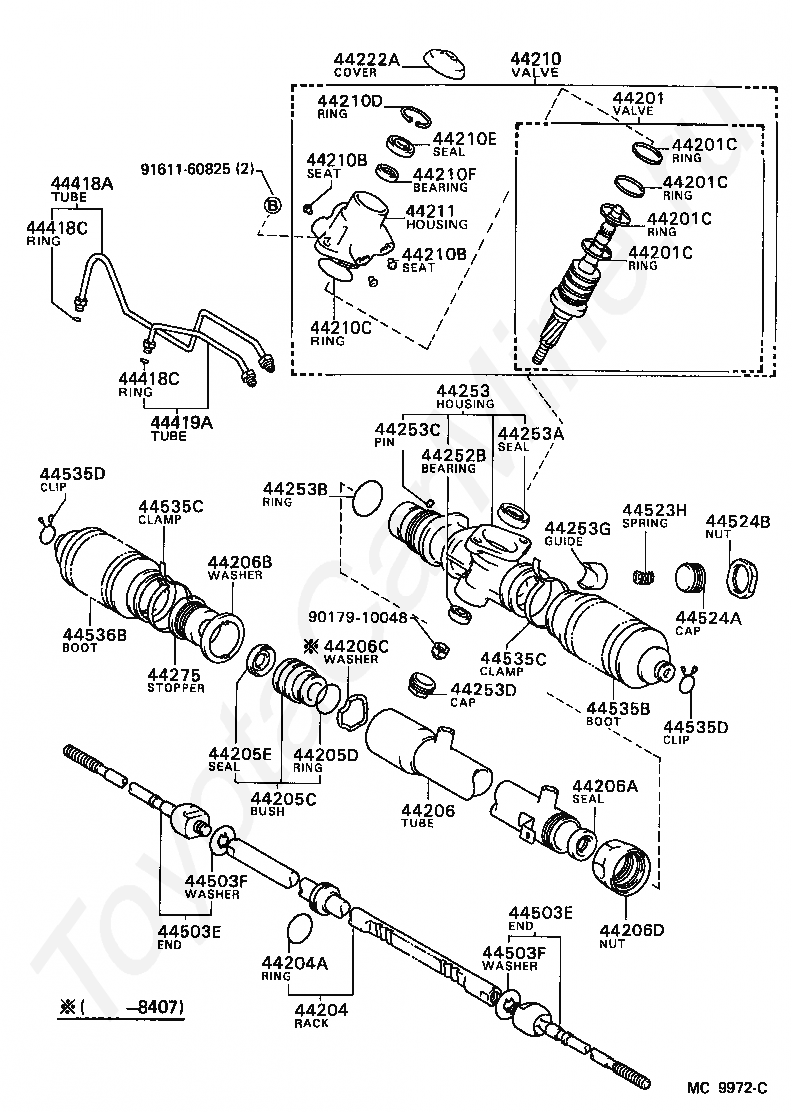

Код

Описание

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44205C

BUSH SUB-ASSY, POWER STEERING RACK

44205D

RING, O(FOR POWER STEERING RACK BUSH)

44205E

SEAL, OIL(FOR POWER STEERING RACK BUSH)

44206

TUBE SUB-ASSY, POWER STEERING CYLINDER

44206A

SEAL, OIL(FOR POWER STEERING CYLINDER)

44206B

WASHER, CLAW(FOR POWER STEERING CYLINDER)

44206C

WASHER, WAVE(FOR POWER STEERING CYLINDER)

44206D

NUT(FOR POWER STEERING CYLINDER SET)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44210D

RING, HOLE SNAP(FOR POWER STEERING CONTROL VALVE)

44210E

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44210F

BEARING(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44222A

COVER, DUST(FOR POWER STEERING GEAR)

44252B

BEARING(FOR POWER STEERING PINION)

44253

HOUSING, POWER STEERING RACK

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44253B

RING, O(FOR POWER STEERING RACK HOUSING)

44253C

PIN(FOR POWER STEERING RACK HOUSING)

44253D

CAP, POWER STEERING RACK HOUSING

44253G

SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING)

44275

STOPPER, CYLINDER END

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418C

RING, O(FOR STEERING TURN PRESSURE TUBE)

44418C

RING, O(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

44503E

END SUB-ASSY, STEERING RACK(FOR POWER STEERING)

44503E

END SUB-ASSY, STEERING RACK(FOR POWER STEERING)

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44523H

SPRING(FOR POWER STEERING RACK GUIDE)

44524A

CAP, RACK GUIDE SPRING(FOR POWER STEERING)

44524B

NUT(FOR POWER STEERING RACK GUIDE CAP)

44535B

BOOT, STEERING RACK NO.1(FOR POWER STEERING)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

44536B

BOOT, STEERING RACK NO.2(FOR POWER STEERING)

9017910048

Крепеж

9161160825

Крепеж
