Америка

Модель

COROLLA SED/LB

VIN

Дата

1984/08

Двигатель

1,6 литра

Кузов

POUNDS

Класс

LE TYPE

Фрейм

AE82

КПП

автомат АКПП, 4 ступени

Опции

Канада

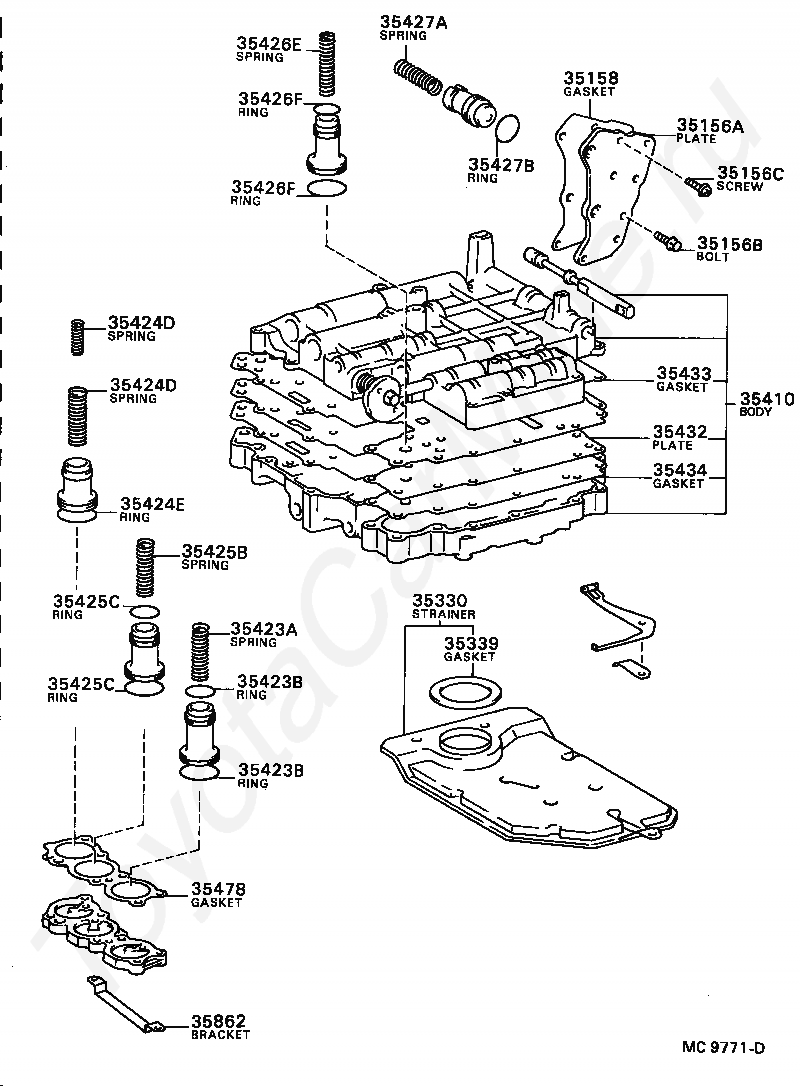

VALVE BODY & OIL STRAINER (ATM) TOYOTA COROLLA SED/LB

Код

Описание

35156A

PLATE, TRANSMISSION CASE, NO.2

35156B

BOLT(FOR TRANSMISSION CASE NO.2 PLATE)

35156C

SCREW(FOR TRANSMISSION CASE NO.2 PLATE)

35158

GASKET, TRANSMISSION CASE, NO.2 PLATE

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35410

BODY ASSY, TRANSMISSION VALVE

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35427A

SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)

35427B

RING, O (FOR B-4 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35478

GASKET, ACCUMULATOR COVER

35862

BRACKET, ACCUMULATOR APPLY TUBE

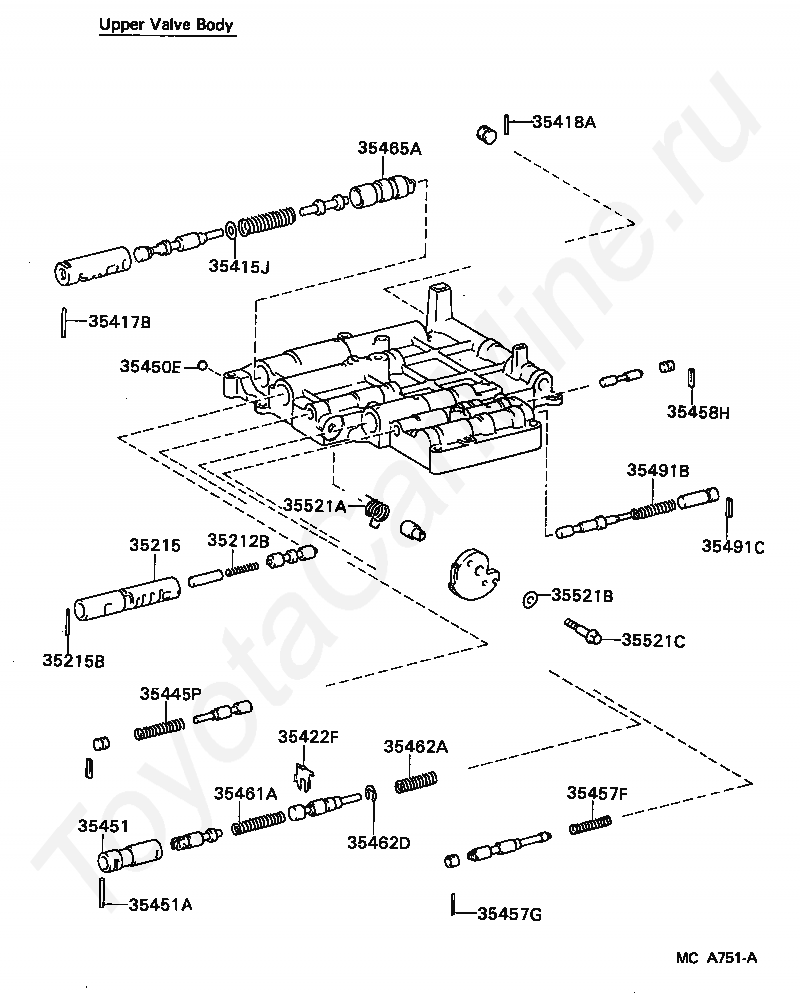

Код

Описание

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35215

SLEEVE, LOCK UP RELAY VALVE

35215B

PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35417B

PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE)

35418A

PIN, STRAIGHT (FOR MANUAL VALVE)

35422F

STOPPER, VALVE VIBRATING

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35450E

BALL (FOR UPPER VALVE BODY)

35451

SLEEVE, THROTTLE VALVE

35451A

PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)

35457F

SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE)

35457G

PIN, STRAIGHT (FOR THROTTLE MODULATOR VALVE)

35458H

KEY, STRAIGHT (FOR CUT BACK VALVE)

35461A

SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462D

RING, E (FOR THROTTLE VALVE)

35465A

SLEEVE, PRIMARY REGULATOR VALVE PLUNGER

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35521C

BOLT (FOR THROTTLE VALVE CAM SET)

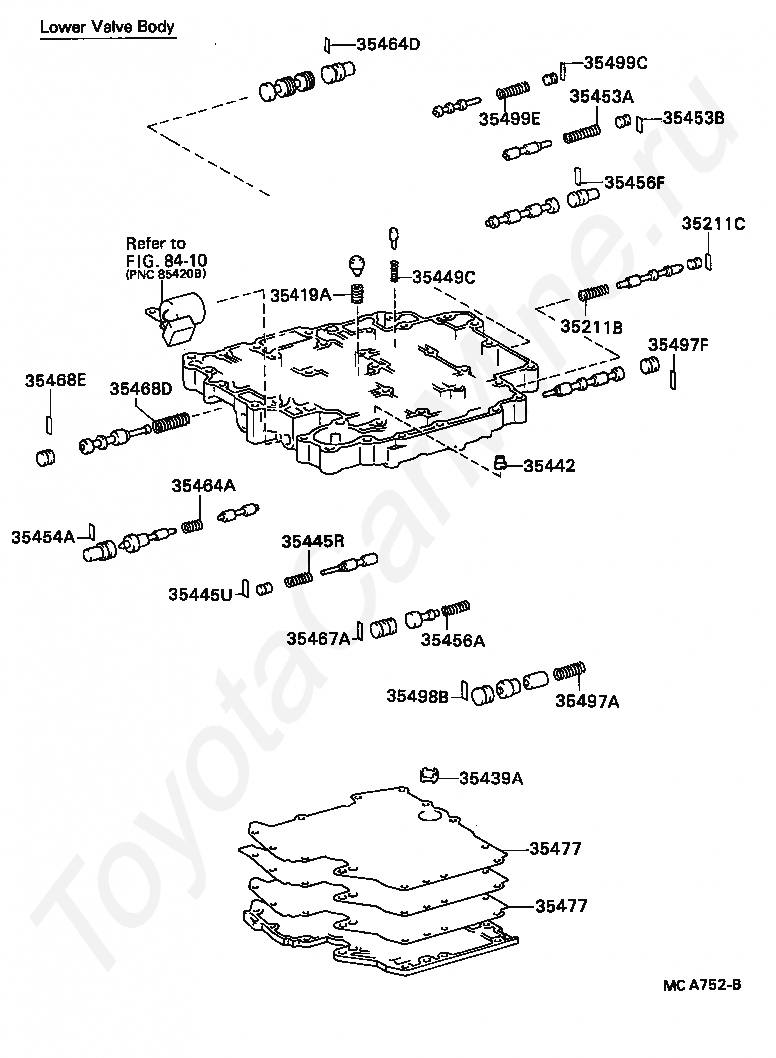

Код

Описание

35211B

SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)

35211C

KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35439A

STRAINER, LINE PRESSURE OIL

35442

STRAINER, THROTTLE MODULATOR OIL

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445U

KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE)

35449C

SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)

35453A

SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

35453B

KEY, STRAIGHT (FOR DETENT REGULATOR VALVE)

35454A

KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE)

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464D

KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)

35467A

KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE)

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35477

GASKET, VALVE BODY COVER

35477

GASKET, VALVE BODY COVER

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497F

KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)

35498B

KEY, STRAIGHT (FOR 3-4 COAST SHIFT VALVE)

35499C

KEY, STRAIGHT (FOR OVERDRIVE SEQUENCE VALVE)

35499E

SPRING, COMPRESSION (FOR OVERDRIVE SEQUENCE VALVE)

8410

переход к группе запчастей

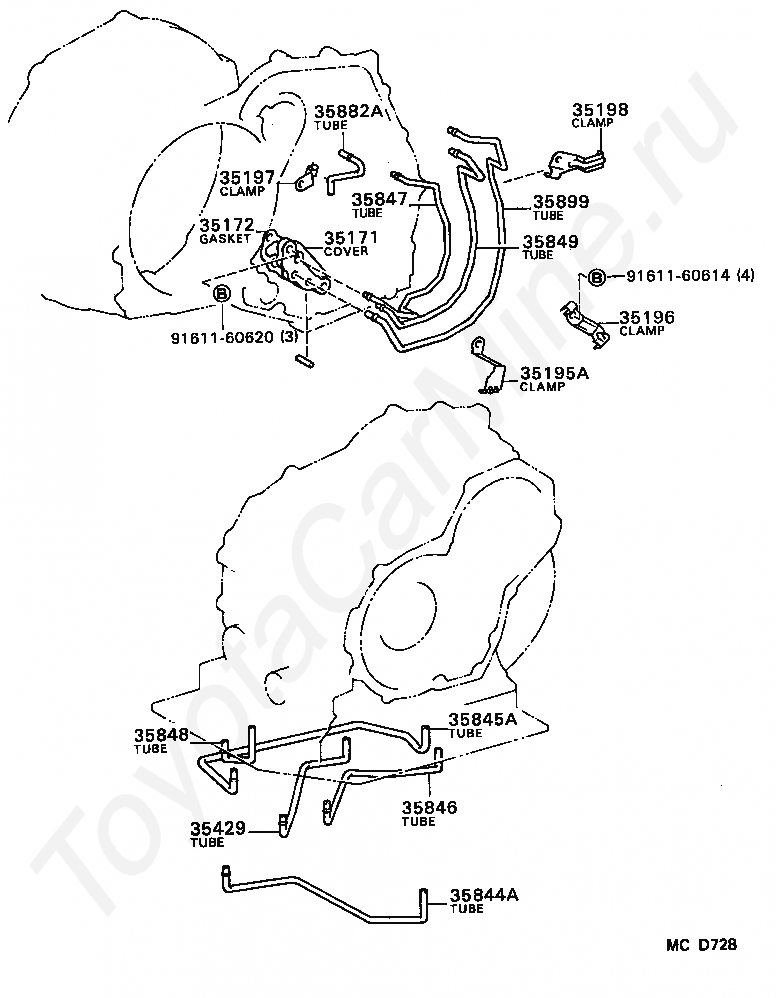

Код

Описание

35171

COVER, TRANSAXLE HOUSING

35172

GASKET, TRANSAXLE HOUSING COVER

35195A

CLAMP, TRANSAXLE APPLY TUBE, NO.1

35196

CLAMP, TRANSAXLE APPLY TUBE, NO.2

35197

CLAMP, TRANSAXLE APPLY TUBE, NO.3

35198

CLAMP, TRANSAXLE APPLY TUBE, NO.4

35429

TUBE, LINE PRESSURE

35844A

TUBE, ACCUMULATOR BACK PRESSURE, NO.1

35845A

TUBE, DIRECT CLUTCH ACCUMULATOR

35846

TUBE, BRAKE ACCUMULATOR

35847

TUBE, TRANSMISSION LUBE APPLY

35848

TUBE, FORWARD CLUTCH ACCUMULATOR

35849

TUBE, GOVERNOR APPLY

35882A

TUBE, DIFFERENTIAL GEAR LUBE APPLY

35899

TUBE, GOVERNOR PRESSURE

9161160614

Крепеж

9161160620

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA COROLLA SED/LB
