Япония

Модель

COROLLA SPACIO

VIN

Дата

2001/05

Двигатель

1,8 литра, 16 клапанов DOHC, EFI

Класс

X TYPE

Фрейм

ZZE122

Опции

7-местный

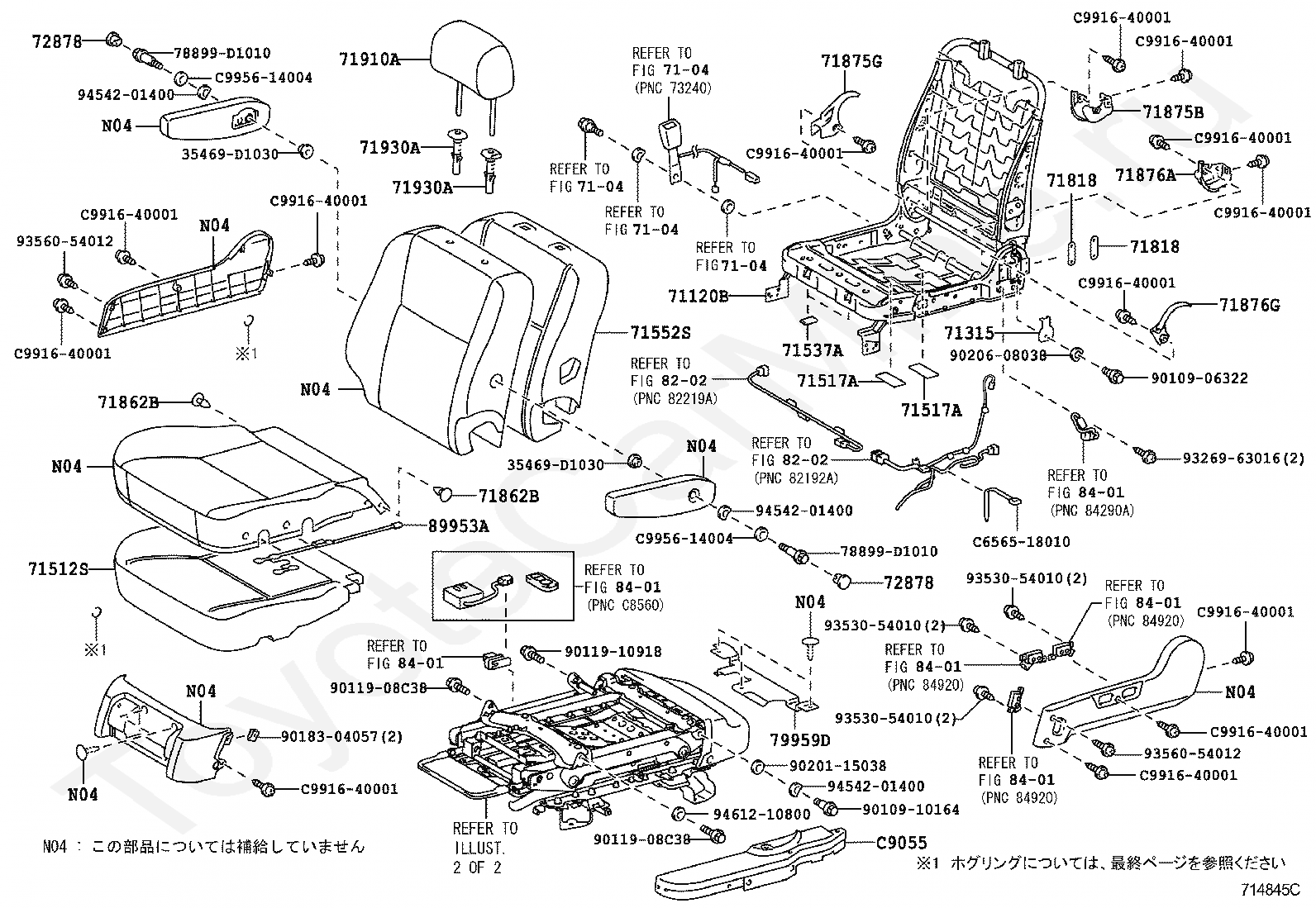

Передние кресла TOYOTA COROLLA SPACIO

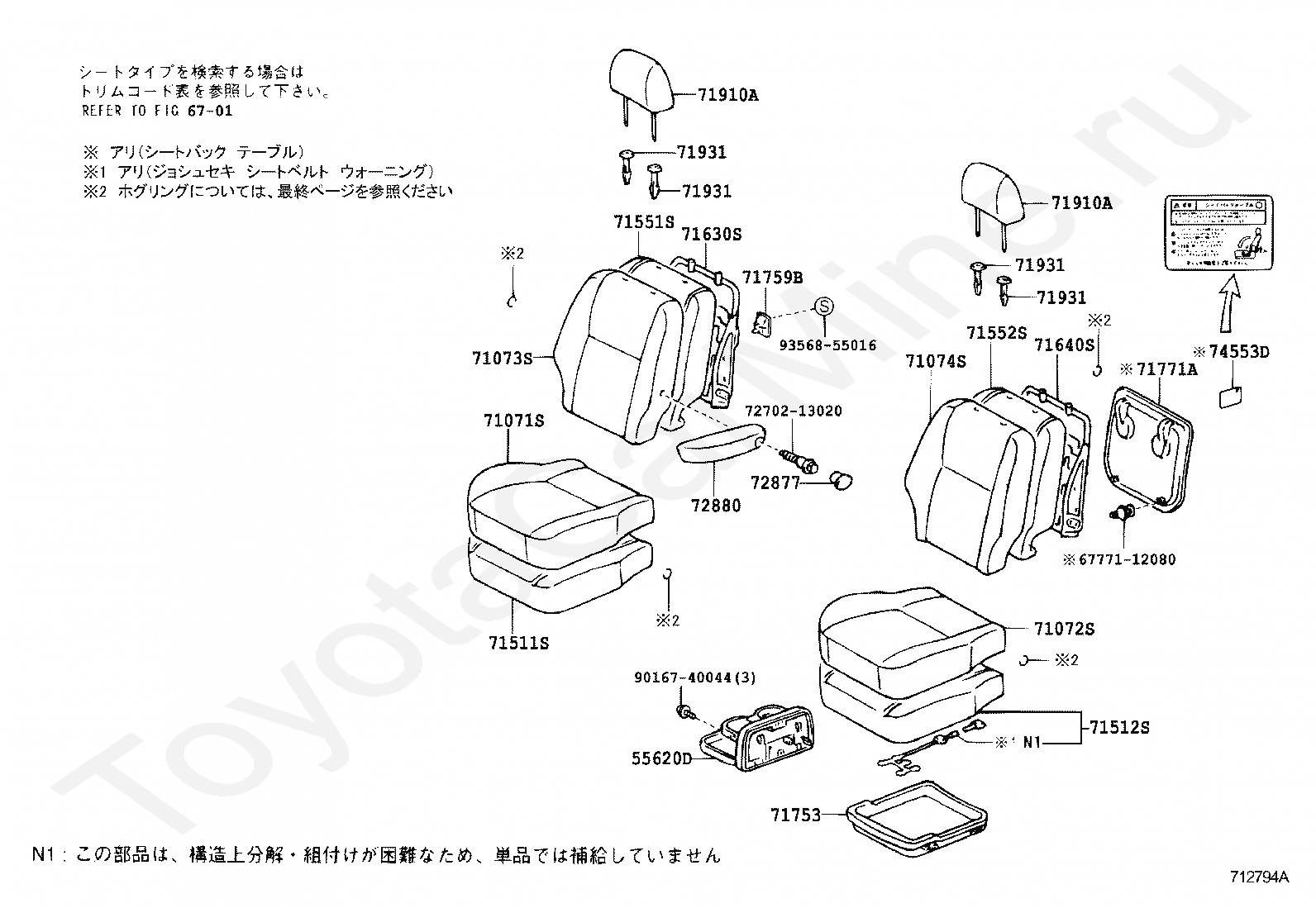

Код

Описание

55620D

HOLDER ASSY, FRONT SEAT CUP

6777112080

Крепеж

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71122

BRACKET, FRONT SEAT CUSHION, LH

71122

BRACKET, FRONT SEAT CUSHION, LH

71200S

SEAT ASSY, FRONT LH

71430C

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71771A

BOARD, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72138B

COVER, SEAT TRACK, LH

72138B

COVER, SEAT TRACK, LH

7270213020

Крепеж

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

74553D

LABEL, FRONT SEAT CAUTION

9011908946

Крепеж

9016740044

Крепеж

9046707042C0

Крепеж

9046707042C0

Крепеж

9046707166

Крепеж

9356855016

Крепеж

C7545

PAD, FOLD SEAT CUSHION

Код

Описание

55620D

HOLDER ASSY, FRONT SEAT CUP

6701

переход к группе запчастей

6777112080

Крепеж

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71771A

BOARD, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

7270213020

Крепеж

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

74553D

LABEL, FRONT SEAT CAUTION

9016740044

Крепеж

9356855016

Крепеж

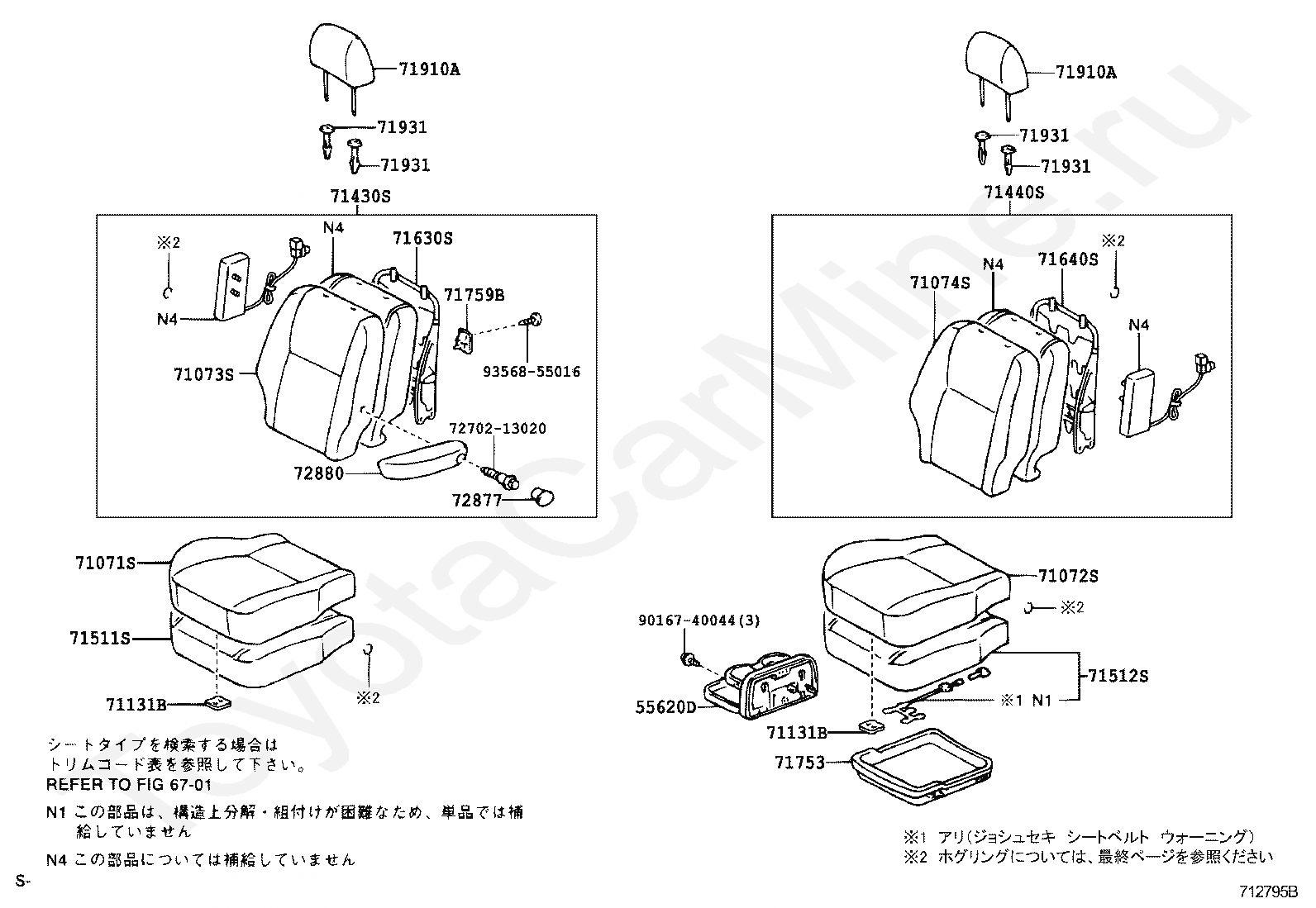

Код

Описание

55620D

HOLDER ASSY, FRONT SEAT CUP

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

7270213020

Крепеж

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

9016740044

Крепеж

9356855016

Крепеж

Код

Описание

71537A

PROTECTOR, FRONT SEAT CUSHION

71537A

PROTECTOR, FRONT SEAT CUSHION

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9151581025

Крепеж

9151581025

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72125A

COVER, SEAT TRACK, UPPER REAR

72137B

COVER, SEAT TRACK, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9052001006

Крепеж

9151581025

Крепеж

Код

Описание

71812D

SHIELD, FRONT SEAT CUSHION, LH

71813A

SHIELD, FRONT SEAT BACK, RH

71814A

SHIELD, FRONT SEAT BACK, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72138B

COVER, SEAT TRACK, LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9151581025

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72505B

LOCK SUB-ASSY, FRONT SEAT BACK, RH

72506D

LOCK SUB-ASSY, FRONT SEAT BACK, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72529

ROD, FRONT SEAT BACK LOCK HANDLE

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9616000600

Крепеж

Код

Описание

58141D

REINFORCE, FLOOR SIDE MEMBER TO FLOOR PAN

62371C

CATCH, LOCK

64080

ARM ASSY, POWER LIFT

64090

BELT ASSY, WHEEL CHAIR

64099

BASE SUB-ASSY, POWER LIFT ARM GUIDE

64099A

BASE SUB-ASSY, POWER LIFT ARM GUIDE

82295A

WIRE, WINCH EARTH

84810H

SWITCH ASSY, POWER WINDOW REGULATOR

9010908295

Крепеж

9011908946

Крепеж

9016350005

Крепеж

9017908233

Крепеж

91511B0845

Крепеж

9162140612

Крепеж

9324056014

Крепеж

9324056014

Крепеж

C7695

BELT, CHEST SUPPORT

C9535

PULLEY, POWER LIFT

C9537

SPRING, POWER LIFT RETURN

C9571

LEVER, POWER LIFT ARM LOCK

C9581

HANDLE, POWER LIFT LOCK

C9610

MOTOR ASSY, POWER LIFT

C9615

COVER, POWER LIFT MOTOR, NO.1

C9616

COVER, POWER LIFT MOTOR, NO.2

C9621

BASE, POWER LIFT MOTOR

C9721

BEARING, NO.2 WINCH

C9790

BELT ASSY, WINCH

C9924

PIN

C9938A

COLLAR

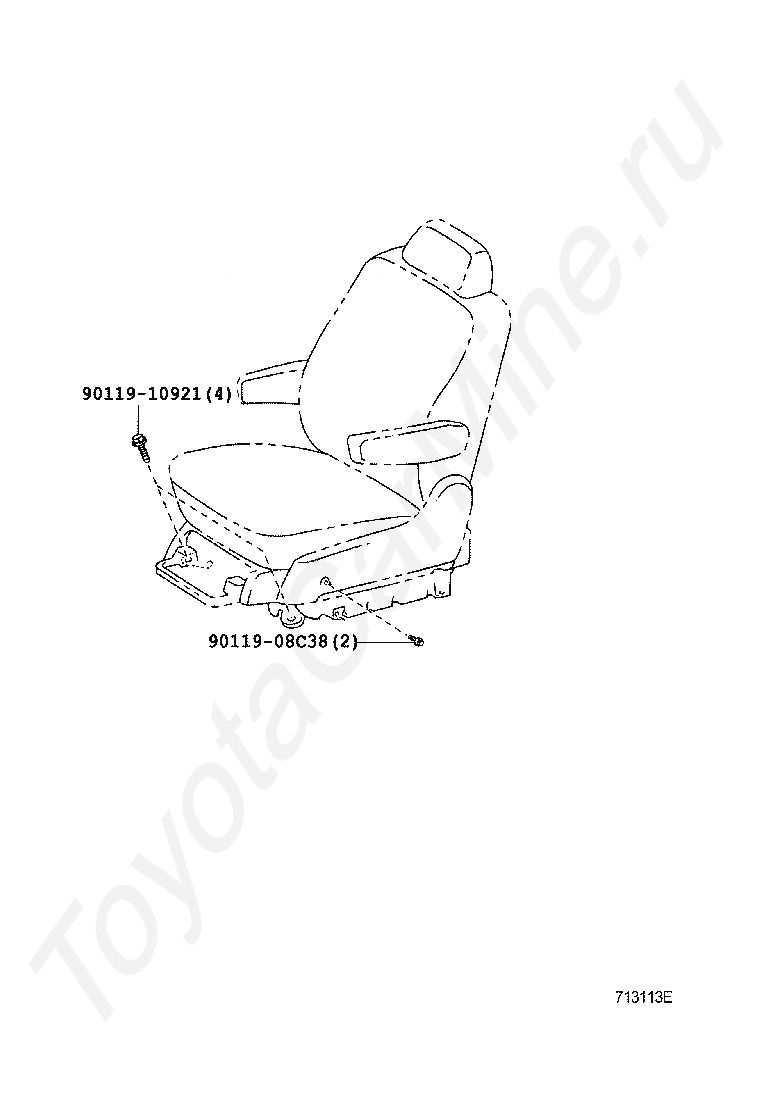

Код

Описание

9011908C38

Крепеж

9011910921

Крепеж

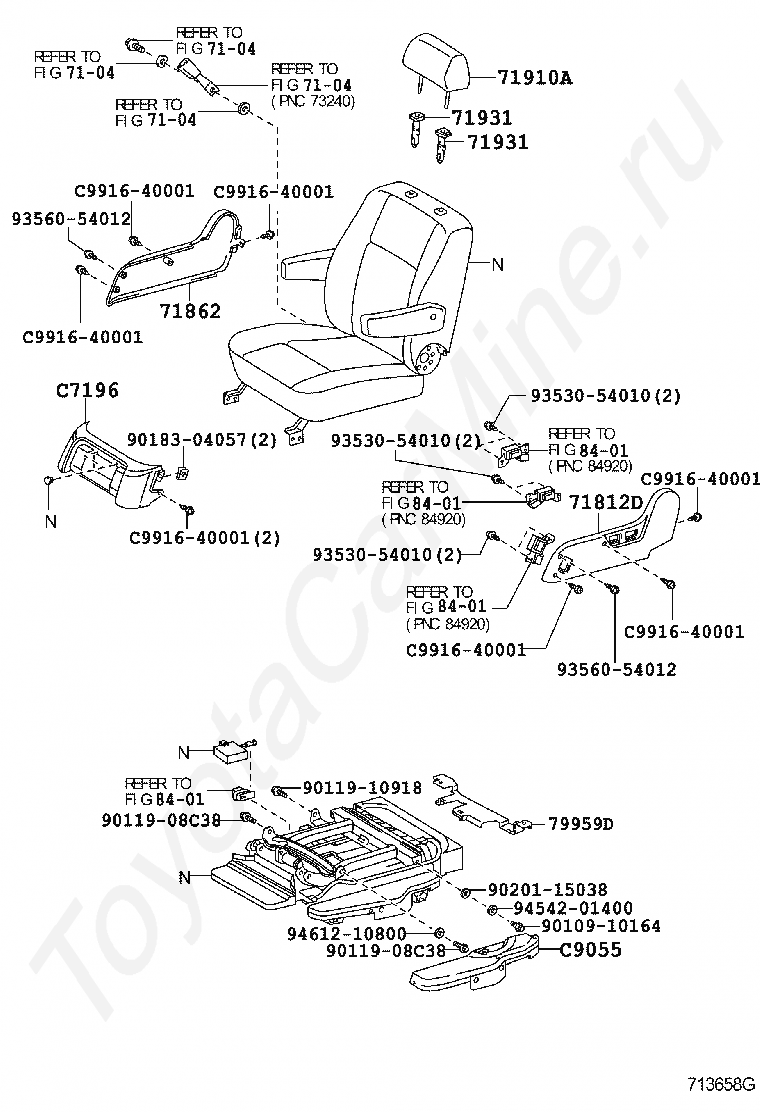

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

79959D

COVER, SEAT LEG

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010910164

Крепеж

9011908C38

Крепеж

9011908C38

Крепеж

9011910918

Крепеж

9018304057

Крепеж

9020115038

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9454201400

Крепеж

9461210800

Крепеж

C7196

COVER, TURN TABLE, NO.1

C9055

COVER SUB-ASSY, POWER LIFT, NO.1

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

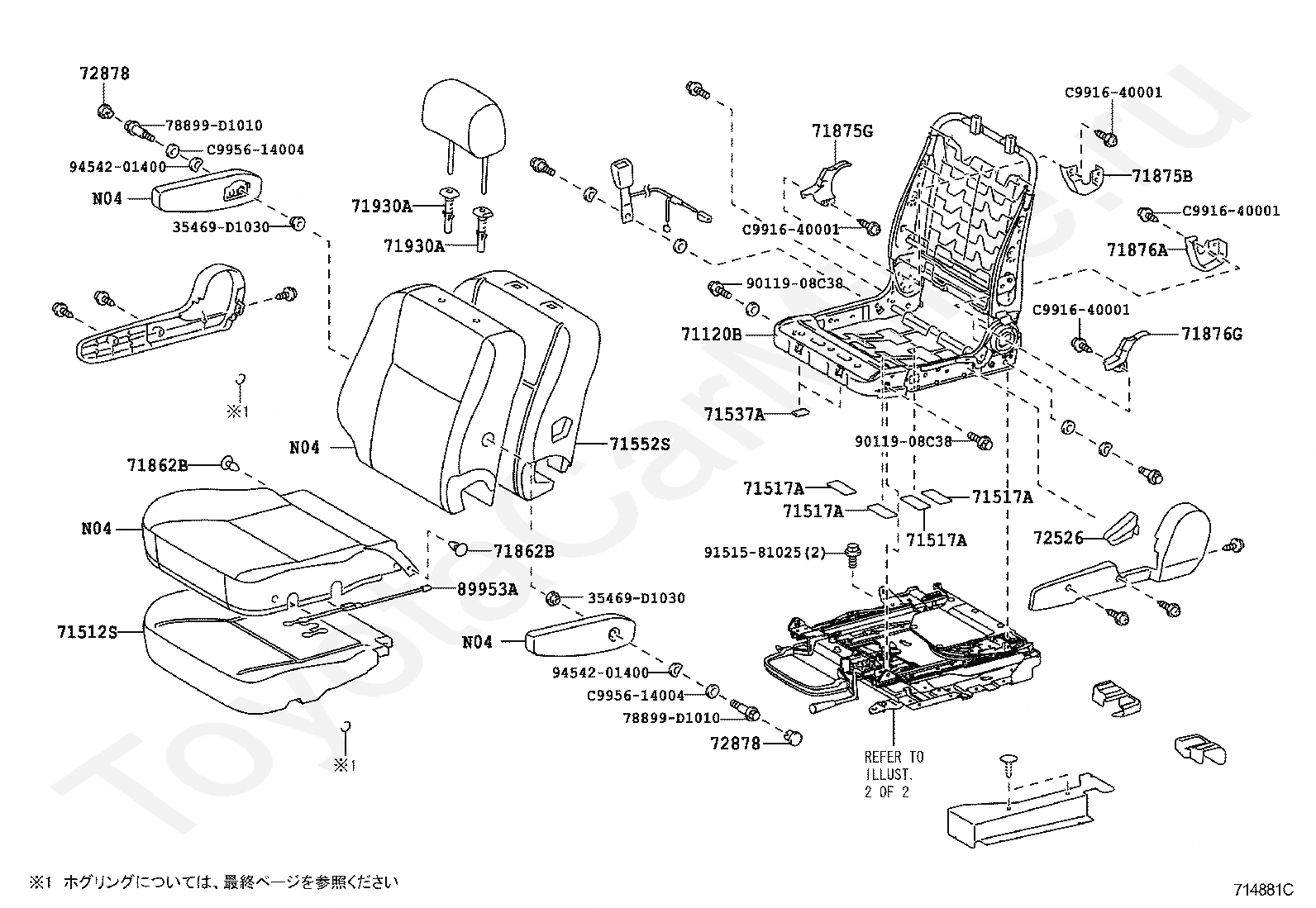

Код

Описание

35469D1030

Крепеж

35469D1030

Крепеж

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71315

PLATE, FRONT SEAT HINGE

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71517A

PAD, FRONT SEAT CUSHION COVER

71517A

PAD, FRONT SEAT CUSHION COVER

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71818

RETAINER, SEAT COVER FASTENER

71818

RETAINER, SEAT COVER FASTENER

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72878

COVER, SEAT ARMREST, LH

72878

COVER, SEAT ARMREST, LH

78899D1010

Крепеж

78899D1010

Крепеж

79959D

COVER, SEAT LEG

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

89953A

SENSOR, BELT WARNING OCCUPANT DETECTION

9010906322

Крепеж

9010910164

Крепеж

9011908C38

Крепеж

9011908C38

Крепеж

9011910918

Крепеж

9018304057

Крепеж

9020115038

Крепеж

9020608038

Крепеж

9326963016

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9461210800

Крепеж

C656518010

Крепеж

C9055

COVER SUB-ASSY, POWER LIFT, NO.1

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C995614004

Крепеж

C995614004

Крепеж

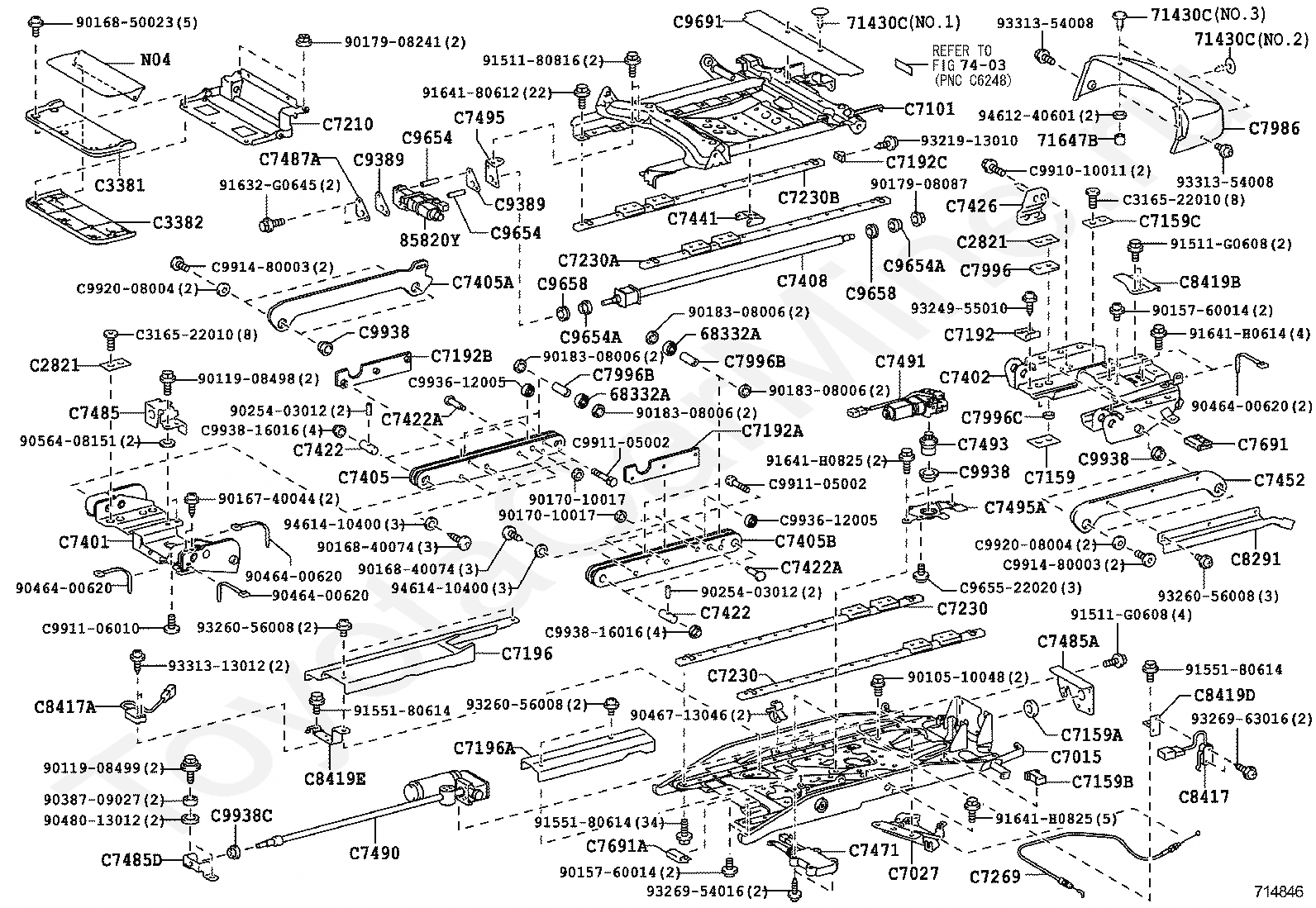

Код

Описание

68332A

ROLLER, SLIDE DOOR, LOWER

68332A

ROLLER, SLIDE DOOR, LOWER

71430C

CLIP

71430C

CLIP

71430C

CLIP

71647B

PROTECTOR, REAR SEAT CUSHION EDGE

7403

переход к группе запчастей

85820Y

MOTOR ASSY, POWER SEAT

9010510048

Крепеж

9011908498

Крепеж

9011908499

Крепеж

9015760014

Крепеж

9015760014

Крепеж

9016740044

Крепеж

9016840074

Крепеж

9016840074

Крепеж

9016850023

Крепеж

9017010017

Крепеж

9017010017

Крепеж

9017908087

Крепеж

9017908241

Крепеж

9018308006

Крепеж

9018308006

Крепеж

9018308006

Крепеж

9018308006

Крепеж

9025403012

Крепеж

9025403012

Крепеж

9038709027

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046713046

Крепеж

9048013012

Крепеж

9056408151

Крепеж

9151180816

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

91632G0645

Крепеж

9164180612

Крепеж

91641H0614

Крепеж

91641H0825

Крепеж

91641H0825

Крепеж

9321913010

Крепеж

9324955010

Крепеж

9326056008

Крепеж

9326056008

Крепеж

9326056008

Крепеж

9326954016

Крепеж

9326963016

Крепеж

9331313012

Крепеж

9331354008

Крепеж

9331354008

Крепеж

9461240601

Крепеж

9461410400

Крепеж

9461410400

Крепеж

C2821

SEAL, FRONT PANEL, NO.1

C2821

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C316522010

Крепеж

C3381

COVER, SLIDE STEP, NO.1

C3382

COVER, SLIDE STEP, NO.2

C7015

PANEL SUB-ASSY, TURN TABLE

C7027

LOCK SUB-ASSY, WELCAB SEAT TURN

C7101

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159B

CUSHION, WELCAB SEAT LEG STOPPER, NO.3

C7159C

CUSHION, WELCAB SEAT LEG STOPPER, NO.4

C7192

PLATE, SEAT HOLDER STOPPER, NO.1

C7192A

PLATE, SEAT HOLDER STOPPER, NO.2

C7192B

PLATE, SEAT HOLDER STOPPER, NO.3

C7192C

PLATE, SEAT HOLDER STOPPER, NO.4

C7196

COVER, TURN TABLE, NO.1

C7196A

COVER, TURN TABLE, NO.2

C7210

FOOTREST ASSY, WELCAB SEAT

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7230A

TRACK ASSY, WELCAB SEAT, NO.2

C7230B

TRACK ASSY, WELCAB SEAT, NO.3

C7269

CABLE, SEAT TURN LOCK RELEASE

C7401

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7405

ARM SUB-ASSY, WELCAB SEAT LINK, NO.1

C7405A

ARM SUB-ASSY, WELCAB SEAT LINK, NO.2

C7405B

ARM SUB-ASSY, WELCAB SEAT LINK, NO.3

C7408

ROD SUB-ASSY, WELCAB SEAT

C7422

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422A

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7422A

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7426

BRACKET, WELCAB SEAT GUIDE, NO.2

C7441

GUIDE, WELCAB SEAT CABLE

C7452

ARM, WELCAB SEAT LINK, NO.2

C7471

CONTROL, WELCAB SEAT LOCK

C7485

BRACKET, WELCAB SEAT ROD SUPPORT, NO.1

C7485A

BRACKET, WELCAB SEAT ROD SUPPORT, NO.2

C7485D

BRACKET, WELCAB SEAT ROD SUPPORT, NO.5

C7487A

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C7490

CYLINDER ASSY, WELCAB SEAT

C7491

MOTER, WELCAB SEAT

C7493

GEAR, WELCAB SEAT MOTOR

C7495

BRACKET, WELCAB SEAT MOTOR, NO.1

C7495A

BRACKET, WELCAB SEAT MOTOR, NO.2

C7691

CUSHION, SEAT FLAT, NO.1 RH

C7691A

CUSHION, SEAT FLAT, NO.2 RH

C7986

COVER, REAR SEAT TURN GUARD

C7996

SPACER, TURN SEAT, NO.1

C7996B

SPACER, TURN SEAT, NO.3

C7996B

SPACER, TURN SEAT, NO.3

C7996C

SPACER, TURN SEAT, NO.4

C8291

PROTECTOR, TECS WIRING HARNESS

C8417

SWITCH, LIMIT, NO.1

C8417A

SWITCH, LIMIT, NO.2

C8419B

BRACKET, LIMIT SWITCH

C8419D

BRACKET, LIMIT SWITCH, NO.1

C8419E

BRACKET, LIMIT SWITCH, NO.2

C9389

CUSHION, PLATFORM STOPPER

C9389

CUSHION, PLATFORM STOPPER

C9654

COLLAR, POWER LIFT CYLINDER

C9654

COLLAR, POWER LIFT CYLINDER

C9654A

COLLAR, POWER LIFT CYLINDER

C9654A

COLLAR, POWER LIFT CYLINDER

C965522020

Крепеж

C9658

PLATE, POWER LIFT CYLINDER ROD

C9658

PLATE, POWER LIFT CYLINDER ROD

C9691

COVER, POWER LIFT MOTOR

C991010011

Крепеж

C991105002

Крепеж

C991105002

Крепеж

C991106010

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C993612005

Крепеж

C993612005

Крепеж

C9938

BUSH

C9938

BUSH

C9938

BUSH

C993816016

Крепеж

C993816016

Крепеж

C9938C

BUSH

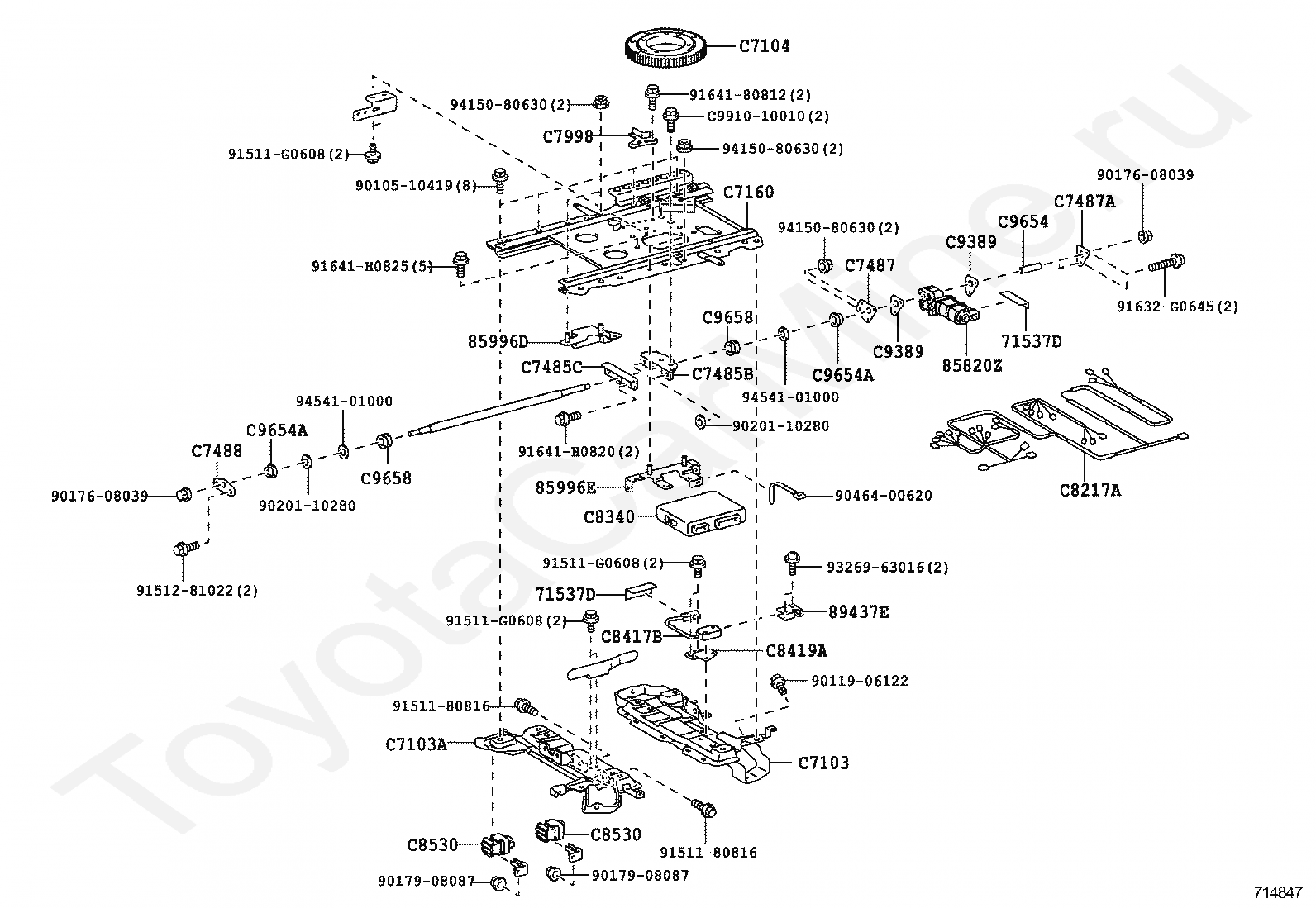

Код

Описание

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

85820Z

MOTOR ASSY, POWER SEAT

85996D

BRACKET, RELAY, NO.1

85996E

BRACKET, RELAY, NO.2

89437E

COVER, SENSOR

9010510419

Крепеж

9011906122

Крепеж

9017608039

Крепеж

9017608039

Крепеж

9017908087

Крепеж

9017908087

Крепеж

9020110280

Крепеж

9020110280

Крепеж

9046400620

Крепеж

9151180816

Крепеж

9151180816

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9151281022

Крепеж

91632G0645

Крепеж

9164180812

Крепеж

91641H0820

Крепеж

91641H0825

Крепеж

9326963016

Крепеж

9415080630

Крепеж

9415080630

Крепеж

9415080630

Крепеж

9454101000

Крепеж

9454101000

Крепеж

C7103

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7103A

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.2

C7104

PLATE SUB-ASSY, SEAT TURN

C7160

PANEL ASSY, SLIDE TABLE

C7485B

BRACKET, WELCAB SEAT ROD SUPPORT, NO.3

C7485C

BRACKET, WELCAB SEAT ROD SUPPORT, NO.4

C7487

PLATE, WELCAB SEAT ROD SUPPORT, NO.1

C7487A

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C7488

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C7998

PLATE, TURN SEAT LEG, LOWER

C8217A

WIRE, WELCAB SEAT MAIN

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417B

SWITCH, LIMIT, NO.3

C8419A

BRACKET, LIMIT SWITCH

C8530

RELAY ASSY, POWER LIFT MOTOR

C8530

RELAY ASSY, POWER LIFT MOTOR

C9389

CUSHION, PLATFORM STOPPER

C9389

CUSHION, PLATFORM STOPPER

C9654

COLLAR, POWER LIFT CYLINDER

C9654A

COLLAR, POWER LIFT CYLINDER

C9654A

COLLAR, POWER LIFT CYLINDER

C9658

PLATE, POWER LIFT CYLINDER ROD

C9658

PLATE, POWER LIFT CYLINDER ROD

C991010010

Крепеж

Код

Описание

35469D1030

Крепеж

35469D1030

Крепеж

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71517A

PAD, FRONT SEAT CUSHION COVER

71517A

PAD, FRONT SEAT CUSHION COVER

71517A

PAD, FRONT SEAT CUSHION COVER

71517A

PAD, FRONT SEAT CUSHION COVER

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72878

COVER, SEAT ARMREST, LH

72878

COVER, SEAT ARMREST, LH

78899D1010

Крепеж

78899D1010

Крепеж

89953A

SENSOR, BELT WARNING OCCUPANT DETECTION

9011908C38

Крепеж

9011908C38

Крепеж

9151581025

Крепеж

9454201400

Крепеж

9454201400

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C995614004

Крепеж

C995614004

Крепеж

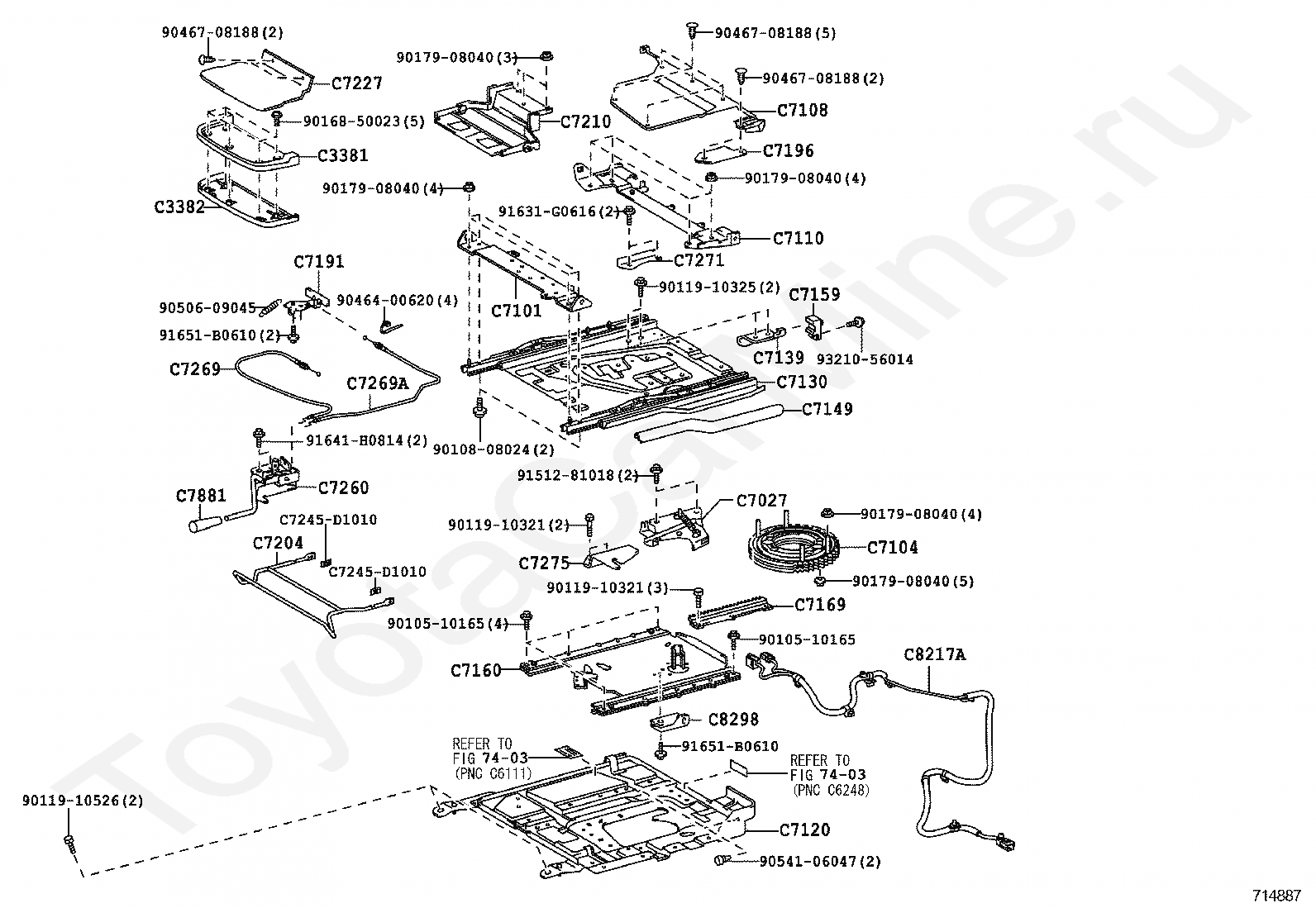

Код

Описание

7403

переход к группе запчастей

7403

переход к группе запчастей

9010510165

Крепеж

9010510165

Крепеж

9010808024

Крепеж

9011910321

Крепеж

9011910321

Крепеж

9011910325

Крепеж

9011910526

Крепеж

9016850023

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9046400620

Крепеж

9046708188

Крепеж

9046708188

Крепеж

9046708188

Крепеж

9050609045

Крепеж

9054106047

Крепеж

9151281018

Крепеж

91631G0616

Крепеж

91641H0814

Крепеж

91651B0610

Крепеж

91651B0610

Крепеж

9321056014

Крепеж

C3381

COVER, SLIDE STEP, NO.1

C3382

COVER, SLIDE STEP, NO.2

C7027

LOCK SUB-ASSY, WELCAB SEAT TURN

C7101

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7104

PLATE SUB-ASSY, SEAT TURN

C7108

COVER ASSY, TURN TABLE

C7110

BRACKET SUB-ASSY, SEAT HOLDER, REAR

C7120

LEG, WELCAB SEAT, NO.1

C7130

PANEL ASSY, TURN TABLE

C7139

BRACKET, HOOK

C7149

PROTECTOR, TURN TABLE PANEL EDGE, LH

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7160

PANEL ASSY, SLIDE TABLE

C7169

GEAR, SLIDE TABLE RACK

C7191

BRACKET, SEAT HOLDER LINK

C7196

COVER, TURN TABLE, NO.1

C7204

HANDLE SUB-ASSY, WELCAB SEAT TRACK

C7210

FOOTREST ASSY, WELCAB SEAT

C7227

CARPET, WELCAB SEAT FOOTREST STEP

C7245D1010

Крепеж

C7245D1010

Крепеж

C7260

HANDLE ASSY, SEAT TURN LOCK

C7269

CABLE, SEAT TURN LOCK RELEASE

C7269A

CABLE, SEAT TURN LOCK RELEASE, NO.1

C7271

BRACKET, INTERLOCK, UPPER

C7275

PLATE, LOCK STRIKER, NO.1

C7881

GRIP, CONTROL LINK

C8217A

WIRE, WELCAB SEAT MAIN

C8298

BRACKET, WELCAB SEAT HARNESS CLAMP

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти COROLLA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
