Каталог

Америка

Модель

COROLLA SED (JPP)

VIN

Дата

2020/04

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

ZWE213

КПП

вариатор

Опции

4 двери L TYPE Канада 837W

Реле и кнопки TOYOTA COROLLA SED (JPP)







Код

Описание

82715

BRACKET,WIRING HARNESS CLAMP

82715W

BRACKET, WIRING HARNESS CLAMP

82715Y

BRACKET, WIRING HARNESS CLAMP, NO.3

82715Z

BRACKET, WIRING HARNESS CLAMP

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89422A

SENSOR, WATER TEMPERATURE

89451A

SENSOR, SHIFT LEVER POSITION

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

9046814043

Крепеж

9046815007

Крепеж

9155180616

Крепеж

9155180825

Крепеж

9155180835

Крепеж

9155381014

Крепеж

9167380616

Крепеж

9167380616

Крепеж

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

8201

переход к группе запчастей

82620A

BLOCK ASSY, FUSIBLE LINK

82621A

COVER, FUSIBLE LINK

82671A

BLOCK, JUNCTION

9011906A18

Крепеж

9011906A18

Крепеж

9017806026

Крепеж

9017806026

Крепеж

9415180600

Крепеж

9415180801

Крепеж

Код

Описание

16100P

RELAY, WATER PUMP

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82600E

ENGINE ROOM FUSE

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82660C

BLOCK ASSY, RELAY

82660F

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82660J

BLOCK ASSY, RELAY

82660K

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82661A

COVER, RELAY BLOCK, NO.2

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663C

COVER, RELAY BLOCK LOWER, NO.4

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

84794A

RELAY, FR WIPER DEICER

85910

RELAY ASSY, CIRCUIT OPENING

85912

RELAY, DEFOGGER

85924C

RELAY, IGCT

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

86530

RELAY ASSY, HORN

87346K

RELAY, PTC HEATER

87346L

RELAY, PTC HEATER

Код

Описание

28371E

RELAY, IGNITION, NO.4

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660L

BLOCK ASSY, RELAY

82660M

BLOCK ASSY, RELAY

82660N

BLOCK ASSY, RELAY

82660P

BLOCK ASSY, RELAY

82663D

COVER, RELAY BLOCK, LOWER, NO.5

82672F

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82716A

BRACKET, WIRING HARNESS CLAMP

82716A

BRACKET, WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

8433

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84520

SWITCH ASSY, CLUTCH START

84550

SWITCH ASSY, PARKING BRAKE

84841G

RELAY, FUEL OPEN

85910V

RELAY, SEAT HEATER

85913F

RELAY, STEERING HEATER

85940

RELAY ASSY, WINDSHIELD WIPER

88280A

SWITCH ASSY, CLUTCH

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

89650

COMPUTER ASSY, POWER STEERING

89730A

RELAY(FOR SECURITY WARNING)

9011906951

Крепеж

9011906A21

Крепеж

9011906A21

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9331554010

Крепеж

9412041000

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

83950M

LAMP ASSY, TELLTALE

84119

RHEOSTAT, LIGHT CONTROL

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84751F

SWITCH, SEAT HEATER

84751G

SWITCH, SEAT HEATER

84794

SWITCH, FR WIPER DEICER

84841A

SWITCH, FUEL LID OPENER

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85532

SOCKET, USB CHARGER

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

9356855014

Крепеж

Код

Описание

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84523

WIRE, SWITCH NO.1

84610G

SWITCH ASSY, TRANSMISSION SHIFT, NO.1

84610H

SWITCH ASSY, TRANSMISSION SHIFT, NO.2

84650

SWITCH ASSY, WINDSHIELD WIPER

89245C

SENSOR, STEERING

9015950199

Крепеж

9015950265

Крепеж

9015950265

Крепеж

Код

Описание

7101

переход к группе запчастей

7101

переход к группе запчастей

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922

SWITCH, FRONT POWER SEAT

84922

SWITCH, FRONT POWER SEAT

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

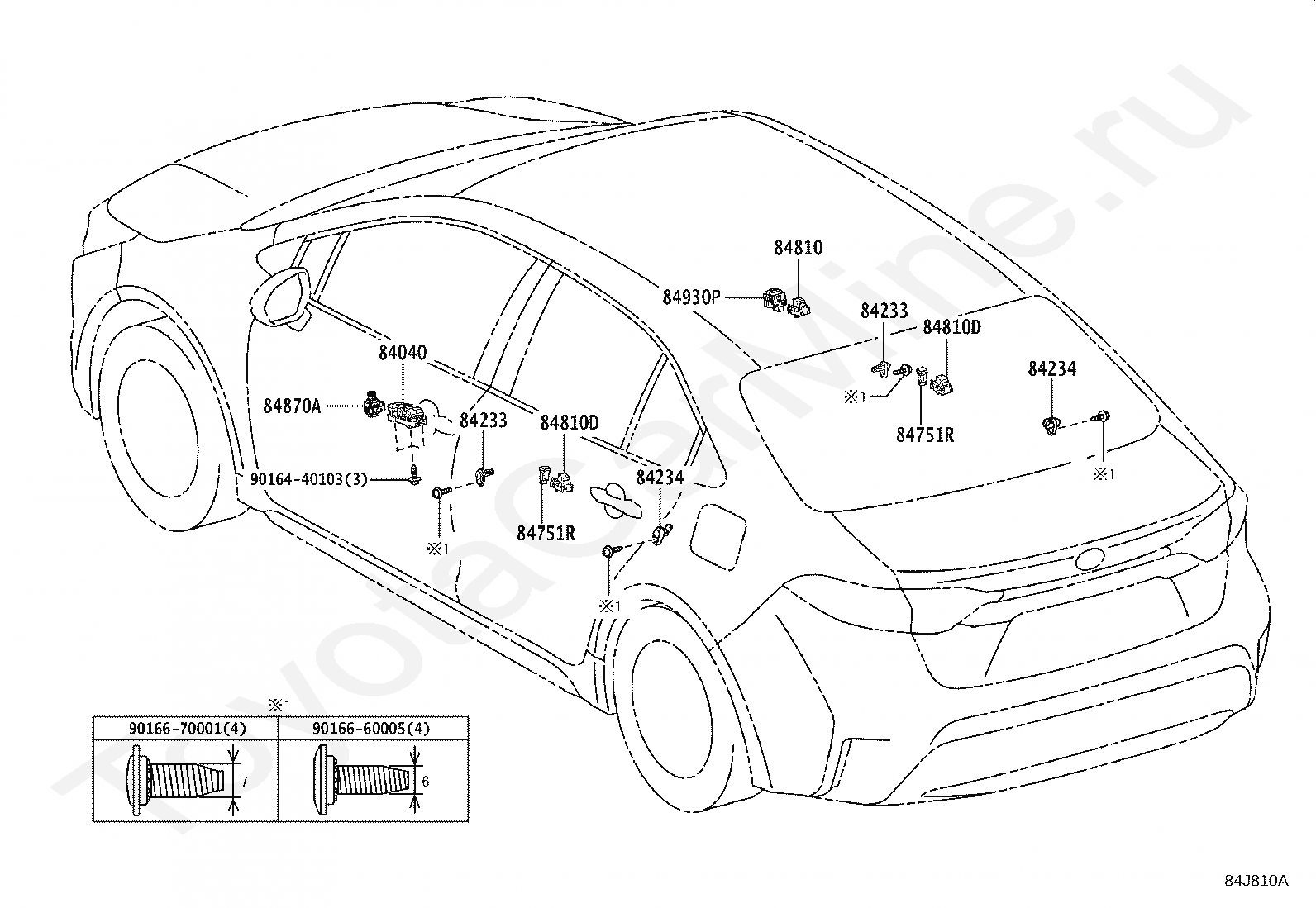

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84751R

SWITCH, SEAT HEATER(REAR)

84751R

SWITCH, SEAT HEATER(REAR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84930P

SWITCH ASSY, DOOR CONTROL

9016440103

Крепеж

9016660005

Крепеж

9016670001

Крепеж

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84945A

SWITCH, LUGGAGE ELECTRICAL KEY

88162

SENSOR, BLIND SPOT MONITOR, RH

88163

COVER, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

88173

COVER, BLIND SPOT MONITOR, LH

89461

SENSOR, VAPOR PRESSURE

89747F

BUZZER, BLIND SPOT MONITOR

9017806012

Крепеж

9017806012

Крепеж
