Америка

Модель

COROLLA SED (JPP)

VIN

Дата

2020/04

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Фрейм

ZRE212

КПП

вариатор

Опции

левый руль D(MODEL MARK) GENERAL COUNTRIES 837W

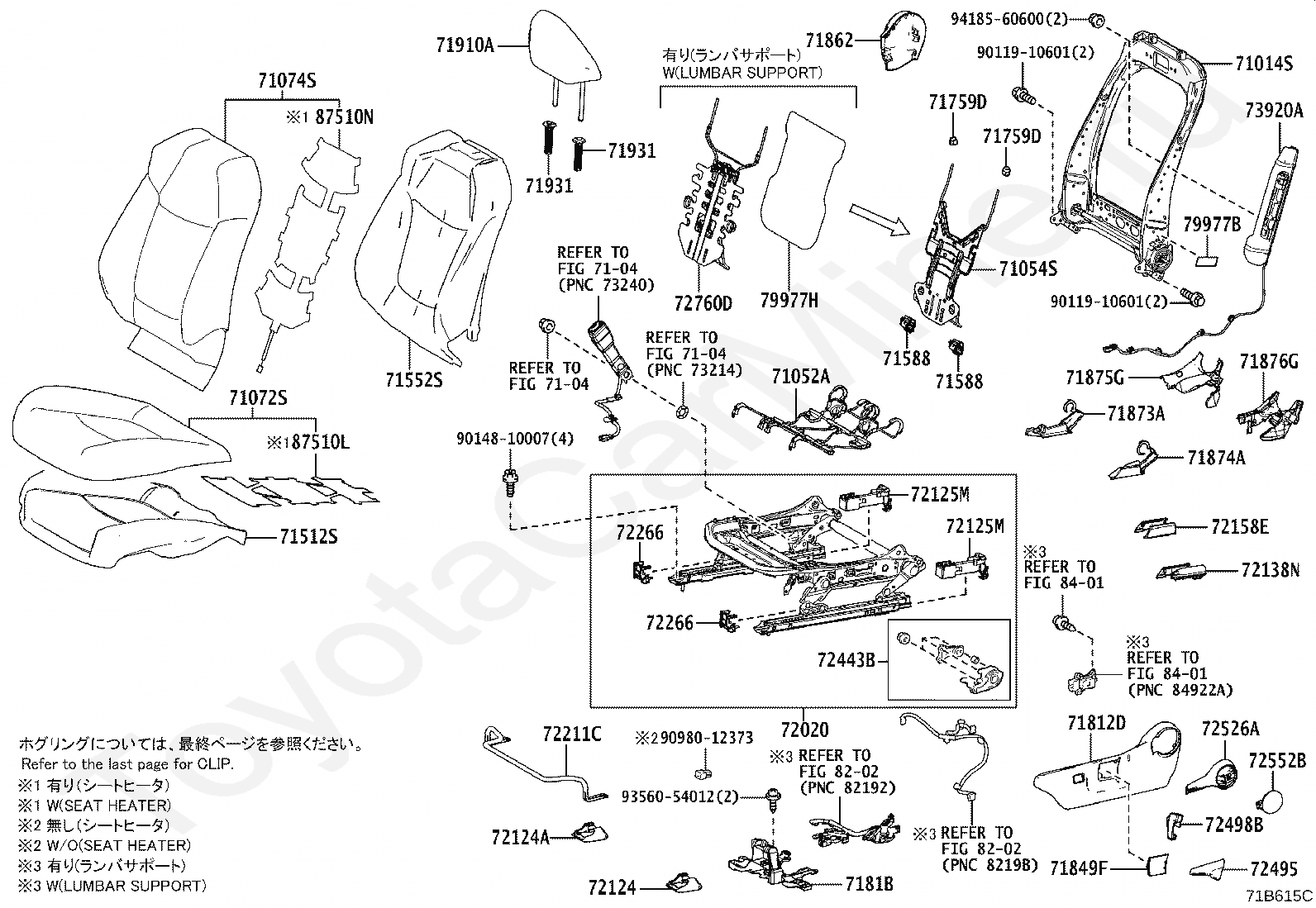

Передние кресла TOYOTA COROLLA SED (JPP)







Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71849F

CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72125M

COVER, SEAT TRACK, UPPER NO.3

72125M

COVER, SEAT TRACK, UPPER NO.3

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72443B

GEAR, VERTICAL ADJUSTER, LH

72495

HANDLE, VERTICAL ADJUSTING, LH

72498B

COVER, VERTICAL ADJUSTER BRACKET, OUTER

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552B

COVER, RECLINING HINGE, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977B

FELT, SEAT BACK FRAME

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

9098012373

Крепеж

9356054012

Крепеж

9418560600

Крепеж

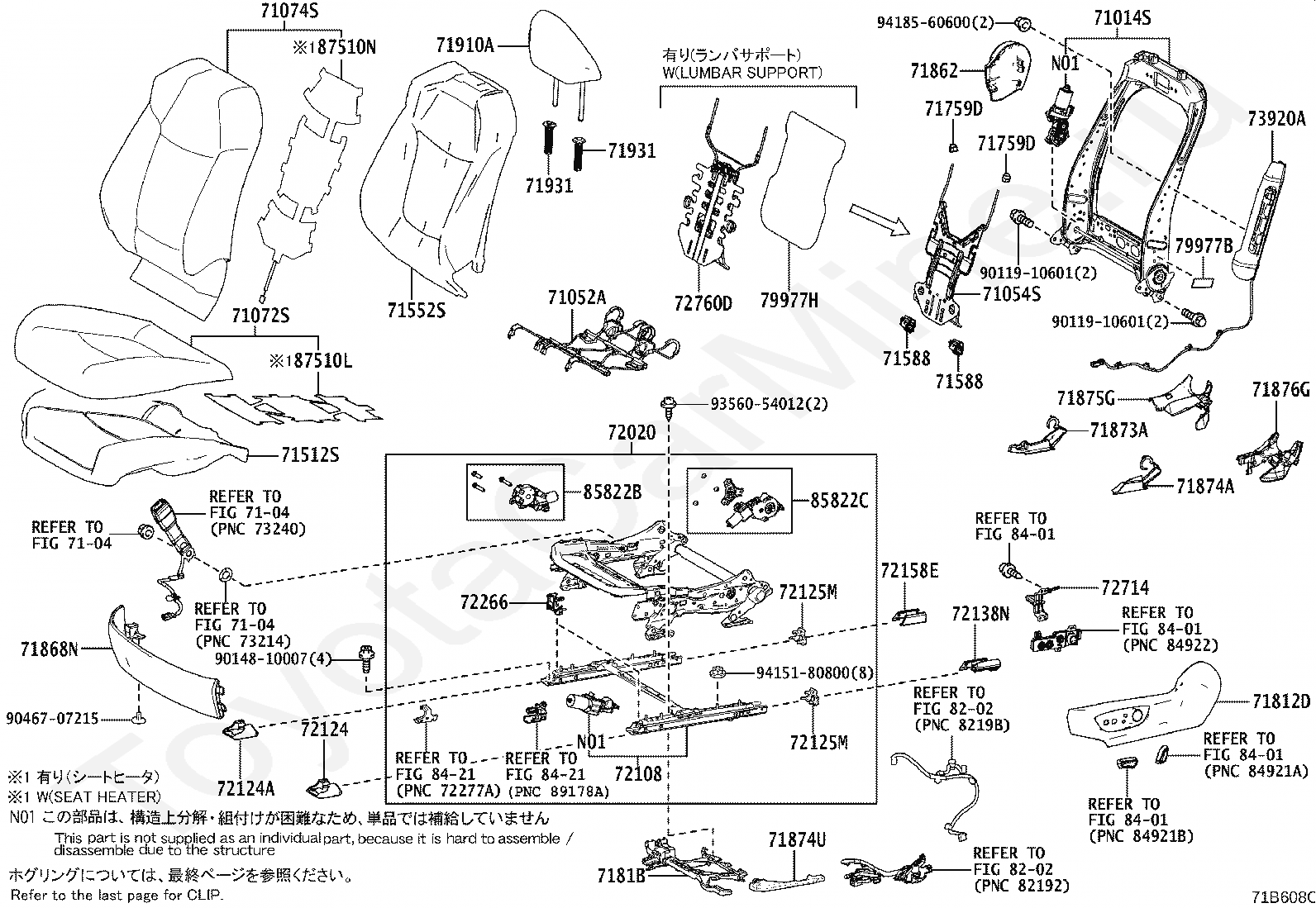

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868N

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72108

RAIL SUB-ASSY, SEAT TRACK, UPPER LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72125M

COVER, SEAT TRACK, UPPER NO.3

72125M

COVER, SEAT TRACK, UPPER NO.3

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72714

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977B

FELT, SEAT BACK FRAME

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

85822B

MOTOR ASSY, POWER SEAT TILT, LH

85822C

MOTOR ASSY, POWER SEAT LIFTER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

9046707215

Крепеж

9356054012

Крепеж

9415180800

Крепеж

9418560600

Крепеж

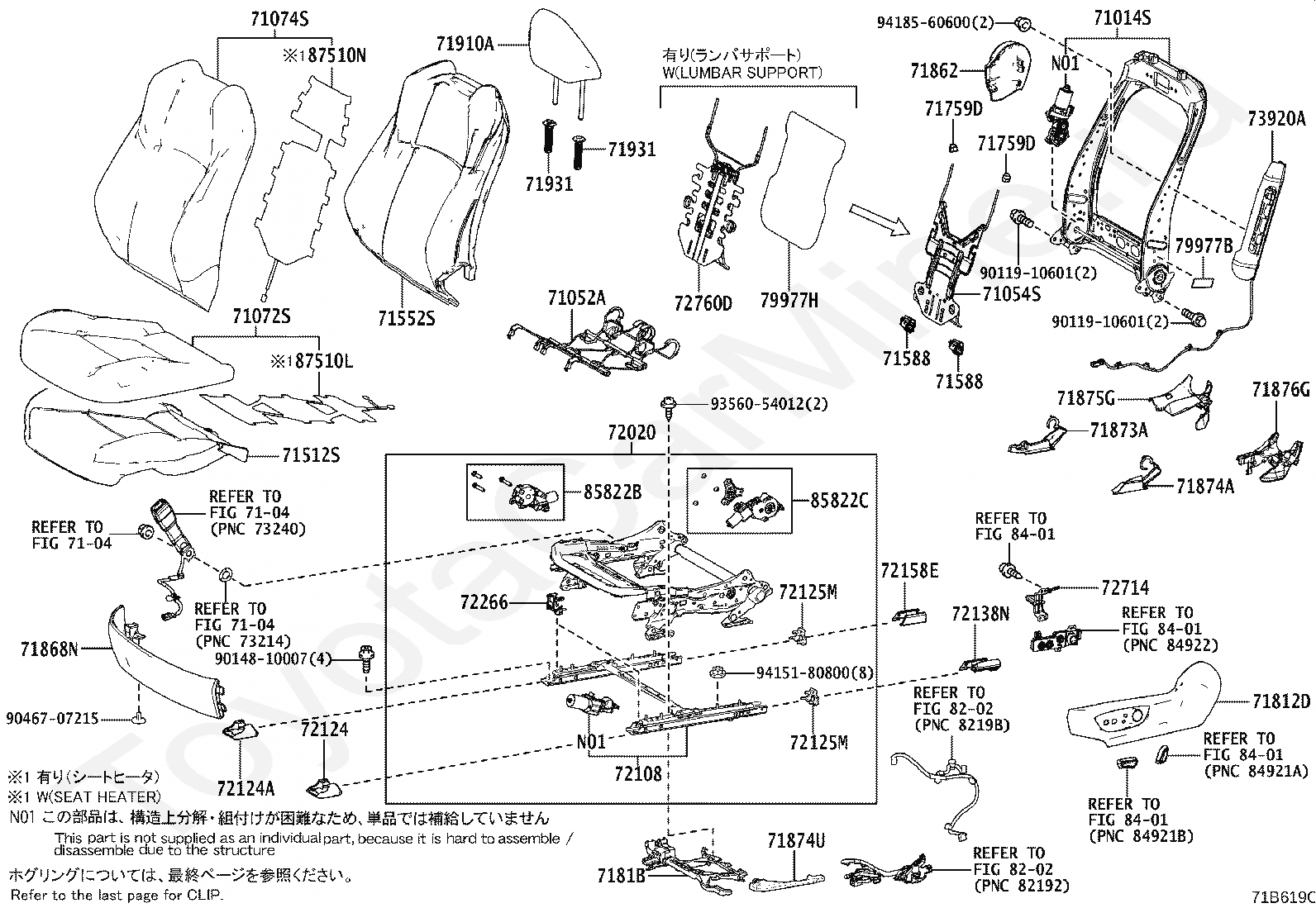

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868N

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72108

RAIL SUB-ASSY, SEAT TRACK, UPPER LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72125M

COVER, SEAT TRACK, UPPER NO.3

72125M

COVER, SEAT TRACK, UPPER NO.3

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72714

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977B

FELT, SEAT BACK FRAME

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

85822B

MOTOR ASSY, POWER SEAT TILT, LH

85822C

MOTOR ASSY, POWER SEAT LIFTER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

9046707215

Крепеж

9356054012

Крепеж

9415180800

Крепеж

9418560600

Крепеж

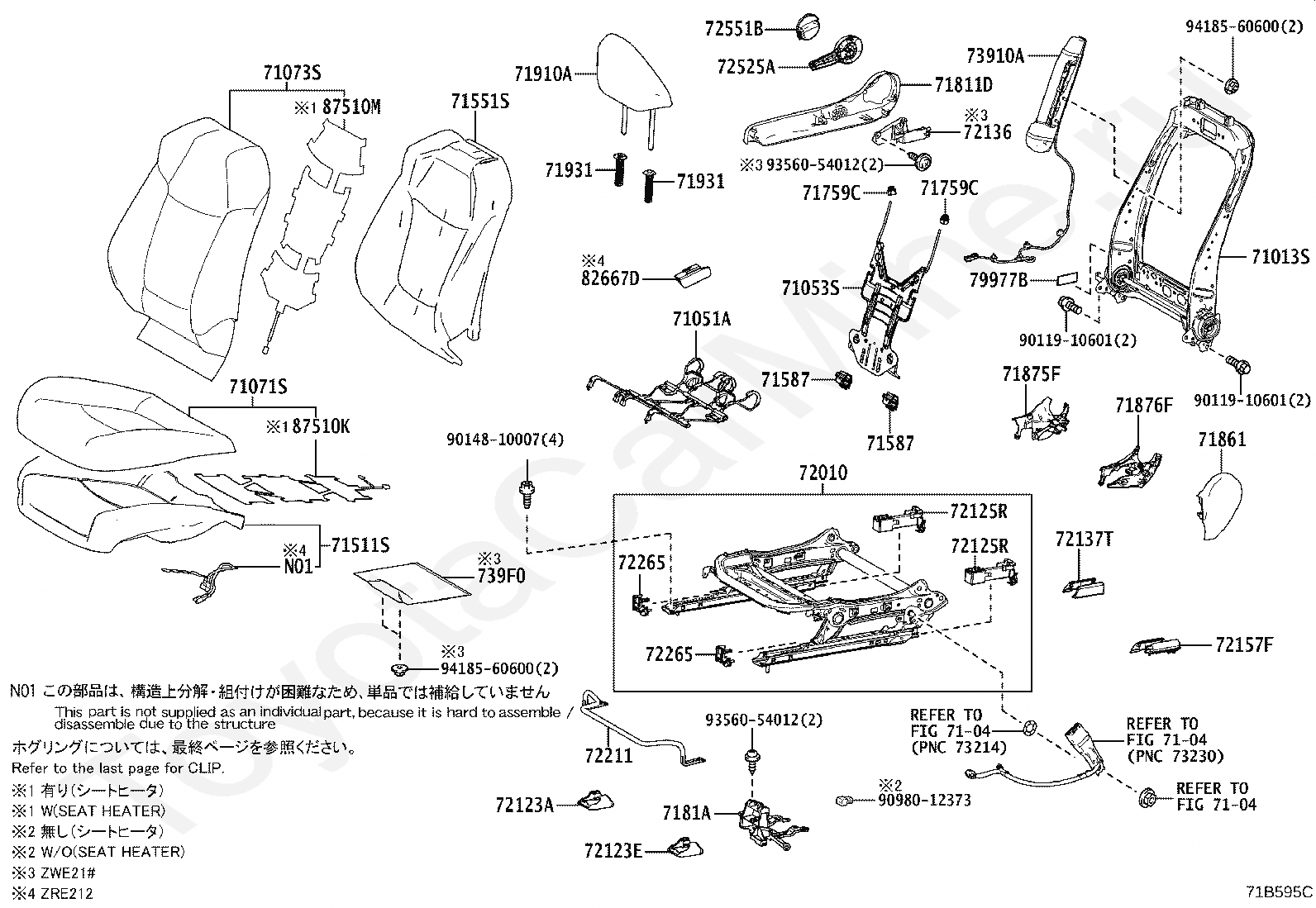

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759C

HOOK, FRONT SEAT BACK, NO.1

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123E

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72125R

COVER, SEAT TRACK, UPPER REAR NO.1

72125R

COVER, SEAT TRACK, UPPER REAR NO.1

72136

SPACER, SEAT TRACK, LOWER NO.1

72137T

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157F

COVER, SEAT TRACK BRACKET, INNER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

739F0

AIR BAG ASSY, FRONT SEAT CUSHION, RH

79977B

FELT, SEAT BACK FRAME

82667D

HOLDER, CONNECTOR

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

9098012373

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9418560600

Крепеж

9418560600

Крепеж

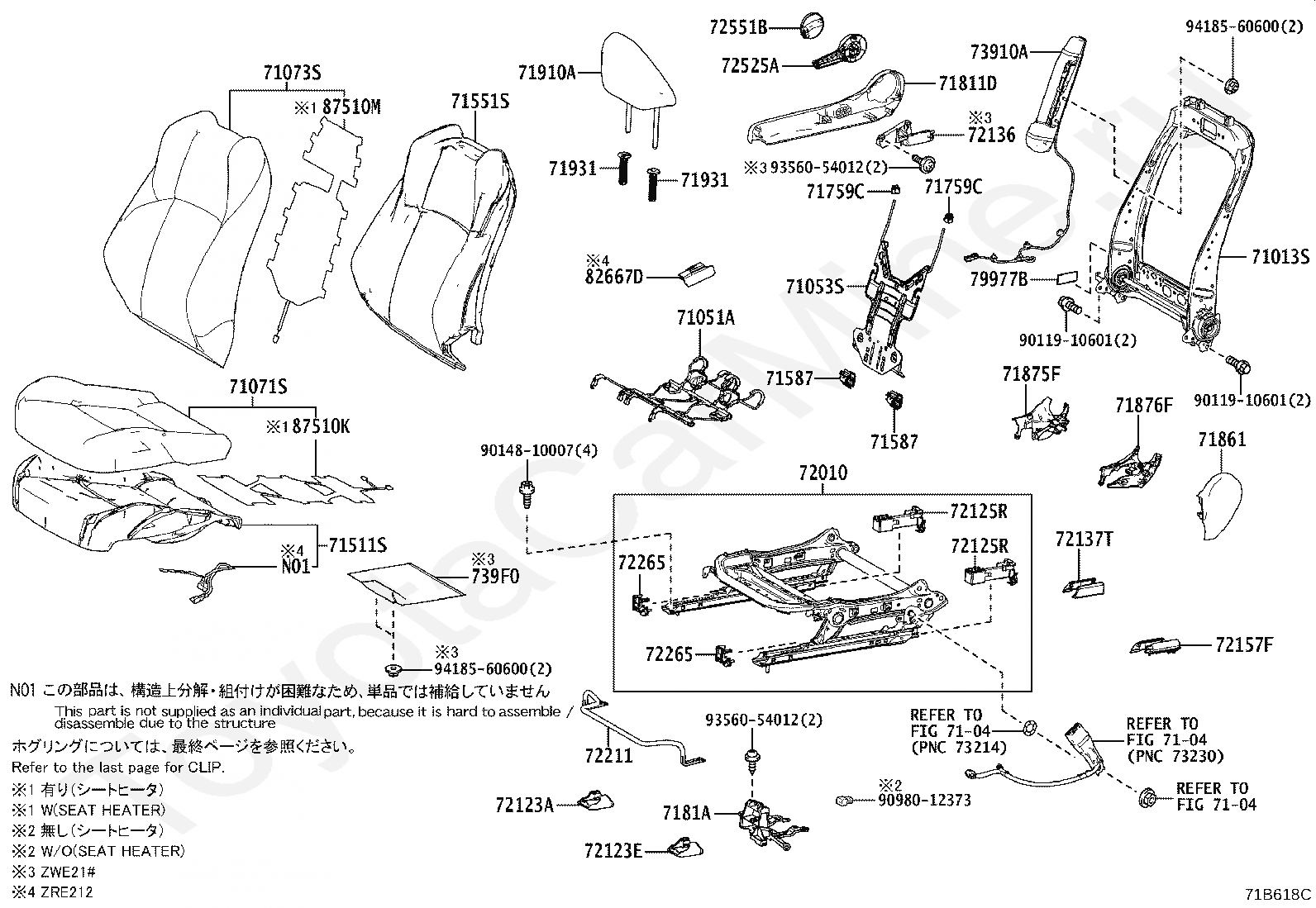

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759C

HOOK, FRONT SEAT BACK, NO.1

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123E

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72125R

COVER, SEAT TRACK, UPPER REAR NO.1

72125R

COVER, SEAT TRACK, UPPER REAR NO.1

72136

SPACER, SEAT TRACK, LOWER NO.1

72137T

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157F

COVER, SEAT TRACK BRACKET, INNER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

739F0

AIR BAG ASSY, FRONT SEAT CUSHION, RH

79977B

FELT, SEAT BACK FRAME

82667D

HOLDER, CONNECTOR

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

9098012373

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти COROLLA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
