Ближний Восток

Модель

COROLLA CROSS

VIN

Дата

2020/10

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

ZVG10

Опции

левый руль TAIWAN PRODUCED 5 дверей N(MODEL MARK) страны Персидского залива 764W

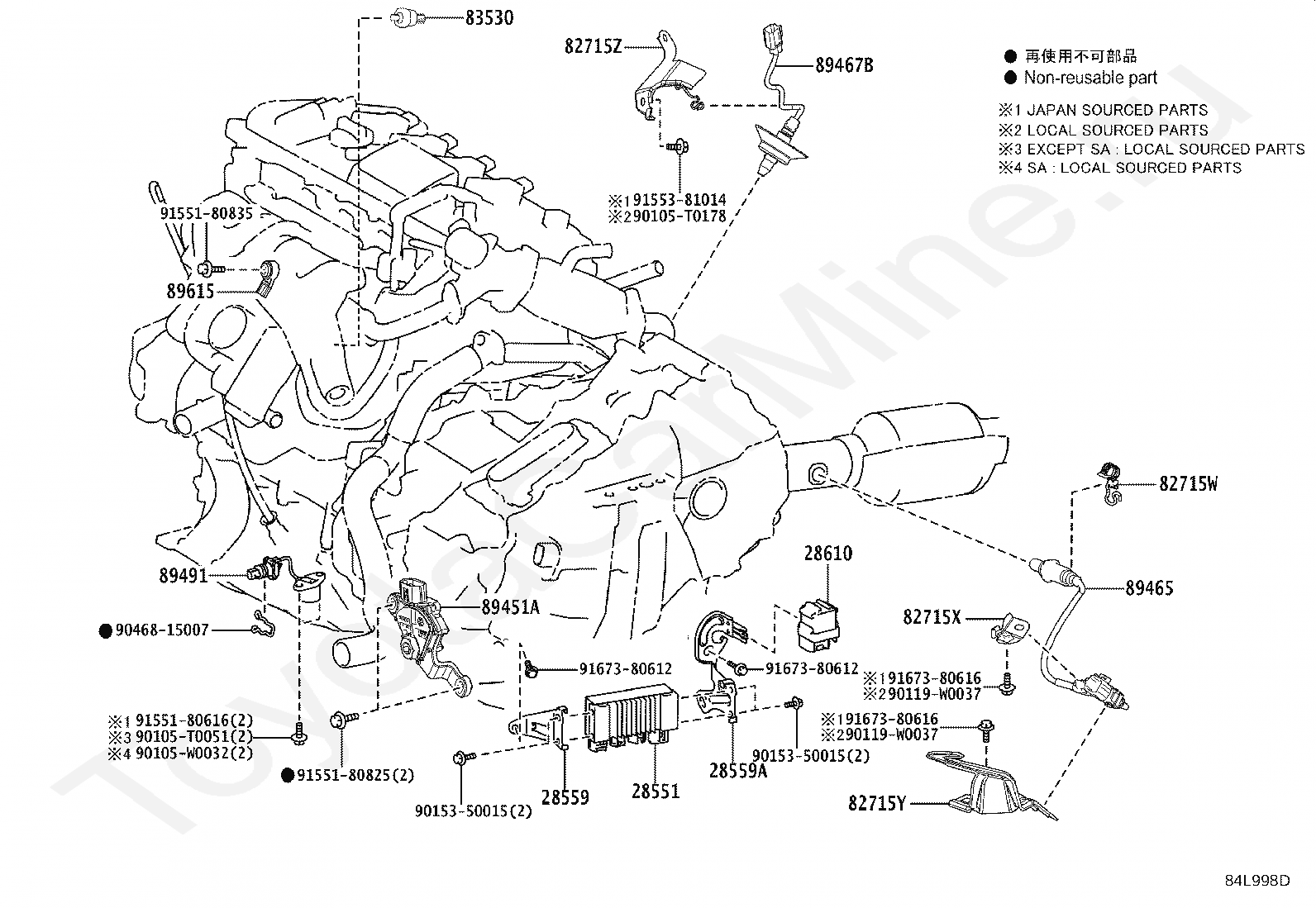

Реле и кнопки TOYOTA COROLLA CROSS







Код

Описание

28551

CONTROLLER, GLOW PLUG

28559

BRACKET, GLOW PLUG CONTROLLER, NO.1

28559A

BRACKET, GLOW PLUG CONTROLLER, NO.2

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

82715W

BRACKET, WIRING HARNESS CLAMP

82715X

BRACKET, WIRING HARNESS CLAMP, NO.2

82715Y

BRACKET, WIRING HARNESS CLAMP, NO.3

82715Z

BRACKET, WIRING HARNESS CLAMP

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89451A

SENSOR, SHIFT LEVER POSITION

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

90105T0051

Крепеж

90105T0178

Крепеж

90105W0032

Крепеж

90119W0037

Крепеж

90119W0037

Крепеж

9015350015

Крепеж

9015350015

Крепеж

9046815007

Крепеж

9155180616

Крепеж

9155180825

Крепеж

9155180835

Крепеж

9155381014

Крепеж

9167380612

Крепеж

9167380612

Крепеж

9167380616

Крепеж

9167380616

Крепеж

Код

Описание

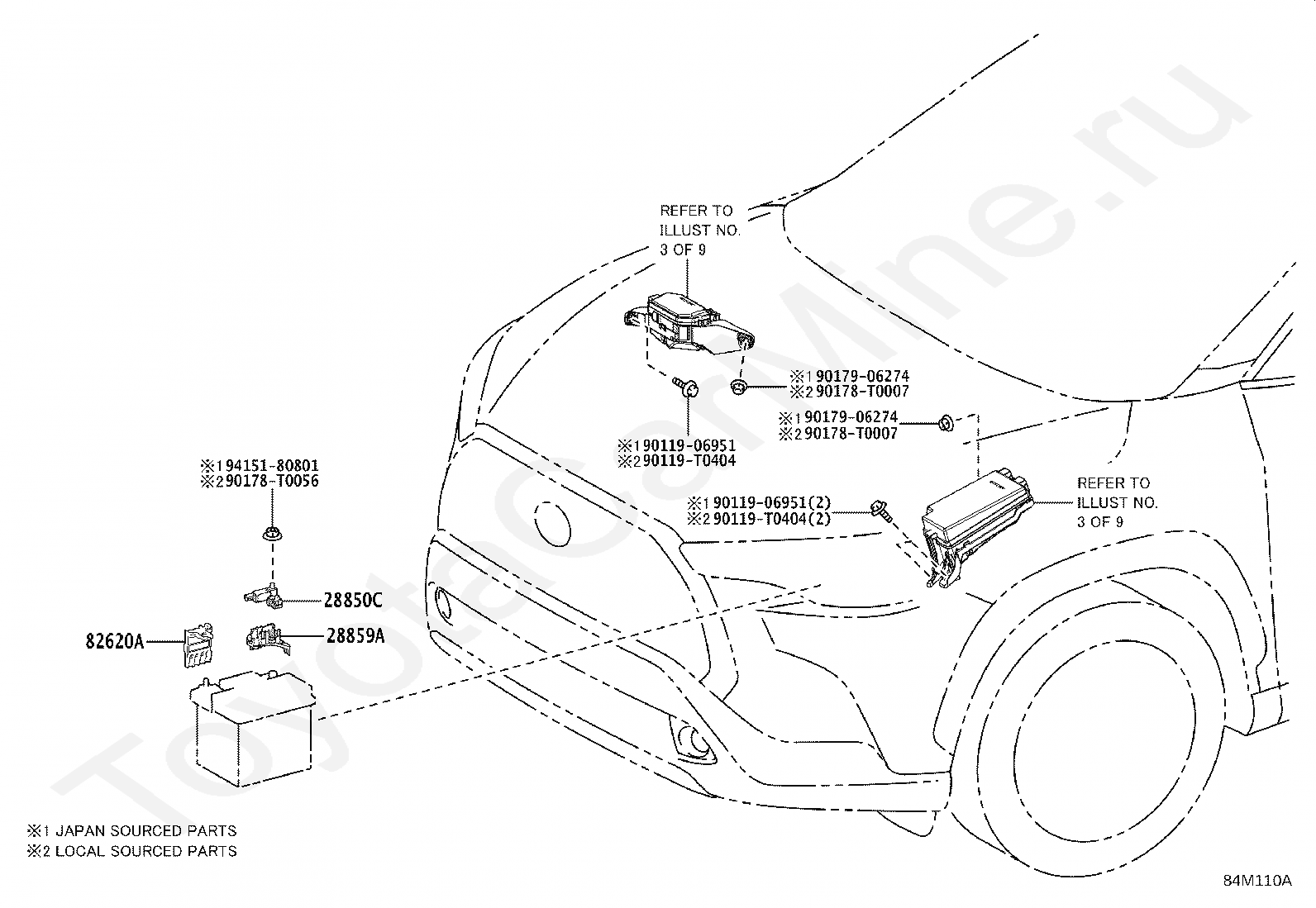

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

82620A

BLOCK ASSY, FUSIBLE LINK

9011906951

Крепеж

9011906951

Крепеж

90119T0404

Крепеж

90119T0404

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0056

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9415180801

Крепеж

Код

Описание

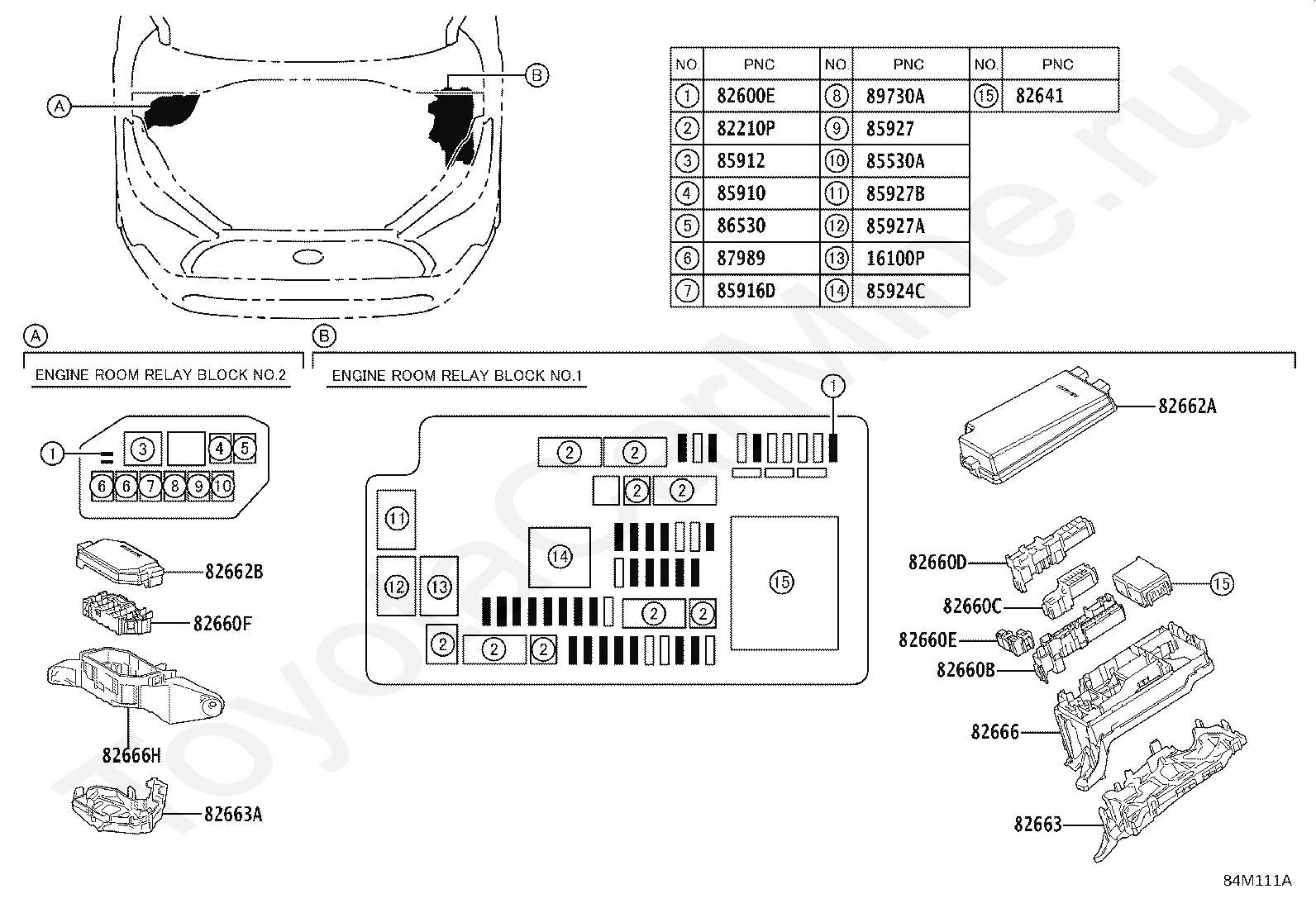

16100P

RELAY, WATER PUMP

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82660F

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

85530A

RELAY, POWER OUTLET SOCKET

85910

RELAY ASSY, CIRCUIT OPENING

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85924C

RELAY, IGCT

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

86530

RELAY ASSY, HORN

87989

RELAY, MIRROR CONTROL

89730A

RELAY(FOR SECURITY WARNING)

Код

Описание

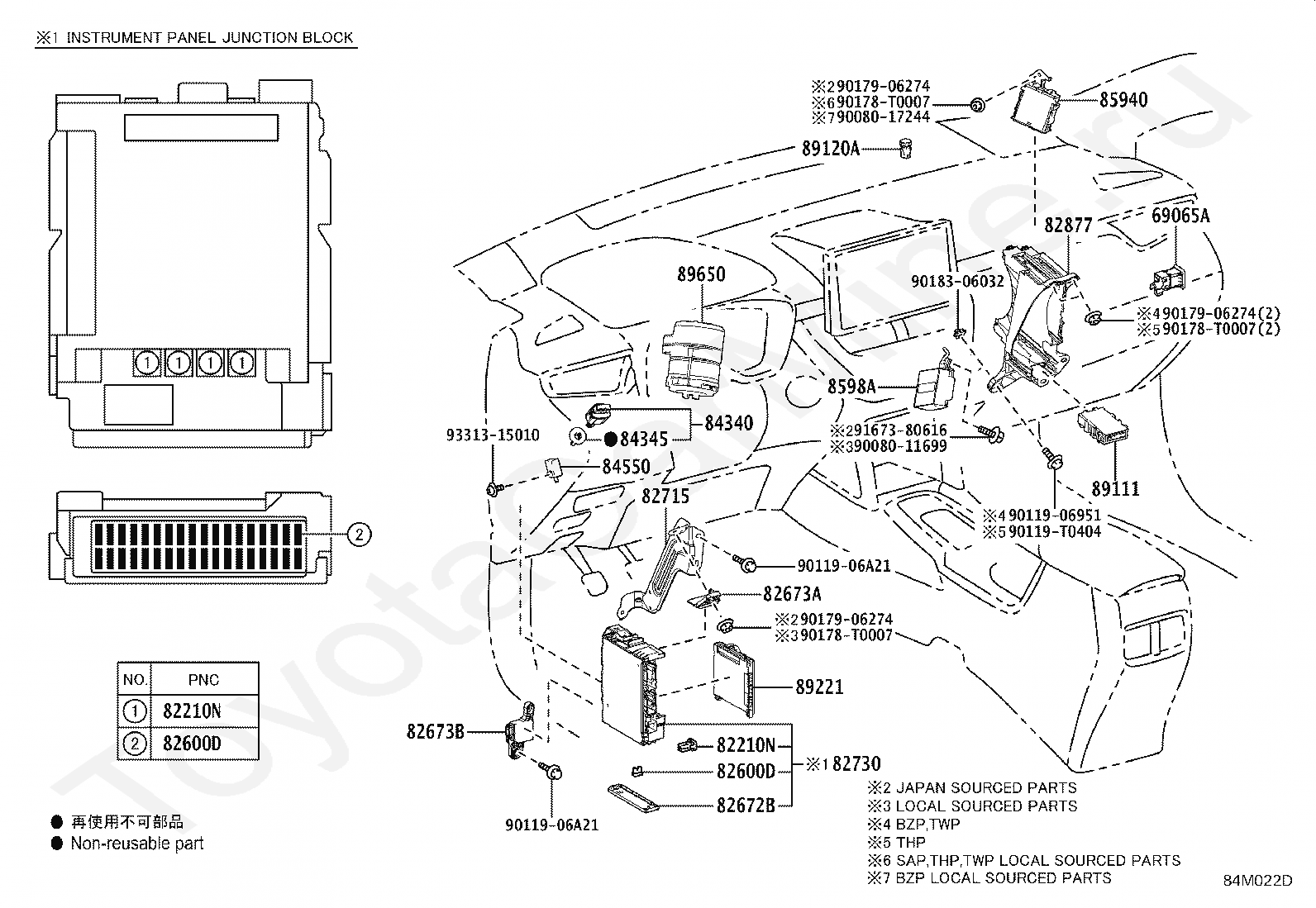

69065A

CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672B

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85940

RELAY ASSY, WINDSHIELD WIPER

8598A

BATTERY, DOOR CONTROL

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89650

COMPUTER ASSY, POWER STEERING

9008011699

Крепеж

9008017244

Крепеж

9011906951

Крепеж

9011906A21

Крепеж

9011906A21

Крепеж

90119T0404

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9167380616

Крепеж

9331315010

Крепеж

Код

Описание

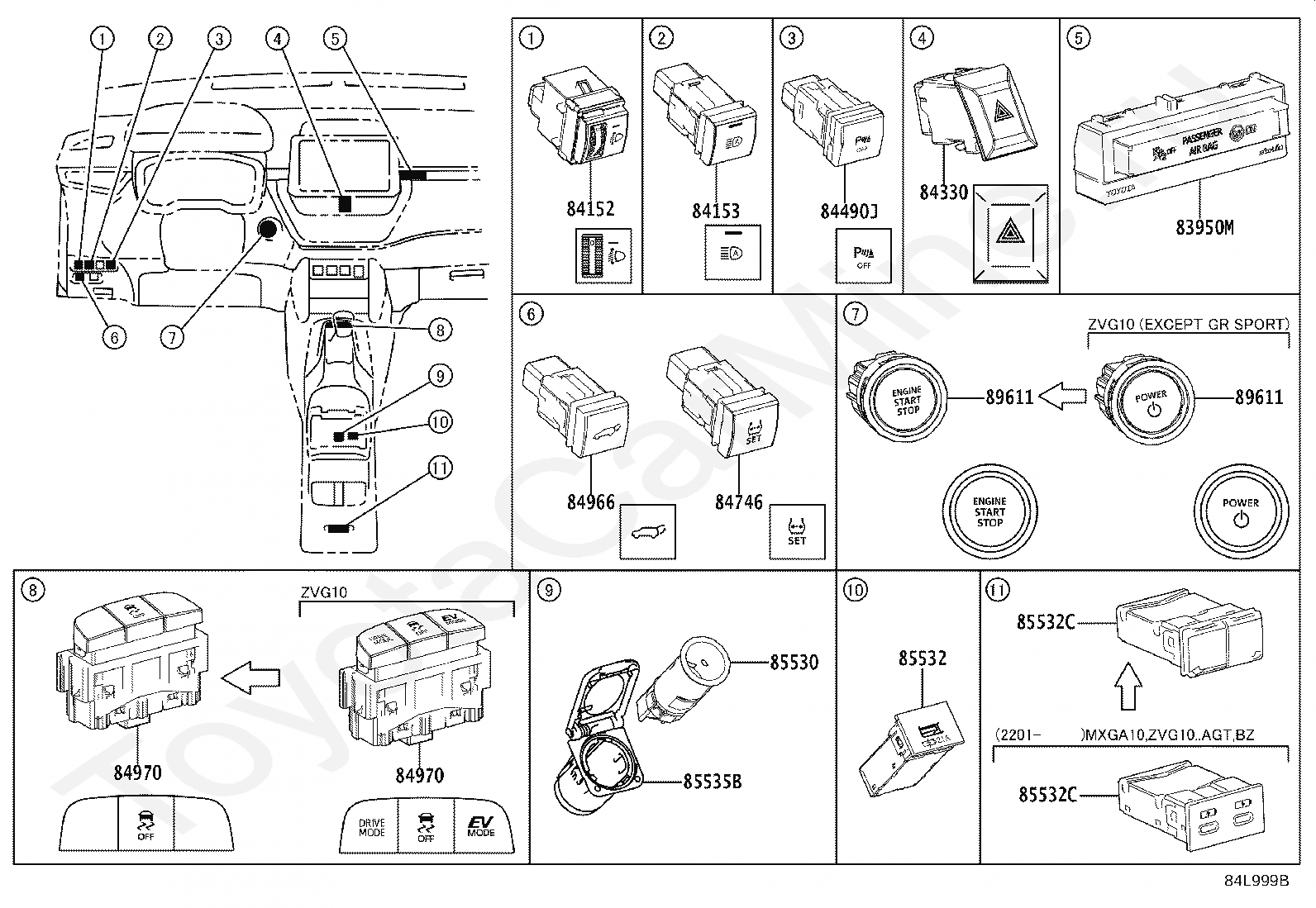

83950M

LAMP ASSY, TELLTALE

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84490J

SWITCH ASSY, CLEARANCE SONAR

84746

SWITCH, TIRE PRESSURE WARNING

84966

SWITCH, POWER BACK DOOR CONTROL

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85532C

SOCKET, USB CHARGER, NO.2

85532C

SOCKET, USB CHARGER, NO.2

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

Код

Описание

4501

переход к группе запчастей

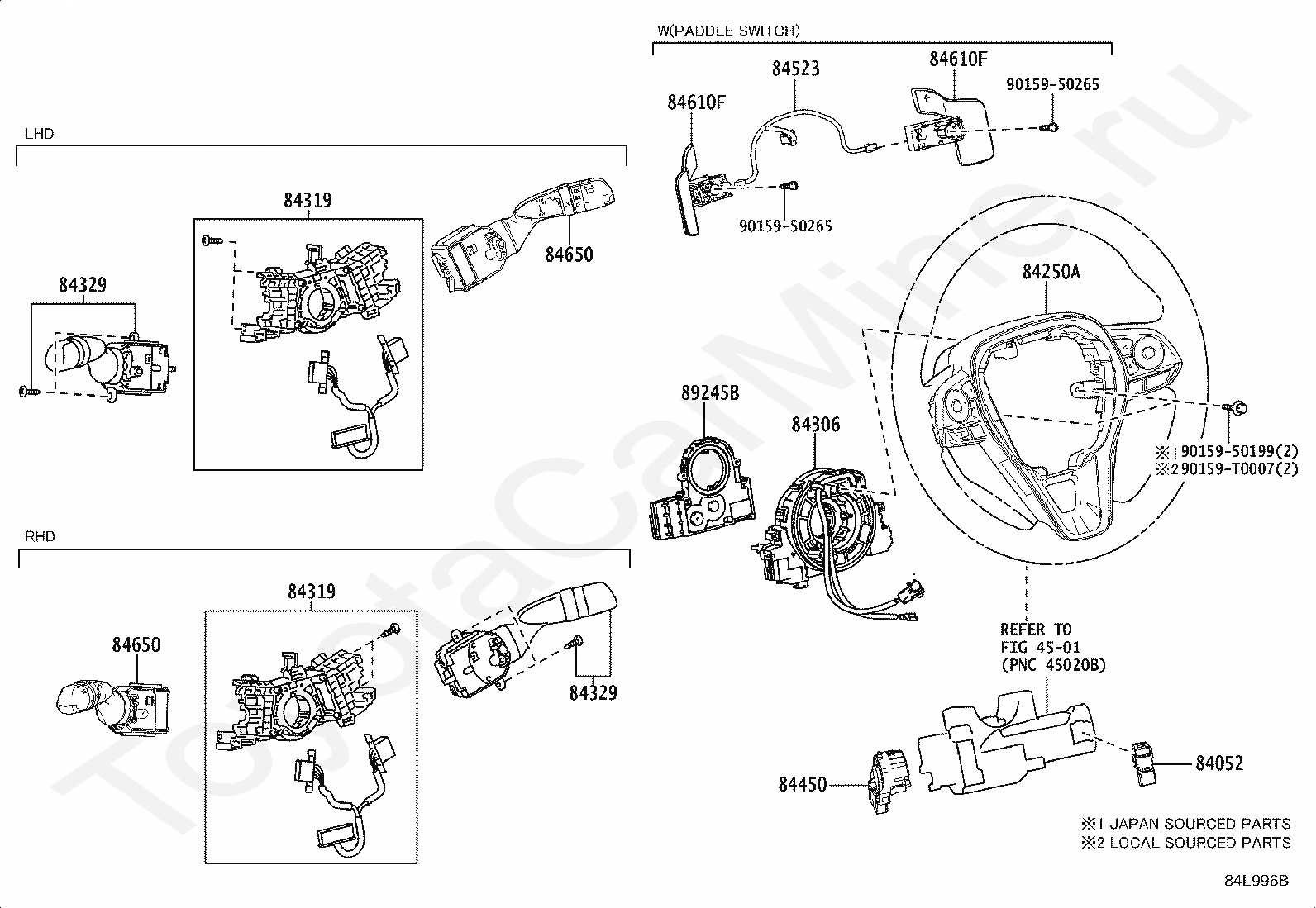

84052

SWITCH ASSY, UN-LOCK WARNING

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84523

WIRE, SWITCH NO.1

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84650

SWITCH ASSY, WINDSHIELD WIPER

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9015950199

Крепеж

9015950265

Крепеж

9015950265

Крепеж

90159T0007

Крепеж

Код

Описание

7101

переход к группе запчастей

7101

переход к группе запчастей

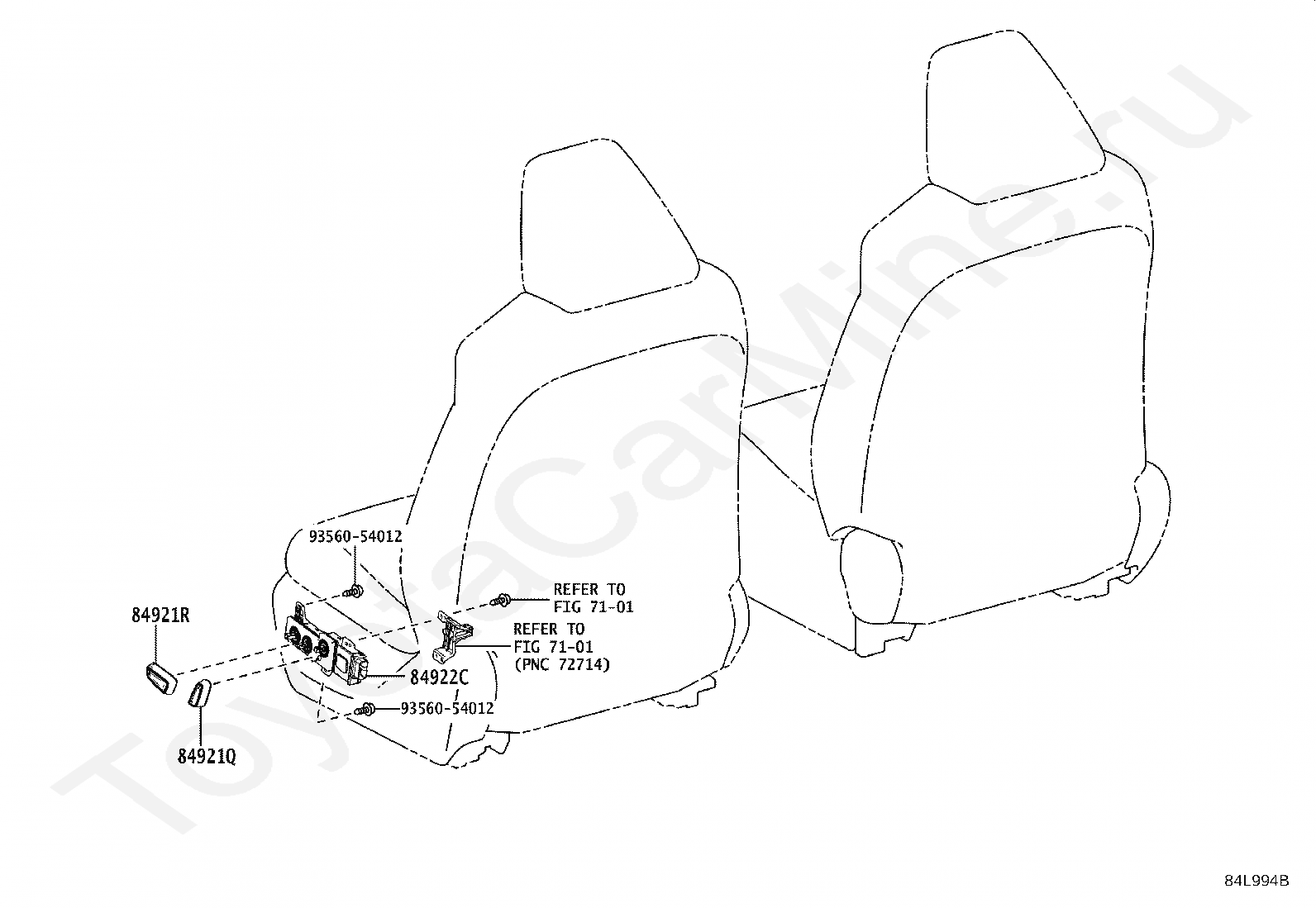

84921Q

KNOB, POWER SEAT SWITCH, LH (FOR RECLINING)

84921R

KNOB, POWER SEAT SWITCH, LH (FOR SLIDE & VERTICAL)

84922C

SWITCH, FRONT POWER SEAT, LH

9356054012

Крепеж

9356054012

Крепеж

Код

Описание

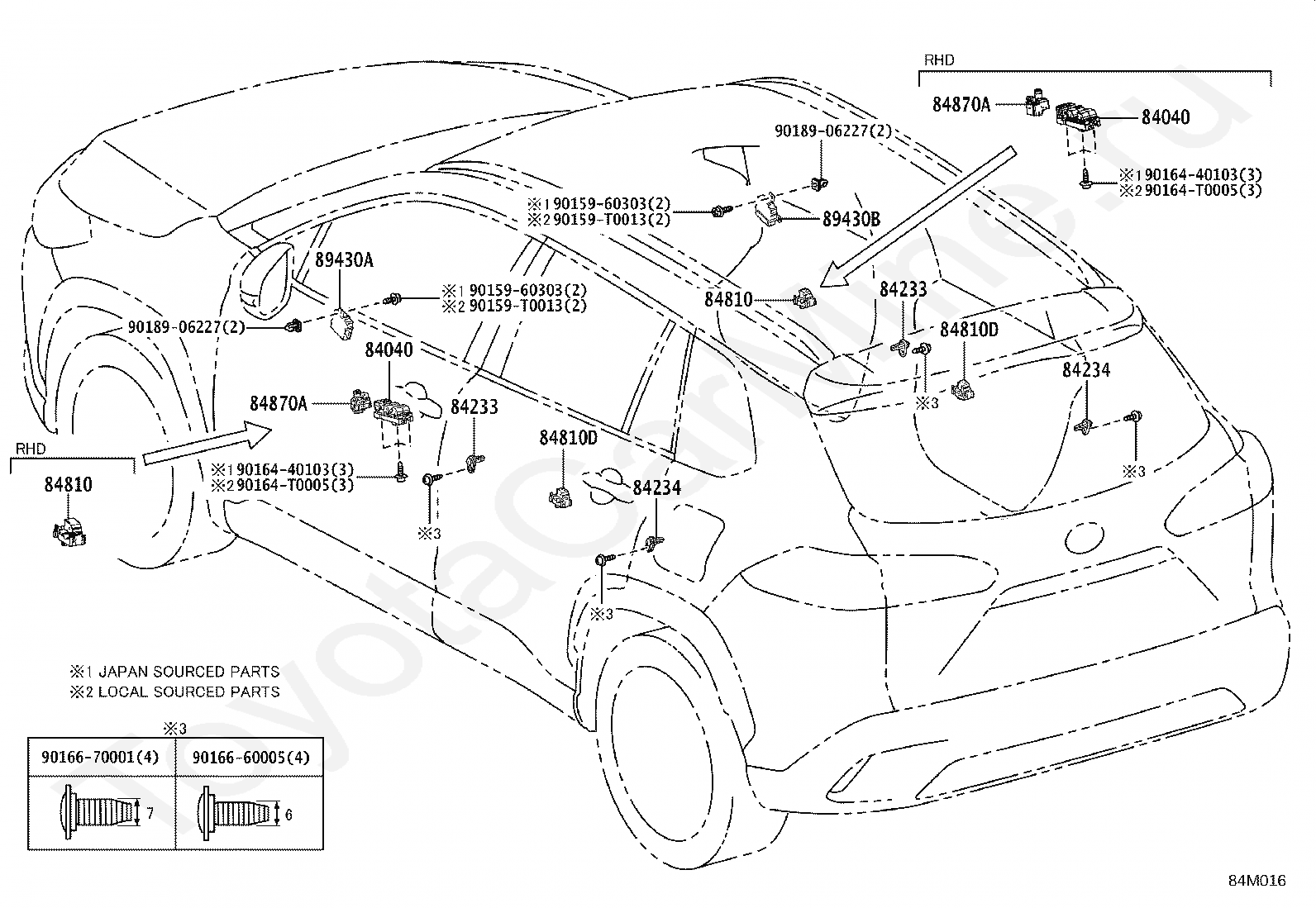

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

89430A

COMPUTER ASSY, OUTER MIRROR CONTROL, LH

89430B

COMPUTER ASSY, OUTER MIRROR CONTROL, RH

9015960303

Крепеж

9015960303

Крепеж

90159T0013

Крепеж

90159T0013

Крепеж

9016440103

Крепеж

9016440103

Крепеж

90164T0005

Крепеж

90164T0005

Крепеж

9016660005

Крепеж

9016670001

Крепеж

9018906227

Крепеж

9018906227

Крепеж

Код

Описание

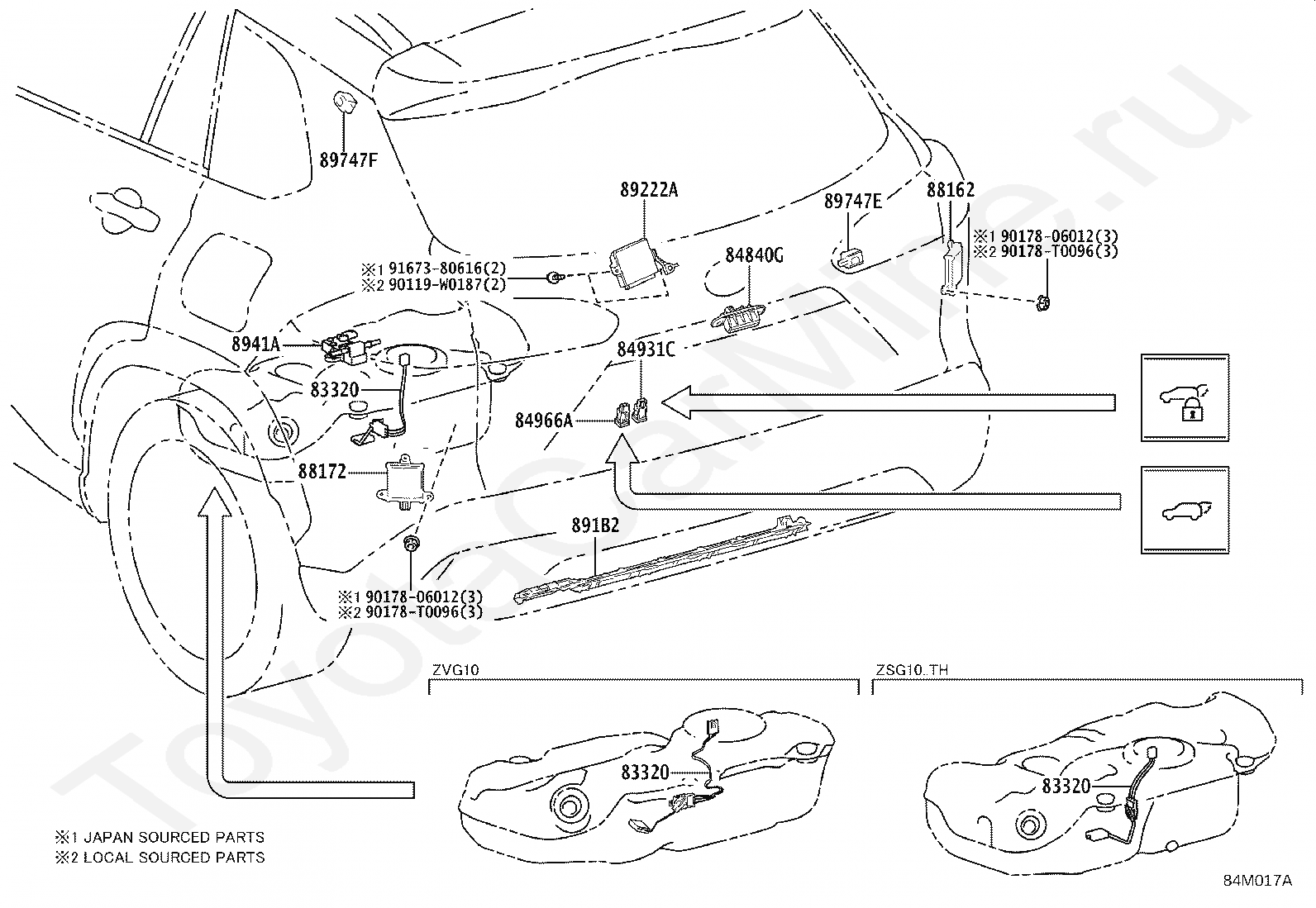

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84840G

SWITCH ASSY, BACK DOOR OPENER

84931C

SWITCH, BACK DOOR CONTROL

84966A

SWITCH, POWER BACK DOOR CONTROL, NO.1

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

891B2

SENSOR, KICK DOOR CONTROL

89222A

COMPUTER, MULTIPLEX NETWORK DOOR

8941A

SENSOR, ETHYL ALCOHOL DENSITY

89747E

BUZZER, POWER BACK DOOR WARNING

89747F

BUZZER, BLIND SPOT MONITOR

90119W0187

Крепеж

9017806012

Крепеж

9017806012

Крепеж

90178T0096

Крепеж

90178T0096

Крепеж

9167380616

Крепеж
