Ближний Восток

Модель

COROLLA (TUP)

VIN

Дата

2020/01

Двигатель

1,6 литра, 16 клапанов DOHC, EFI

Фрейм

ZRE210

КПП

механика МКПП, 6 скоростей

Опции

правый руль D(MODEL MARK) GENERAL COUNTRIES 714W

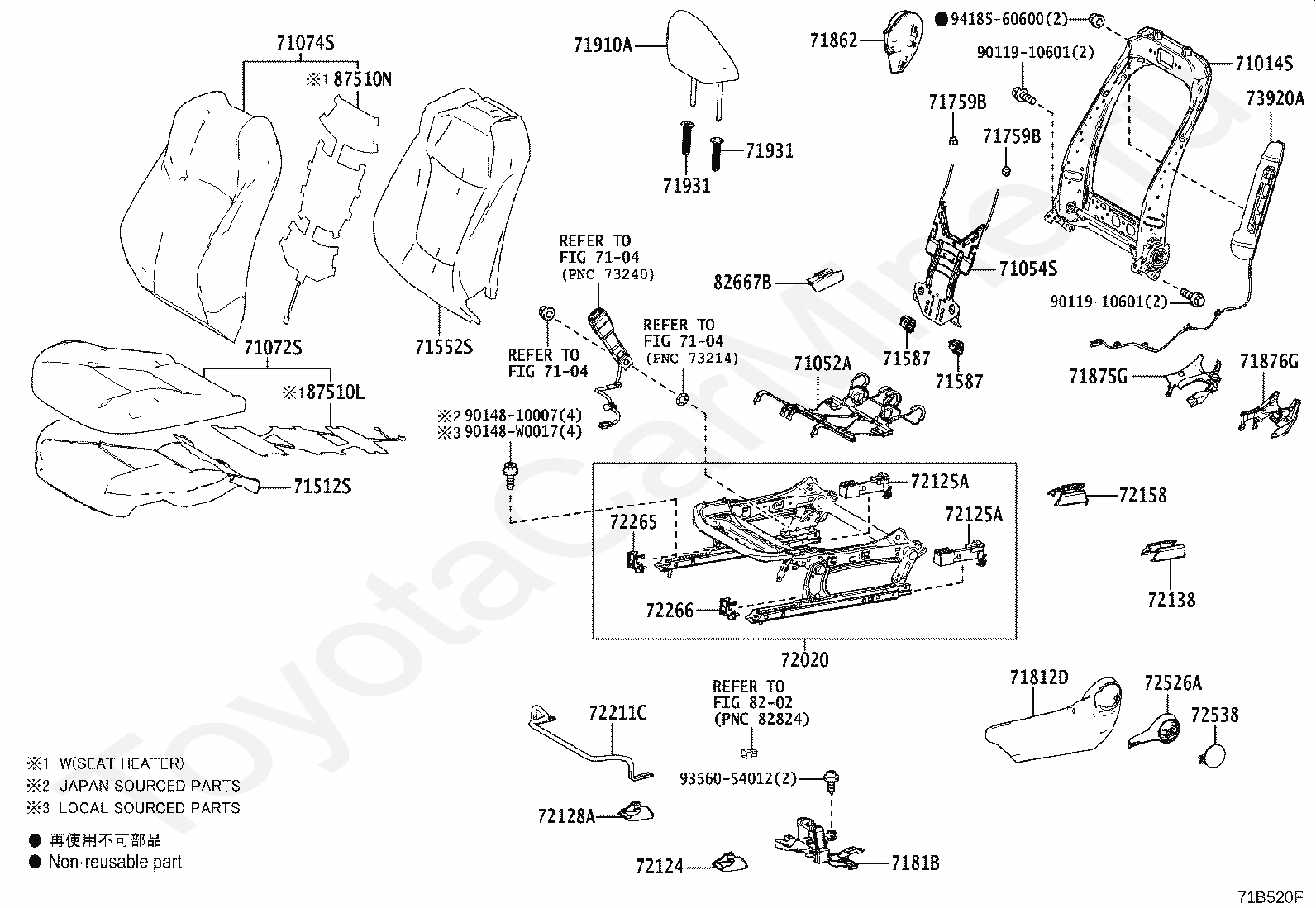

Передние кресла TOYOTA COROLLA (TUP)







Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72538

COVER, RECLINING HINGE OUTER, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

82667B

HOLDER, CONNECTOR

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

90148W0017

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72443A

GEAR, VERTICAL ADJUSTER, RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72497B

COVER, VERTICAL ADJUSTER BRACKET, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72537

COVER, RECLINING HINGE OUTER, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

90148W0017

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71561B

PAD, FRONT SEAT BACK, UPPER

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265L

COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR LH SEAT)

72266F

COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT)

72443B

GEAR, VERTICAL ADJUSTER, LH

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72495

HANDLE, VERTICAL ADJUSTING, LH

72498A

COVER, VERTICAL ADJUSTER BRACKET, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

73187F

GUIDE, FRONT SEAT SHOULDER BELT, LH NO.1

73187G

GUIDE, FRONT SEAT SHOULDER BELT, LH NO.2

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

82667B

HOLDER, CONNECTOR

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

90105W0094

Крепеж

90105W0094

Крепеж

90148W0017

Крепеж

9098012373

Крепеж

9155281014

Крепеж

9155281014

Крепеж

9418560600

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71561B

PAD, FRONT SEAT BACK, UPPER

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265K

COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR RH SEAT)

72266E

COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR RH SEAT)

72443A

GEAR, VERTICAL ADJUSTER, RH

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72494

HANDLE, VERTICAL ADJUSTING, RH

72497B

COVER, VERTICAL ADJUSTER BRACKET, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73187C

GUIDE, FRONT SEAT SHOULDER BELT, RH NO.1

73187D

GUIDE, FRONT SEAT SHOULDER BELT, RH NO.2

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

90105W0094

Крепеж

90105W0094

Крепеж

90148W0017

Крепеж

9098012373

Крепеж

9155281014

Крепеж

9155281014

Крепеж

9418560600

Крепеж
