1105
переход к группе запчастей
1105
переход к группе запчастей
1105
переход к группе запчастей

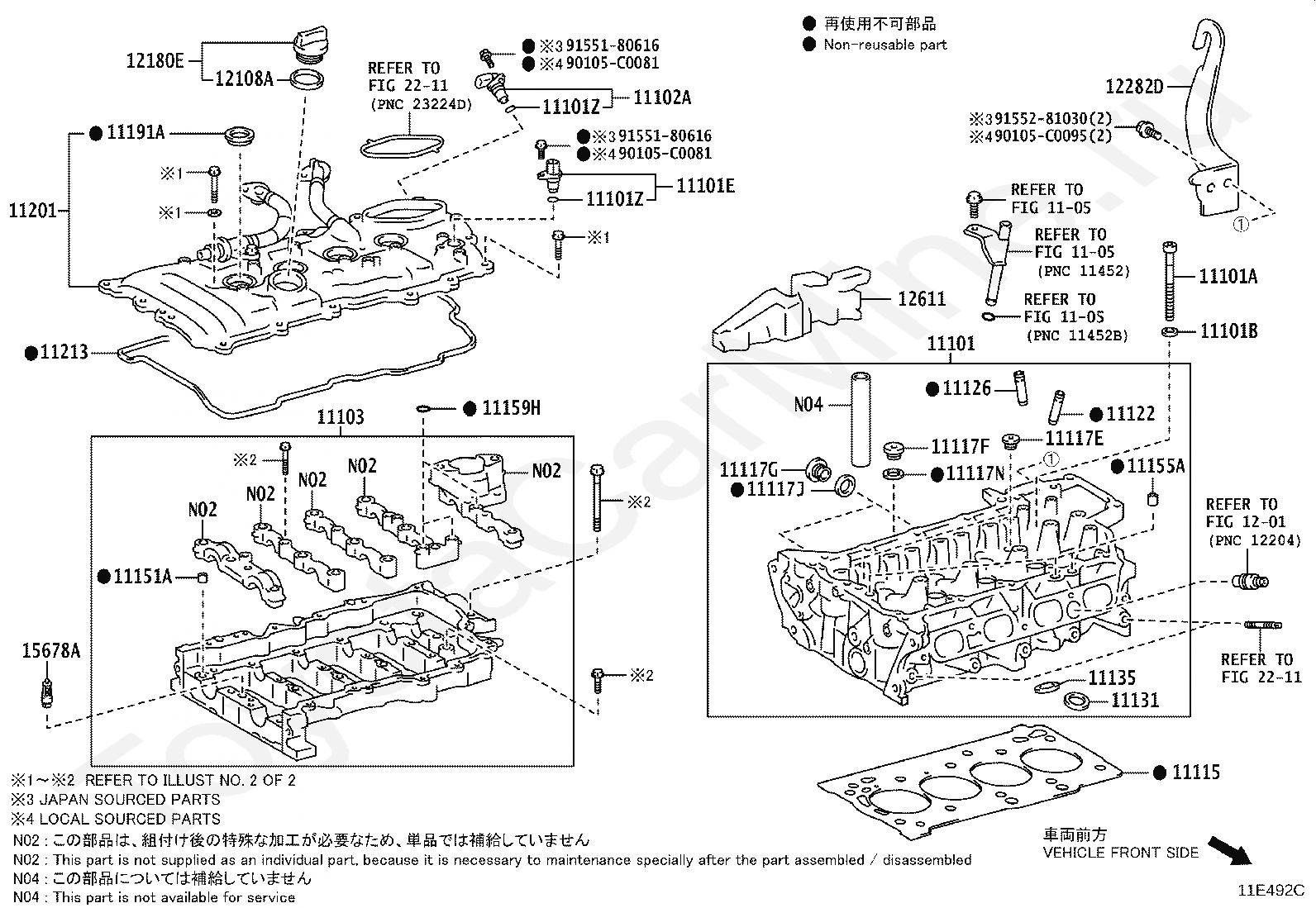

11101
HEAD SUB-ASSY, CYLINDER
11101A
BOLT(FOR CYLINDER HEAD SET)
11101B
WASHER, PLATE(FOR CYLINDER HEAD SET)
11101E
SENSOR, CAM POSITION
11101Z
O RING, CAM POSITION SENSOR
11101Z
O RING, CAM POSITION SENSOR
11102A
SENSOR, CAMSHAFT POSITION
11103
HOUSING SUB-ASSY, CAMSHAFT
11115
GASKET, CYLINDER HEAD
11117E
PLUG, W/HEAD STRAIGHT SCREW, NO.1
11117F
PLUG, W/HEAD STRAIGHT SCREW, NO.2
11117G
PLUG, W/HEAD STRAIGHT SCREW, NO.3
11117J
GASKET(FOR CYLINDER HEAD SCREW PLUG)
11117N
GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122
BUSH, INTAKE VALVE GUIDE
11126
BUSH, EXHAUST VALVE GUIDE
11135
SEAT, EXHAUST VALVE
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11159H
GASKET, CAMSHAFT BEARING CAP OIL HOLE
11191A
GASKET(FOR SPARK PLUG TUBE)
11201
COVER SUB-ASSY, CYLINDER HEAD
11213
GASKET, CYLINDER HEAD COVER
1201
переход к группе запчастей
12108A
GASKET(FOR OIL FILLER CAP)
12180E
CAP ASSY, OIL FILLER
12282D
HANGER, ENGINE, NO.2
12611
COVER, ENGINE, NO.1
15678A
FILTER, OIL CONTROL VALVE
2211
переход к группе запчастей
2211
переход к группе запчастей
