Каталог

Ближний Восток

Модель

COROLLA (CHINA)

VIN

Дата

2017/04

Двигатель

1,2 литра, 16 клапанов, DOHC

Кузов

седан

Класс

GL SPECIFICATION

Фрейм

NRE181

КПП

механика МКПП, 6 скоростей

Опции

левый руль 4 двери WITH TURBO (HARGER) Китай 685W

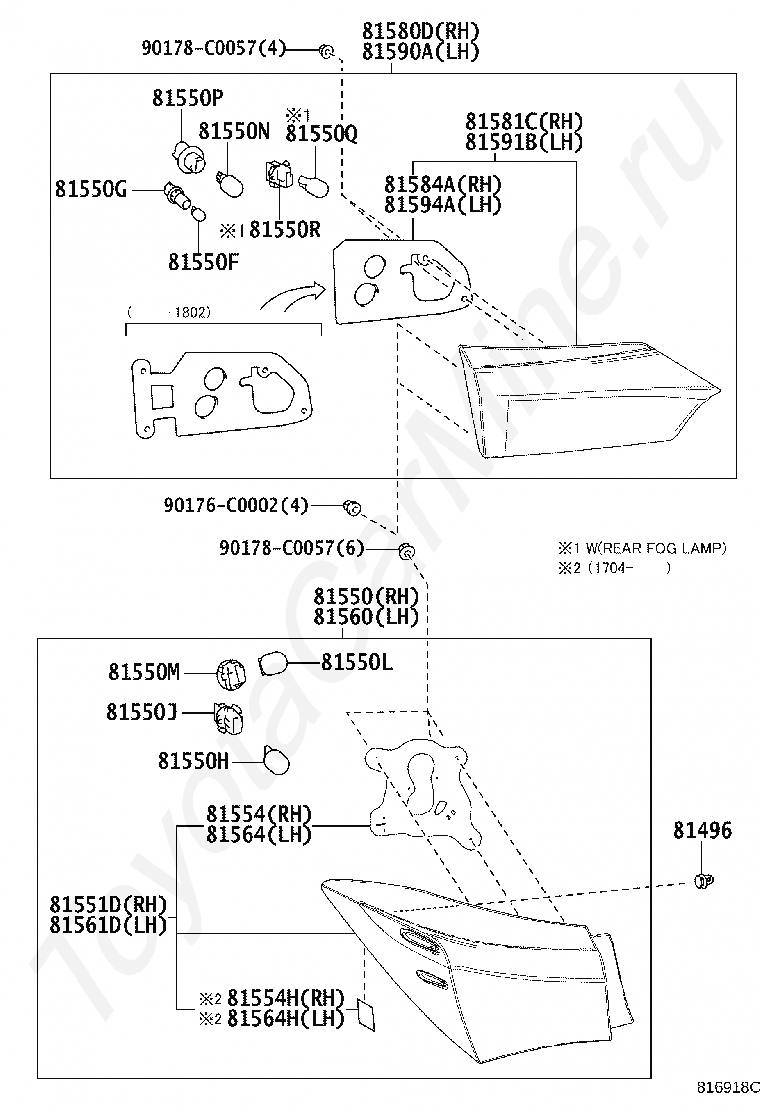

Задние фонари TOYOTA COROLLA (CHINA)

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550

LAMP ASSY, REAR COMBINATION, RH

81550F

BULB, TAIL LAMP

81550G

SOCKET, TAIL LAMP

81550H

BULB, TAIL & STOP LAMP

81550J

SOCKET, TAIL & STOP LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550P

SOCKET, BACK UP LAMP

81550Q

BULB, REAR FOG LAMP, NO.1

81550R

SOCKET, REAR FOG LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554H

PACKING, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564H

PACKING, REAR COMBINATION LAMP, LH

81580D

LAMP ASSY, REAR, RH

81581C

LENS AND BODY, REAR LAMP, RH

81584A

GASKET, REAR LAMP RH

81590A

LAMP ASSY, REAR, LH

81591B

LENS AND BODY, REAR LAMP, LH

81594A

GASKET, REAR LAMP LH

90176C0002

Крепеж

90178C0057

Крепеж

90178C0057

Крепеж

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550

LAMP ASSY, REAR COMBINATION, RH

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550P

SOCKET, BACK UP LAMP

81550Q

BULB, REAR FOG LAMP, NO.1

81550R

SOCKET, REAR FOG LAMP

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580D

LAMP ASSY, REAR, RH

81584A

GASKET, REAR LAMP RH

81585C

SOCKET & WIRE, REAR LAMP, RH

81590A

LAMP ASSY, REAR, LH

81594A

GASKET, REAR LAMP LH

81595

SOCKET & WIRE, REAR LAMP, LH

90176C0002

Крепеж

90178C0057

Крепеж

90178C0057

Крепеж

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81497

COVER, REAR COMBINATION LAMP, RH

81498

COVER, REAR COMBINATION LAMP, LH

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550P

SOCKET, BACK UP LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554H

PACKING, REAR COMBINATION LAMP, RH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564H

PACKING, REAR COMBINATION LAMP, LH

81580D

LAMP ASSY, REAR, RH

81584A

GASKET, REAR LAMP RH

81590A

LAMP ASSY, REAR, LH

81594A

GASKET, REAR LAMP LH

9006932077

Крепеж

90176C0002

Крепеж

90178C0057

Крепеж

90178C0057

Крепеж
