Ближний Восток

Модель

COROLLA

VIN

Дата

2021/01

Двигатель

1500CC 12-VALVE DOHC

Кузов

седан

Класс

MULTI INFORMATION DISPLAY

Фрейм

MZEA11

КПП

вариатор

Опции

левый руль 4 двери HIGH EFFICIENCY TWIN CAM Китай 715W

Реле и кнопки TOYOTA COROLLA

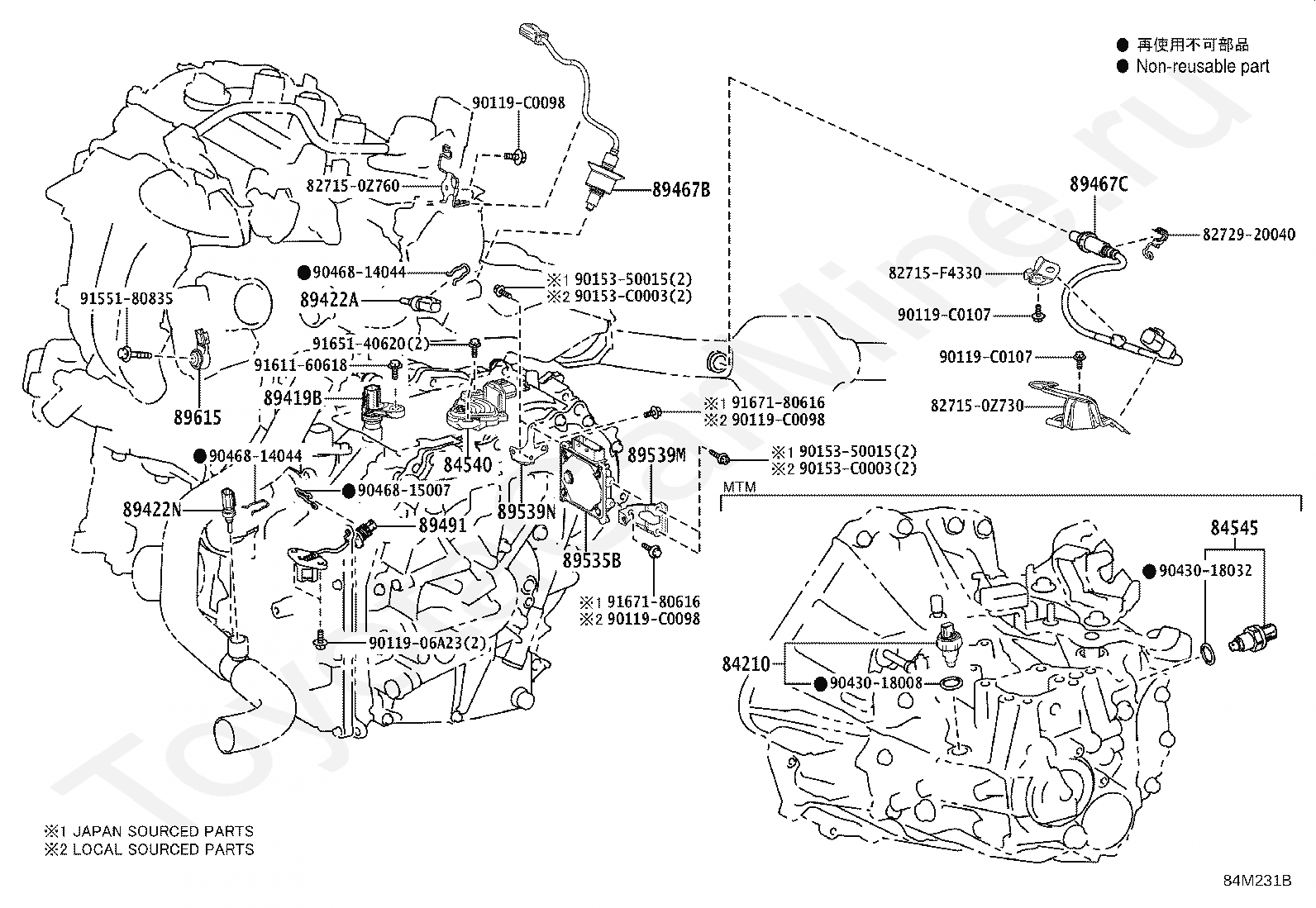

Код

Описание

827150Z730

Крепеж

827150Z760

Крепеж

82715F4330

Крепеж

8272920040

Крепеж

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

84545

SWITCH, NEUTRAL POSITION

89419B

SENSOR, SHIFT STROKE

89422A

SENSOR, WATER TEMPERATURE

89422N

SENSOR, WATER TEMPERATURE, NO.2

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89535B

COMPUTER, TRANSMISSION CONTROL

89539M

BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

89539N

BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

89615

SENSOR, KNOCK CONTROL

9011906A23

Крепеж

90119C0098

Крепеж

90119C0098

Крепеж

90119C0098

Крепеж

90119C0107

Крепеж

90119C0107

Крепеж

9015350015

Крепеж

9015350015

Крепеж

90153C0003

Крепеж

90153C0003

Крепеж

9043018008

Крепеж

9043018032

Крепеж

9046814044

Крепеж

9046814044

Крепеж

9046815007

Крепеж

9155180835

Крепеж

9161160618

Крепеж

9165140620

Крепеж

9167180616

Крепеж

9167180616

Крепеж

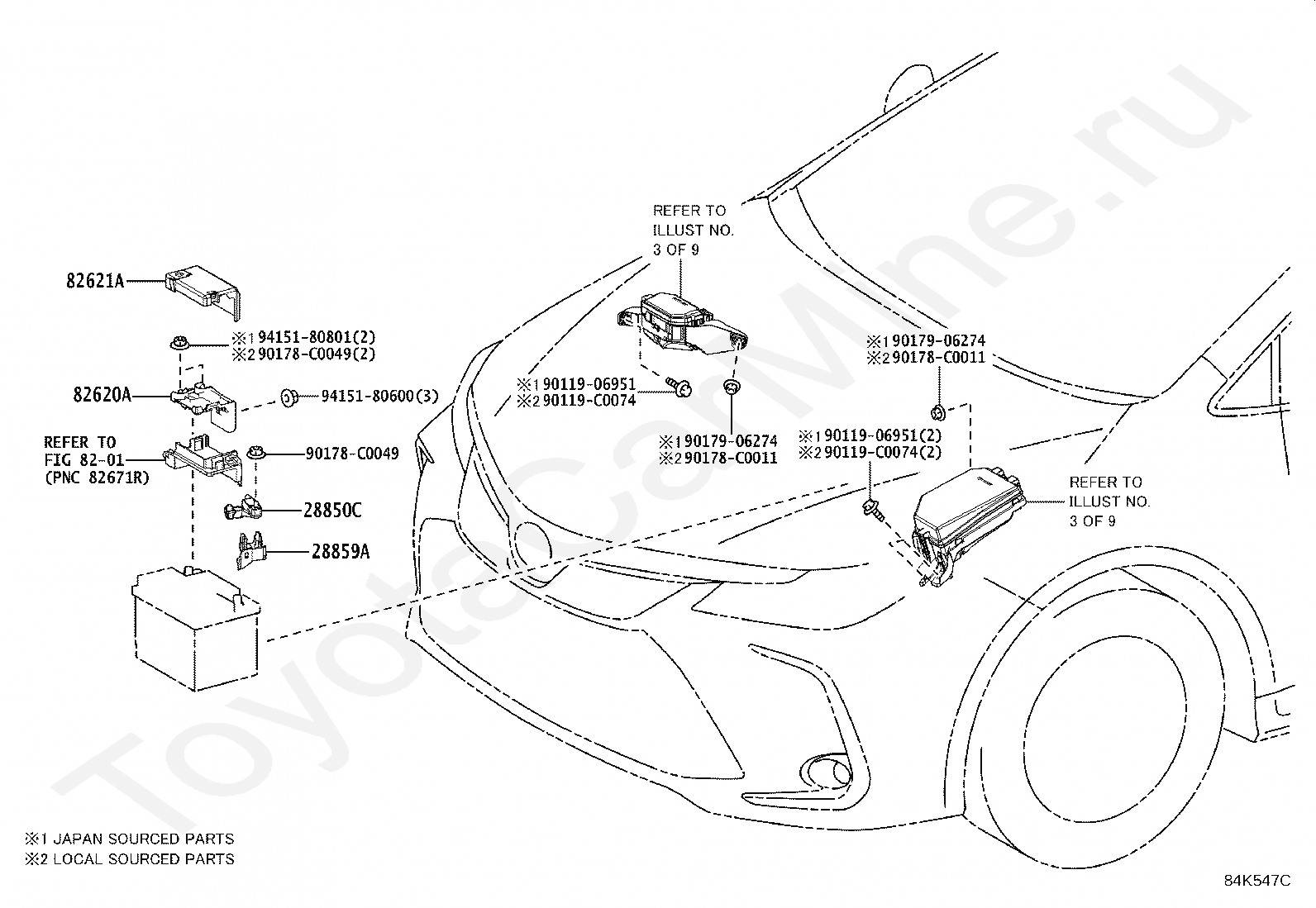

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

8201

переход к группе запчастей

82620A

BLOCK ASSY, FUSIBLE LINK

82621A

COVER, FUSIBLE LINK

9011906951

Крепеж

9011906951

Крепеж

90119C0074

Крепеж

90119C0074

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

90178C0049

Крепеж

90178C0049

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9415180600

Крепеж

9415180801

Крепеж

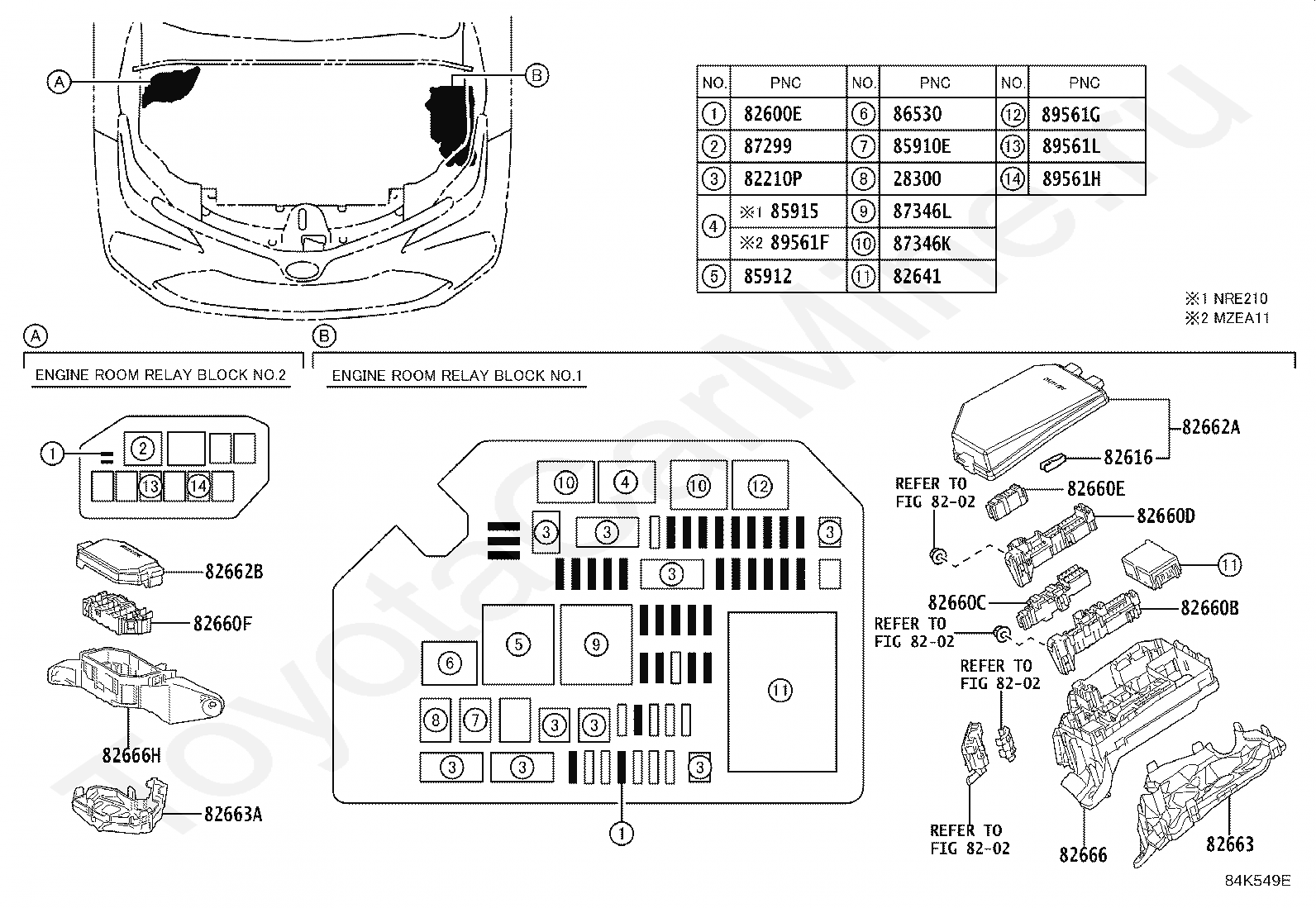

Код

Описание

28300

RELAY ASSY, STARTER

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82660F

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

85910E

RELAY, INJECTOR

85912

RELAY, DEFOGGER

85915

RELAY, MAIN

86530

RELAY ASSY, HORN

87299

RELAY, HEATER

87346K

RELAY, PTC HEATER

87346L

RELAY, PTC HEATER

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

89561H

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

89561L

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.4

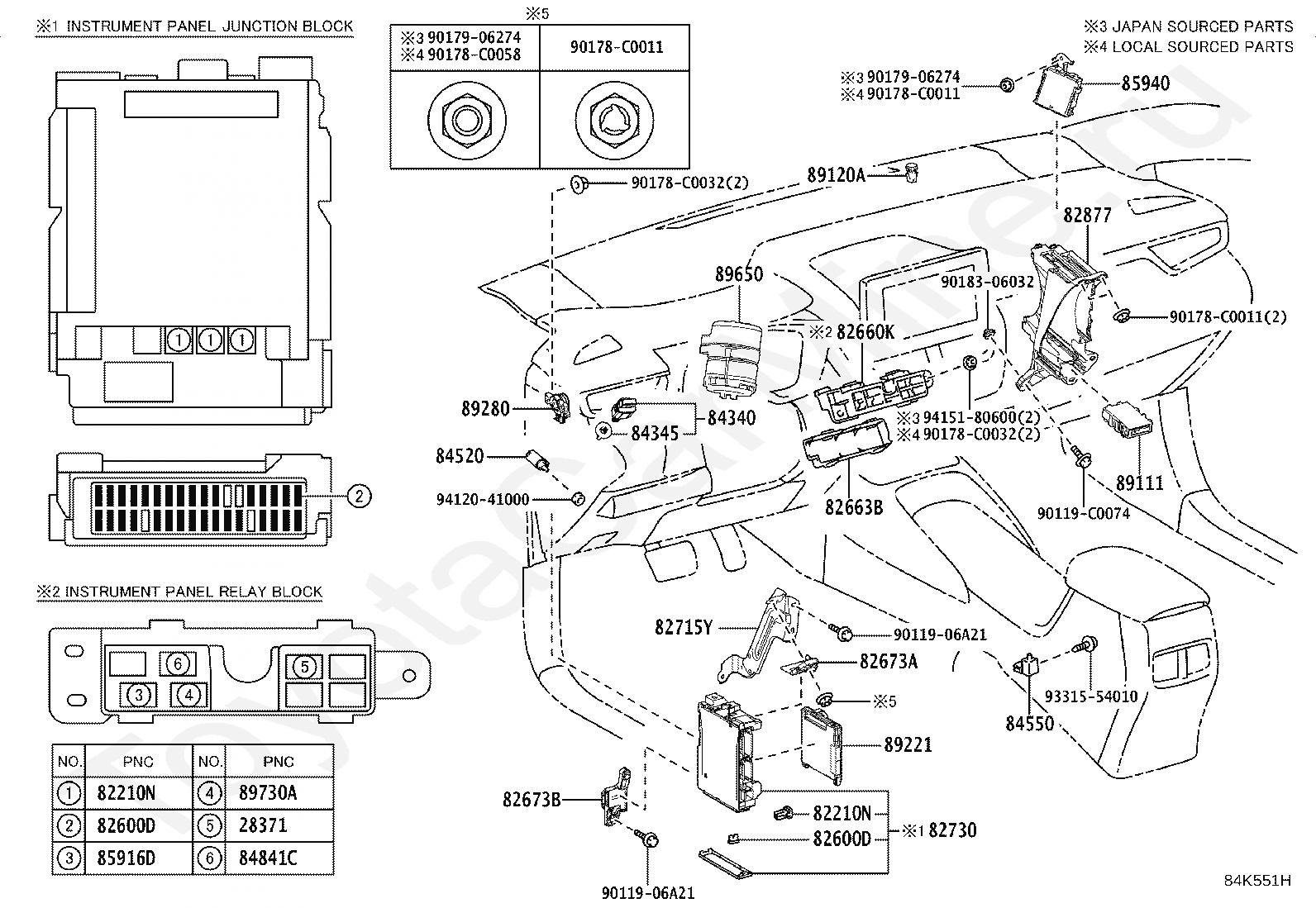

Код

Описание

28371

RELAY, IGNITION, NO.1

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660K

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715Y

BRACKET, WIRING HARNESS CLAMP, NO.3

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84520

SWITCH ASSY, CLUTCH START

84550

SWITCH ASSY, PARKING BRAKE

84841C

RELAY, FUEL LID OPENER

85916D

RELAY, FOG LAMP

85940

RELAY ASSY, WINDSHIELD WIPER

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

89650

COMPUTER ASSY, POWER STEERING

89730A

RELAY(FOR SECURITY WARNING)

9011906A21

Крепеж

9011906A21

Крепеж

90119C0074

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

90178C0032

Крепеж

90178C0032

Крепеж

90178C0058

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9331554010

Крепеж

9412041000

Крепеж

9415180600

Крепеж

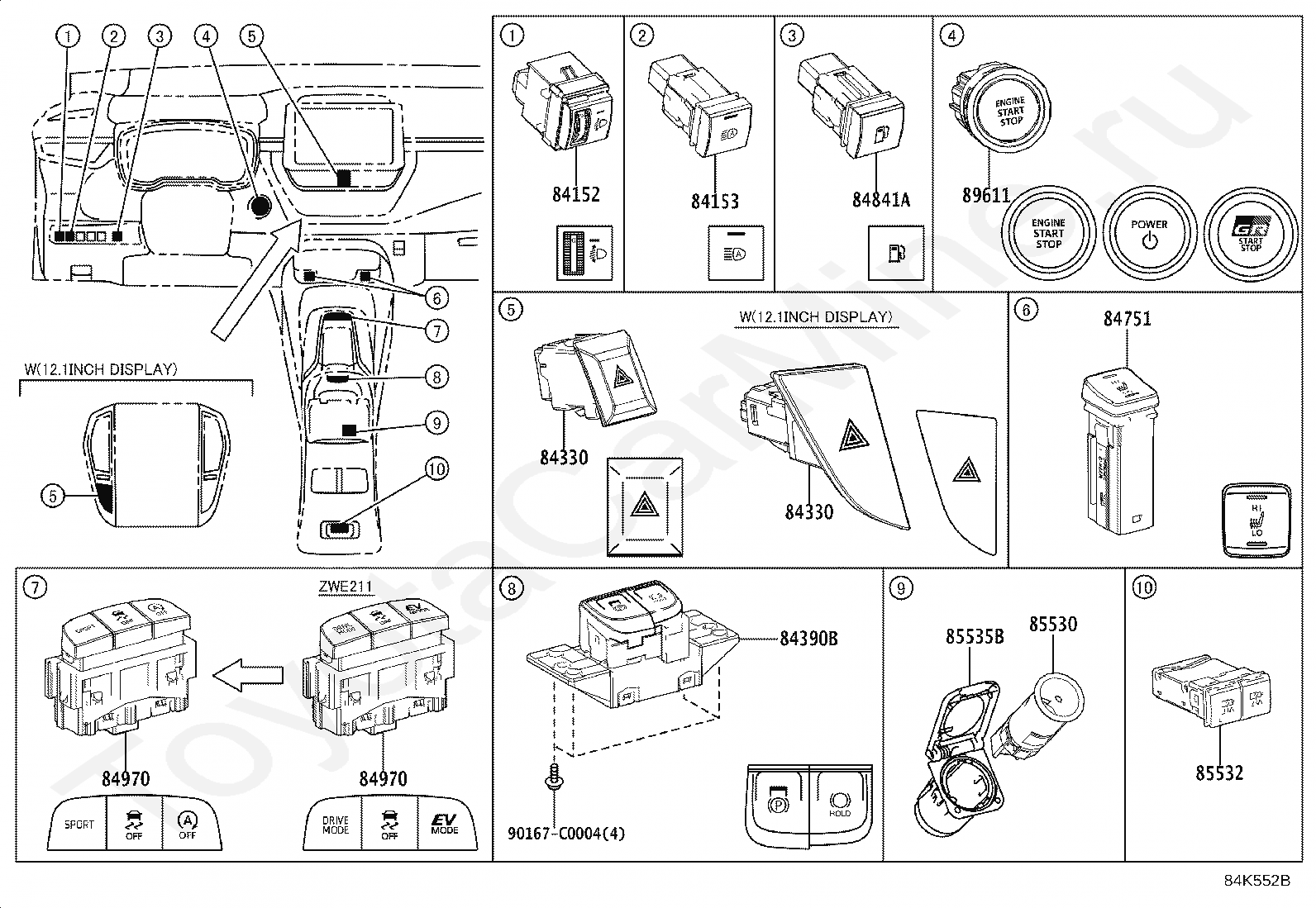

Код

Описание

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84751

SWITCH, SEAT HEATER

84841A

SWITCH, FUEL LID OPENER

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

90167C0004

Крепеж

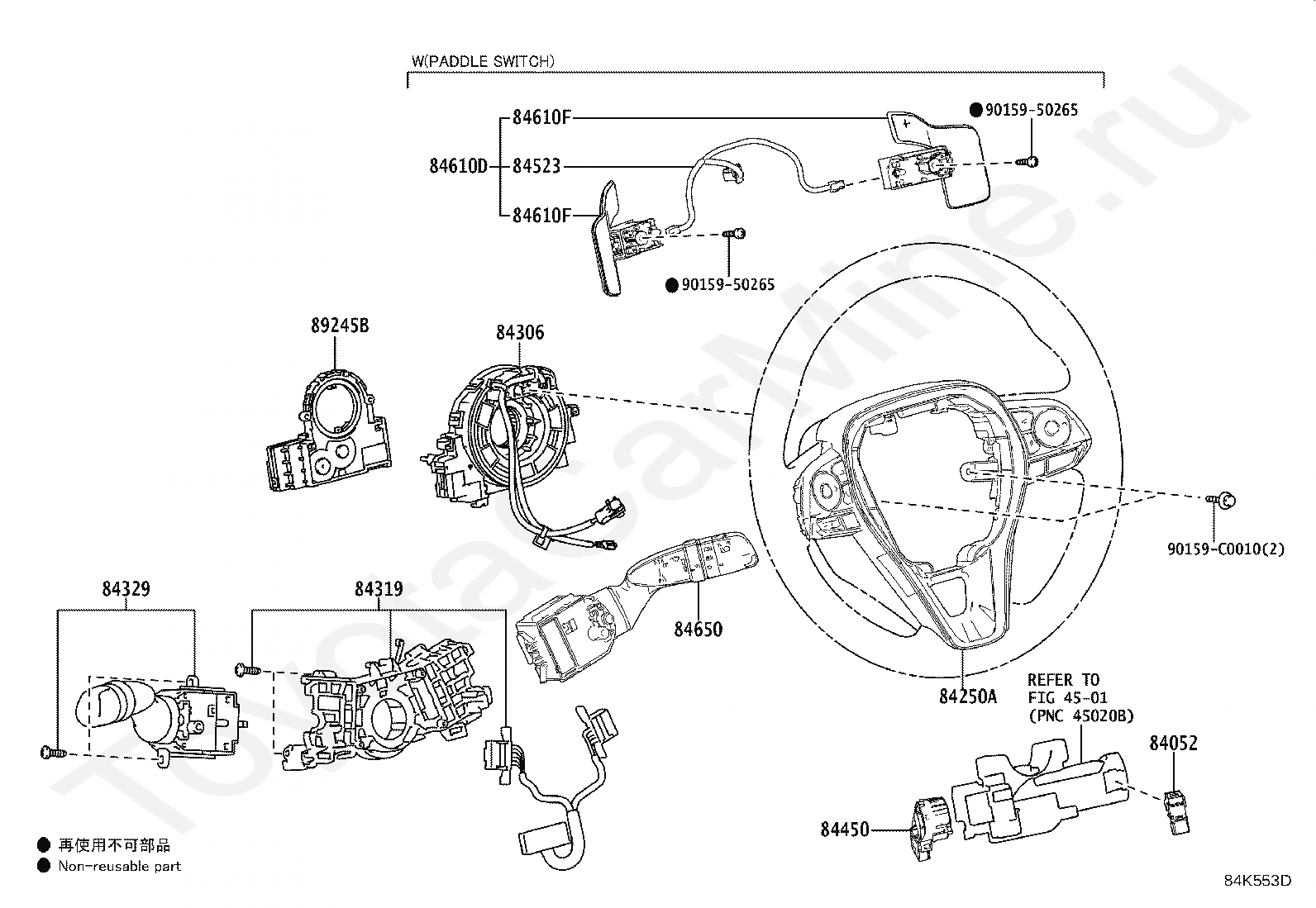

Код

Описание

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84523

WIRE, SWITCH NO.1

84610D

SWITCH, TRANSMISSION SHIFT, MAIN

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9015950265

Крепеж

9015950265

Крепеж

90159C0010

Крепеж

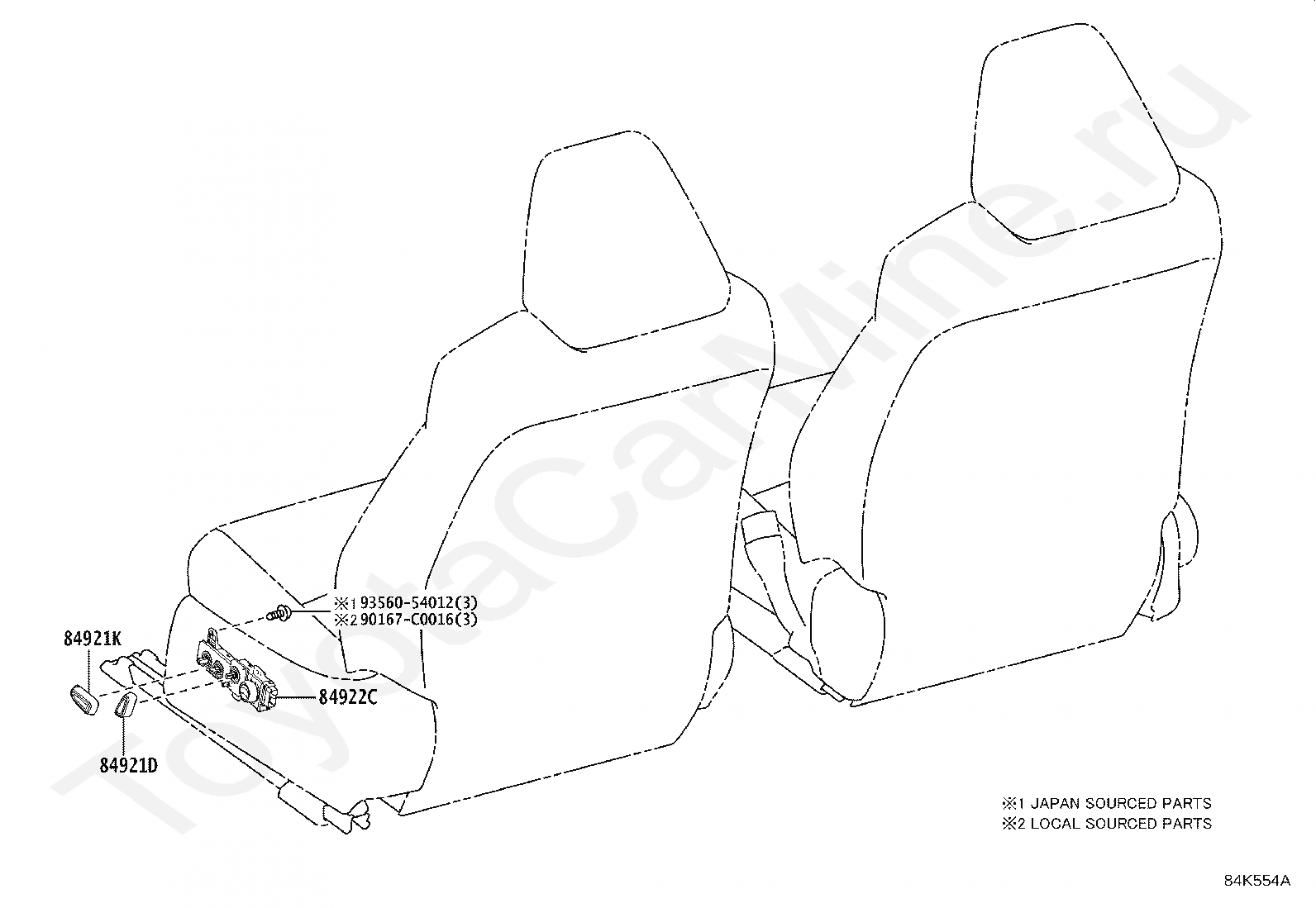

Код

Описание

84921D

KNOB, POWER SEAT SWITCH, LH

84921K

KNOB, POWER SEAT SWITCH, LH

84922C

SWITCH, FRONT POWER SEAT, LH

90167C0016

Крепеж

9356054012

Крепеж

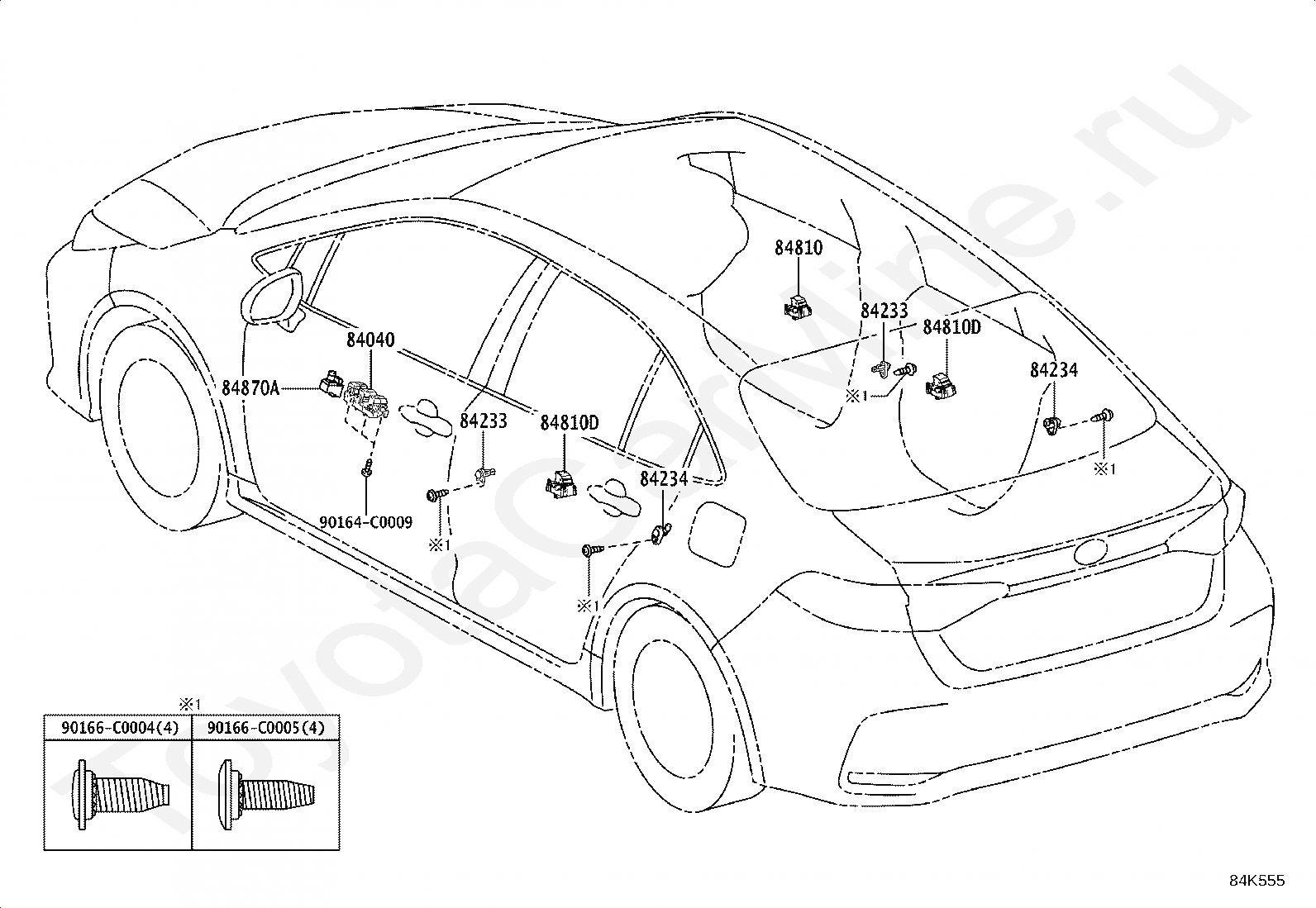

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

90164C0009

Крепеж

90166C0004

Крепеж

90166C0005

Крепеж

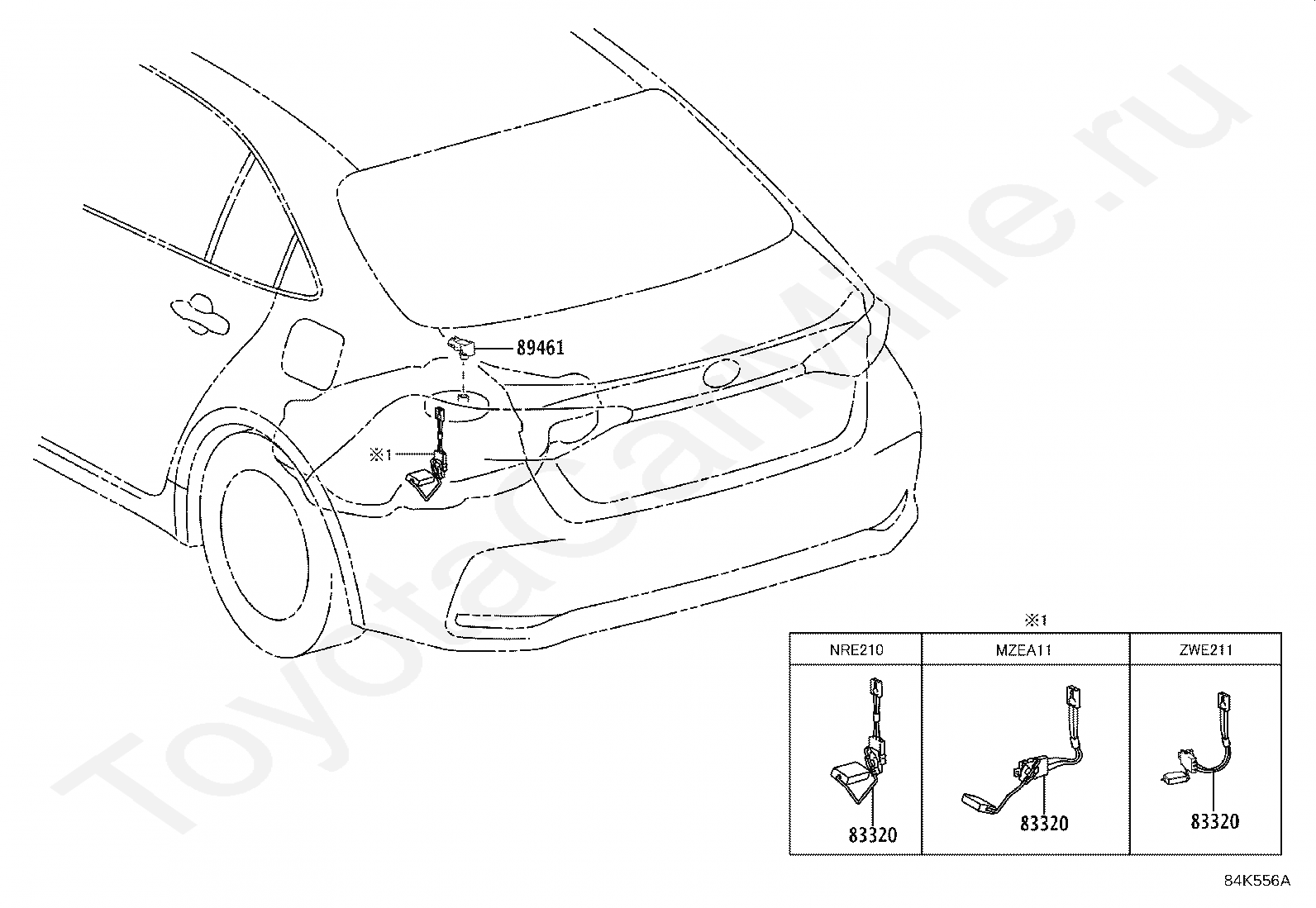

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

89461

SENSOR, VAPOR PRESSURE
