Ближний Восток

Модель

COROLLA (TUP)

VIN

Дата

2019/01

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Фрейм

ZWE211

КПП

вариатор

Опции

правый руль N(MODEL MARK) Европа 714W

Реле и кнопки TOYOTA COROLLA (TUP)

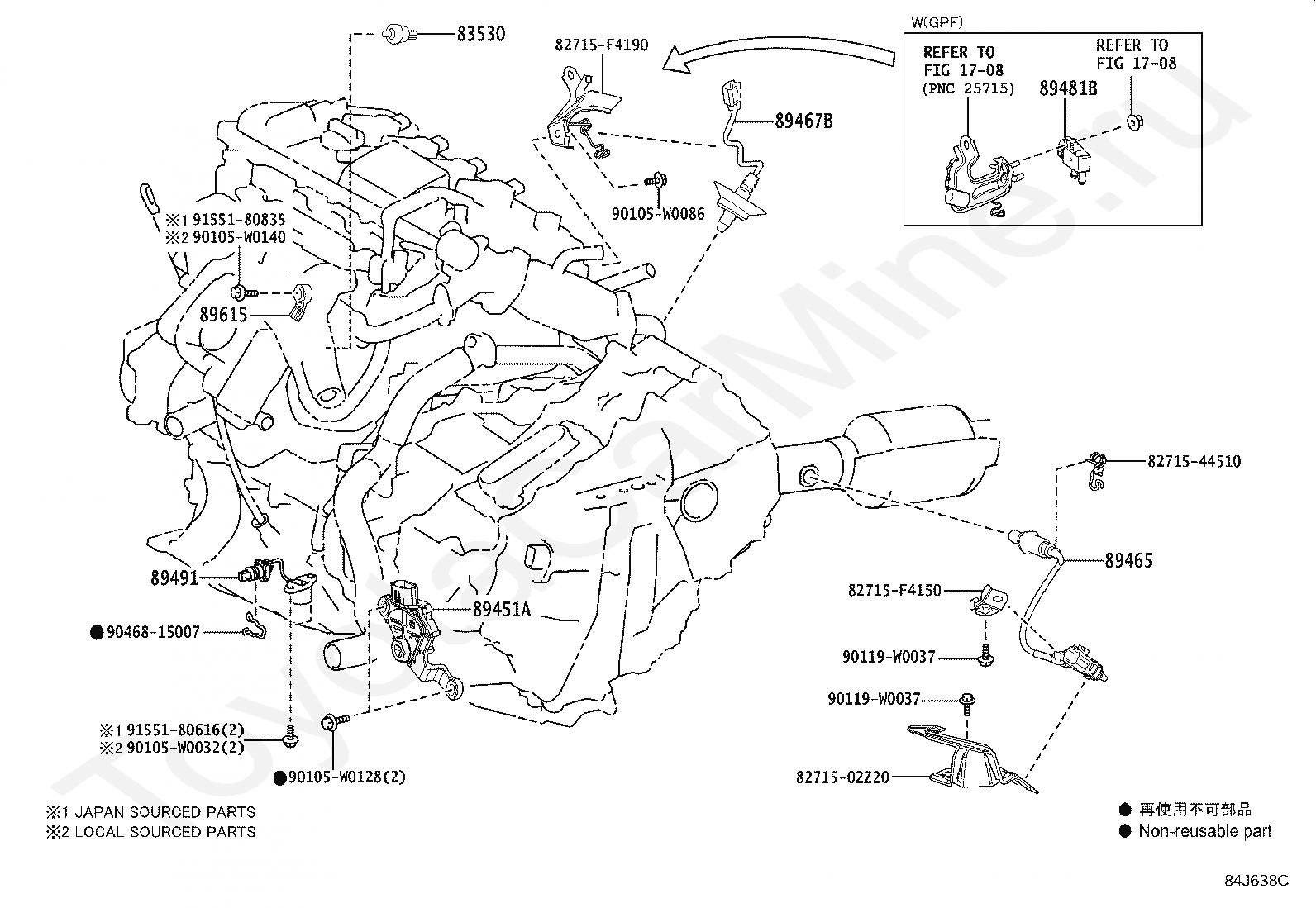

Код

Описание

1708

переход к группе запчастей

1708

переход к группе запчастей

8271502Z20

Крепеж

8271544510

Крепеж

82715F4150

Крепеж

82715F4190

Крепеж

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89451A

SENSOR, SHIFT LEVER POSITION

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89481B

SENSOR, DIFFERENTIAL PRESSURE

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

90105W0032

Крепеж

90105W0086

Крепеж

90105W0128

Крепеж

90105W0140

Крепеж

90119W0037

Крепеж

90119W0037

Крепеж

9046815007

Крепеж

9155180616

Крепеж

9155180835

Крепеж

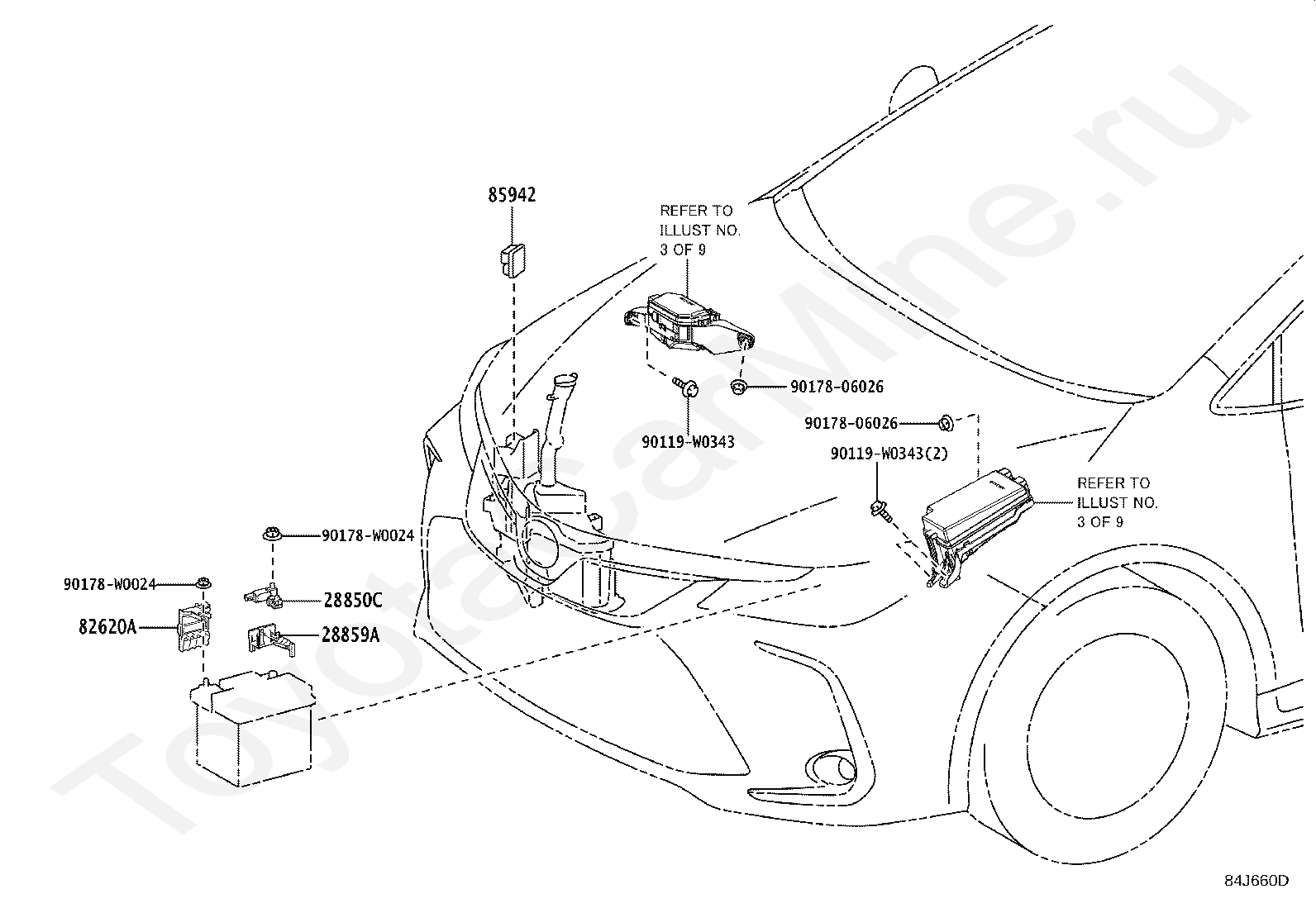

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

82620A

BLOCK ASSY, FUSIBLE LINK

85942

RELAY, HEADLAMP CLEANER CONTROL

90119W0343

Крепеж

90119W0343

Крепеж

9017806026

Крепеж

9017806026

Крепеж

90178W0024

Крепеж

90178W0024

Крепеж

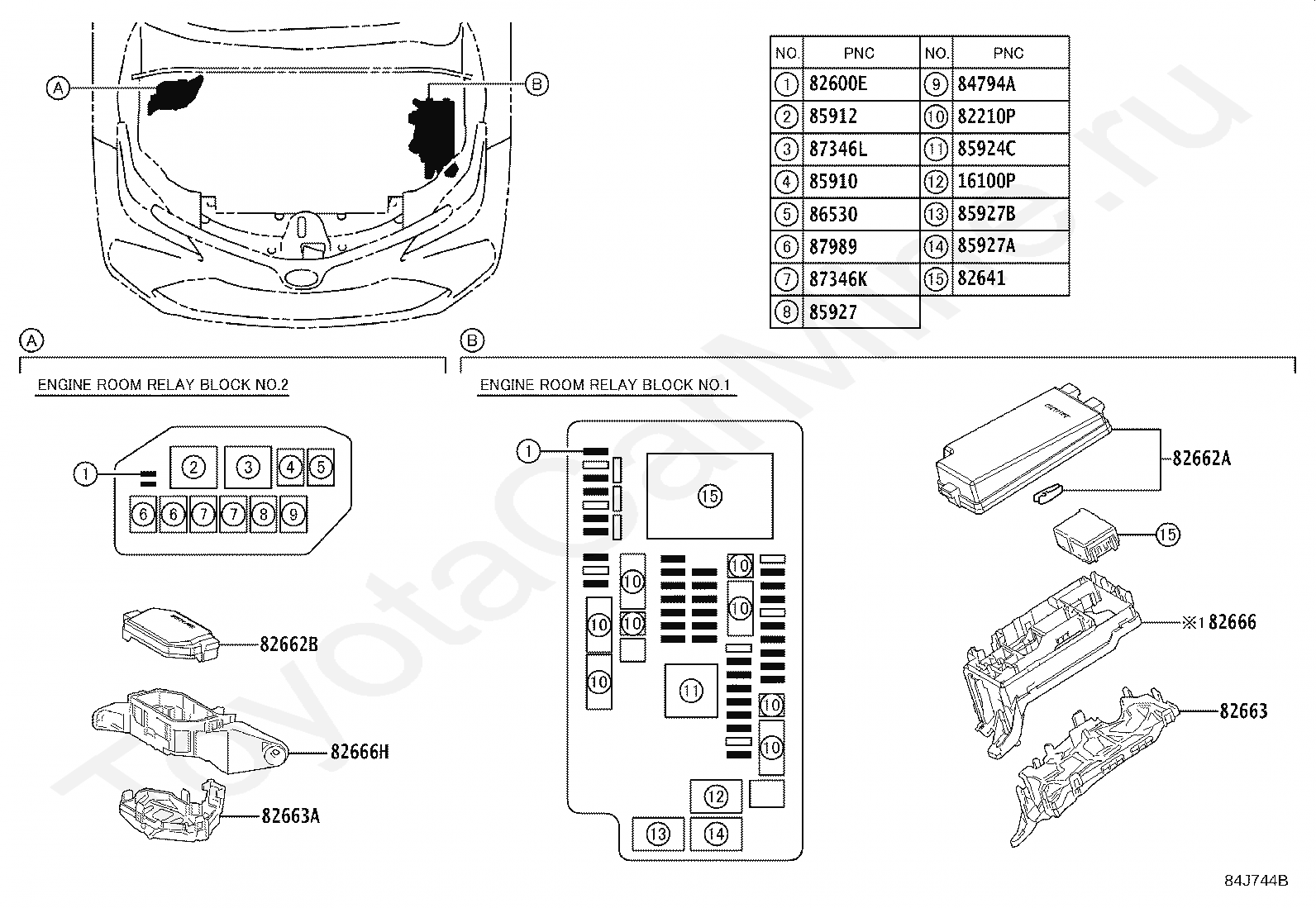

Код

Описание

16100P

RELAY, WATER PUMP

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82641

RELAY, INTEGRATION NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

84794A

RELAY, FR WIPER DEICER

85910

RELAY ASSY, CIRCUIT OPENING

85912

RELAY, DEFOGGER

85924C

RELAY, IGCT

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

86530

RELAY ASSY, HORN

87346K

RELAY, PTC HEATER

87346L

RELAY, PTC HEATER

87989

RELAY, MIRROR CONTROL

Код

Описание

28371

RELAY, IGNITION, NO.1

69065A

CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660B

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82672B

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82878

BOX, COMPUTER INTEGRATION, LH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84520

SWITCH ASSY, CLUTCH START

84550

SWITCH ASSY, PARKING BRAKE

85910V

RELAY, SEAT HEATER

85913F

RELAY, STEERING HEATER

85916D

RELAY, FOG LAMP

85940

RELAY ASSY, WINDSHIELD WIPER

88280A

SWITCH ASSY, CLUTCH

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

89650

COMPUTER ASSY, POWER STEERING

90119W0333

Крепеж

90119W0333

Крепеж

90178W0019

Крепеж

90178W0019

Крепеж

90178W0039

Крепеж

90178W0039

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906323

Крепеж

9331514012

Крепеж

9412041000

Крепеж

Код

Описание

83950M

LAMP ASSY, TELLTALE

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84746

SWITCH, TIRE PRESSURE WARNING

84751

SWITCH, SEAT HEATER

84751F

SWITCH, SEAT HEATER

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

90167W0007

Крепеж

Код

Описание

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89245B

SENSOR, STEERING

9015950199

Крепеж

Код

Описание

3864205010

Крепеж

3864205010

Крепеж

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

9356054012

Крепеж

9356054012

Крепеж

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84751R

SWITCH, SEAT HEATER(REAR)

84751R

SWITCH, SEAT HEATER(REAR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

9016440103

Крепеж

9016440103

Крепеж

9016660005

Крепеж

9016670001

Крепеж

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

88162

SENSOR, BLIND SPOT MONITOR, RH

88163

COVER, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

89747F

BUZZER, BLIND SPOT MONITOR

9017806012

Крепеж

9017806012

Крепеж
