8714
переход к группе запчастей
8719
переход к группе запчастей

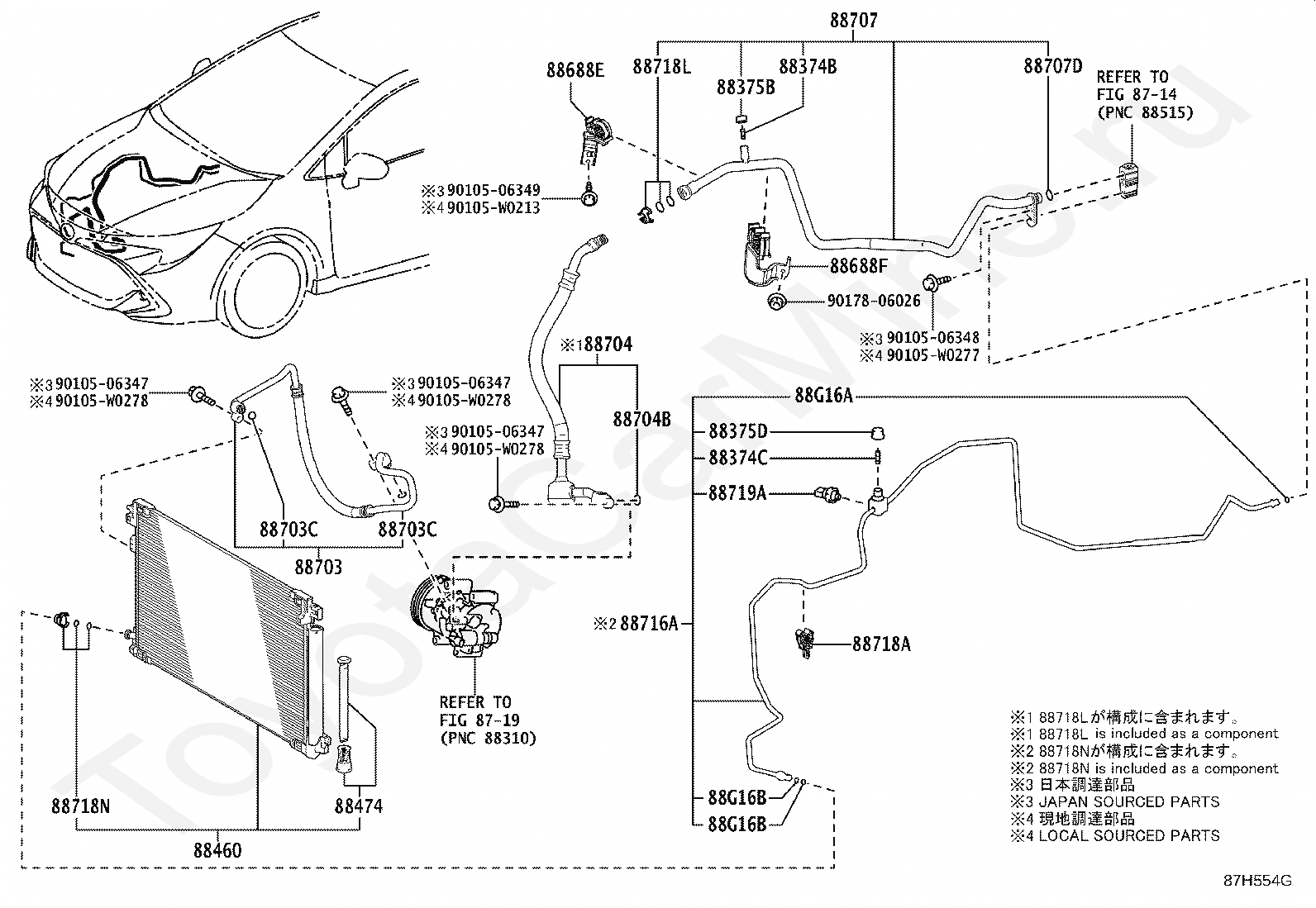

88374B
VALVE, SERVICE, NO.1
88374C
VALVE, SERVICE, NO.2
88375B
CAP, SERVICE VALVE, NO.1
88375D
CAP, SERVICE VALVE, NO.2
88460
CONDENSER ASSY, COOLER
88688E
BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688F
BRACKET, COOLER REFRIGERANT HOSE, NO.2
88703
HOSE SUB-ASSY, DISCHARGE
88703C
RING, O(FOR DISCHARGE HOSE)
88703C
RING, O(FOR DISCHARGE HOSE)
88704
HOSE SUB-ASSY, SUCTION
88704B
RING, O(FOR SUCTION HOSE)
88707
PIPE SUB-ASSY, SUCTION
88707D
RING, O(FOR SUCTION TUBE)
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88718A
CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88719A
SENSOR, AIR CONDITIONER PRESSURE
88G16A
RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16B
RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16B
RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
