Ближний Восток

Модель

COROLLA (UKP)

VIN

Дата

2019/02

Двигатель

1,2 литра, 16 клапанов, DOHC, D4

Кузов

фургон

Фрейм

NRE210

КПП

вариатор

Опции

правый руль GRAMS Европа 713W

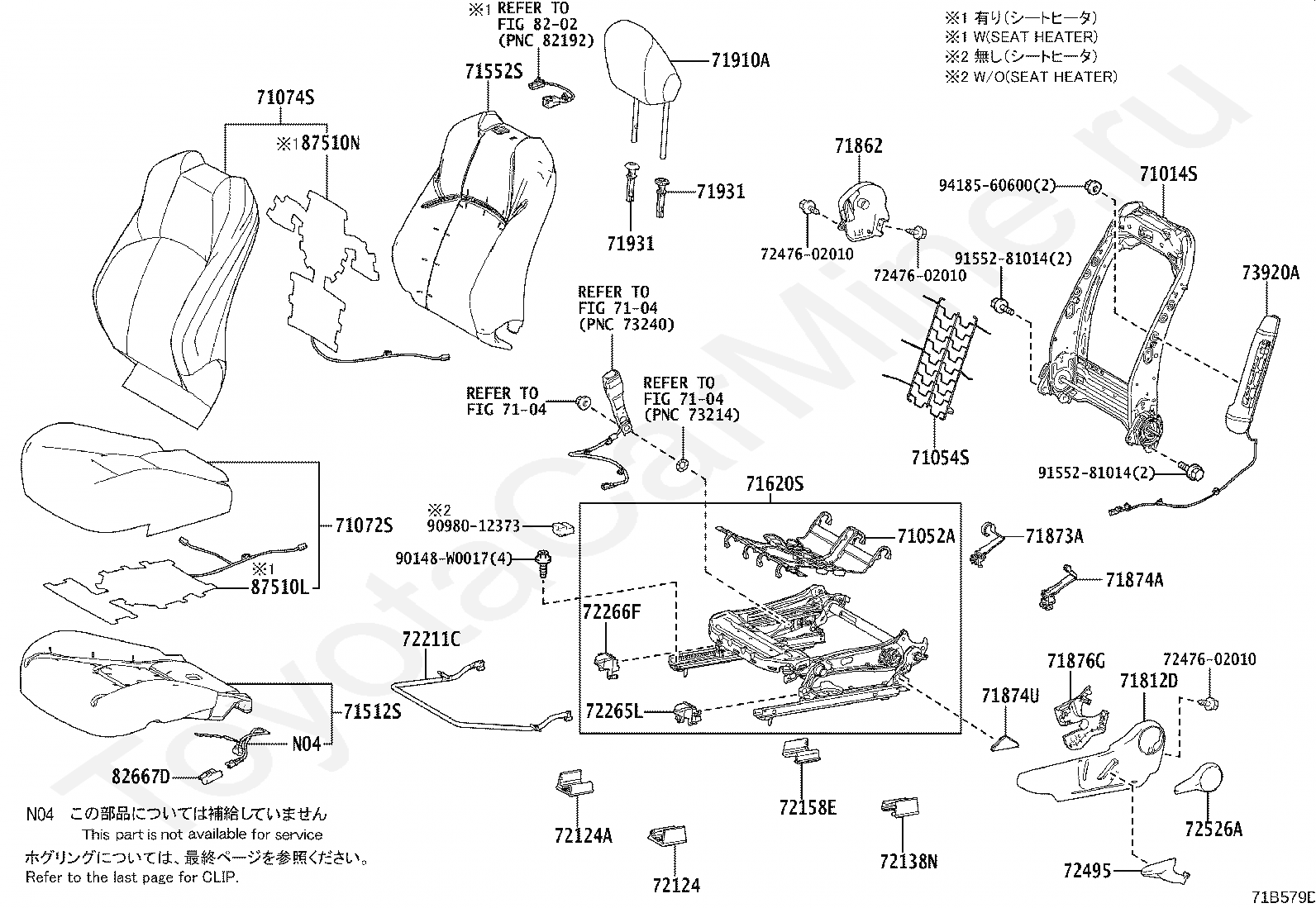

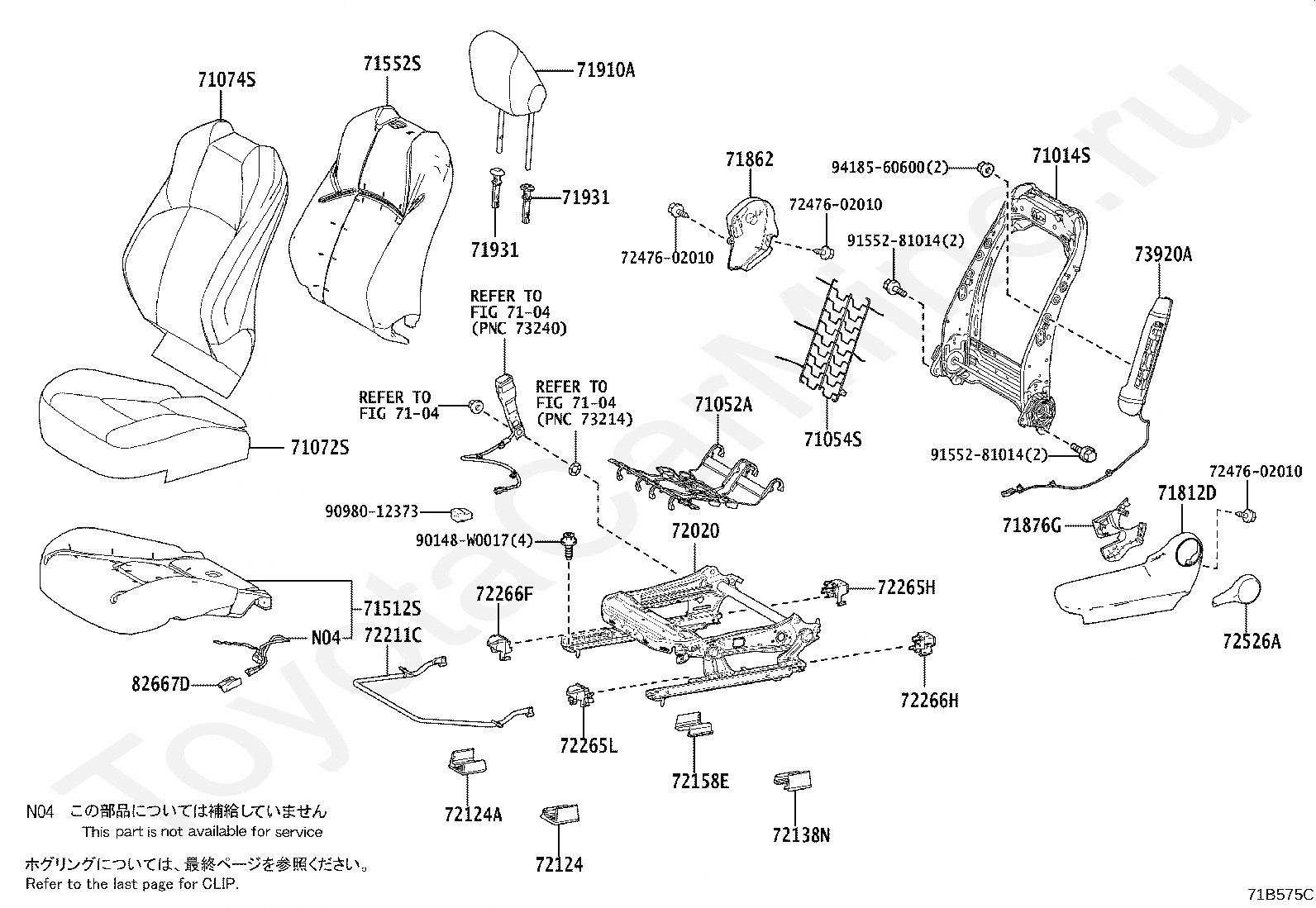

Передние кресла TOYOTA COROLLA (UKP)

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265H

COVER, SEAT TRACK UPPER RAIL, REAR INNER

72265L

COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR LH SEAT)

72266F

COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT)

72266H

COVER, SEAT TRACK UPPER RAIL, REAR OUTER

7247602010

Крепеж

7247602010

Крепеж

7247602010

Крепеж

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

82667D

HOLDER, CONNECTOR

90148W0017

Крепеж

9098012373

Крепеж

9155281014

Крепеж

9155281014

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265L

COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR LH SEAT)

72266F

COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT)

7247602010

Крепеж

7247602010

Крепеж

7247602010

Крепеж

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

82667D

HOLDER, CONNECTOR

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

90148W0017

Крепеж

9098012373

Крепеж

9155281014

Крепеж

9155281014

Крепеж

9418560600

Крепеж

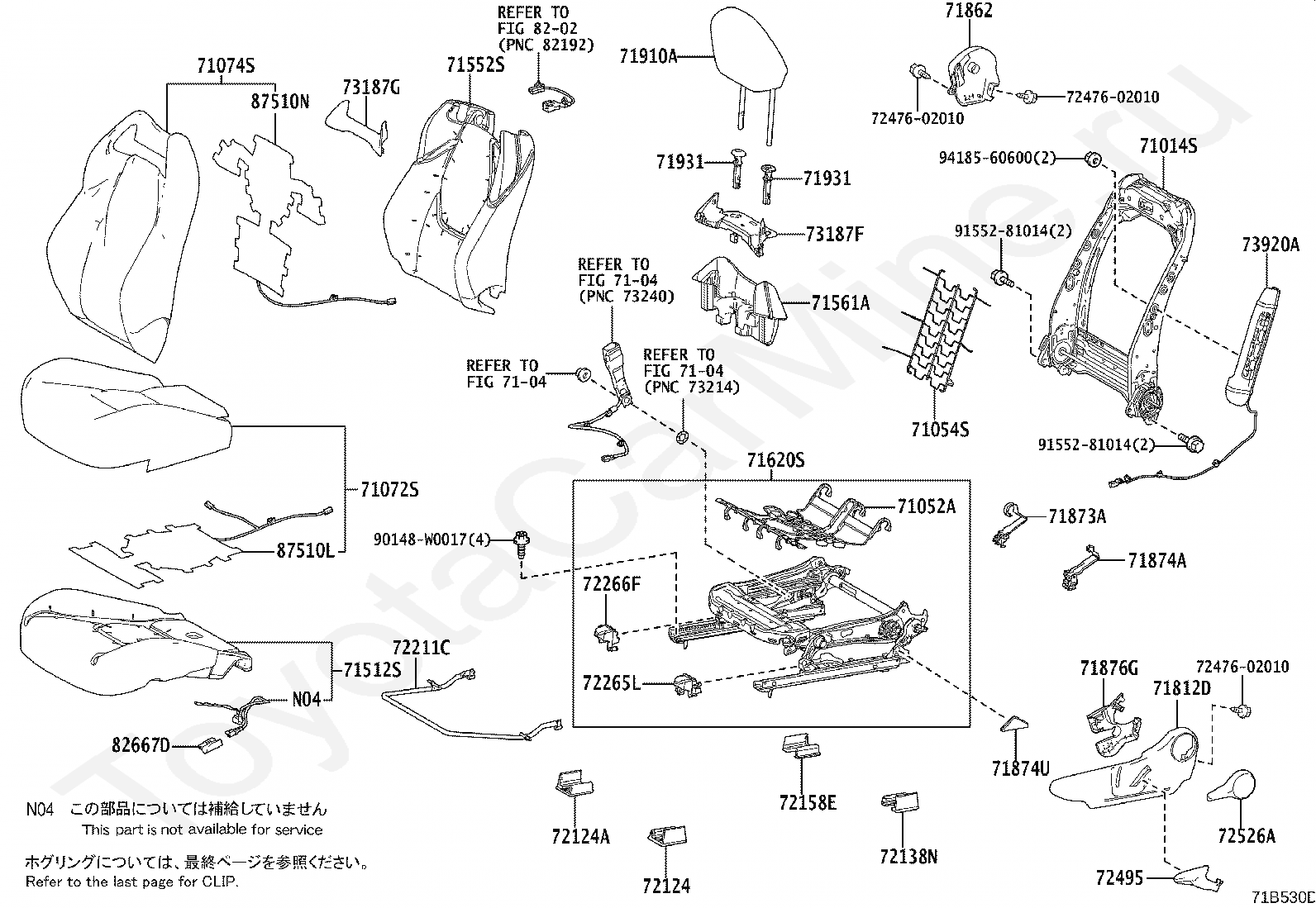

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71561A

PAD, FRONT SEAT BACK, UPPER LH

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265L

COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR LH SEAT)

72266F

COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT)

7247602010

Крепеж

7247602010

Крепеж

7247602010

Крепеж

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73187F

GUIDE, FRONT SEAT SHOULDER BELT, LH NO.1

73187G

GUIDE, FRONT SEAT SHOULDER BELT, LH NO.2

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

82667D

HOLDER, CONNECTOR

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

90148W0017

Крепеж

9155281014

Крепеж

9155281014

Крепеж

9418560600

Крепеж

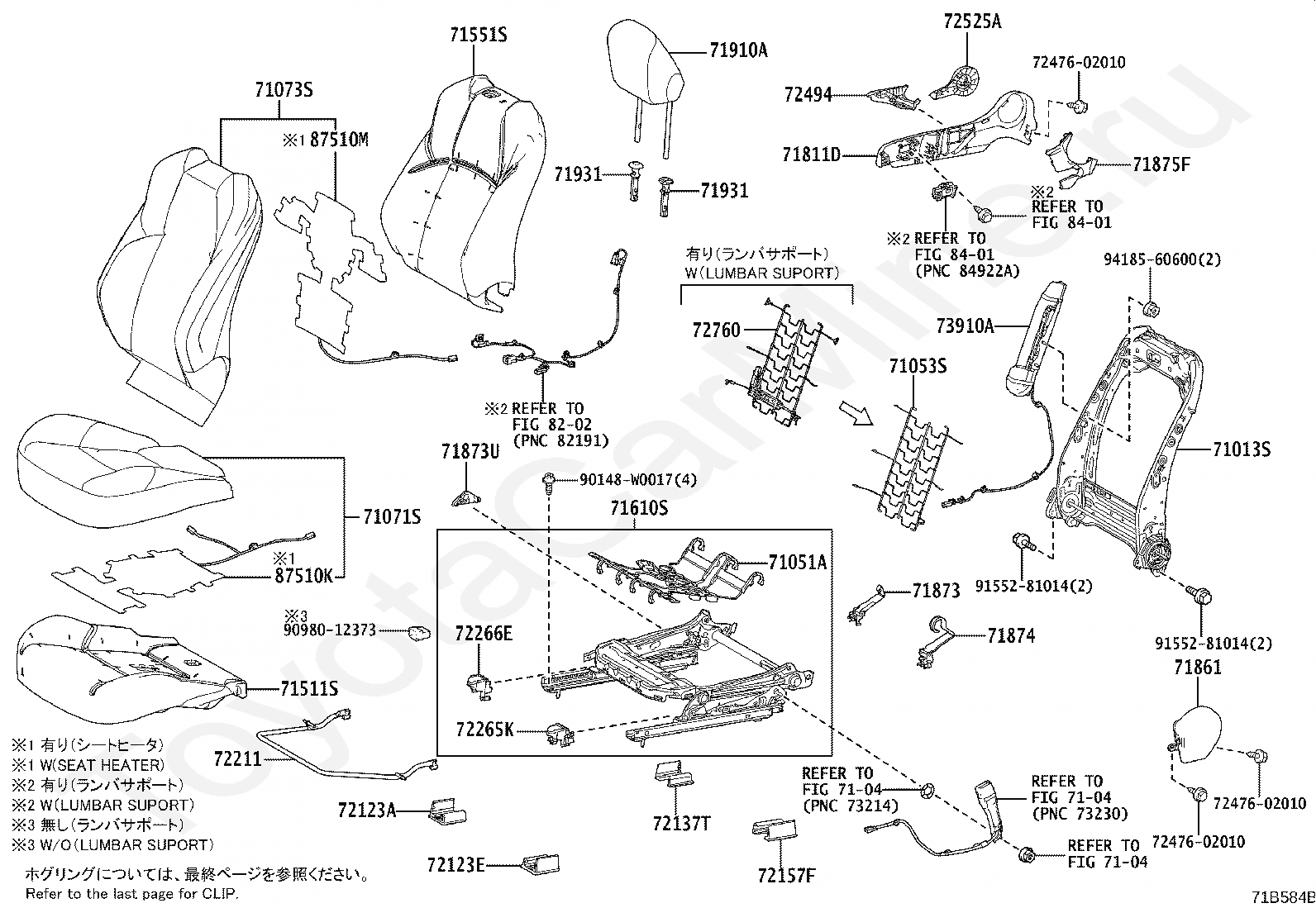

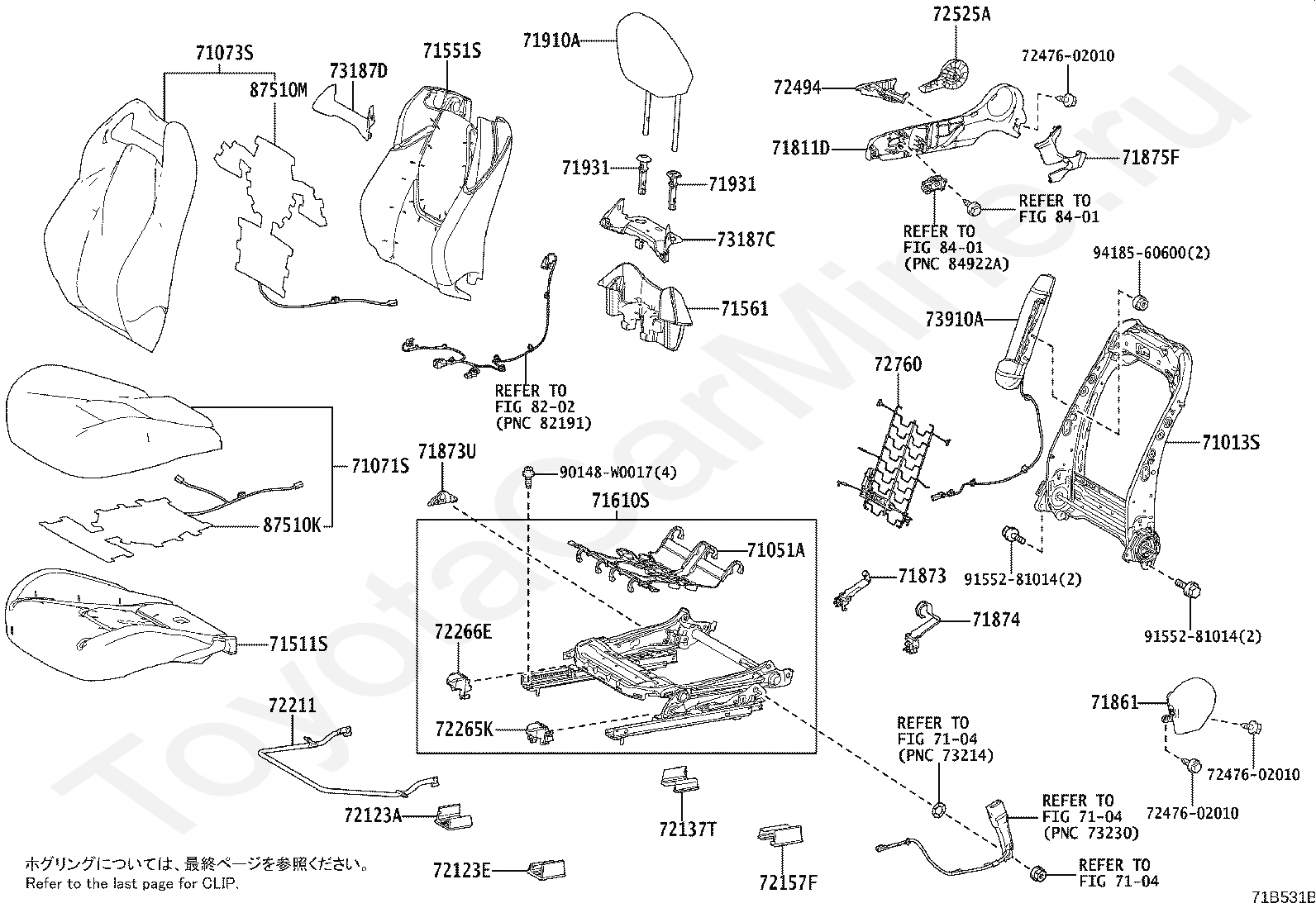

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71561

PAD, FRONT SEAT BACK, UPPER RH

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123E

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137T

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157F

COVER, SEAT TRACK BRACKET, INNER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265K

COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR RH SEAT)

72266E

COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR RH SEAT)

7247602010

Крепеж

7247602010

Крепеж

7247602010

Крепеж

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72760

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73187C

GUIDE, FRONT SEAT SHOULDER BELT, RH NO.1

73187D

GUIDE, FRONT SEAT SHOULDER BELT, RH NO.2

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

90148W0017

Крепеж

9155281014

Крепеж

9155281014

Крепеж

9418560600

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123E

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137T

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157F

COVER, SEAT TRACK BRACKET, INNER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265K

COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR RH SEAT)

72266E

COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR RH SEAT)

7247602010

Крепеж

7247602010

Крепеж

7247602010

Крепеж

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72760

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

90148W0017

Крепеж

9098012373

Крепеж

9155281014

Крепеж

9155281014

Крепеж

9418560600

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA COROLLA (UKP)
