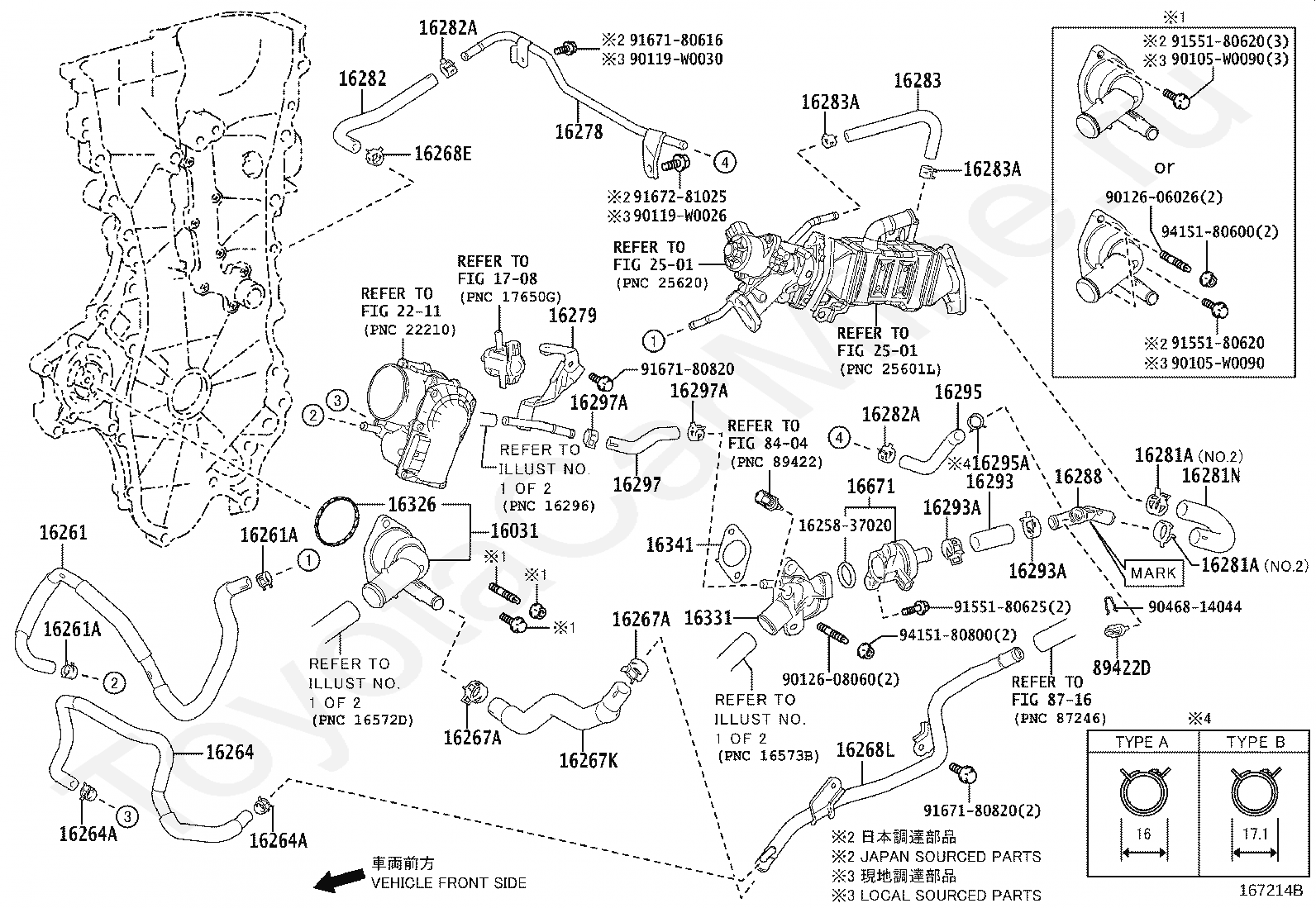

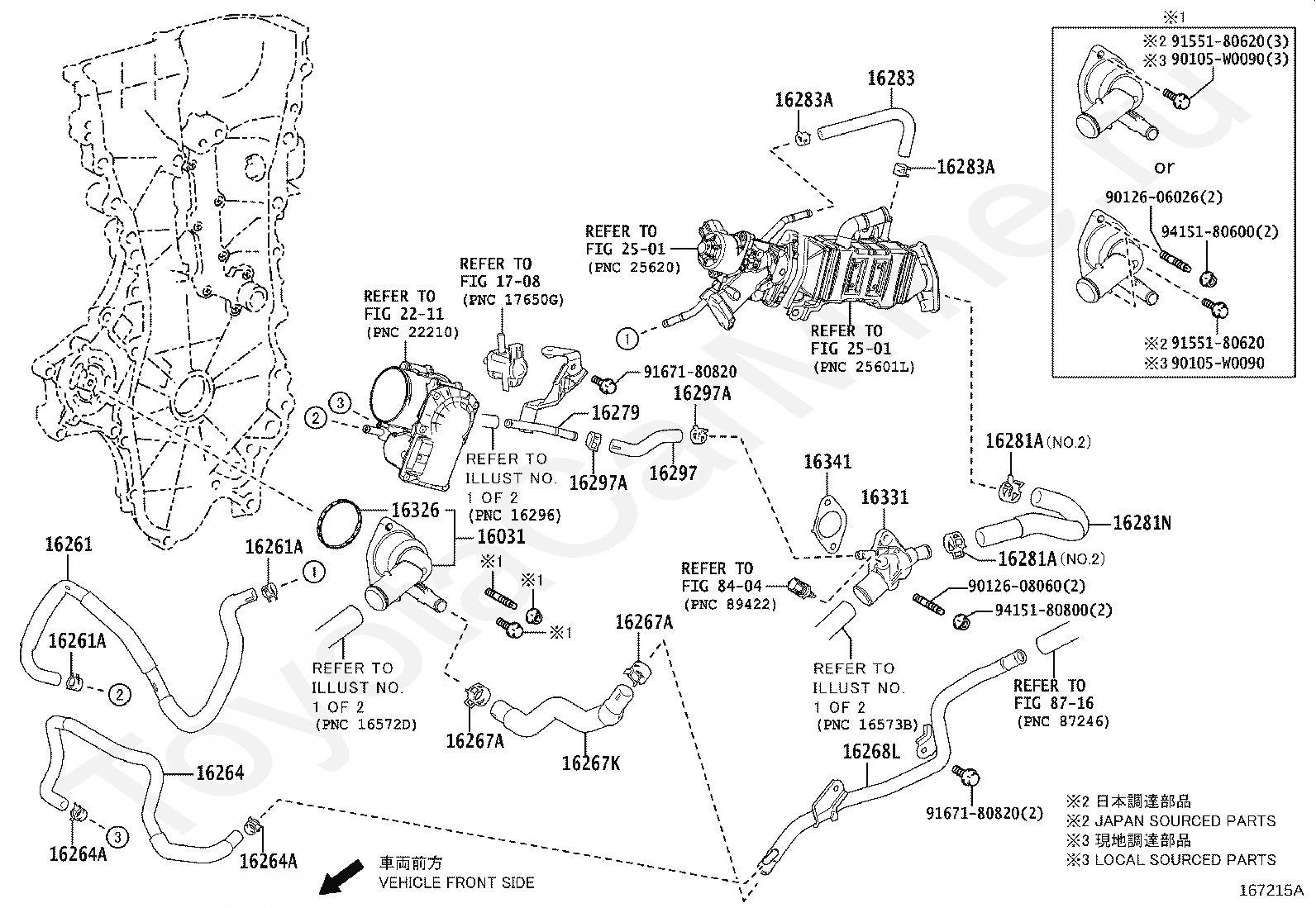

16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267K
HOSE, WATER BY-PASS, NO.3
16268E
CLAMP, HOSE(FOR WATER BY-PASS PIPE)
16268L
PIPE, WATER BY-PASS
16278
PIPE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281N
HOSE, WATER BY-PASS, NO.4
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16288
PIPE, WATER BY-PASS, NO.4
16293
HOSE, WATER BY-PASS, NO.10
16293A
CLIP(FOR WATER BY-PASS HOSE NO.10)
16293A
CLIP(FOR WATER BY-PASS HOSE NO.10)
16295
HOSE, WATER BY-PASS, NO.7
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16297
HOSE, WATER BY-PASS, NO.9
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16326
GASKET, WATER INLET HOUSING, NO.2
16341
GASKET, WATER OUTLET
1708
переход к группе запчастей
2211
переход к группе запчастей
2501
переход к группе запчастей
2501
переход к группе запчастей
8404
переход к группе запчастей
8716
переход к группе запчастей
89422D
SENSOR, WATER TEMPERATURE
