Япония

Модель

COROLLA AXIO/FIELDER

VIN

Дата

2008/10

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

X TYPE

Фрейм

NZE144

КПП

автомат бесступенчатая АКПП

Опции

HIGH EFFICIENCY TWIN CAM 439W

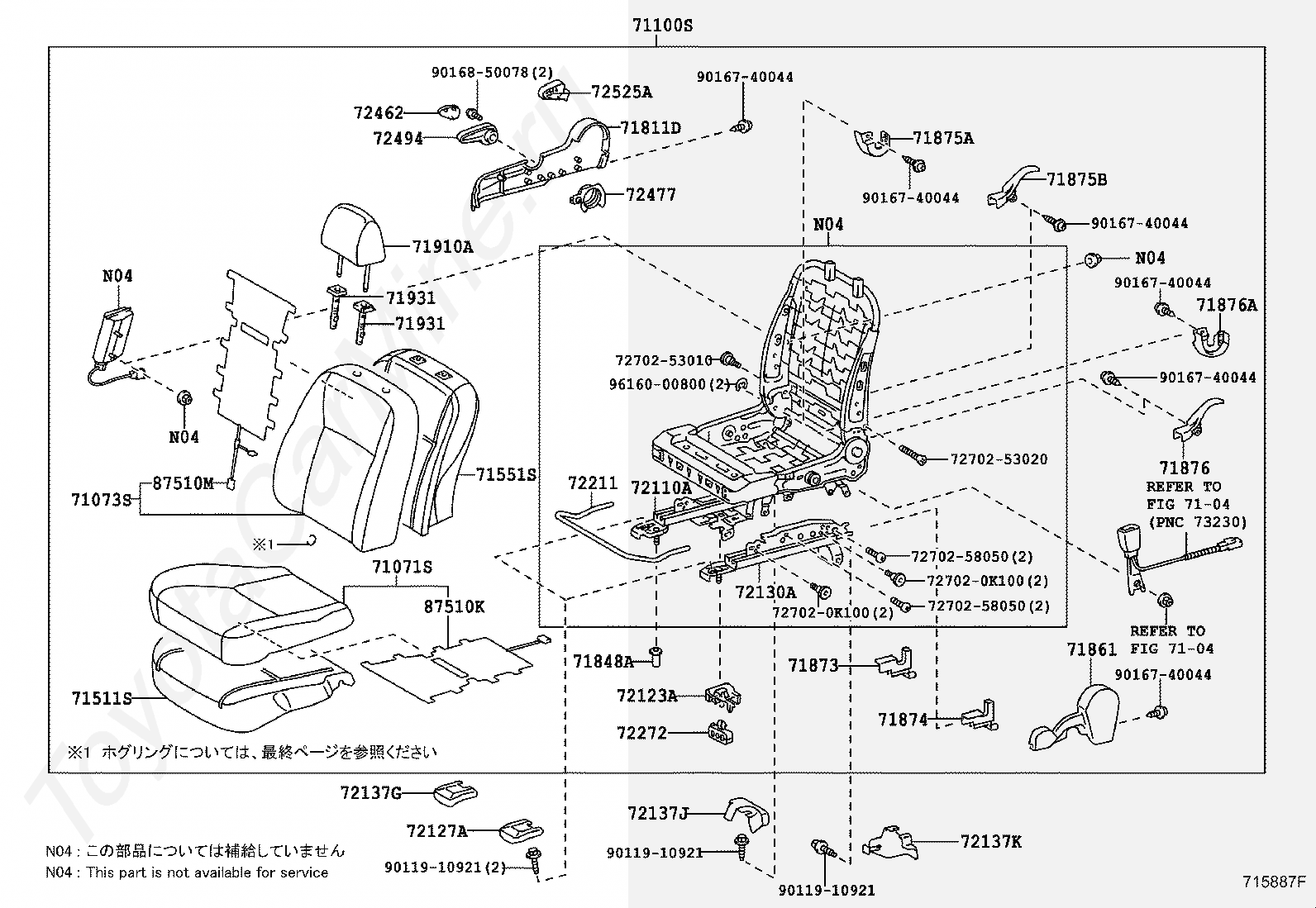

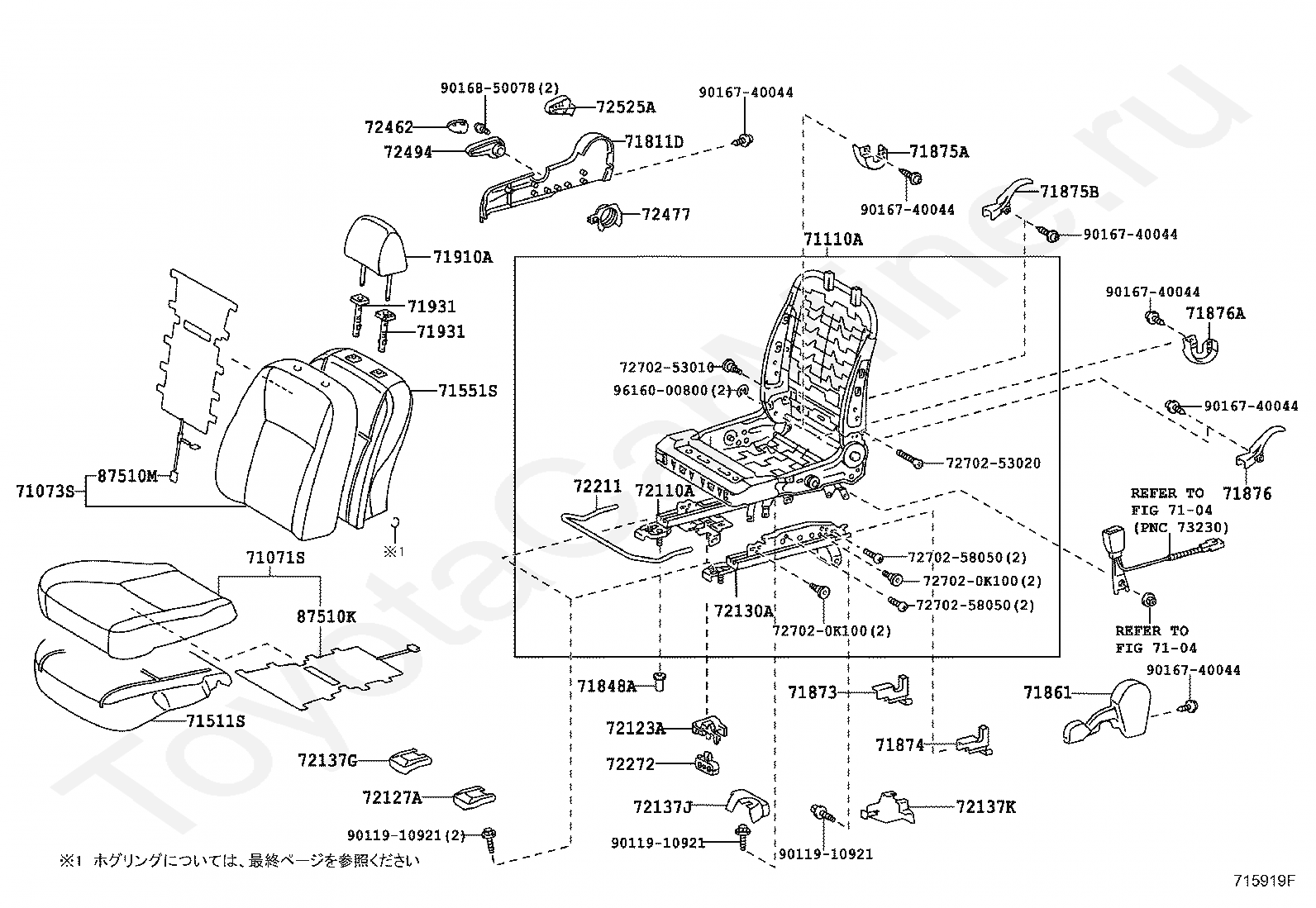

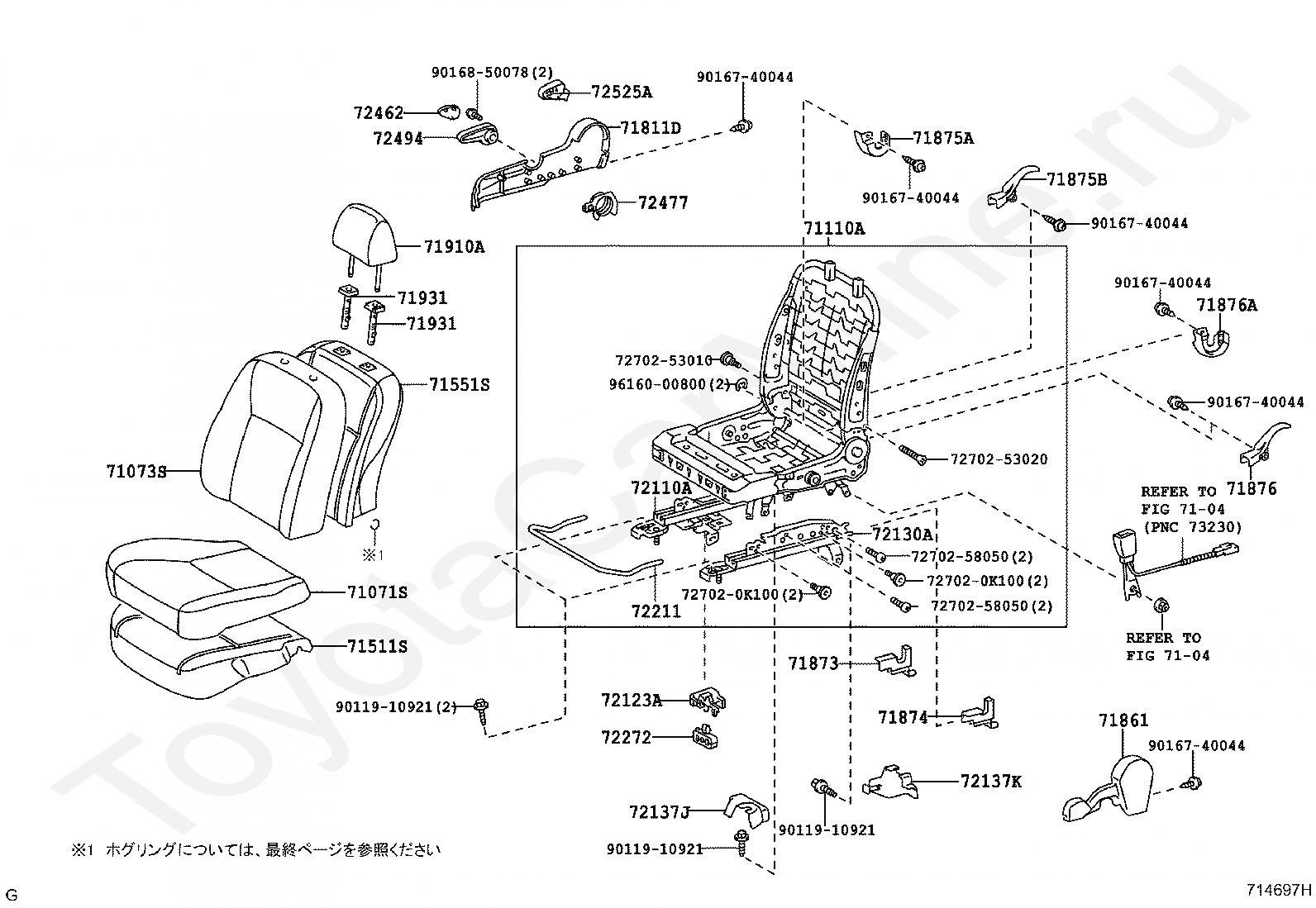

Передние кресла TOYOTA COROLLA AXIO/FIELDER







Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

727020K100

Крепеж

7270253010

Крепеж

7270253020

Крепеж

7270258050

Крепеж

7270258050

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9616000800

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137G

COVER, SEAT TRACK, OUTER RH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

727020K100

Крепеж

7270253010

Крепеж

7270253020

Крепеж

7270258050

Крепеж

7270258050

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9616000800

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

727020K100

Крепеж

7270253010

Крепеж

7270253020

Крепеж

7270258050

Крепеж

7270258050

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9616000800

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137G

COVER, SEAT TRACK, OUTER RH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

727020K100

Крепеж

7270253010

Крепеж

7270253020

Крепеж

7270258050

Крепеж

7270258050

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9616000800

Крепеж

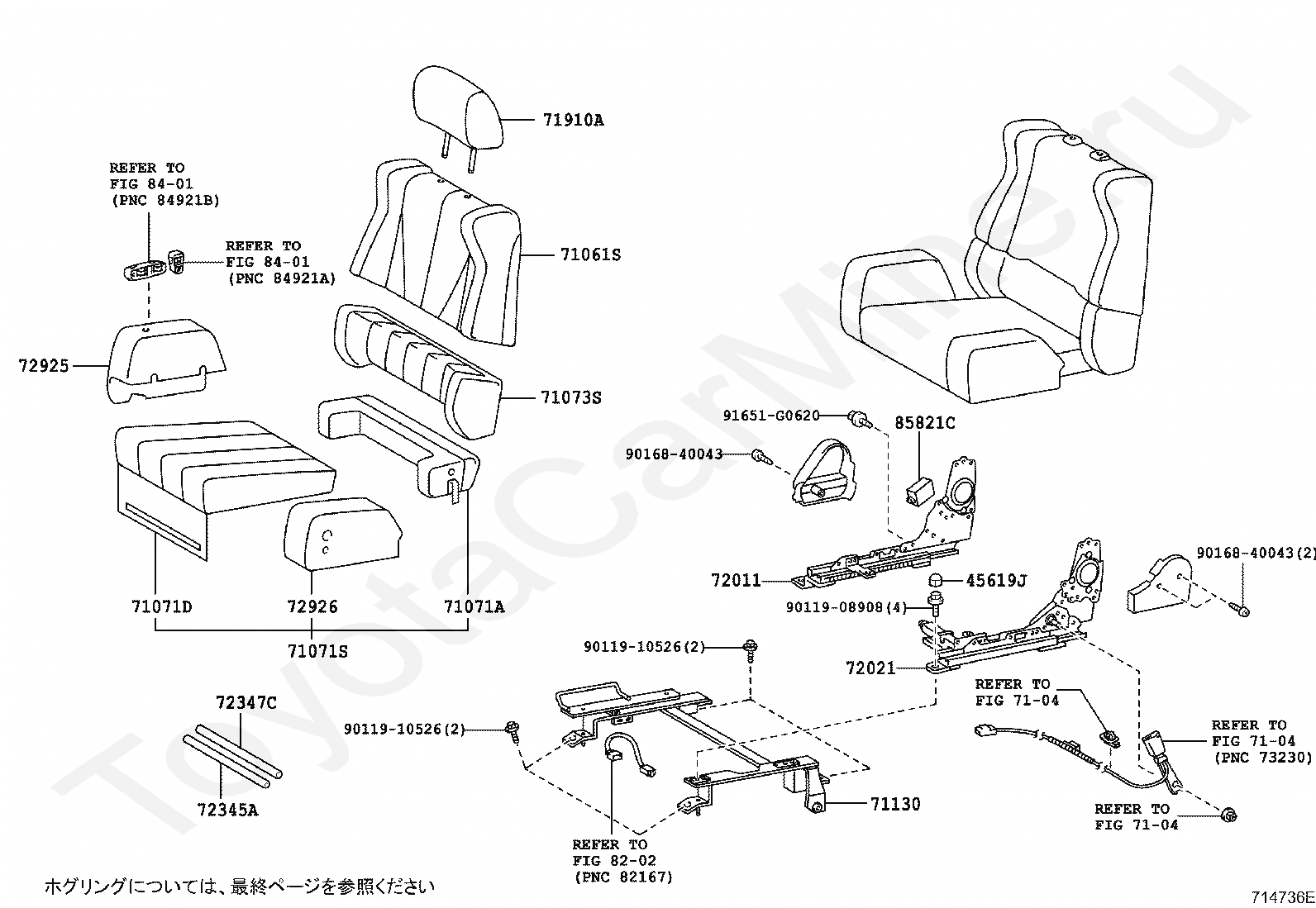

Код

Описание

45619J

COVER, KNUCKLE STOPPER

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71061S

COVER SUB-ASSY, FRONT SEAT BACK, UPPER RH

71071A

COVER, FRONT SEAT CUSHION, NO.2(FOR SEPARATE TYPE)

71071D

COVER, FRONT SEAT CUSHION, NO.1(FOR SEPARATE TYPE)

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71130

LEG ASSY, FRONT SEAT, RH

71910A

HEADREST ASSY, FRONT SEAT

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72345A

PIPE, RECLINING CONNECTING

72347C

COVER, RECLINING CONNECTING HOOK

72925

COVER, FRONT SEAT CUSHION

72926

COVER, FRONT SEAT CUSHION, NO.1

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

85821C

MOTOR ASSY, POWER SEAT

9011908908

Крепеж

9011910526

Крепеж

9011910526

Крепеж

9016840043

Крепеж

9016840043

Крепеж

91651G0620

Крепеж

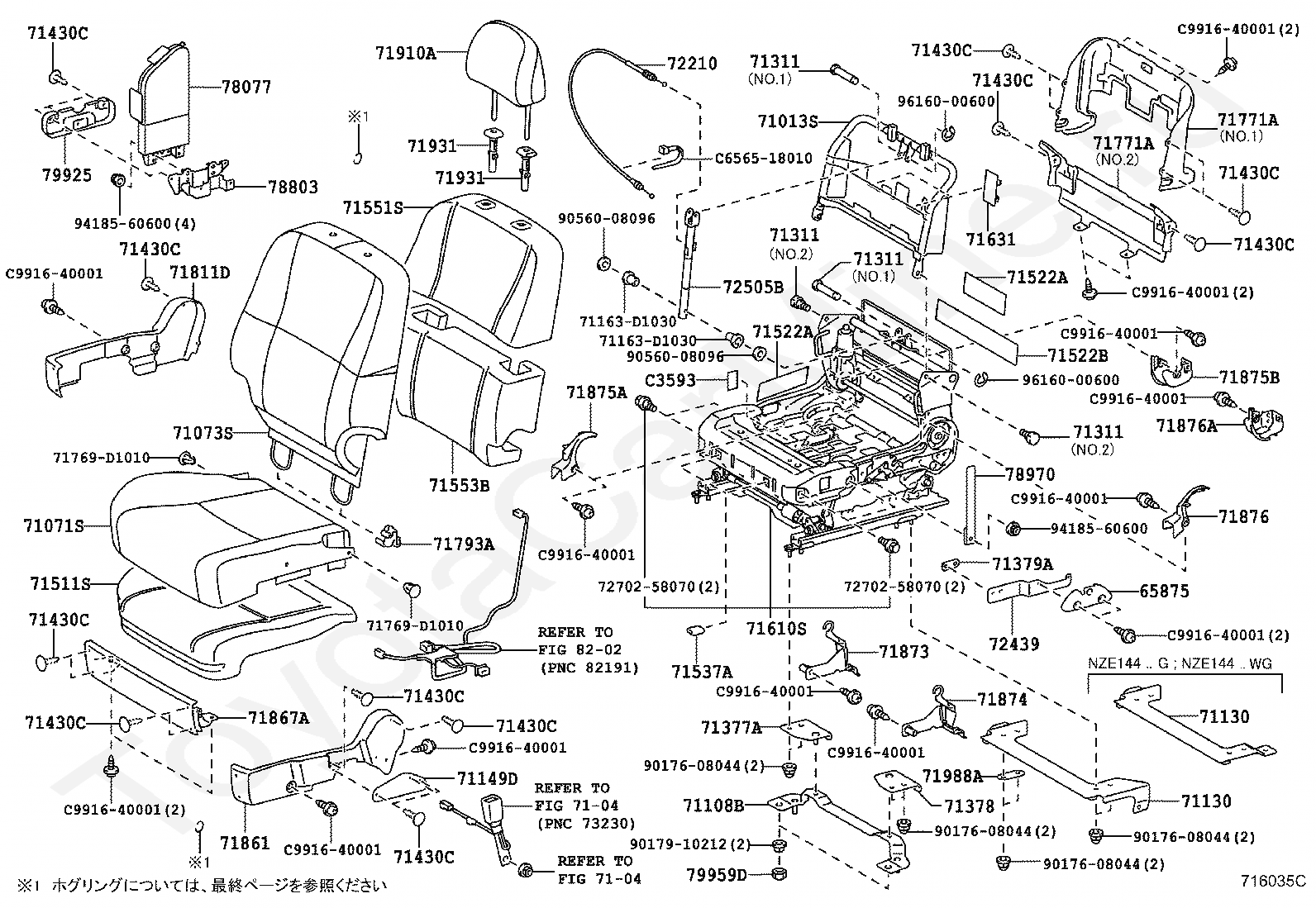

Код

Описание

65875

COVER, SIDE UPPER PANEL END

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71130

LEG ASSY, FRONT SEAT, RH

71130

LEG ASSY, FRONT SEAT, RH

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71163D1030

Крепеж

71163D1030

Крепеж

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71377A

BRACKET, FRONT SEAT, RH

71378

BRACKET, FRONT SEAT, LH

71379A

STOPPER, FRONT SEAT VERTICAL HANDLE

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71522A

PAD, FRONT SEAT CUSHION SILENCER, B

71522A

PAD, FRONT SEAT CUSHION SILENCER, B

71522B

PAD, FRONT SEAT CUSHION SILENCER, B

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71553B

PAD, FRONT SEAT BACK, B

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71631

HOOK, FRONT SEAT BACK

71769D1010

Крепеж

71769D1010

Крепеж

71771A

BOARD, FRONT SEAT BACK

71771A

BOARD, FRONT SEAT BACK

71793A

CLIP, FRONT SEAT BACK POCKET

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71988A

PLATE, FRONT SEAT LEG, NO.2

72210

CABLE ASSY, SEAT TRACK CONTROL

72439

PLATE, FRONT SEAT ADJUSTER, LH

72505B

LOCK SUB-ASSY, FRONT SEAT BACK, RH

7270258070

Крепеж

7270258070

Крепеж

78077

BOARD SUB-ASSY, SUB SEAT CUSHION

78803

LEG SUB-ASSY, SUB SEAT

78970

BAND ASSY, SEAT LOCK

79925

BOARD, SEAT LEG GARNISH

79959D

COVER, SEAT LEG

8202

переход к группе запчастей

9017608044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

9017910212

Крепеж

9056008096

Крепеж

9056008096

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9616000600

Крепеж

9616000600

Крепеж

C3593

SILENCER, REAR FLOOR, NO.3

C656518010

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270258050

Крепеж

82666M

HOLDER, CONNECTOR

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270258050

Крепеж

82666M

HOLDER, CONNECTOR

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270258050

Крепеж

82666M

HOLDER, CONNECTOR

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72272

CLAMP, SEAT TRACK CONTROL CABLE

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270258050

Крепеж

82666M

HOLDER, CONNECTOR

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

Код

Описание

35469D1030

Крепеж

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71517A

PAD, FRONT SEAT CUSHION COVER

71517A

PAD, FRONT SEAT CUSHION COVER

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7176960010B6

Крепеж

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71875H

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71877E

COVER, SEAT ARMREST HOLE, LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72890

ARMREST ASSY, SEAT, C LH

78899D1010

Крепеж

9010910164

Крепеж

9011908C38

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020112014

Крепеж

9020115023

Крепеж

9020115038

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9461210800

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C995614004

Крепеж

Код

Описание

58561H

CARPET, FRONT FLOOR SIDE, LH

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

7403

переход к группе запчастей

7403

переход к группе запчастей

7932912010

Крепеж

8202

переход к группе запчастей

8202

переход к группе запчастей

9010510165

Крепеж

9010510165

Крепеж

9010808024

Крепеж

9011910321

Крепеж

9011910321

Крепеж

9011910325

Крепеж

9011910526

Крепеж

9011910526

Крепеж

9011910526

Крепеж

9011910526

Крепеж

9016850023

Крепеж

9017610005

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9046400620

Крепеж

9046708188

Крепеж

9046708188

Крепеж

9046708188

Крепеж

9050609045

Крепеж

9054106047

Крепеж

9151281018

Крепеж

91631G0616

Крепеж

91631G0616

Крепеж

91641H0814

Крепеж

91651B0610

Крепеж

91651B0610

Крепеж

9321056014

Крепеж

C3381

COVER, SLIDE STEP, NO.1

C3382

COVER, SLIDE STEP, NO.2

C7027

LOCK SUB-ASSY, WELCAB SEAT TURN

C7101

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7104

PLATE SUB-ASSY, SEAT TURN

C7108

COVER ASSY, TURN TABLE

C7110

BRACKET SUB-ASSY, SEAT HOLDER, REAR

C7120

LEG, WELCAB SEAT, NO.1

C7130

PANEL ASSY, TURN TABLE

C7139

BRACKET, HOOK

C7149

PROTECTOR, TURN TABLE PANEL EDGE, LH

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7160

PANEL ASSY, SLIDE TABLE

C7169

GEAR, SLIDE TABLE RACK

C7191

BRACKET, SEAT HOLDER LINK

C7196

COVER, TURN TABLE, NO.1

C7204

HANDLE SUB-ASSY, WELCAB SEAT TRACK

C7210

FOOTREST ASSY, WELCAB SEAT

C7227

CARPET, WELCAB SEAT FOOTREST STEP

C7245D1010

Крепеж

C7245D1010

Крепеж

C7250D1010

Крепеж

C7260

HANDLE ASSY, SEAT TURN LOCK

C7269

CABLE, SEAT TURN LOCK RELEASE

C7269A

CABLE, SEAT TURN LOCK RELEASE, NO.1

C7271

BRACKET, INTERLOCK, UPPER

C7275

PLATE, LOCK STRIKER, NO.1

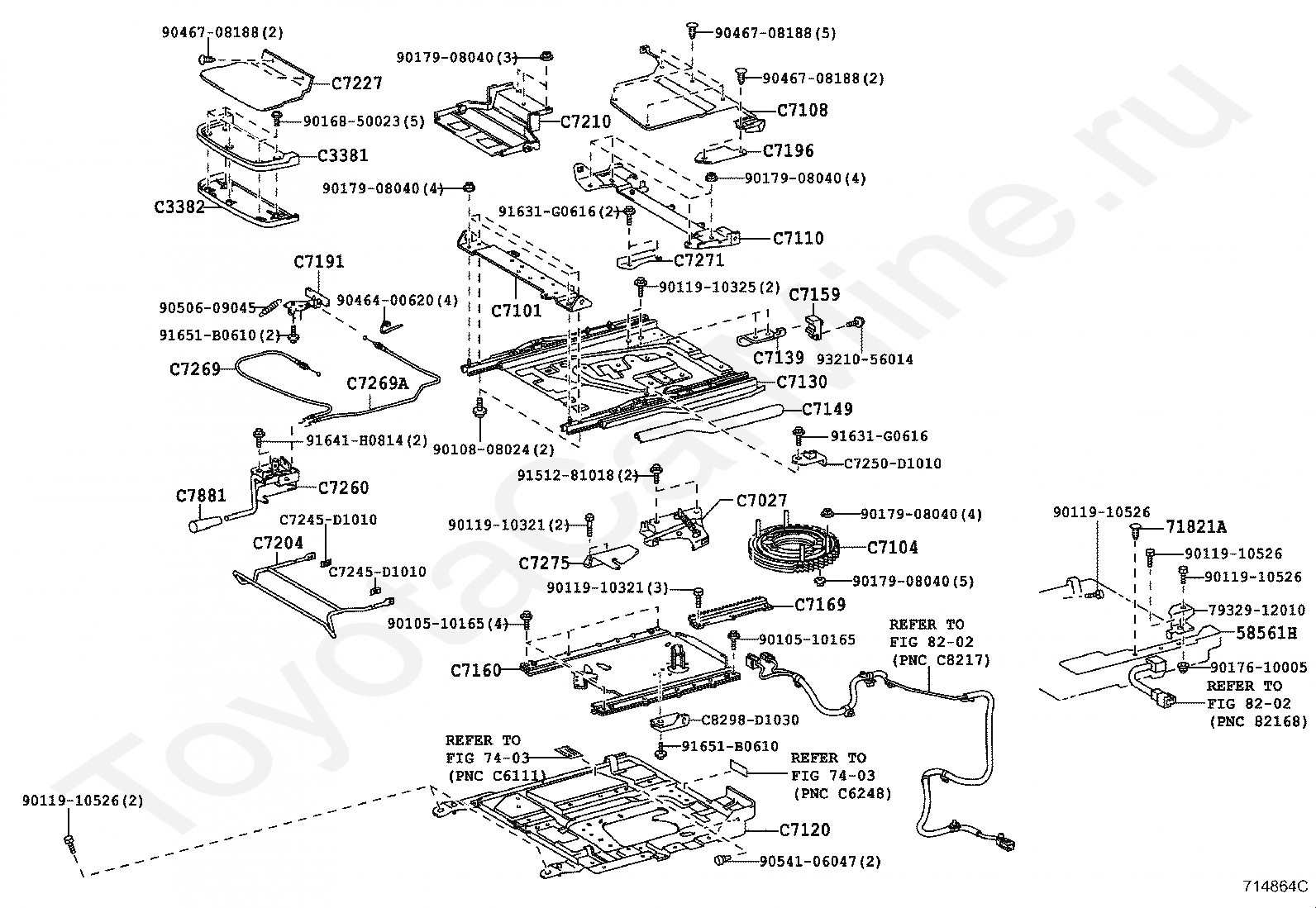

C7881

GRIP, CONTROL LINK

C8298D1030

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти COROLLA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
