Модель

COROLLA

VIN

Дата

1979/08

Двигатель

1,3 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

KE70

КПП

механика МКПП, 4 ступени

Опции

правый руль 4 двери GENERAL COUNTRIES

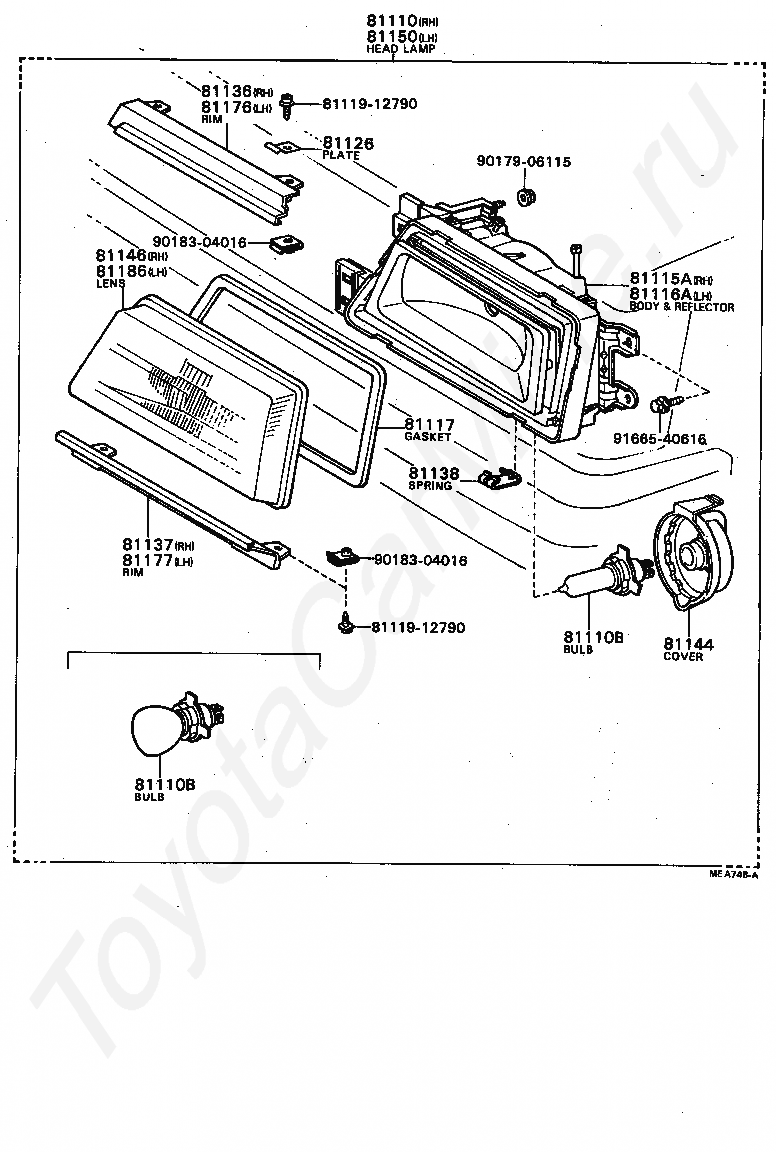

Фары TOYOTA COROLLA

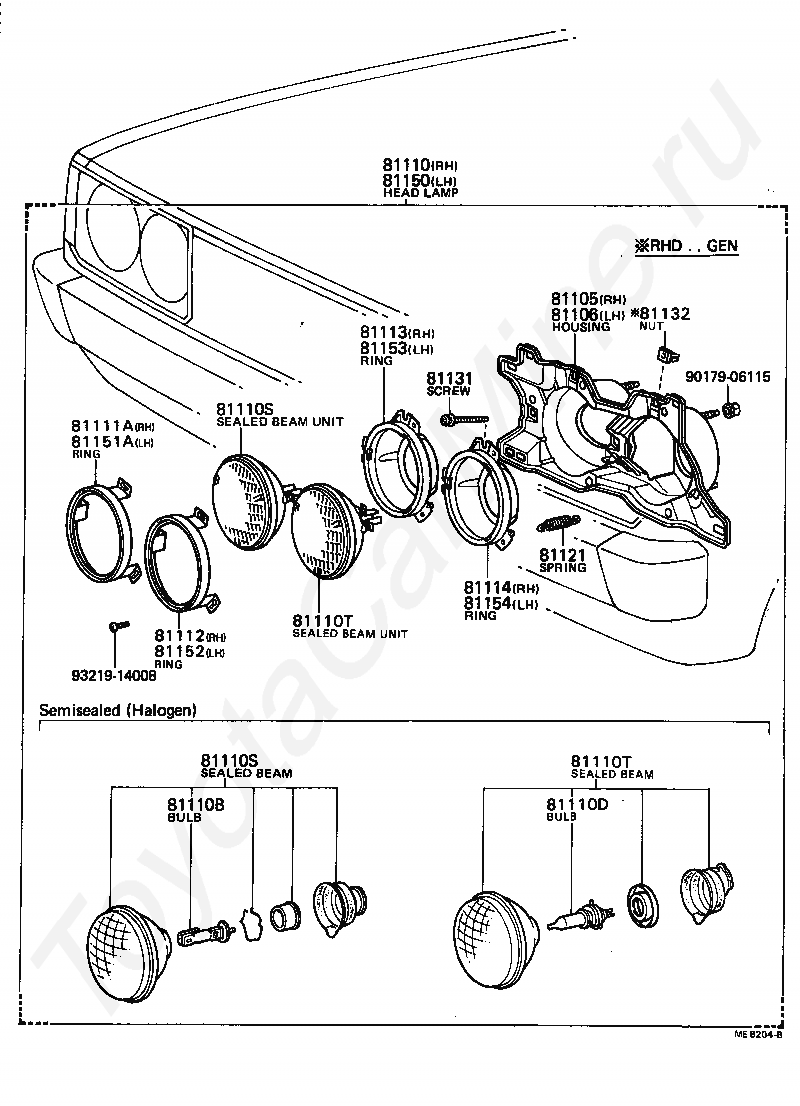

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81110T

SEALED BEAM UNIT, NO.2

81110T

SEALED BEAM UNIT, NO.2

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81112

RING, SEALED BEAM RETAINING, NO.2 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81114

RING, SEALED BEAM MOUNTING, NO.2 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81132

NUT, HEADLAMP SELF LOCKING

81150

HEADLAMP ASSY, LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81152

RING, SEALED BEAM RETAINING, NO.2 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

81154

RING, SEALED BEAM MOUNTING, NO.2 LH

9017906115

Крепеж

9321914008

Крепеж

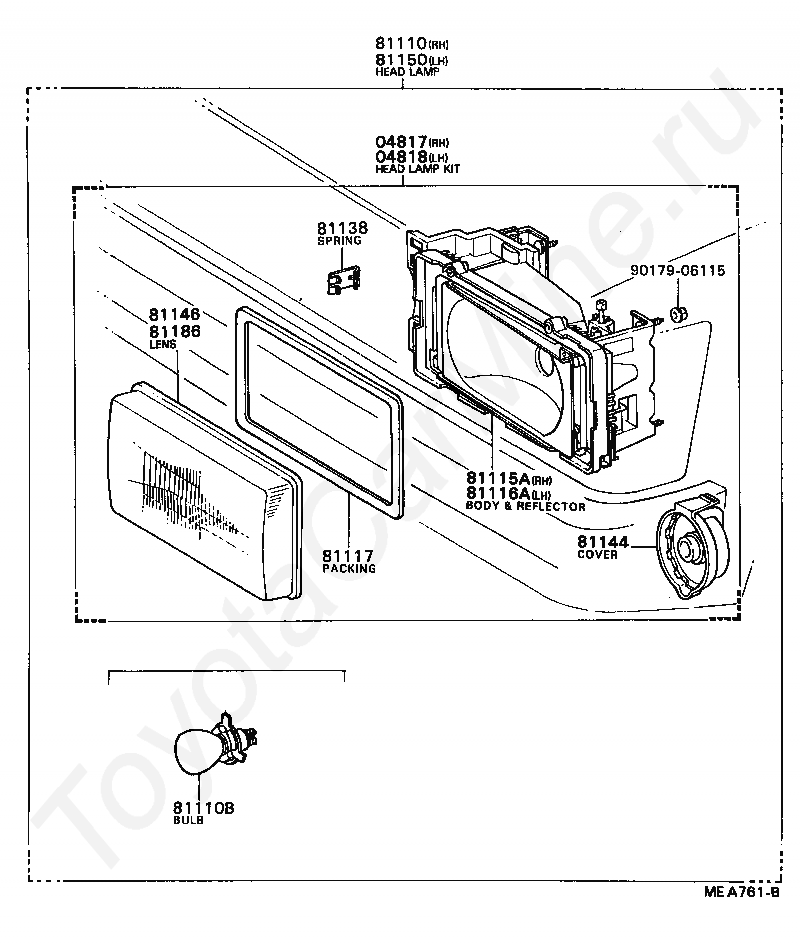

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81115A

BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

81116A

BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

81117

PACKING, HEADLAMP HOUSING

81138

SPRING, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81146

LENS, HEADLAMP, RH

81150

HEADLAMP ASSY, LH

81186

LENS, HEADLAMP, LH

9017906115

Крепеж

Код

Описание

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110B

BULB(FOR HEADLAMP, NO.1)

81115A

BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

81116A

BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

81117

PACKING, HEADLAMP HOUSING

8111912790

Крепеж

8111912790

Крепеж

81126

PLATE, HEADLAMP

81136

PROTECTOR, HEADLAMP, NO.1 RH

81137

PROTECTOR, HEADLAMP, NO.2 RH

81138

SPRING, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81146

LENS, HEADLAMP, RH

81150

HEADLAMP ASSY, LH

81176

PROTECTOR, HEADLAMP, NO.1 LH

81177

PROTECTOR, HEADLAMP, NO.2 LH

81186

LENS, HEADLAMP, LH

9017906115

Крепеж

9018304016

Крепеж

9018304016

Крепеж

9166540616

Крепеж
