Ближний Восток

Модель

COROLLA

VIN

Дата

1979/08

Двигатель

1,3 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

KE70

КПП

механика МКПП, 4 ступени

Опции

правый руль 4 двери GENERAL COUNTRIES

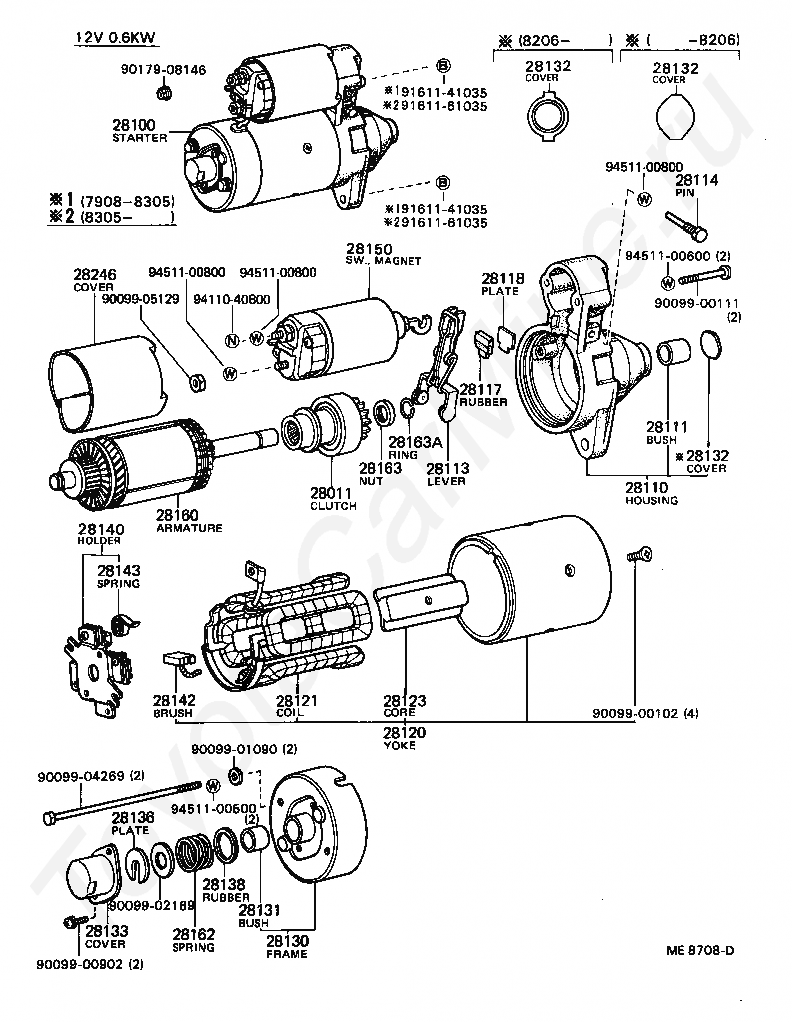

Стартер TOYOTA COROLLA

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28114

PIN, STARTER DRIVE LEVER SET

28117

RUBBER(FOR STARTER YOKE)

28118

PLATE(FOR STARTER YOKE)

28120

YOKE ASSY, STARTER

28121

COIL, STARTER FIELD

28123

CORE, STARTER POLE

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28142

BRUSH, STARTER

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

28163A

RING, SNAP(FOR STARTER PINION STOP NUT)

28246

COVER, MAGNET SWITCH

9009900102

Крепеж

9009900111

Крепеж

9009900902

Крепеж

9009901090

Крепеж

9009902169

Крепеж

9009904269

Крепеж

9009905129

Крепеж

9017908146

Крепеж

9161141035

Крепеж

9161141035

Крепеж

9161161035

Крепеж

9161161035

Крепеж

9411040800

Крепеж

9451100500

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28114

PIN, STARTER DRIVE LEVER SET

28117

RUBBER(FOR STARTER YOKE)

28118

PLATE(FOR STARTER YOKE)

28120

YOKE ASSY, STARTER

28121

COIL, STARTER FIELD

28123

CORE, STARTER POLE

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28142

BRUSH, STARTER

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

28163A

RING, SNAP(FOR STARTER PINION STOP NUT)

28246

COVER, MAGNET SWITCH

9009900102

Крепеж

9009900111

Крепеж

9009900902

Крепеж

9009901090

Крепеж

9009902169

Крепеж

9009904269

Крепеж

9009905129

Крепеж

9017908146

Крепеж

9161141035

Крепеж

9161141035

Крепеж

9161161035

Крепеж

9161161035

Крепеж

9411040800

Крепеж

9451100500

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж
