Ближний Восток

Модель

COROLLA

VIN

Дата

1979/08

Двигатель

1,3 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

KE70

КПП

механика МКПП, 4 ступени

Опции

правый руль 4 двери GENERAL COUNTRIES

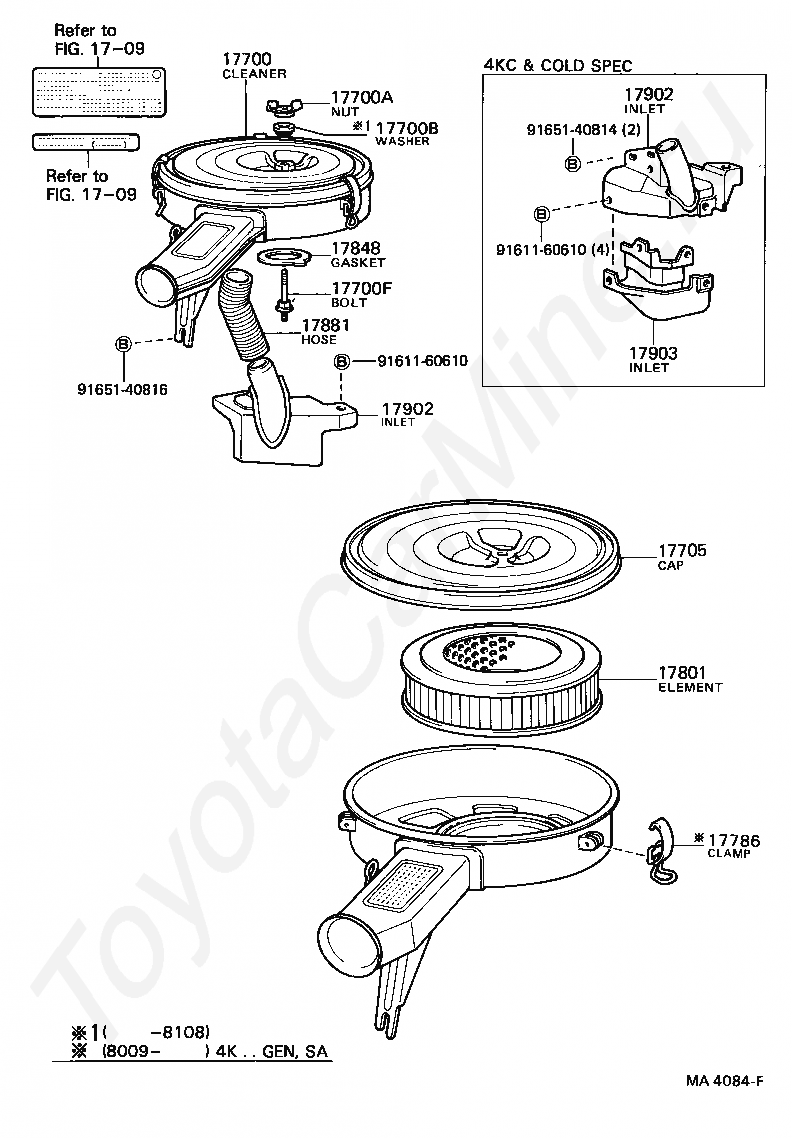

Воздушный фильтр TOYOTA COROLLA

Код

Описание

1709

переход к группе запчастей

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17786

CLAMP, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

17903

INLET SUB-ASSY, HOT AIR INTAKE, NO.2

9161160610

Крепеж

9161160610

Крепеж

9165140814

Крепеж

9165140816

Крепеж

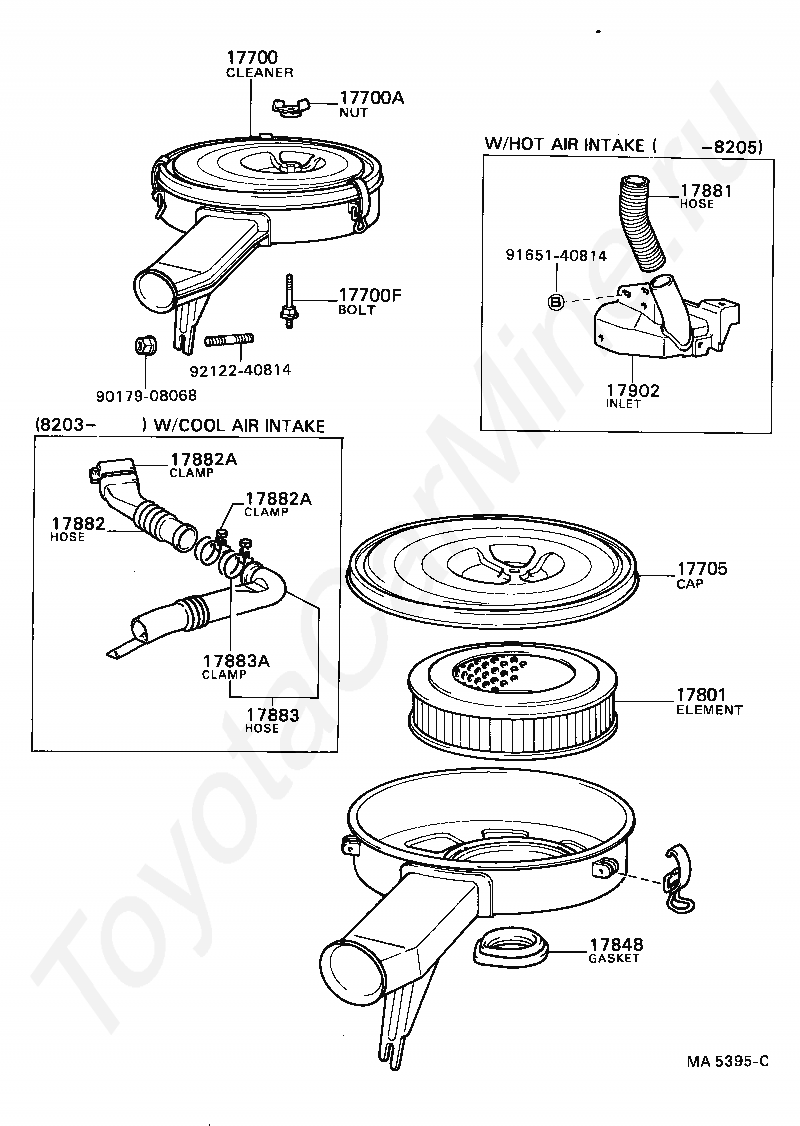

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17883

HOSE, AIR CLEANER, NO.3

17883A

CLAMP(FOR AIR CLEANER HOSE, NO.3)

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

9017908068

Крепеж

9165140814

Крепеж

9212240814

Крепеж

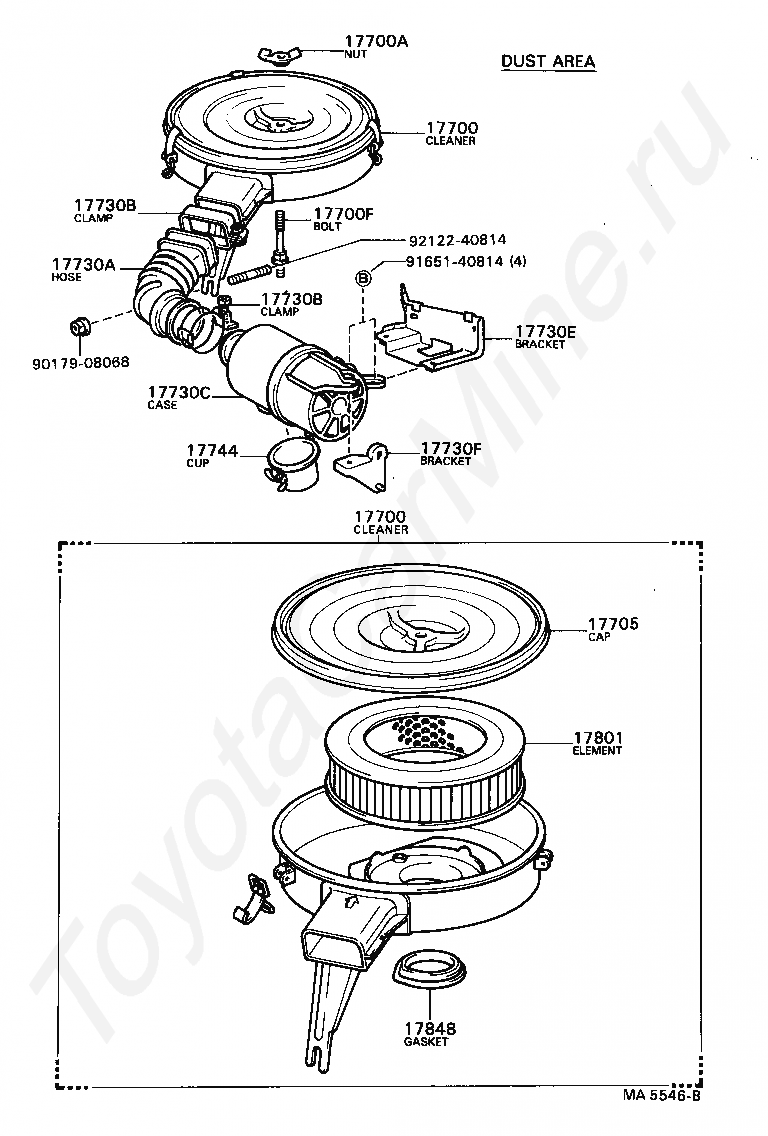

Код

Описание

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730C

CASE, PRECLEANER

17730E

BRACKET, PRECLEANER, NO.1

17730F

BRACKET, PRECLEANER, NO.2

17744

CUP, PRECLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

9017908068

Крепеж

9165140814

Крепеж

9212240814

Крепеж

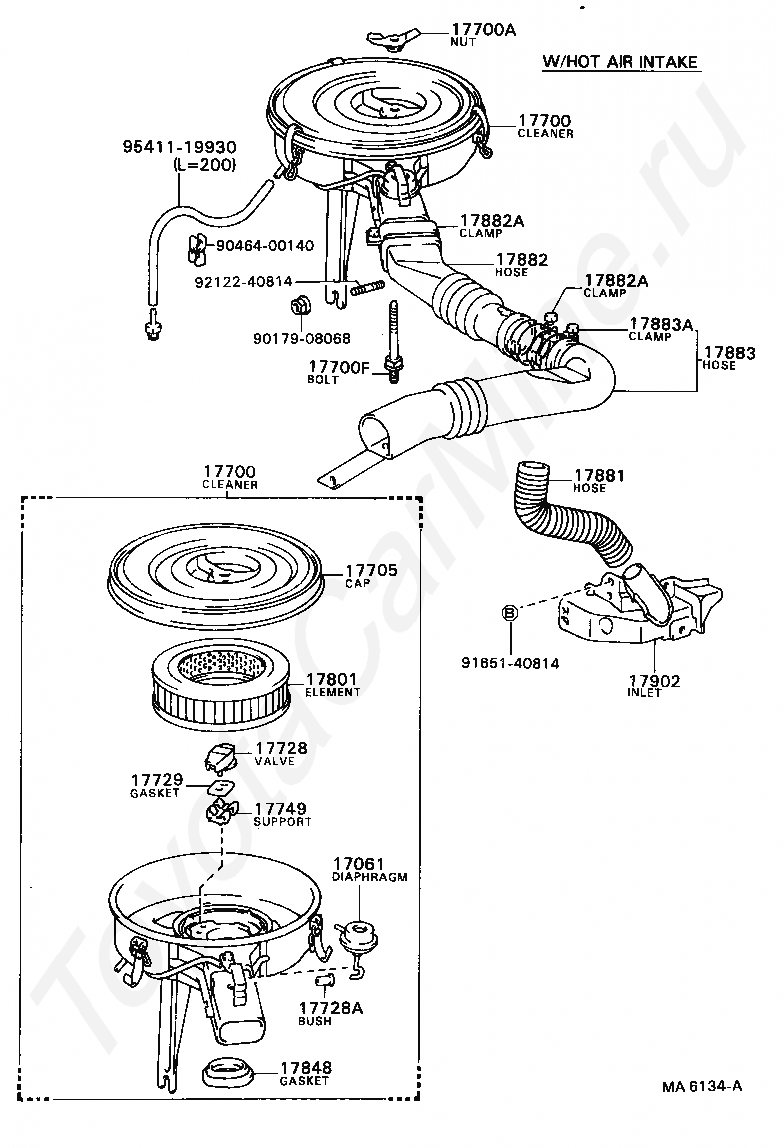

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17728A

BUSH

17729

GASKET, THERMOSTAT VALVE

17749

SUPPORT, THERMOSTAT VALVE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17883

HOSE, AIR CLEANER, NO.3

17883A

CLAMP(FOR AIR CLEANER HOSE, NO.3)

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

9017908068

Крепеж

9046400140

Крепеж

9165140814

Крепеж

9212240814

Крепеж

9541119930

Крепеж
