Ближний Восток

Модель

COROLLA/TRUENO

VIN

Дата

1977/01

Двигатель

1,2 литра

Кузов

седан

Класс

STANDARD TYPE

Фрейм

KE30

КПП

автомат АКПП, 2 ступени

Опции

4 двери левый руль A20 TYPE TRANSMISSION (AUTOMATIC) 4 двери EUR EUG

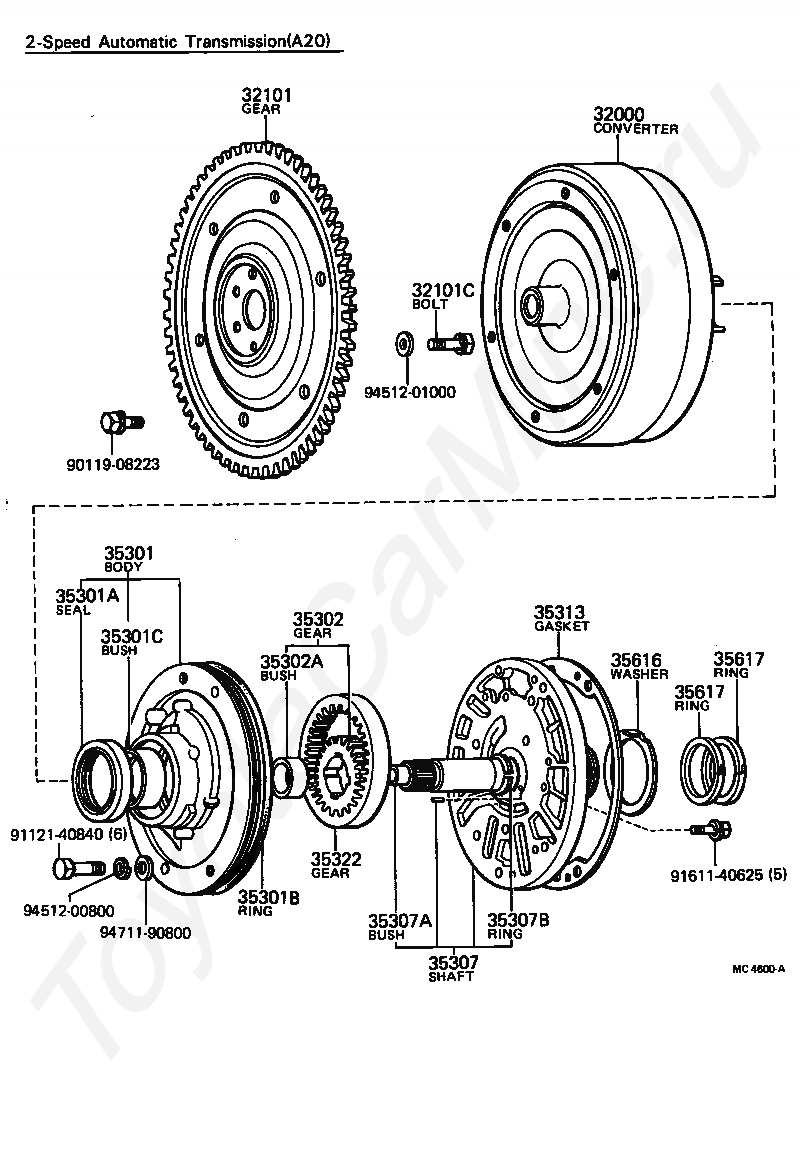

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA COROLLA/TRUENO

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101

GEAR SUB-ASSY, DRIVE PLATE & RING

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

35301

BODY SUB-ASSY, FRONT OIL PUMP

35301A

SEAL, OIL (FOR FRONT OIL PUMP)

35301B

RING, O (FOR FRONT OIL PUMP BODY)

35301C

BUSH, BIMETAL FORMED (FOR FRONT OIL PUMP BODY)

35302

GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

35302A

BUSH, BIMETAL FORMED (FOR FRONT OIL PUMP DRIVE GEAR)

35307

SHAFT SUB-ASSY, STATOR

35307A

BUSH, BIMETAL FORMED (FOR STATOR SHAFT)

35307B

RING, SHAFT SNAP (FOR STATOR SHAFT)

35313

GASKET, FRONT OIL PUMP COVER

35322

GEAR, FRONT OIL PUMP DRIVEN

35616

WASHER, CLUTCH DRUM THRUST

35617

RING, CLUTCH DRUM OIL SEAL

35617

RING, CLUTCH DRUM OIL SEAL

9011908223

Крепеж

9112140840

Крепеж

9161140625

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9471190800

Крепеж

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA COROLLA/TRUENO
