Ближний Восток

Модель

COROLLA SED/LB/WG

VIN

Дата

1988/08

Двигатель

1,3 литра, 12 клапанов

Кузов

седан

Класс

XL SPECIFICATION

Фрейм

EE90

КПП

механика МКПП, 5 скоростей

Опции

правый руль Южная Африка

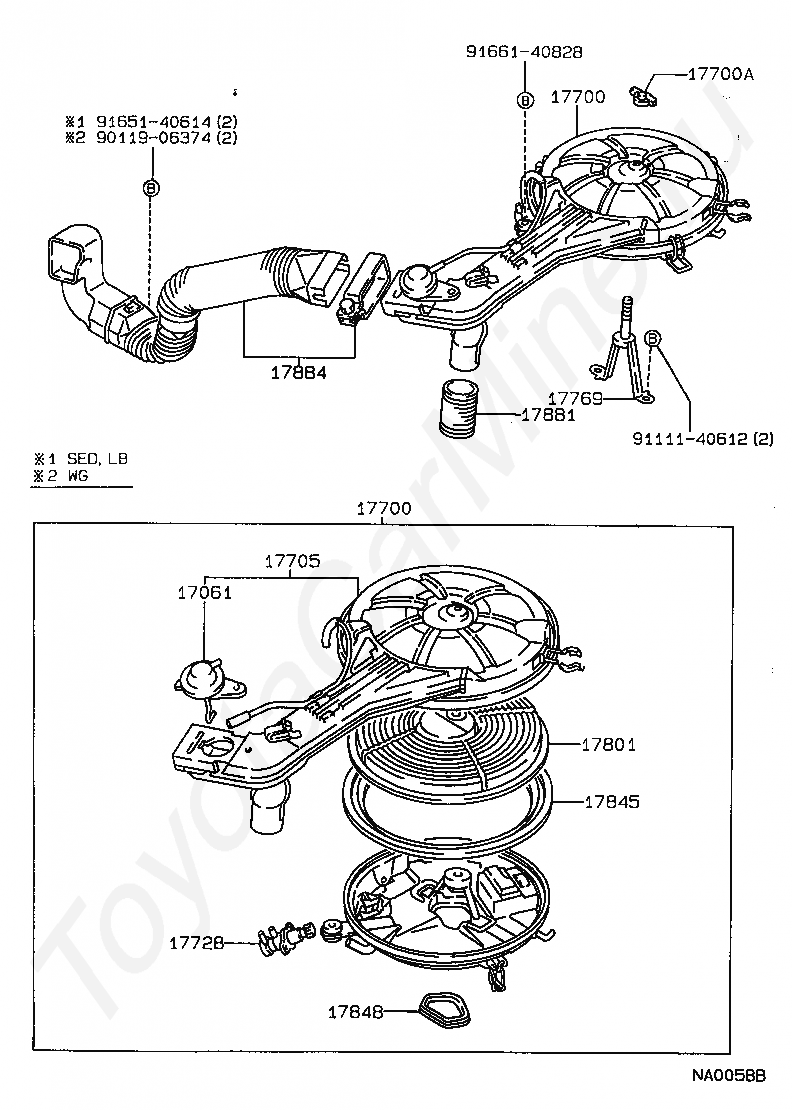

Воздушный фильтр TOYOTA COROLLA SED/LB/WG

Код

Описание

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17884

HOSE, AIR CLEANER, NO.4

9011906374

Крепеж

9033903005

Крепеж

9165140614

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17769

SUPPORT, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17884

HOSE, AIR CLEANER, NO.4

9011906374

Крепеж

9111140612

Крепеж

9165140614

Крепеж

9166140828

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17884

HOSE, AIR CLEANER, NO.4

9011906374

Крепеж

9165140614

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17884

HOSE, AIR CLEANER, NO.4

9011906374

Крепеж

9165140614

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17730

PRECLEANER ASSY, AIR W/HOSE

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730E

BRACKET, PRECLEANER, NO.1

17744

CUP, PRECLEANER

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

9011906357

Крепеж

9161161018

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17730

PRECLEANER ASSY, AIR W/HOSE

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730E

BRACKET, PRECLEANER, NO.1

17744

CUP, PRECLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9011906005

Крепеж

9011906357

Крепеж

9011908358

Крепеж

9033903005

Крепеж

Воздушный фильтр TOYOTA COROLLA SED/LB/WG
