Ближний Восток

Модель

COROLLA SED/CP/WG

VIN

Дата

1992/05

Двигатель

1,3 литра, 12 клапанов

Кузов

фургон

Класс

XL SPECIFICATION

Фрейм

EE105

КПП

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES

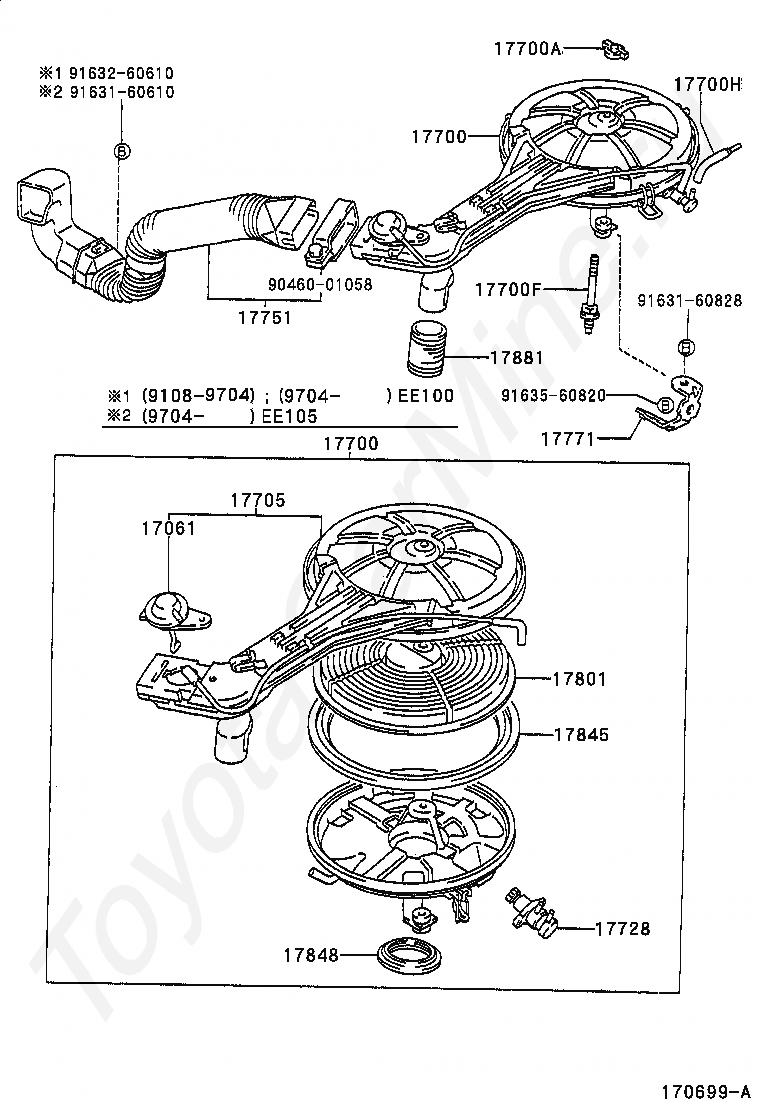

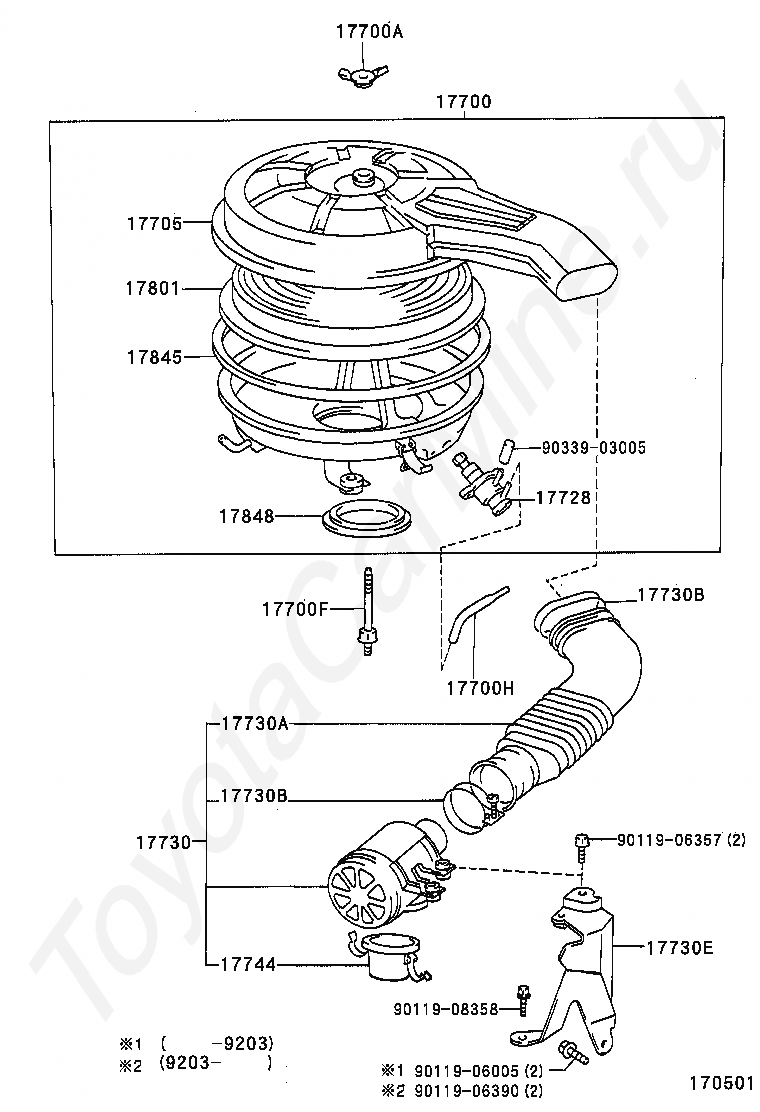

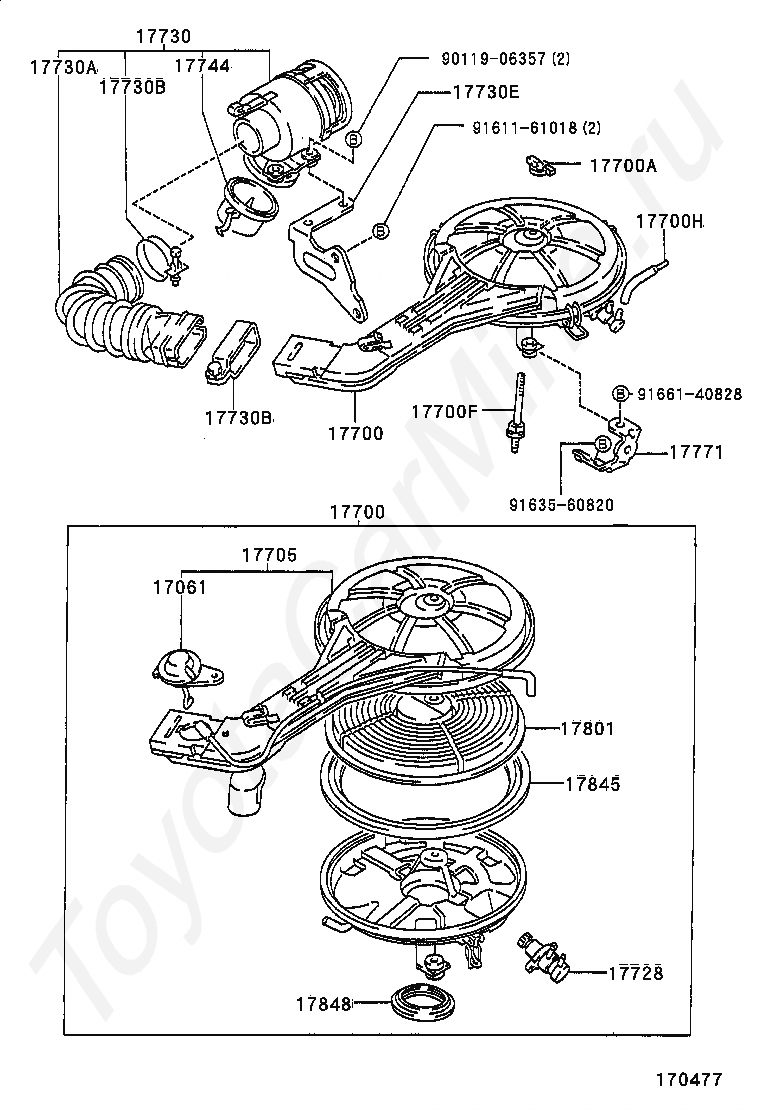

Воздушный фильтр TOYOTA COROLLA SED/CP/WG

Код

Описание

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17751

INLET, AIR CLEANER, NO.1

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9033903005

Крепеж

9046001058

Крепеж

9163160610

Крепеж

9163160828

Крепеж

9163260610

Крепеж

9163560820

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17751

INLET, AIR CLEANER, NO.1

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

9046001058

Крепеж

9163160610

Крепеж

9163160828

Крепеж

9163260610

Крепеж

9163560820

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17730

PRECLEANER ASSY, AIR W/HOSE

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730E

BRACKET, PRECLEANER, NO.1

17744

CUP, PRECLEANER

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9011906357

Крепеж

9033903005

Крепеж

9161161018

Крепеж

9163560820

Крепеж

9166140828

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17730

PRECLEANER ASSY, AIR W/HOSE

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730E

BRACKET, PRECLEANER, NO.1

17744

CUP, PRECLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9011906005

Крепеж

9011906357

Крепеж

9011906390

Крепеж

9011908358

Крепеж

9033903005

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17730

PRECLEANER ASSY, AIR W/HOSE

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730E

BRACKET, PRECLEANER, NO.1

17744

CUP, PRECLEANER

17771

BRACKET, AIR CLEANER INLET DUCT

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9011906357

Крепеж

9161161018

Крепеж

9163560820

Крепеж

9166140828

Крепеж
