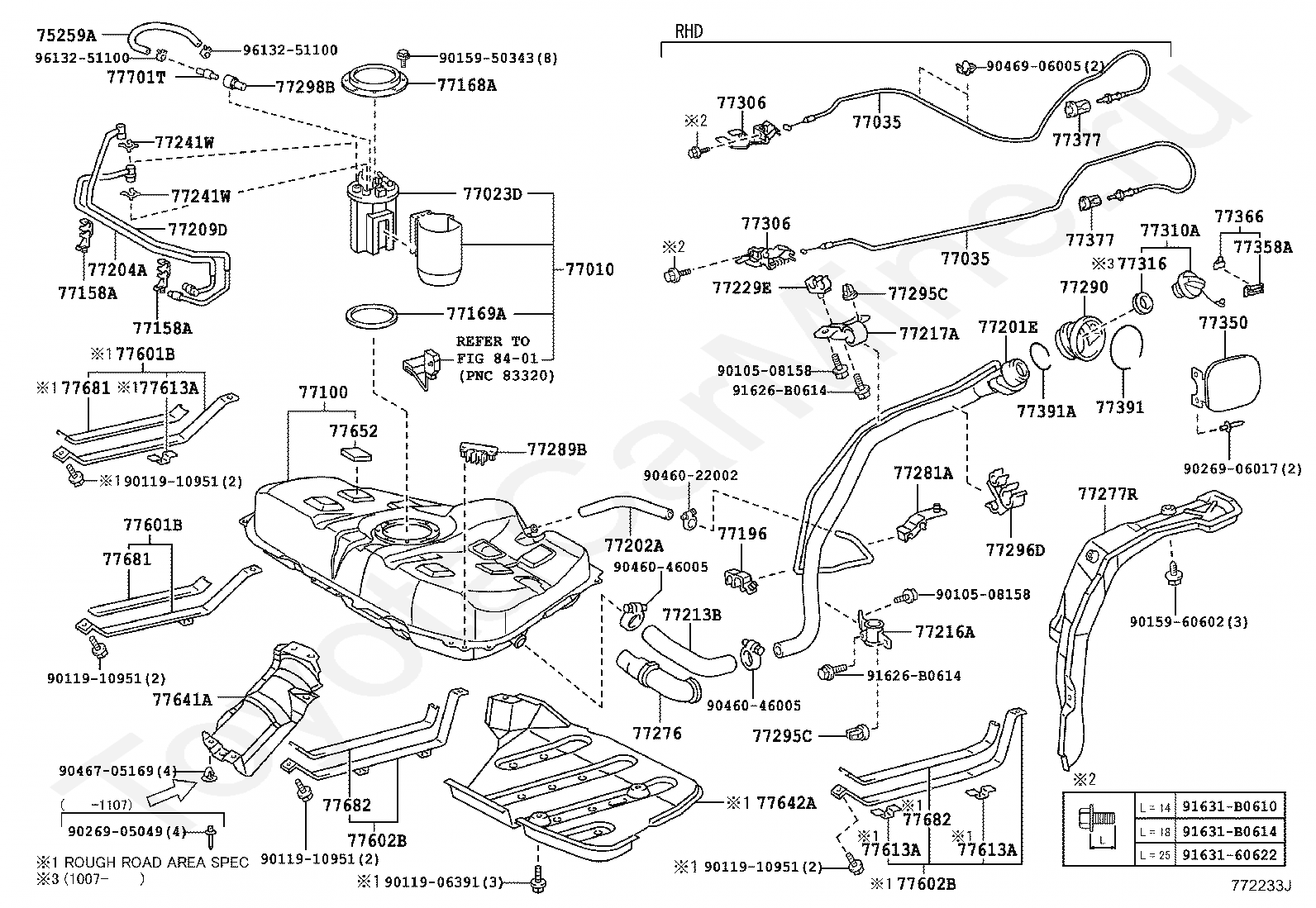

77010
TUBE ASSY, FUEL TANK VENT
77023D
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77158A
SUPPORT, TANK SUCTION TUBE
77158A
SUPPORT, TANK SUCTION TUBE
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77196
CLAMP, EVAPORATION VENT TUBE, NO.1
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77229E
CLAMP, BREATHER TUBE
77276
PROTECTOR, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77281A
CLAMP, FUEL FILLER PIPE
77289B
CLAMP, FUEL TUBE, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77295C
GROMMET, FUEL TUBE
77295C
GROMMET, FUEL TUBE
77296D
PLATE, FUEL TUBE SUPPORT
77298B
CLAMP, FUEL TUBE, NO.4
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77358A
STOPPER, FUEL FILLER OPENING LID
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613A
BRACKET, FUEL TANK BAND, NO.1
77613A
BRACKET, FUEL TANK BAND, NO.1
77613A
BRACKET, FUEL TANK BAND, NO.1
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77652
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77682
SEAT, FUEL TANK BAND, LH
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
