Ближний Восток

Модель

COROLLA SED/WG

VIN

Дата

1997/04

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

XLI TYPE

Фрейм

AE111

КПП

автомат АКПП, 4 ступени

Опции

левый руль GENERAL COUNTRIES

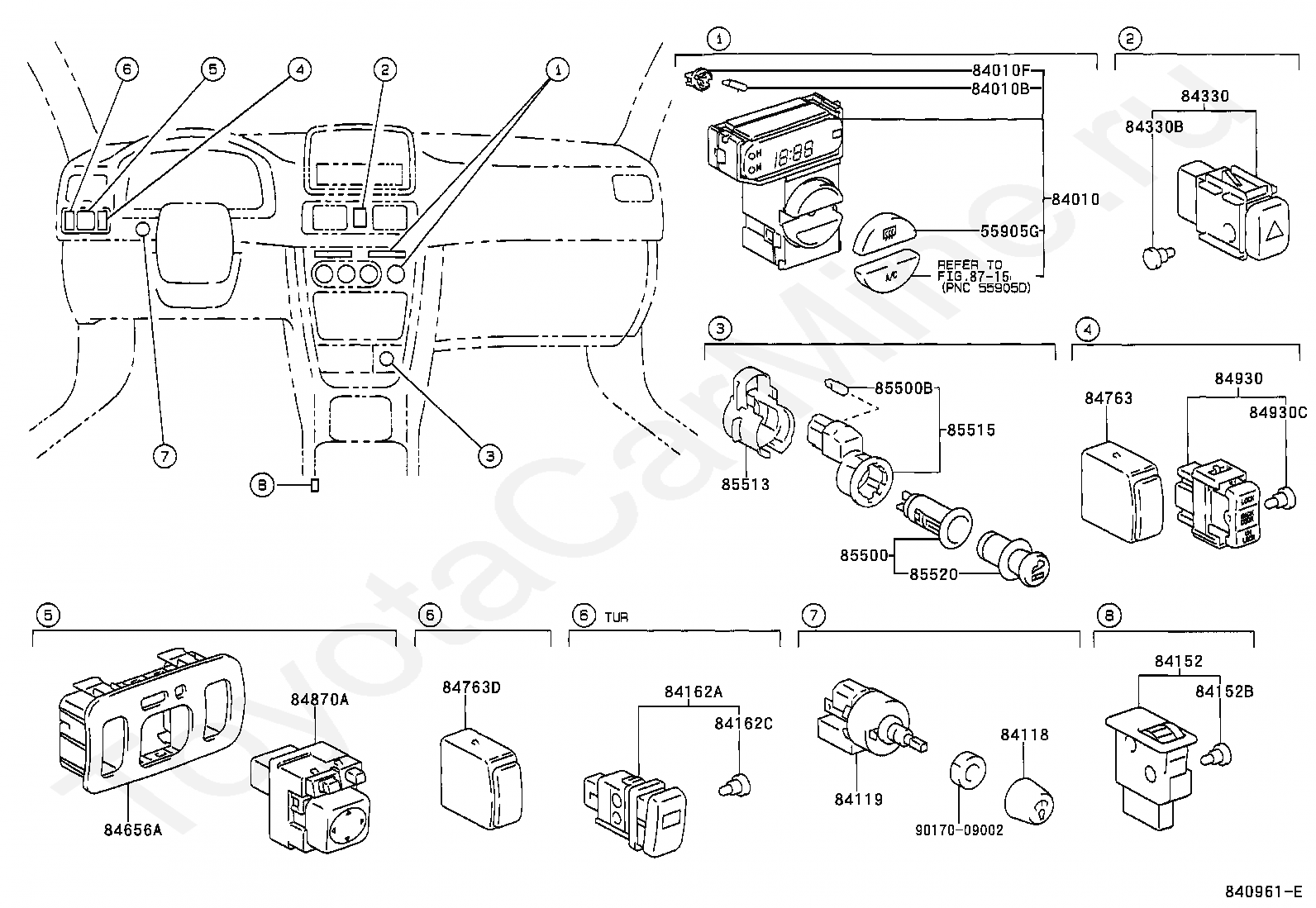

Реле и кнопки TOYOTA COROLLA SED/WG

Код

Описание

827111E070

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

89428

SWITCH, TEMPERATURE DETECT, NO.2

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

89615

SENSOR, KNOCK CONTROL

9017908059

Крепеж

9043018008

Крепеж

9165140620

Крепеж

9165140625

Крепеж

Код

Описание

2302

переход к группе запчастей

2302

переход к группе запчастей

2302

переход к группе запчастей

28300

RELAY ASSY, STARTER

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610A

RELAY ASSY, GLOW PLUG(SUB)

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82623

COVER, FUSIBLE LINK, LOWER

82661

COVER, RELAY BLOCK, NO.1

82661

COVER, RELAY BLOCK, NO.1

82670A

BLOCK ASSY, JUNCTION, NO.1

82671A

BLOCK, JUNCTION

82672C

COVER, JUNCTION BLOCK

82674

COVER, JUNCTION BLOCK LOWER

82741

BLOCK, ENGINE ROOM RELAY

83390

SWITCH ASSY, VACUUM WARNING

83482

SENSOR, OUTER AMBIENT TEMPERATURE

8404

переход к группе запчастей

85430

VALVE, OUTER VENT CONTROL

85915

RELAY, MAIN

85916P

RELAY, HEADLAMP

85927

RELAY, COOLING FAN

85927B

RELAY, COOLING FAN, NO.3

85927C

RELAY, COOLING FAN, NO.4

85934

RELAY, MAGNET-CLUTCH

85999A

BRACKET, RELAY, NO.2

86530

RELAY ASSY, HORN

89438

SWITCH, POWER STEERING OIL PRESSURE

9011906539

Крепеж

91511G0620

Крепеж

Код

Описание

55905G

KNOB SUB-ASSY, CONTROL

84010

SWITCH ASSY, CENTER CLUSTER INTEGRATION

84010B

BULB, INTEGRATION CONTROL & PANEL

84010F

SOCKET, INTEGRATION CONTROL & PANEL BULB

84118

KNOB, LIGHT CONTROL RHEOSTAT

84119

RHEOSTAT, LIGHT CONTROL

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84656A

BEZEL, SWITCH

84763

PLATE, SWITCH

84763D

PLATE, SWITCH

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

84930C

BULB(FOR DOOR CONTROL SWITCH)

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

8715

переход к группе запчастей

9017009002

Крепеж

Код

Описание

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

82641

RELAY, INTEGRATION NO.1

82671B

BLOCK, JUNCTION

82671B

BLOCK, JUNCTION

82671B

BLOCK, JUNCTION

82671B

BLOCK, JUNCTION

82671C

BLOCK, JUNCTION

82671D

BLOCK, JUNCTION

82671D

BLOCK, JUNCTION

82672B

COVER, JUNCTION BLOCK

82683

PLATE, FUSE BLOCK CAUTION

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82731

BLOCK, DRIVER SIDE JUNCTION

82734A

BLOCK, CENTER JUNCTION

82751

BLOCK, DRIVER SIDE RELAY

8404

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85916N

RELAY, TAIL LAMP

85930

RELAY ASSY, POWER WINDOW

86650E

BUZZER ASSY

87710F

RELAY, QUICK HEATER

9009900910

Крепеж

9009900929

Крепеж

9015970003

Крепеж

9015970004

Крепеж

9017906178

Крепеж

9331514012

Крепеж

9356815014

Крепеж

Код

Описание

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9331914012

Крепеж

9331914012

Крепеж

9331915012

Крепеж

Код

Описание

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9331914012

Крепеж

9331914012

Крепеж

9331915012

Крепеж

Код

Описание

7401

переход к группе запчастей

7401

переход к группе запчастей

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84930

SWITCH ASSY, DOOR CONTROL

84931B

SWITCH, DOOR CONTROL

85921

RELAY, SLIDING ROOF CONTROL

89425

SENSOR, EXHAUST GAS TEMPERATURE

9011906072

Крепеж

9016440103

Крепеж

9016770002

Крепеж

9016770002

Крепеж

9016770002

Крепеж

9016770002

Крепеж

9043008252

Крепеж

9165160610

Крепеж

9326915008

Крепеж

9331914008

Крепеж

Реле и кнопки TOYOTA COROLLA SED/WG
