Ближний Восток

Модель

COROLLA SED/CP/WG

VIN

Дата

1991/08

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

GLI TYPE

Фрейм

AE100

КПП

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES

Реле и кнопки TOYOTA COROLLA SED/CP/WG

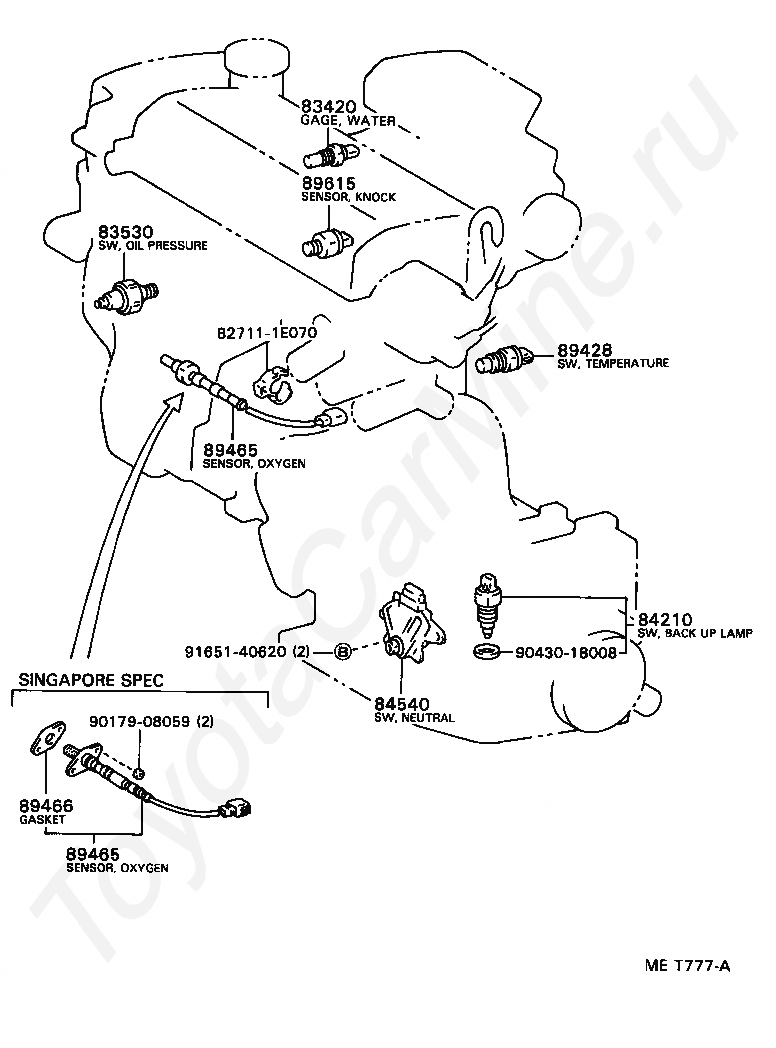

Код

Описание

827111E070

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

89428

SWITCH, TEMPERATURE DETECT, NO.2

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

89615

SENSOR, KNOCK CONTROL

9017908059

Крепеж

9043018008

Крепеж

9165140620

Крепеж

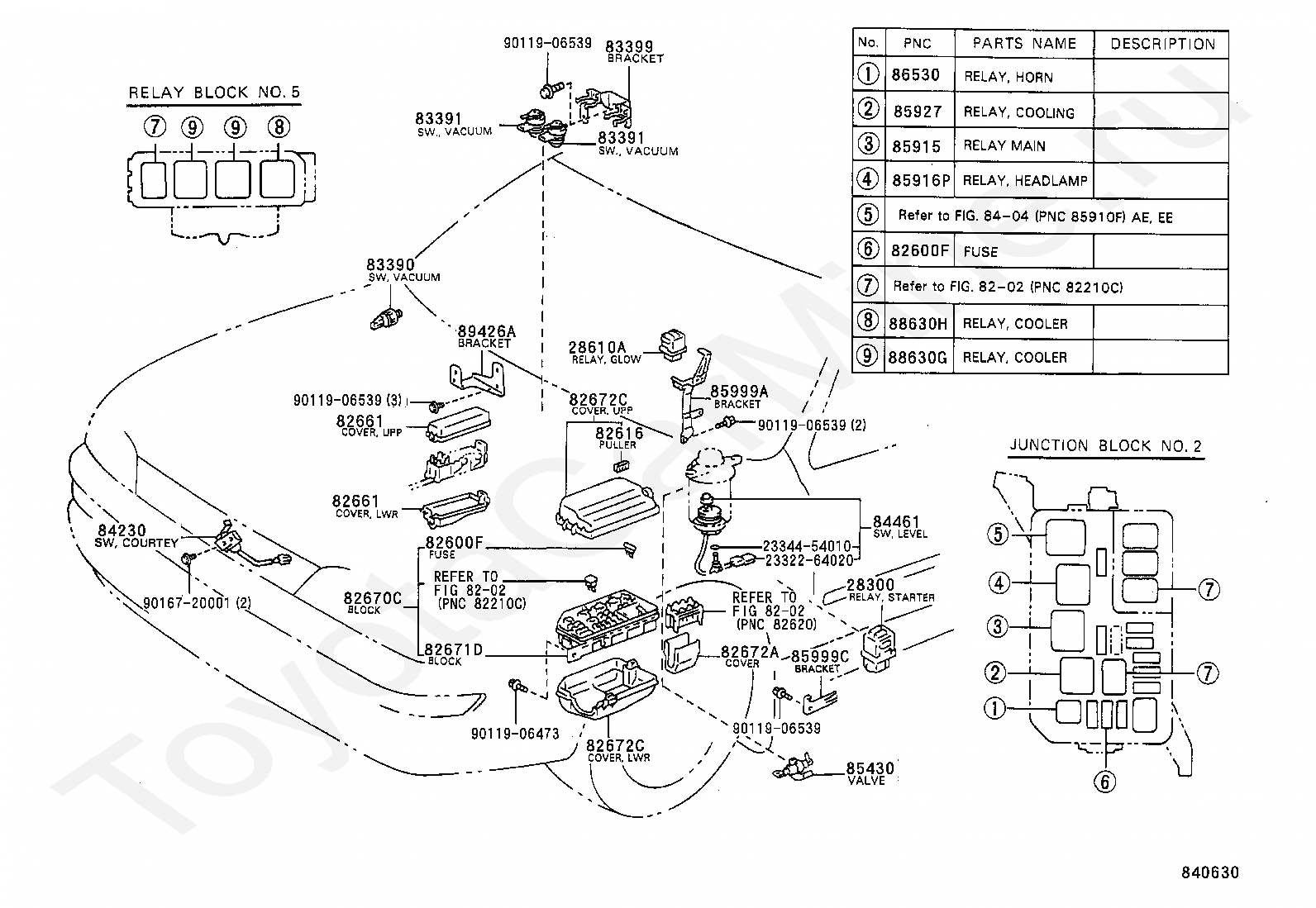

Код

Описание

2332264020

Крепеж

2334454010

Крепеж

28300

RELAY ASSY, STARTER

28610A

RELAY ASSY, GLOW PLUG(SUB)

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82661

COVER, RELAY BLOCK, NO.1

82661

COVER, RELAY BLOCK, NO.1

82670C

BLOCK ASSY, JUNCTION, NO.3

82671D

BLOCK, JUNCTION

82672A

COVER, JUNCTION BLOCK

82672C

COVER, JUNCTION BLOCK

82672C

COVER, JUNCTION BLOCK

83390

SWITCH ASSY, VACUUM WARNING

83391

SWITCH, VACUUM

83391

SWITCH, VACUUM

83399

BRACKET, VACUUM SWITCH

84230

SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)

84461

SWITCH, LEVEL WARNING

85430

VALVE, OUTER VENT CONTROL

85915

RELAY, MAIN

85916P

RELAY, HEADLAMP

85927

RELAY, COOLING FAN

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

86530

RELAY ASSY, HORN

88630G

RELAY ASSY, COOLER

88630H

RELAY ASSY, COOLER

89426A

BRACKET, VACUUM SENSOR

9011906473

Крепеж

9011906539

Крепеж

9011906539

Крепеж

9011906539

Крепеж

9011906539

Крепеж

9016720001

Крепеж

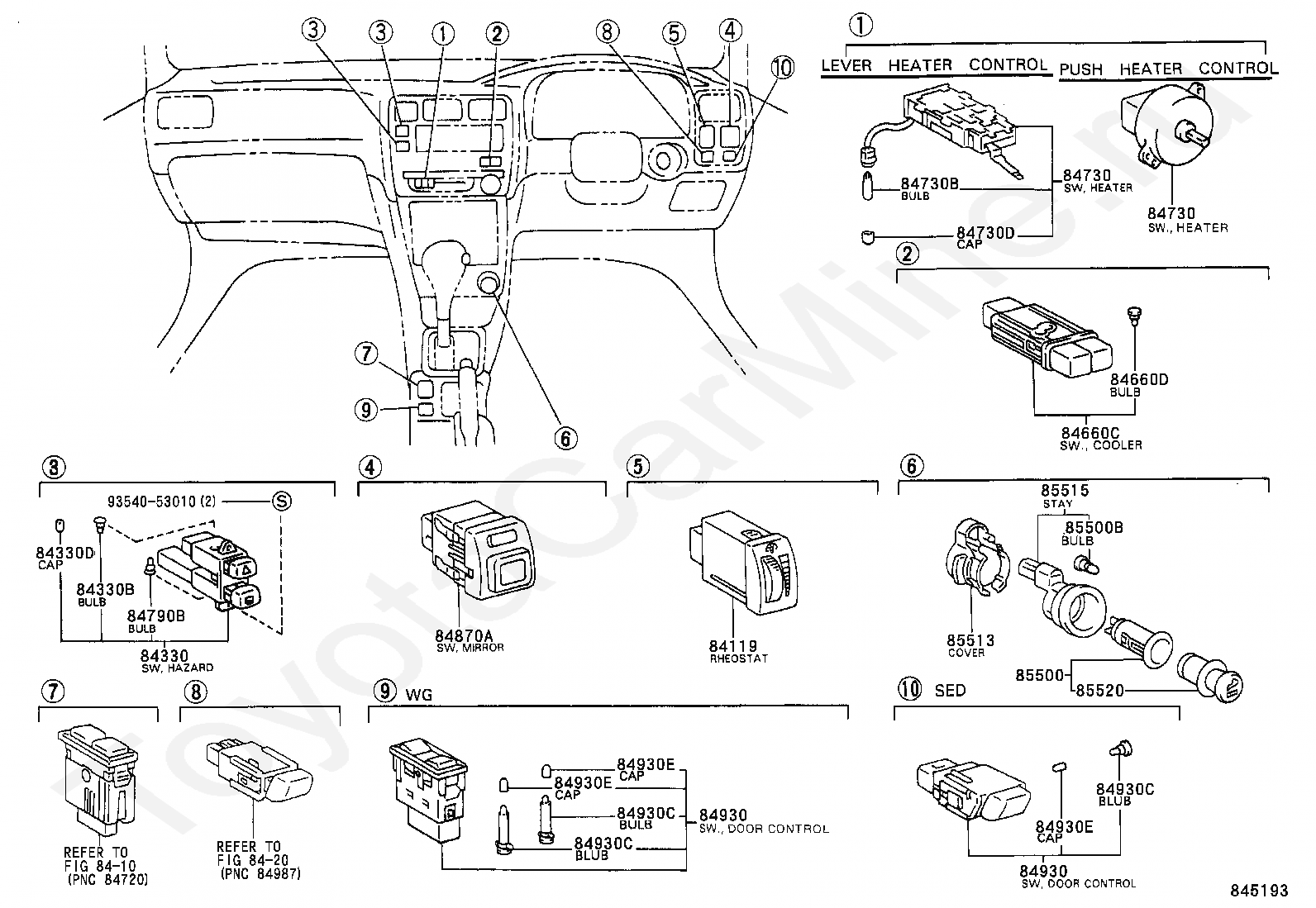

Код

Описание

8410

переход к группе запчастей

84119

RHEOSTAT, LIGHT CONTROL

8420

переход к группе запчастей

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84330D

CAP, HAZARD WARNING SWITCH BULB

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84730

SWITCH ASSY, HEATER BLOWER

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730D

CAP, HEATER BLOWER SWITCH BULB

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

84930

SWITCH ASSY, DOOR CONTROL

84930C

BULB(FOR DOOR CONTROL SWITCH)

84930C

BULB(FOR DOOR CONTROL SWITCH)

84930C

BULB(FOR DOOR CONTROL SWITCH)

84930E

CAP(FOR DOOR CONTROL SWITCH BULB)

84930E

CAP(FOR DOOR CONTROL SWITCH BULB)

84930E

CAP(FOR DOOR CONTROL SWITCH BULB)

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

9354053010

Крепеж

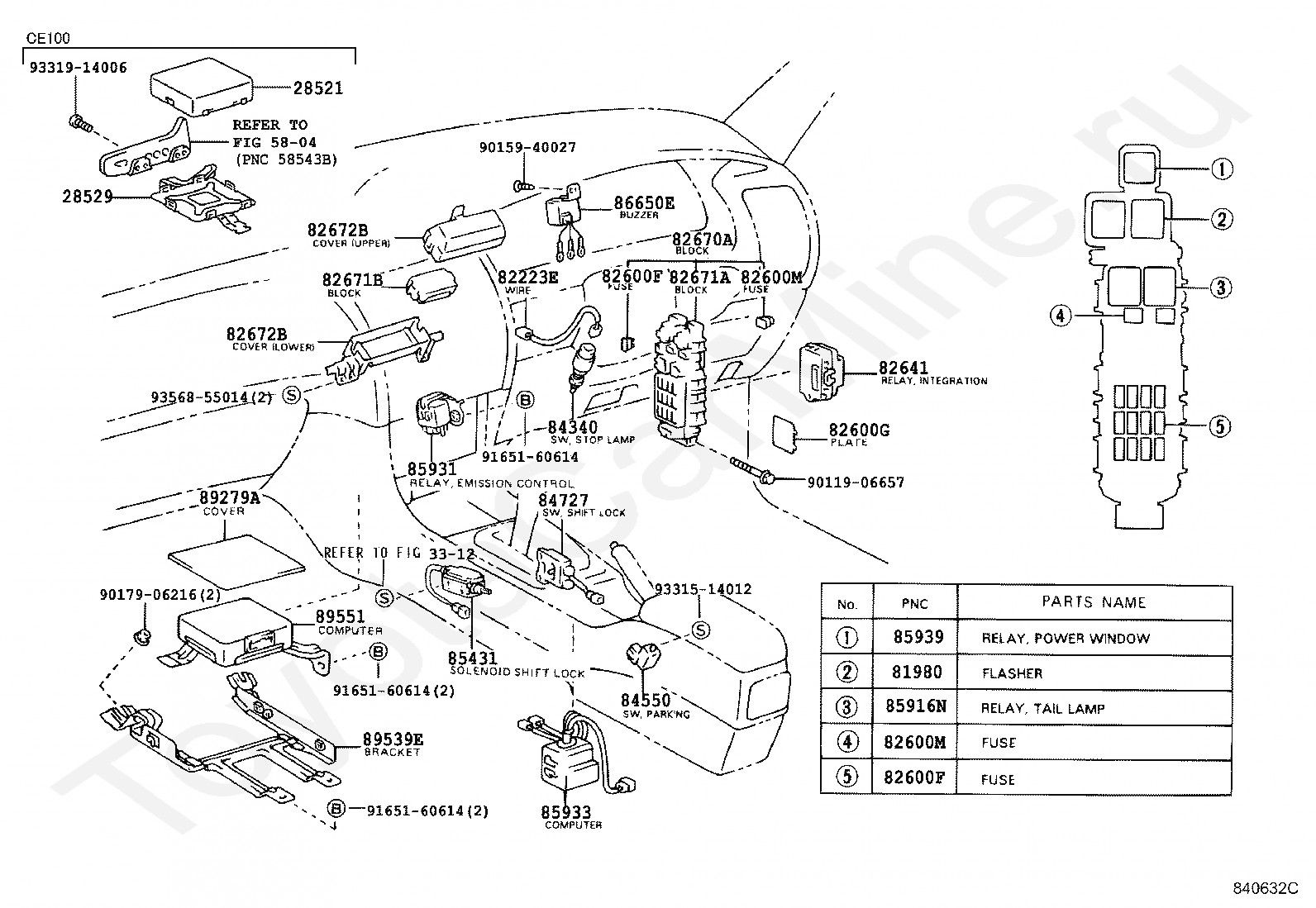

Код

Описание

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

3312

переход к группе запчастей

5804

переход к группе запчастей

81980

FLASHER ASSY, TURN SIGNAL

82223E

WIRE, CLUTCH START SWITCH

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82600M

FUSE, MEDIUM CURRENT

82600M

FUSE, MEDIUM CURRENT

82641

RELAY, INTEGRATION NO.1

82670A

BLOCK ASSY, JUNCTION, NO.1

82671A

BLOCK, JUNCTION

82671B

BLOCK, JUNCTION

82672B

COVER, JUNCTION BLOCK

82672B

COVER, JUNCTION BLOCK

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84727

SWITCH, SHIFT LOCK CONTROL

85431

SOLENOID, SHIFT LOCK

85916N

RELAY, TAIL LAMP

85931

RELAY, EMISSION CONTROL

85933

COMPUTER, SHIFT LOCK CONTROL

85939

RELAY, POWER WINDOW

86650E

BUZZER ASSY

89279A

COVER, COMPUTER

89539E

BRACKET, COMPUTER

89551

COMPUTER, EMISSION CONTROL

9011906657

Крепеж

9015940027

Крепеж

9017906216

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9331514012

Крепеж

9331914006

Крепеж

9356855014

Крепеж

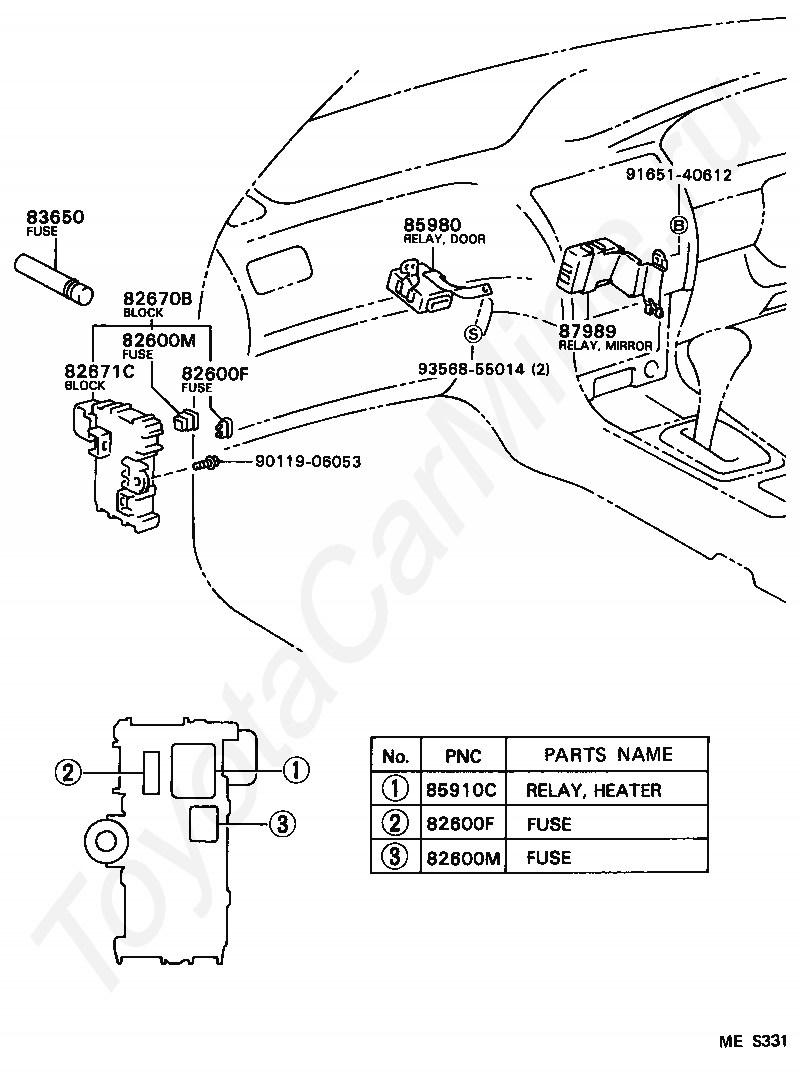

Код

Описание

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

82600M

FUSE, MEDIUM CURRENT

82670B

BLOCK ASSY, JUNCTION, NO.2

82671C

BLOCK, JUNCTION

83650

FUSEE

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85980

RELAY ASSY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

9011906053

Крепеж

9165140612

Крепеж

9356855014

Крепеж

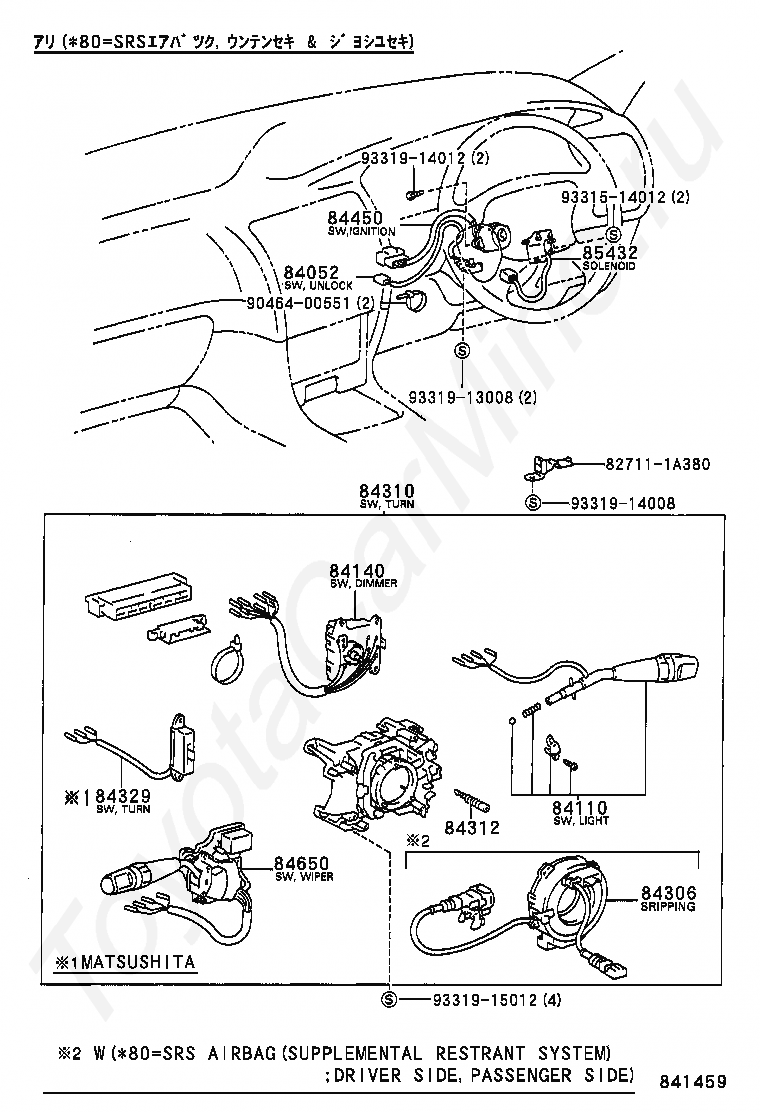

Код

Описание

827111A380

Крепеж

84052

SWITCH ASSY, UN-LOCK WARNING

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9046400551

Крепеж

9331514012

Крепеж

9331913008

Крепеж

9331914008

Крепеж

9331914012

Крепеж

9331915012

Крепеж

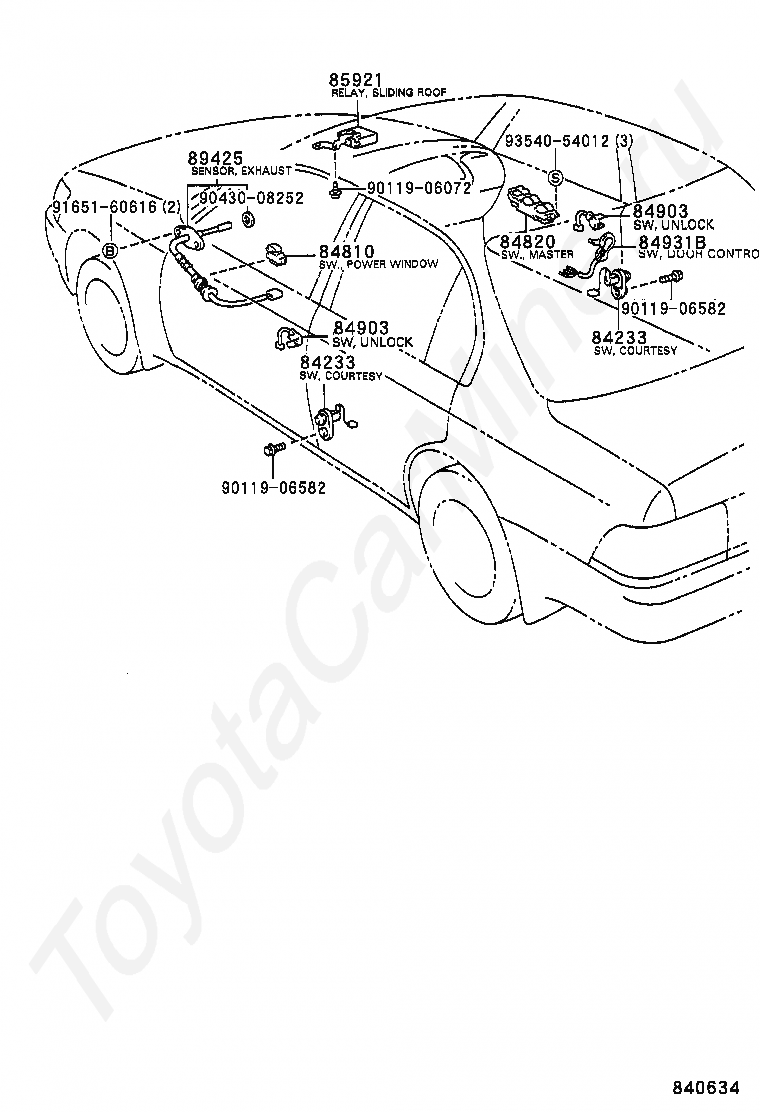

Код

Описание

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84903

SWITCH SUB-ASSY, DOOR UN-LOCK

84903

SWITCH SUB-ASSY, DOOR UN-LOCK

84931B

SWITCH, DOOR CONTROL

85921

RELAY, SLIDING ROOF CONTROL

89425

SENSOR, EXHAUST GAS TEMPERATURE

9011906072

Крепеж

9011906582

Крепеж

9011906582

Крепеж

9043008252

Крепеж

9165160616

Крепеж

9354054012

Крепеж

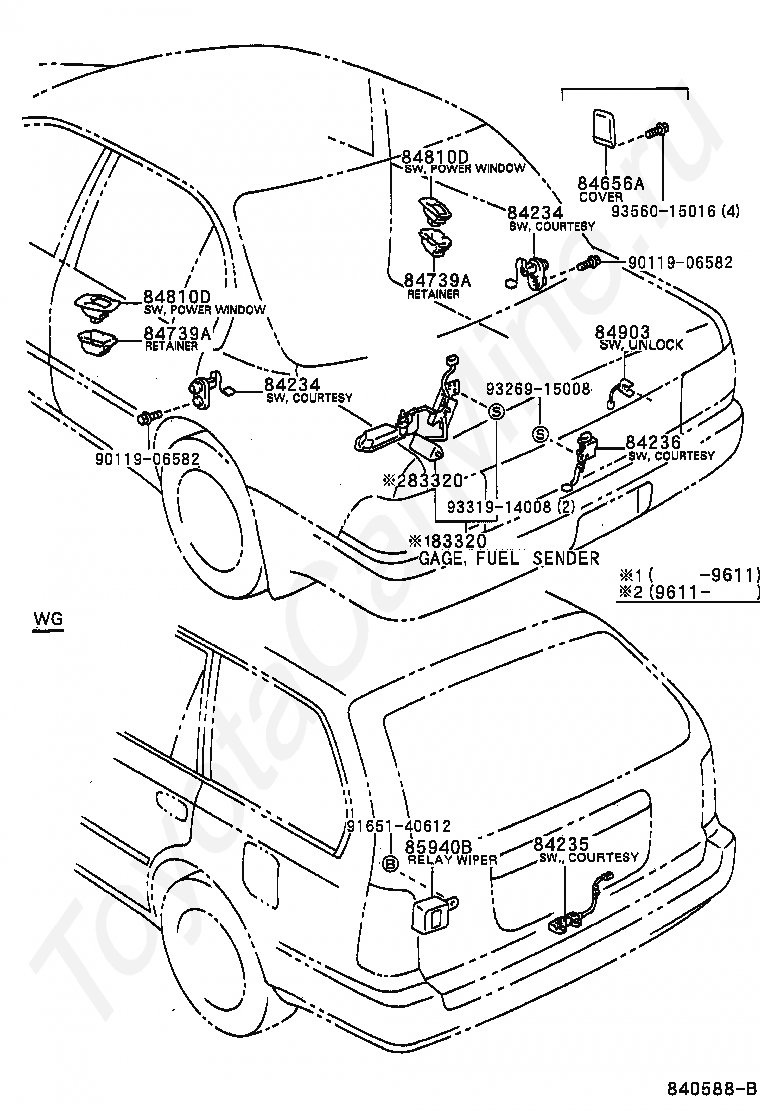

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84656A

BEZEL, SWITCH

84739A

RETAINER, SWITCH

84739A

RETAINER, SWITCH

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84903

SWITCH SUB-ASSY, DOOR UN-LOCK

85940B

RELAY ASSY, REAR WIPER

9011906582

Крепеж

9011906582

Крепеж

9165140612

Крепеж

9326915008

Крепеж

9331914008

Крепеж

9356015016

Крепеж

Реле и кнопки TOYOTA COROLLA SED/CP/WG
