Европа

Модель

COROLLA HB (UKP)

VIN

Дата

2001/11

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

хетчбэк

Класс

TWEETER SPEAKER

Фрейм

ZZE123

КПП

механика МКПП, 6 скоростей

Опции

EUROPE PRODUCT левый руль 3 двери TWIN CAM

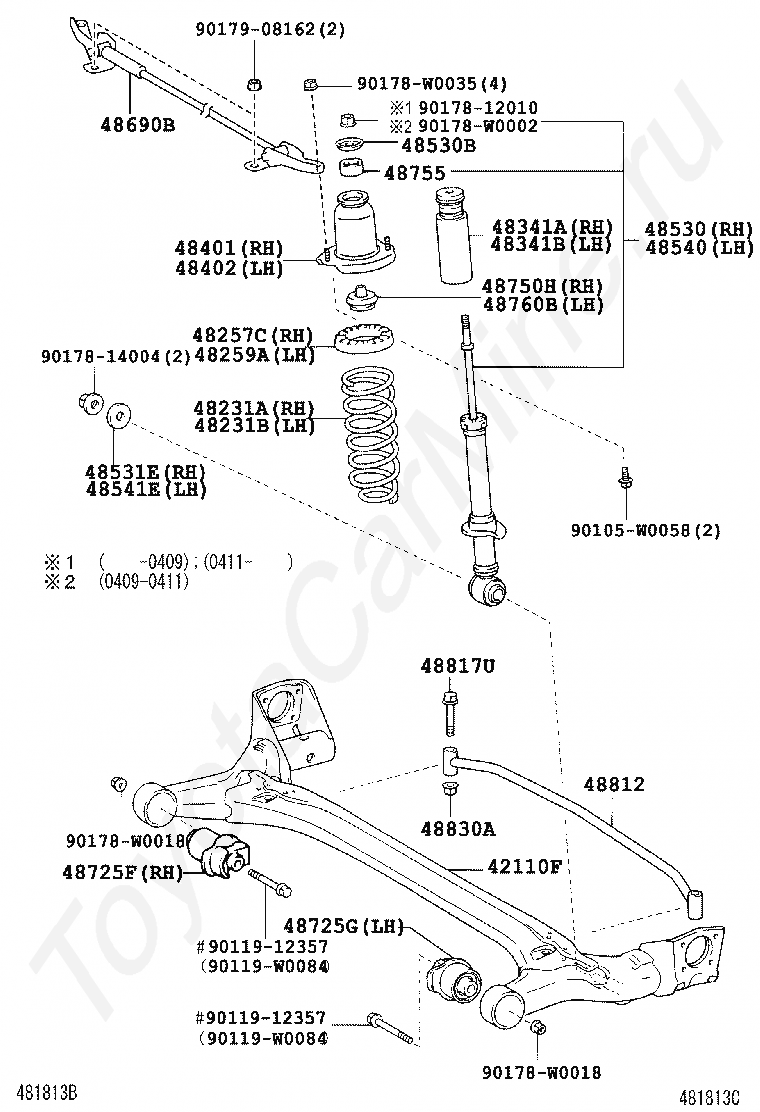

Задние амортизаторы TOYOTA COROLLA HB (UKP)

Код

Описание

42110F

BEAM ASSY, REAR AXLE

48231A

SPRING, COIL, REAR RH

48231B

SPRING, COIL, REAR LH

48257C

INSULATOR, REAR COIL SPRING, UPPER RH

48259A

INSULATOR, REAR COIL SPRING, UPPER LH

48341A

BUMPER, REAR SPRING, NO.1 RH

48341B

BUMPER, REAR SPRING, NO.1 LH

48401

BRACKET SUB-ASSY, REAR SPRING, FRONT RH

48402

BRACKET SUB-ASSY, REAR SPRING, FRONT LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48531E

RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

48540

ABSORBER ASSY, SHOCK, REAR LH

48541E

RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

48725F

BUSH, REAR AXLE CARRIER, RH

48725G

BUSH, REAR AXLE CARRIER, LH

48750H

SUPPORT ASSY, REAR SUSPENSION, RH

48755

SUPPORT, REAR SUSPENSION

48760B

SUPPORT ASSY REAR SUSPENSION, LH

48812

BAR, STABILIZER, REAR

48817U

BOLT(FOR REAR STABILIZER)

48830A

NUT(FOR REAR STABILIZER LINK)

9010510361

Крепеж

90105W0058

Крепеж

9011912357

Крепеж

9011912357

Крепеж

90119W0084

Крепеж

90119W0084

Крепеж

9017810014

Крепеж

9017812009

Крепеж

9017812009

Крепеж

9017812010

Крепеж

9017814004

Крепеж

90178W0002

Крепеж

90178W0002

Крепеж

90178W0018

Крепеж

90178W0018

Крепеж

90178W0035

Крепеж

9017912078

Крепеж

Код

Описание

42110F

BEAM ASSY, REAR AXLE

48231A

SPRING, COIL, REAR RH

48231B

SPRING, COIL, REAR LH

48257C

INSULATOR, REAR COIL SPRING, UPPER RH

48259A

INSULATOR, REAR COIL SPRING, UPPER LH

48341A

BUMPER, REAR SPRING, NO.1 RH

48341B

BUMPER, REAR SPRING, NO.1 LH

48401

BRACKET SUB-ASSY, REAR SPRING, FRONT RH

48402

BRACKET SUB-ASSY, REAR SPRING, FRONT LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48531E

RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

48540

ABSORBER ASSY, SHOCK, REAR LH

48541E

RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

48690B

DAMPER ASSY, SUSPENSION TOWER

48725F

BUSH, REAR AXLE CARRIER, RH

48725G

BUSH, REAR AXLE CARRIER, LH

48750H

SUPPORT ASSY, REAR SUSPENSION, RH

48755

SUPPORT, REAR SUSPENSION

48760B

SUPPORT ASSY REAR SUSPENSION, LH

48812

BAR, STABILIZER, REAR

48817U

BOLT(FOR REAR STABILIZER)

48830A

NUT(FOR REAR STABILIZER LINK)

90105W0058

Крепеж

9011912357

Крепеж

9011912357

Крепеж

90119W0084

Крепеж

90119W0084

Крепеж

9017812010

Крепеж

9017814004

Крепеж

90178W0002

Крепеж

90178W0018

Крепеж

90178W0018

Крепеж

90178W0035

Крепеж

9017908162

Крепеж

Задние амортизаторы TOYOTA COROLLA HB (UKP)
