2211
переход к группе запчастей

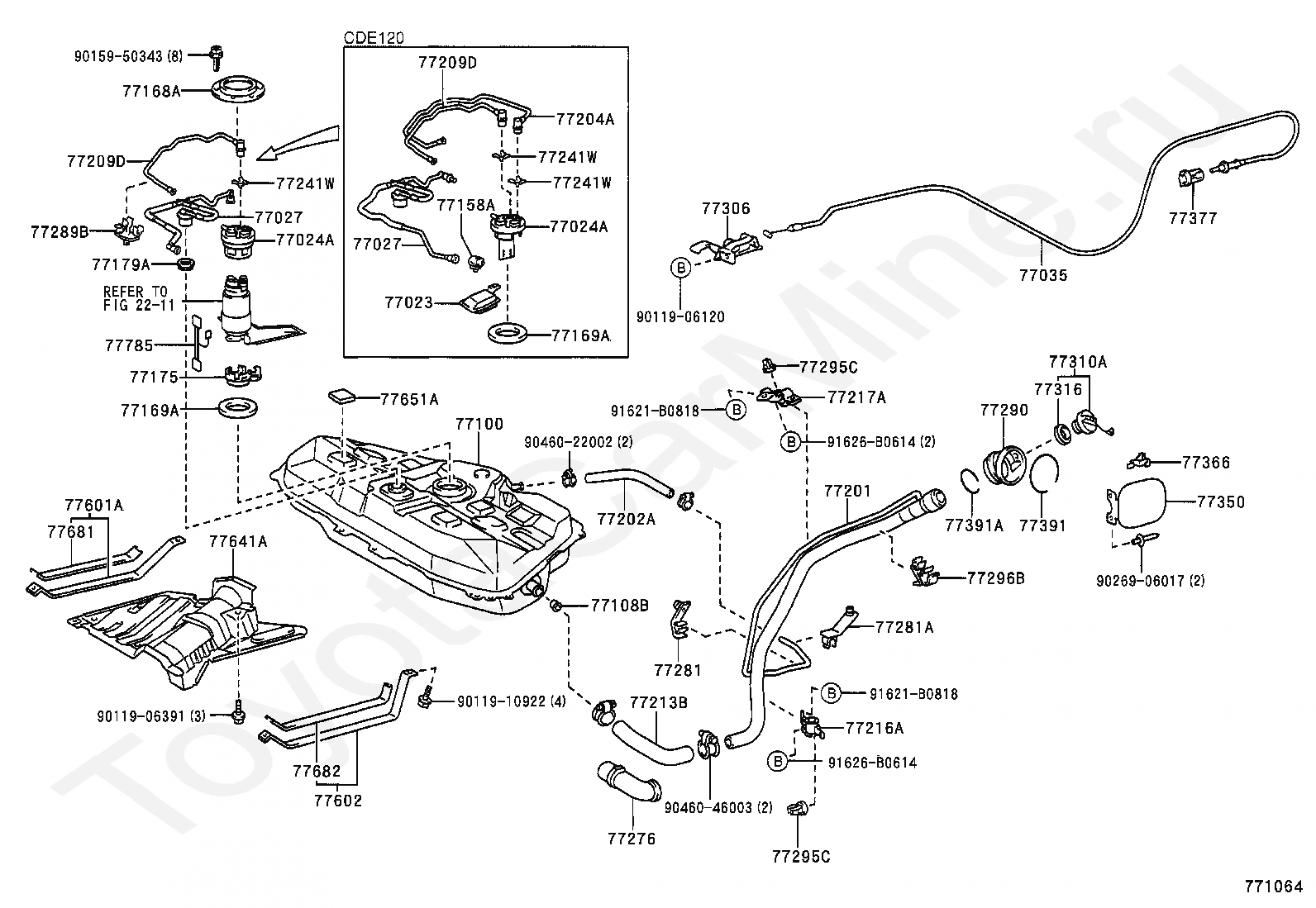

77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77024A
PLATE SUB-ASSY, FUEL SUCTION
77027
TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027
TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77108B
VALVE SUB-ASSY, FUEL TANK FILLER CHECK
77158A
SUPPORT, TANK SUCTION TUBE
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77276
PROTECTOR, FUEL HOSE
77281
BRACKET, FUEL MAIN TUBE, NO.1
77281A
CLAMP, FUEL FILLER PIPE
77289B
CLAMP, FUEL TUBE, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77295C
GROMMET, FUEL TUBE
77295C
GROMMET, FUEL TUBE
77296B
SUPPORT, FUEL TUBE PROTECTOR, NO.1
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77602
CASE SUB-ASSY, FUEL TANK, UPPER
77641A
PROTECTOR, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
