Каталог

Европа

Модель

COROLLA SED/WG (JPP)

VIN

Дата

2001/10

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

SOL TYPE

Фрейм

ZZE121

КПП

автомат АКПП, 4 ступени

Опции

JAPAN PRODUCT левый руль HIGH EFFICIENCY TWIN CAM

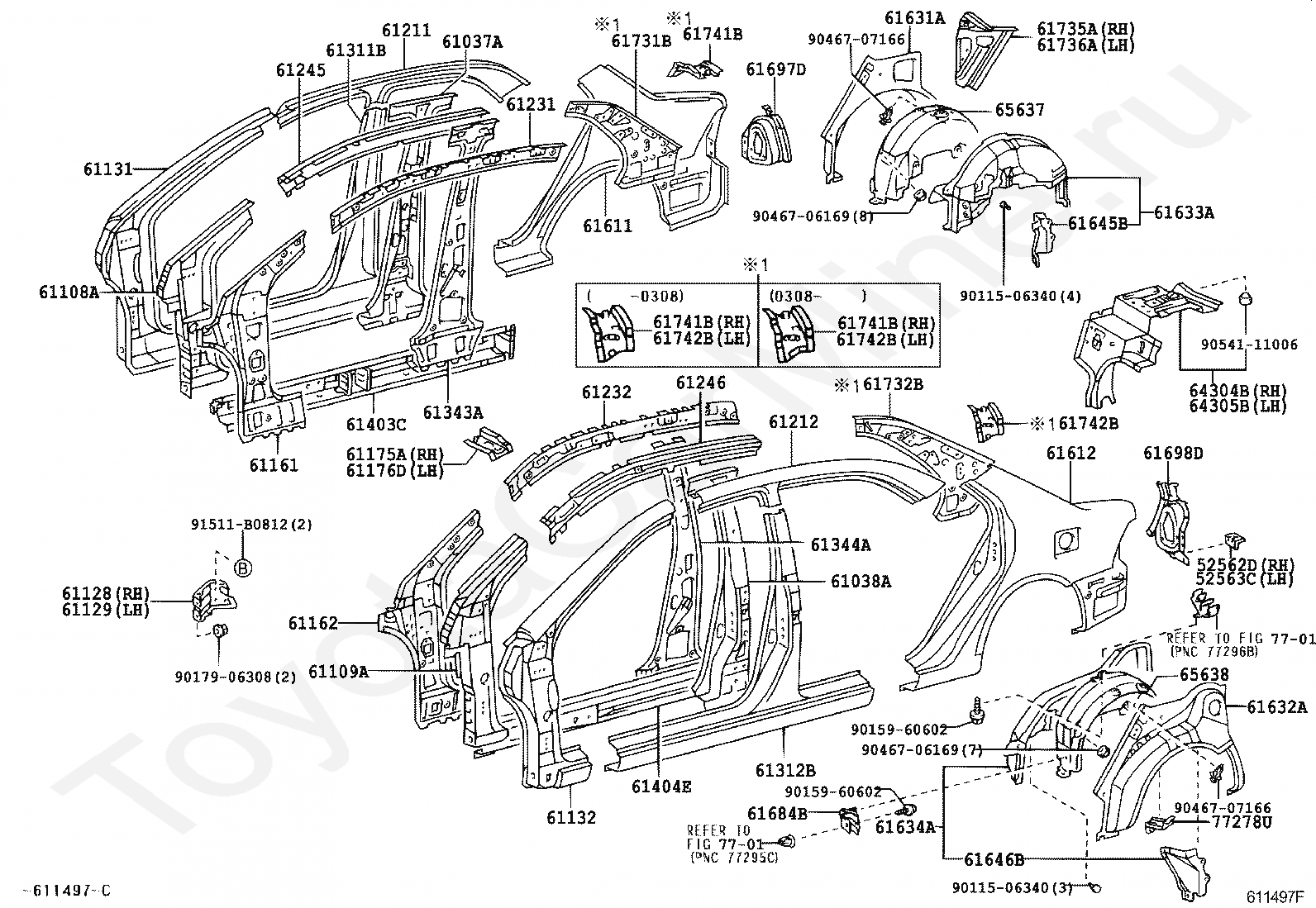

Боковая панель кузова TOYOTA COROLLA SED/WG (JPP)







Код

Описание

52562D

RETAINER, REAR BUMPER, UPPER SIDE, RH

52563C

RETAINER, REAR BUMPER, UPPER SIDE, LH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61128

REINFORCEMENT, COWL SIDE PANEL, RH

61129

REINFORCEMENT, COWL SIDE PANEL, LH

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61161

PILLAR, FRONT BODY, UPPER INNER RH

61162

PILLAR, FRONT BODY, UPPER INNER LH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61245

REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

61246

REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61343A

PILLAR, CENTER BODY, INNER RH

61344A

PILLAR, CENTER BODY, INNER LH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61684B

BRACKET, REAR WHEEL OPENING, NO.1 LH

61697D

HOUSING, QUARTER PANEL END, RH

61698D

HOUSING, QUARTER PANEL END, LH

61731B

PANEL, ROOF SIDE, INNER RH

61732B

PANEL, ROOF SIDE, INNER LH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61741B

REINFORCEMENT, BACK WINDOW OPENING, RH

61741B

REINFORCEMENT, BACK WINDOW OPENING, RH

61741B

REINFORCEMENT, BACK WINDOW OPENING, RH

61742B

REINFORCEMENT, BACK WINDOW OPENING, LH

61742B

REINFORCEMENT, BACK WINDOW OPENING, LH

61742B

REINFORCEMENT, BACK WINDOW OPENING, LH

64304B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

64305B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

65637

LINER, REAR WHEEL HOUSE, RH

65638

LINER, REAR WHEEL HOUSE, LH

7701

переход к группе запчастей

7701

переход к группе запчастей

77278U

BRACKET, FUEL TANK FILLER PIPE PROTECTOR

9011506340

Крепеж

9011506340

Крепеж

9015960602

Крепеж

9015960602

Крепеж

9017906308

Крепеж

9046706169

Крепеж

9046706169

Крепеж

9046707166

Крепеж

9046707166

Крепеж

9054111006

Крепеж

91511B0812

Крепеж

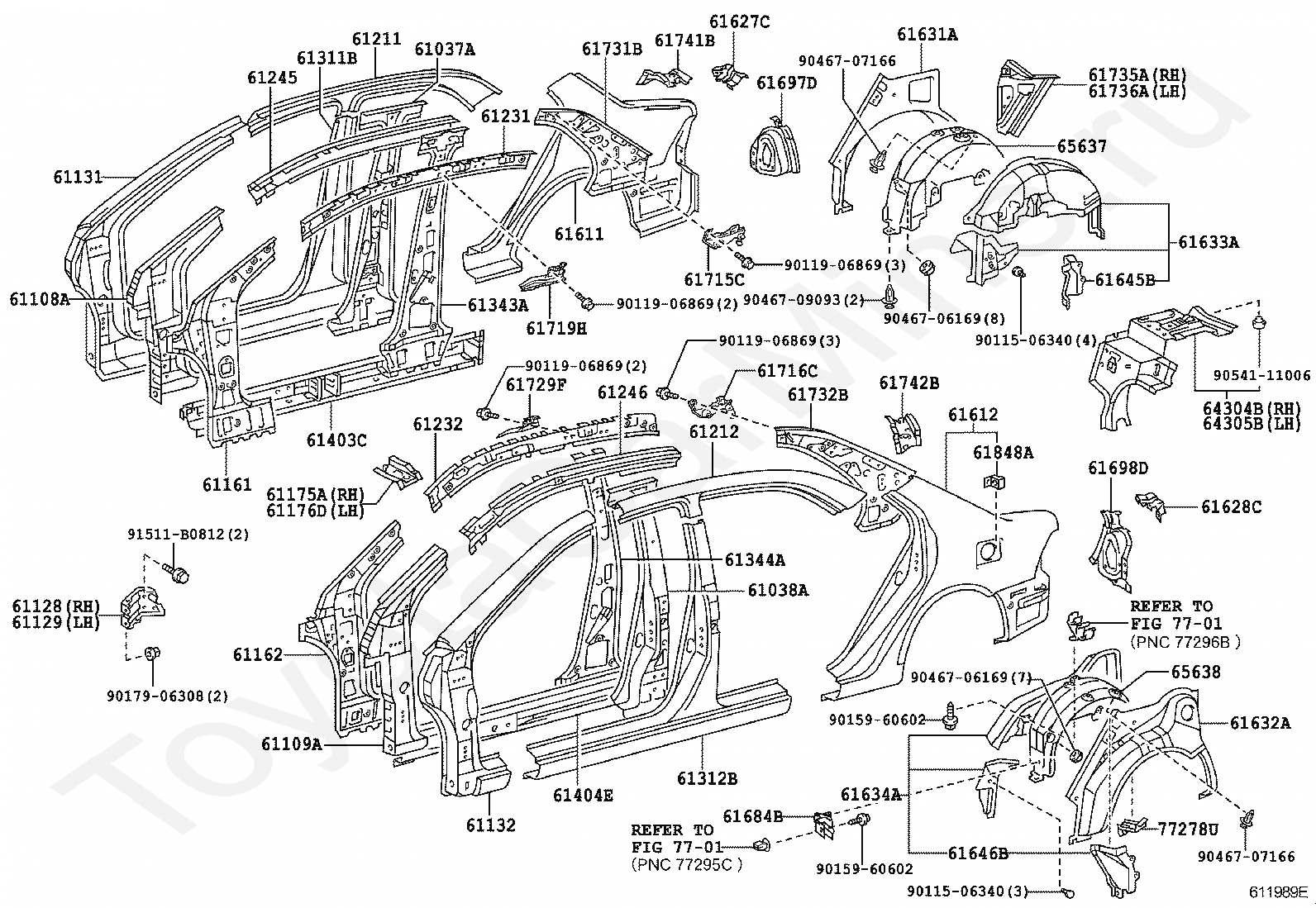

Код

Описание

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61128

REINFORCEMENT, COWL SIDE PANEL, RH

61129

REINFORCEMENT, COWL SIDE PANEL, LH

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61161

PILLAR, FRONT BODY, UPPER INNER RH

61162

PILLAR, FRONT BODY, UPPER INNER LH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61245

REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

61246

REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61343A

PILLAR, CENTER BODY, INNER RH

61344A

PILLAR, CENTER BODY, INNER LH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61627C

REINFORCEMENT, QUARTER INNER PANEL, RH

61628C

REINFORCEMENT, QUARTER INNER PANEL, LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61684B

BRACKET, REAR WHEEL OPENING, NO.1 LH

61697D

HOUSING, QUARTER PANEL END, RH

61698D

HOUSING, QUARTER PANEL END, LH

61715C

BRACKET, ROOF SIDE, RH

61716C

BRACKET, ROOF SIDE, LH

61719H

BRACKET SUB-ASSY, ROOF SIDE RAIL, RH

61729F

BRACKET SUB-ASSY, ROOF SIDE RAIL, LH

61731B

PANEL, ROOF SIDE, INNER RH

61732B

PANEL, ROOF SIDE, INNER LH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61741B

REINFORCEMENT, BACK WINDOW OPENING, RH

61742B

REINFORCEMENT, BACK WINDOW OPENING, LH

61848A

RETAINER, QUARTER PANEL, LH

64304B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

64305B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

65637

LINER, REAR WHEEL HOUSE, RH

65638

LINER, REAR WHEEL HOUSE, LH

7701

переход к группе запчастей

7701

переход к группе запчастей

77278U

BRACKET, FUEL TANK FILLER PIPE PROTECTOR

9011506340

Крепеж

9011506340

Крепеж

9011906869

Крепеж

9011906869

Крепеж

9011906869

Крепеж

9011906869

Крепеж

9015960602

Крепеж

9015960602

Крепеж

9017906308

Крепеж

9046706169

Крепеж

9046706169

Крепеж

9046707166

Крепеж

9046707166

Крепеж

9046709093

Крепеж

9054111006

Крепеж

91511B0812

Крепеж

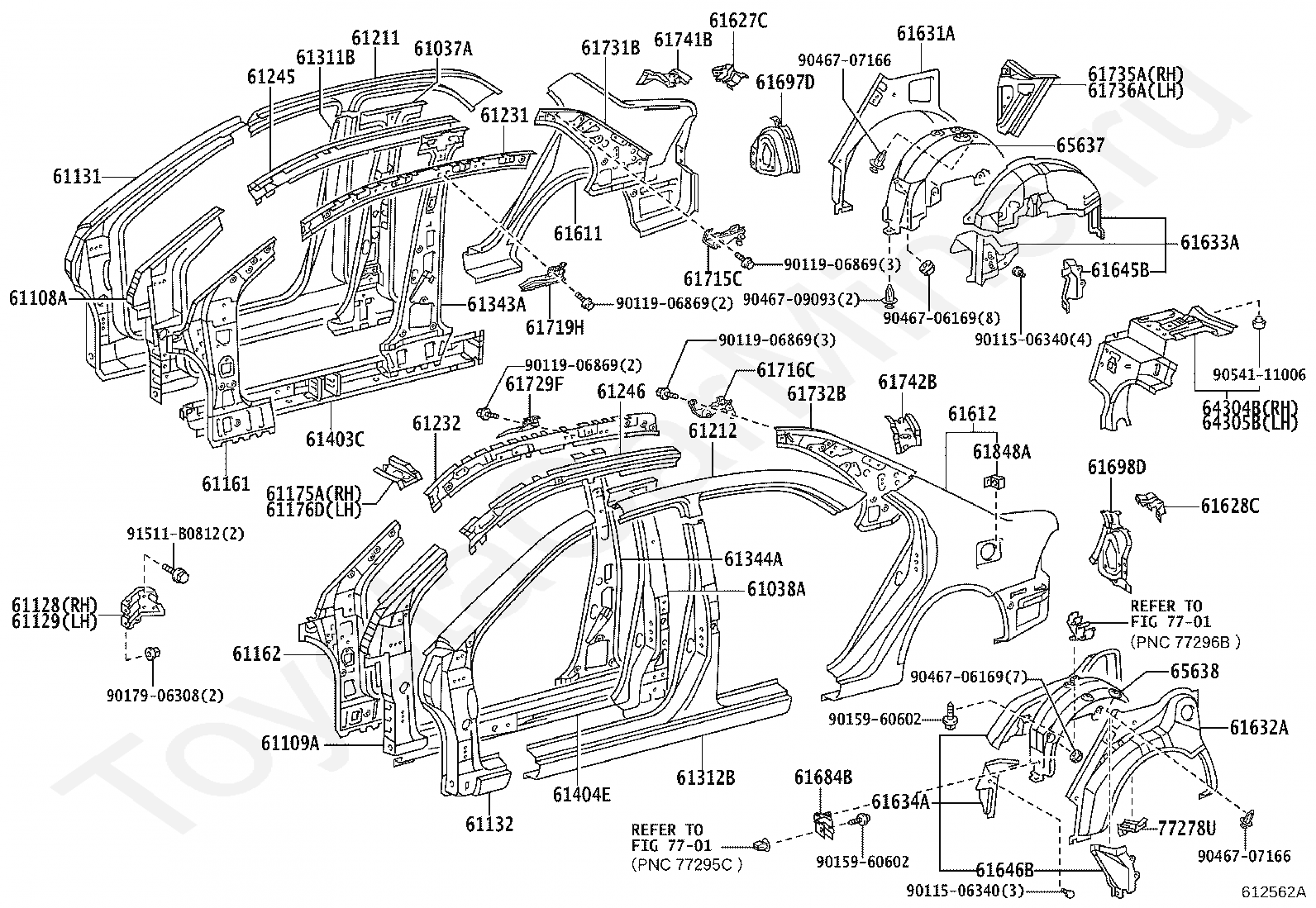

Код

Описание

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61128

REINFORCEMENT, COWL SIDE PANEL, RH

61129

REINFORCEMENT, COWL SIDE PANEL, LH

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61161

PILLAR, FRONT BODY, UPPER INNER RH

61162

PILLAR, FRONT BODY, UPPER INNER LH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61245

REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

61246

REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61343A

PILLAR, CENTER BODY, INNER RH

61344A

PILLAR, CENTER BODY, INNER LH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61627C

REINFORCEMENT, QUARTER INNER PANEL, RH

61628C

REINFORCEMENT, QUARTER INNER PANEL, LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61684B

BRACKET, REAR WHEEL OPENING, NO.1 LH

61697D

HOUSING, QUARTER PANEL END, RH

61698D

HOUSING, QUARTER PANEL END, LH

61715C

BRACKET, ROOF SIDE, RH

61716C

BRACKET, ROOF SIDE, LH

61719H

BRACKET SUB-ASSY, ROOF SIDE RAIL, RH

61729F

BRACKET SUB-ASSY, ROOF SIDE RAIL, LH

61731B

PANEL, ROOF SIDE, INNER RH

61732B

PANEL, ROOF SIDE, INNER LH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61741B

REINFORCEMENT, BACK WINDOW OPENING, RH

61742B

REINFORCEMENT, BACK WINDOW OPENING, LH

61848A

RETAINER, QUARTER PANEL, LH

64304B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

64305B

REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

65637

LINER, REAR WHEEL HOUSE, RH

65638

LINER, REAR WHEEL HOUSE, LH

7701

переход к группе запчастей

7701

переход к группе запчастей

77278U

BRACKET, FUEL TANK FILLER PIPE PROTECTOR

9011506340

Крепеж

9011506340

Крепеж

9011906869

Крепеж

9011906869

Крепеж

9011906869

Крепеж

9011906869

Крепеж

9015960602

Крепеж

9015960602

Крепеж

9017906308

Крепеж

9046706169

Крепеж

9046706169

Крепеж

9046707166

Крепеж

9046707166

Крепеж

9046709093

Крепеж

9054111006

Крепеж

91511B0812

Крепеж

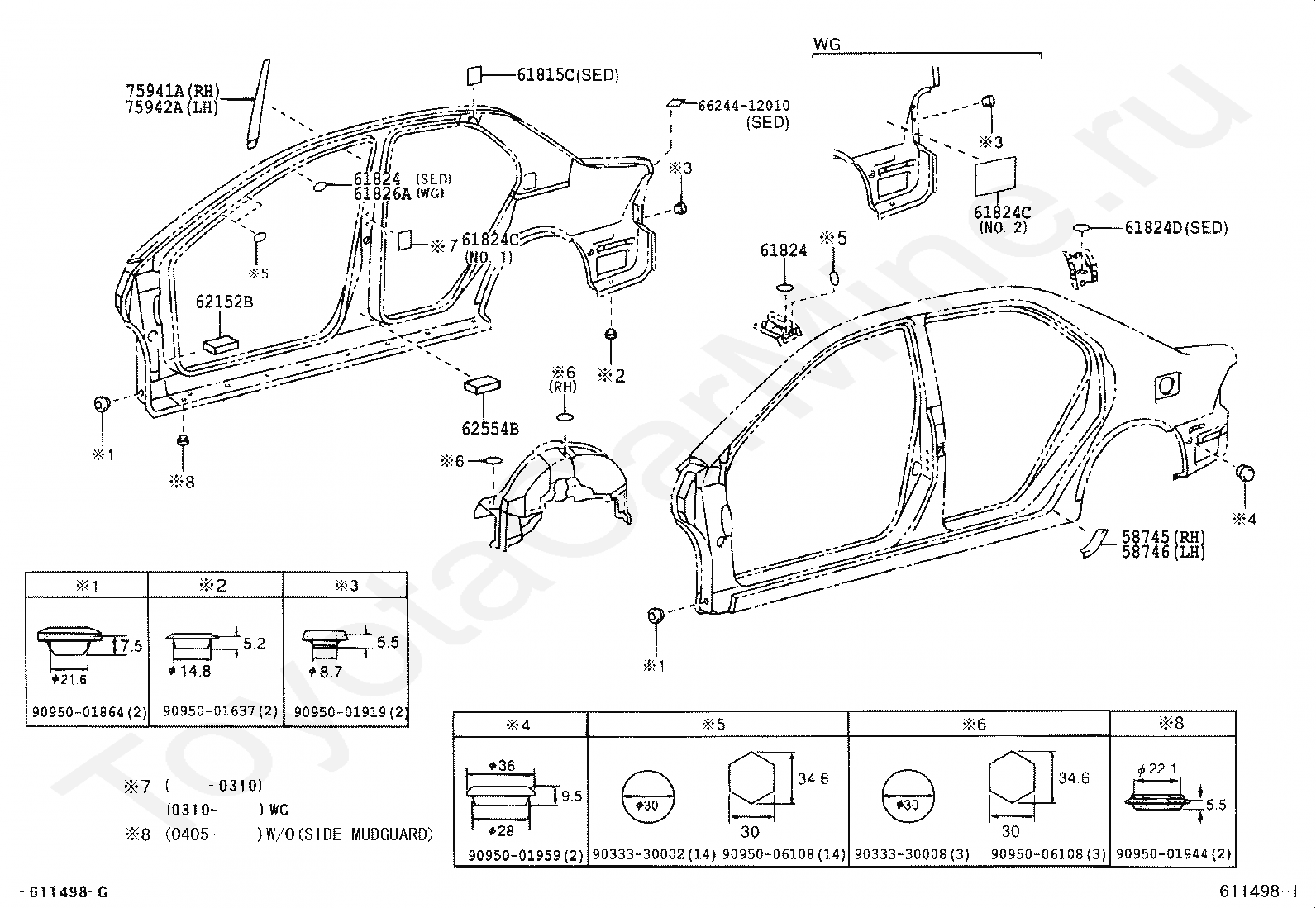

Код

Описание

58745

PROTECTOR, QUARTER PANEL, FRONT RH

58746

PROTECTOR, QUARTER PANEL, FRONT LH

61815C

COVER, ROOF SIDE, INNER UPPER

61824

PLATE, NOISE CONTROL, NO.1

61824

PLATE, NOISE CONTROL, NO.1

61824C

PAD, NOISE SHUTTER, NO.1

61824C

PAD, NOISE SHUTTER, NO.1

61824D

PLATE, NOISE CONTROL, NO.1

61826A

PLATE, NOISE CONTROL, NO.3

62152B

PAD, COWL SIDE SILENCER, NO.2

62554B

PAD, PILLAR, NO.4

6624412010

Крепеж

75941A

STRIPE, CENTER PILLAR, RH

75942A

STRIPE, CENTER PILLAR, RH

9033330002

Крепеж

9033330008

Крепеж

9095001637

Крепеж

9095001864

Крепеж

9095001919

Крепеж

9095001944

Крепеж

9095001959

Крепеж

9095006108

Крепеж

9095006108

Крепеж
