Каталог

Европа

Модель

COROLLA SED/WG (JPP)

VIN

Дата

2001/10

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

SOL TYPE

Фрейм

ZZE121

КПП

автомат АКПП, 4 ступени

Опции

JAPAN PRODUCT левый руль HIGH EFFICIENCY TWIN CAM

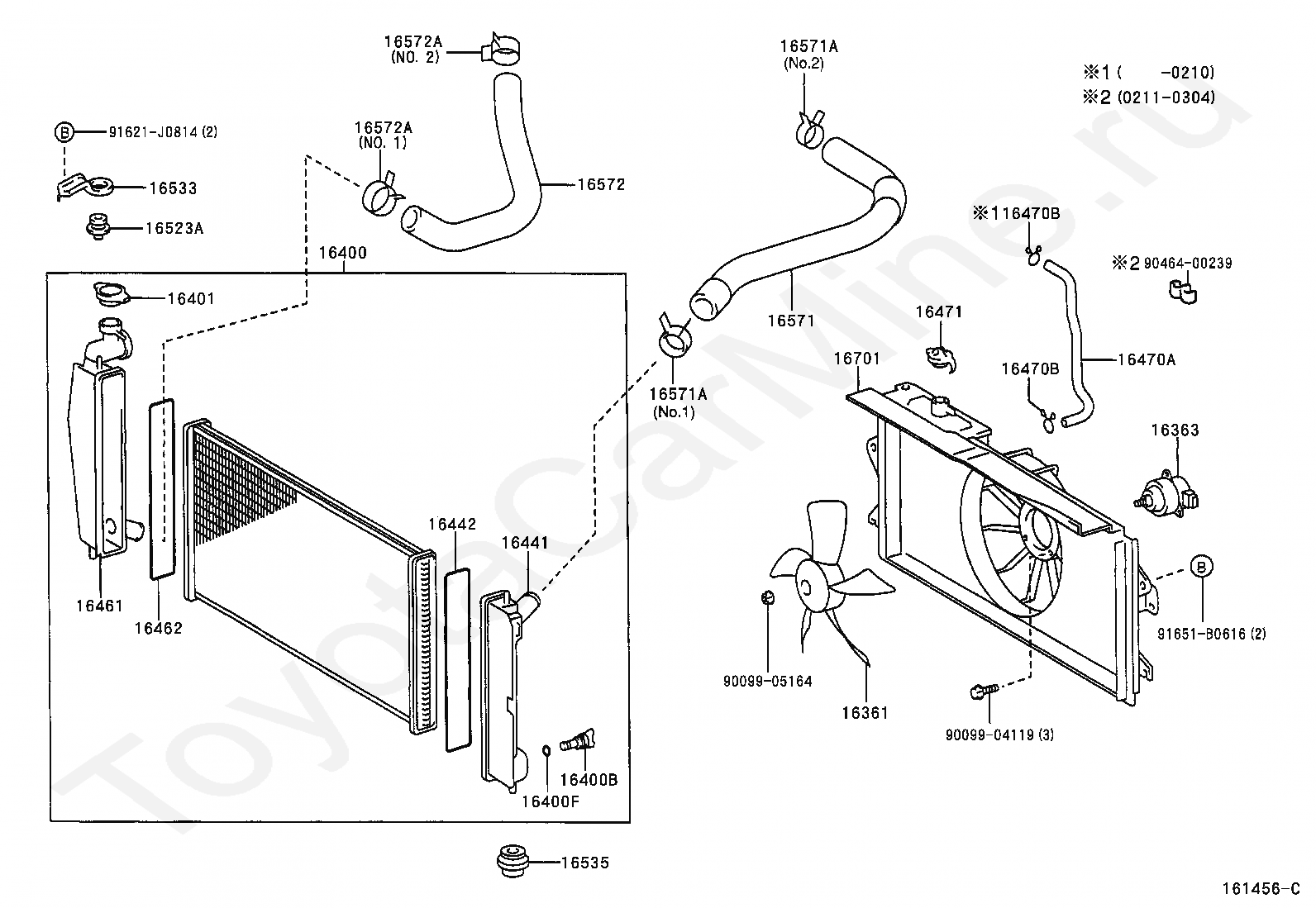

Радиатор и шланги TOYOTA COROLLA SED/WG (JPP)

Код

Описание

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

9009904119

Крепеж

9009905164

Крепеж

9046400239

Крепеж

91621J0814

Крепеж

91651B0616

Крепеж

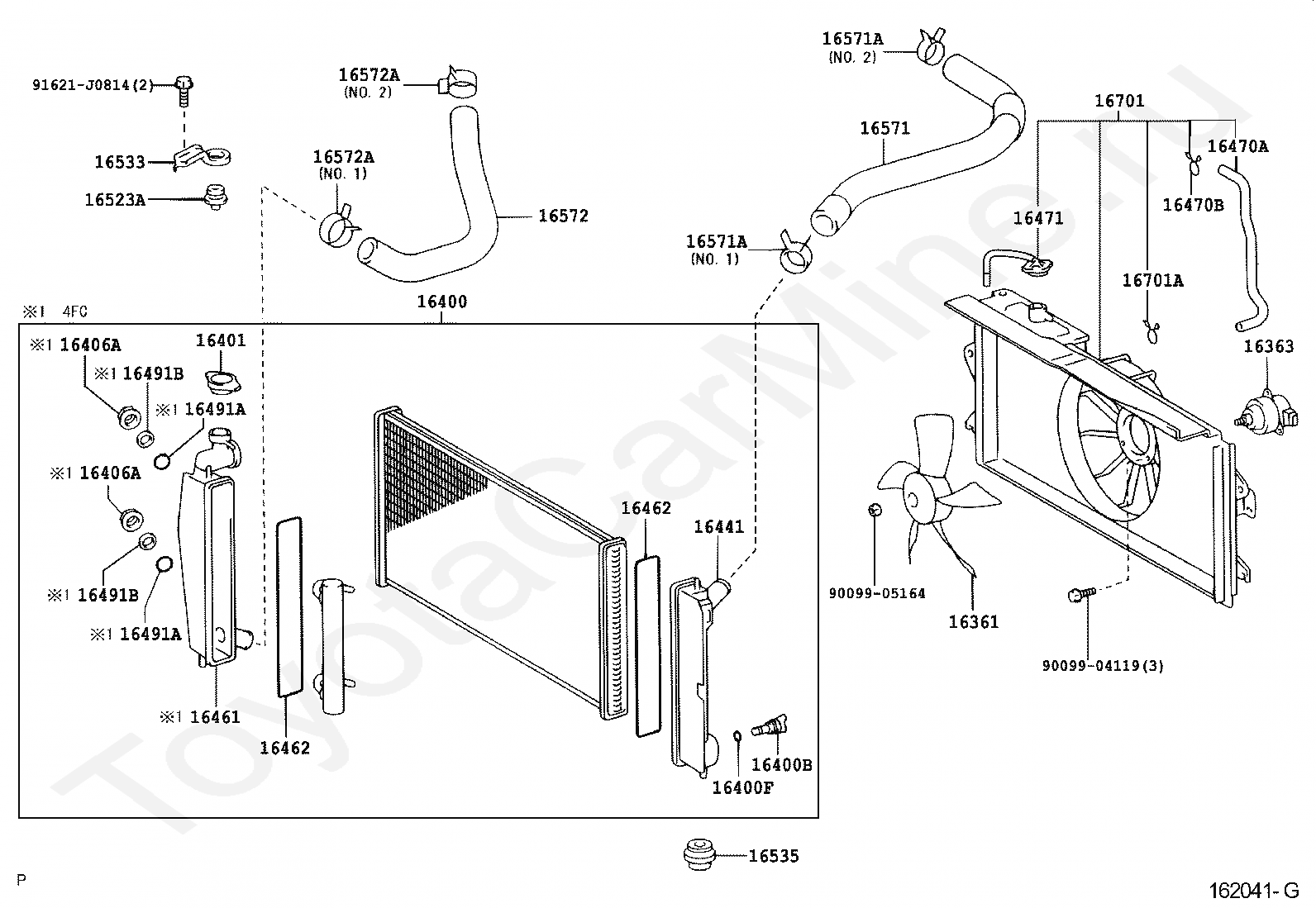

Код

Описание

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16406A

SUPPORT(FOR OIL COOLER)

16441

TANK, RADIATOR, UPPER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16462

RING, O(FOR RADIATOR LOWER TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16491A

RING, O(FOR ATM OIL COOLER)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16701A

CLIP(FOR FAN SHROUD)

9009904119

Крепеж

9009905164

Крепеж

91621J0814

Крепеж

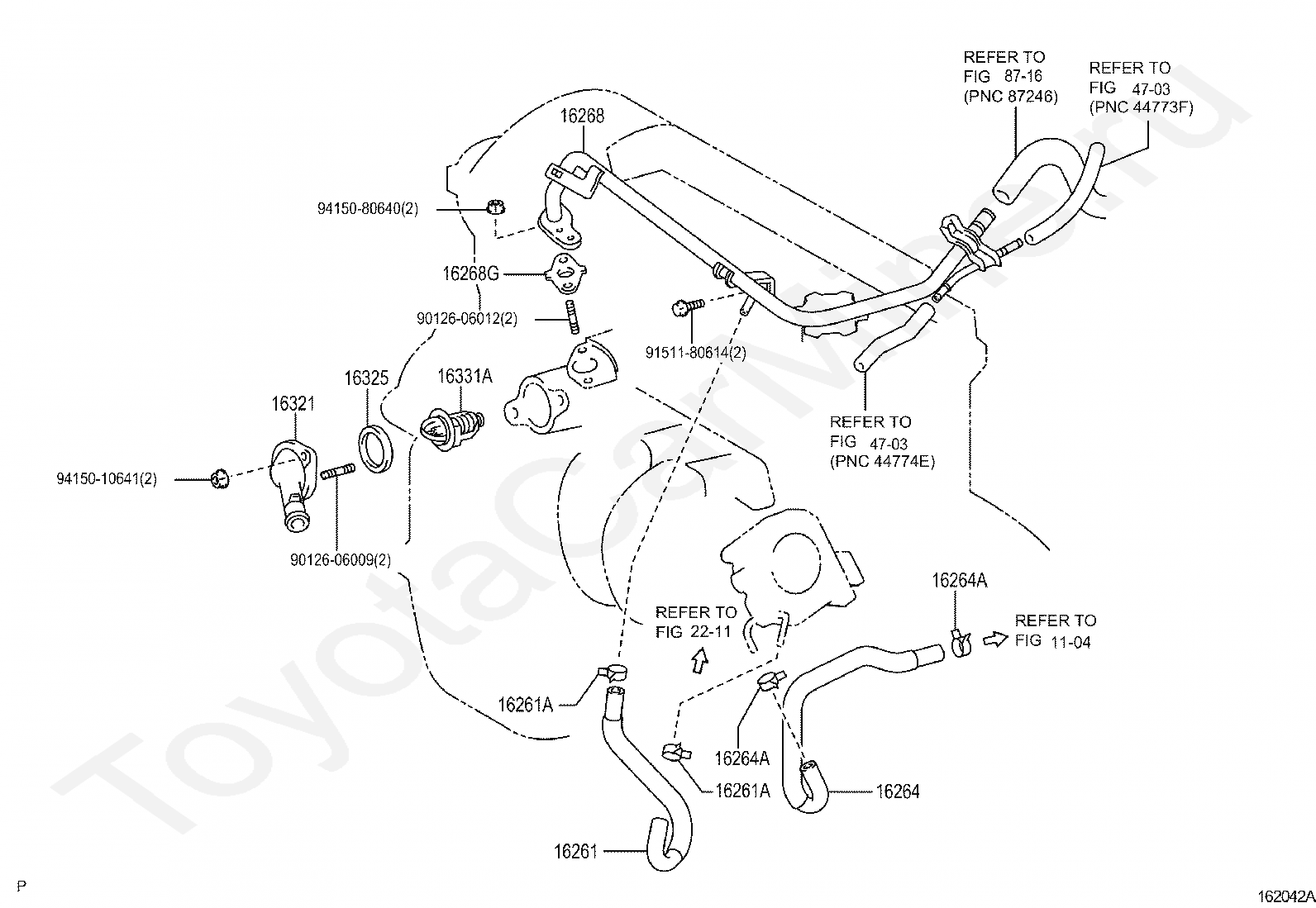

Код

Описание

1104

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268

PIPE, WATER BY-PASS, NO.1

16268G

GASKET(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331A

THERMOSTAT

2211

переход к группе запчастей

4703

переход к группе запчастей

4703

переход к группе запчастей

8716

переход к группе запчастей

9012606009

Крепеж

9012606012

Крепеж

9151180614

Крепеж

9415010641

Крепеж

9415080640

Крепеж

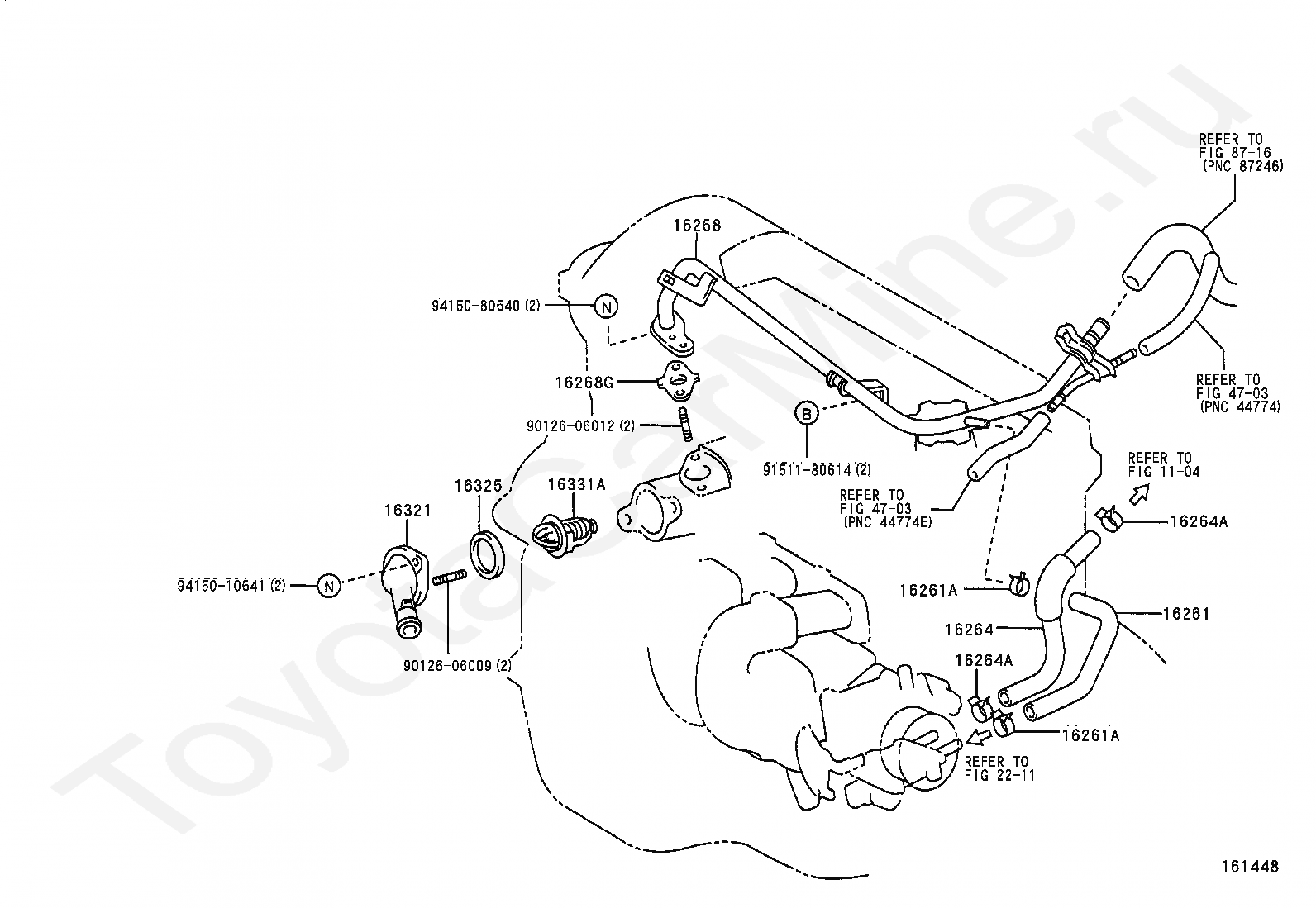

Код

Описание

1104

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268

PIPE, WATER BY-PASS, NO.1

16268G

GASKET(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331A

THERMOSTAT

2211

переход к группе запчастей

4703

переход к группе запчастей

4703

переход к группе запчастей

8716

переход к группе запчастей

9012606009

Крепеж

9012606012

Крепеж

9151180614

Крепеж

9415010641

Крепеж

9415080640

Крепеж

Радиатор и шланги TOYOTA COROLLA SED/WG (JPP)
