Каталог

Ближний Восток

Модель

COASTER (CHINA)

VIN

Дата

2013/01

Двигатель

2,7 литра, 32 клапана, DOHC, EFI

Класс

STANDARD TYPE

Фрейм

TRB53

КПП

механика

Опции

для 23 пассажиров HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 560W

Реле и кнопки TOYOTA COASTER (CHINA)

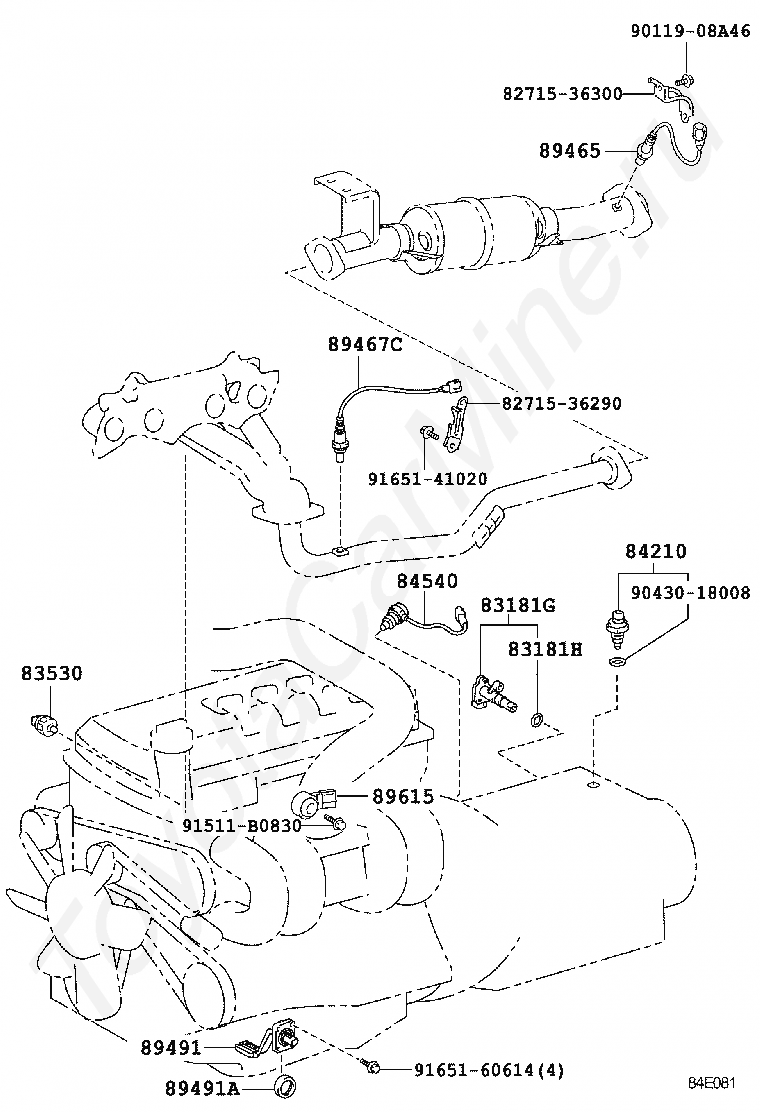

Код

Описание

8271536290

Крепеж

8271536300

Крепеж

83181G

SENSOR, SPEEDOMETER

83181H

RING, O (FOR SPEEDOMETER SENSOR)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89491A

GASKET, ENGINE OIL LEVEL SENSOR

89615

SENSOR, KNOCK CONTROL

9011908A46

Крепеж

9043018008

Крепеж

91511B0830

Крепеж

9165141020

Крепеж

9165160614

Крепеж

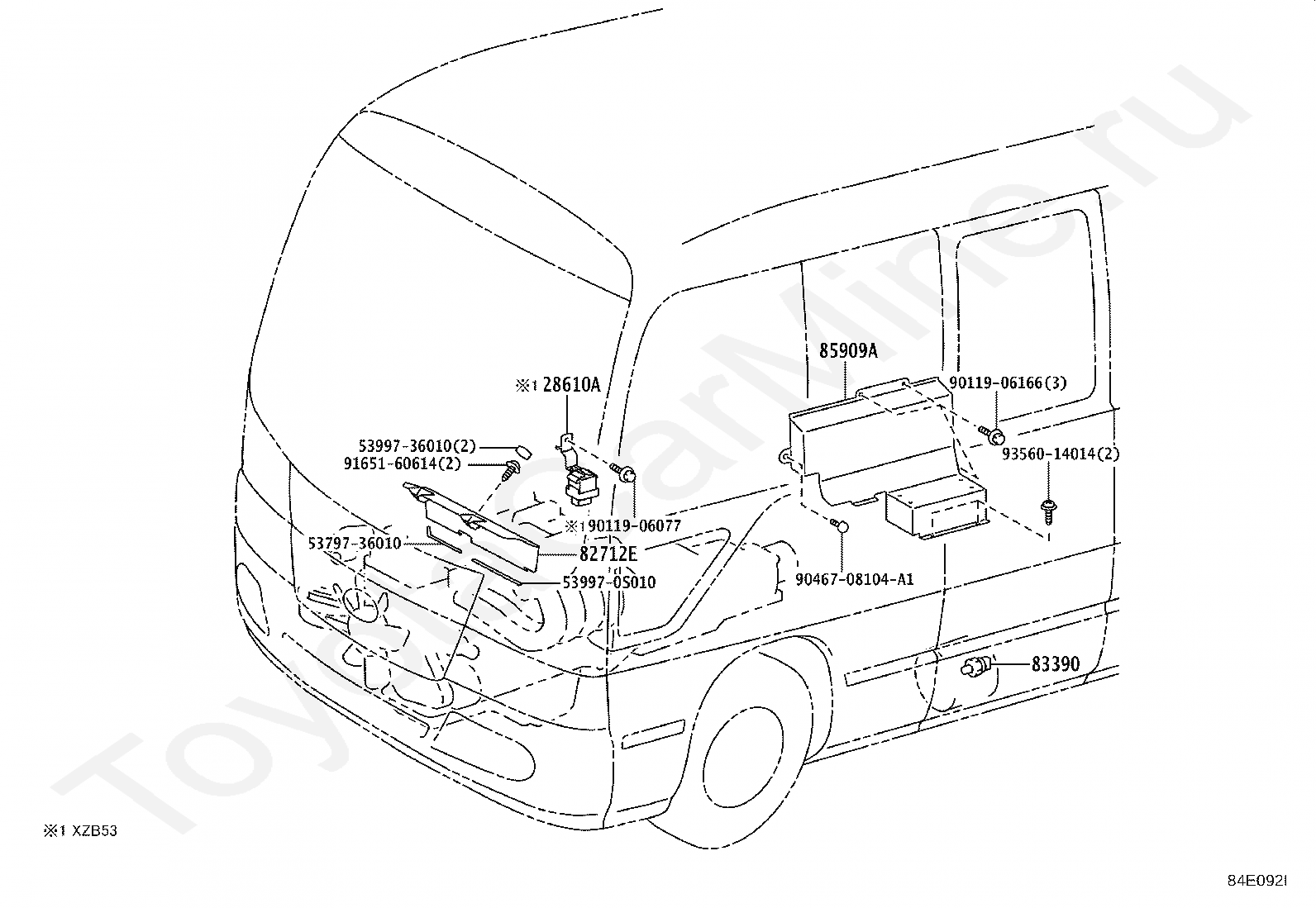

Код

Описание

28610A

RELAY ASSY, GLOW PLUG(SUB)

5379736010

Крепеж

539970S010

Крепеж

5399736010

Крепеж

82712E

SUPPORT, WIRING HARNESS

83390

SWITCH ASSY, VACUUM WARNING

85909A

BRACKET SUB-ASSY, RELAY BLOCK

9011906077

Крепеж

9011906166

Крепеж

9046708104A1

Крепеж

9165160614

Крепеж

9356014014

Крепеж

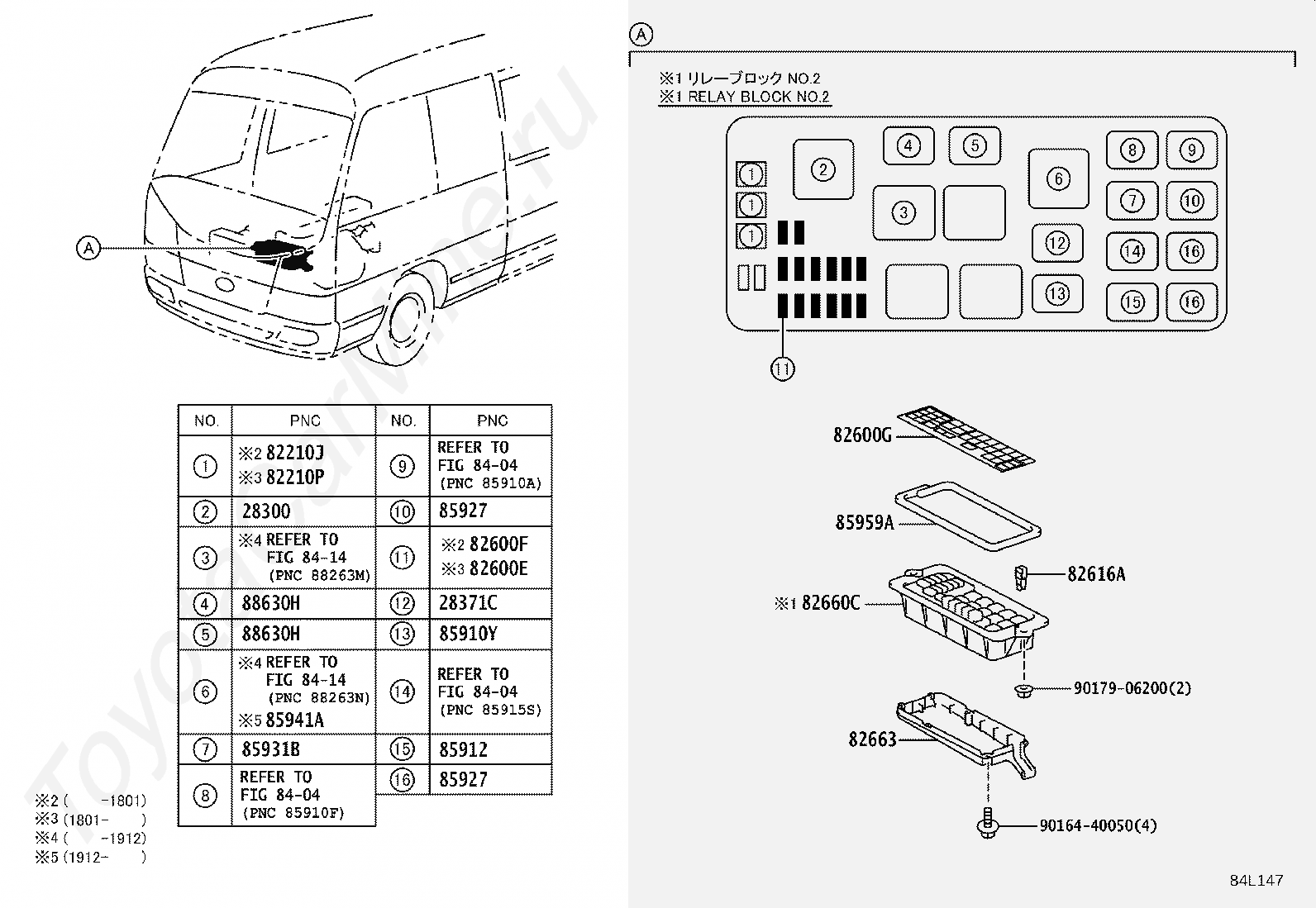

Код

Описание

28300

RELAY ASSY, STARTER

28371C

RELAY, IGNITION, NO.2

82210J

FUSIBLE LINK

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82616A

PULLER, FUSE, NO.2

82660C

BLOCK ASSY, RELAY

82663

COVER, RELAY BLOCK, LOWER

8404

переход к группе запчастей

8404

переход к группе запчастей

8404

переход к группе запчастей

8414

переход к группе запчастей

8414

переход к группе запчастей

85910Y

RELAY, REAR HEATER

85912

RELAY, DEFOGGER

85927

RELAY, COOLING FAN

85927

RELAY, COOLING FAN

85931B

RELAY, FUEL HEATER

85941A

RELAY, REAR WINDSHIELD WASHER

85959A

HOLDER, RELAY

88630H

RELAY ASSY, COOLER

88630H

RELAY ASSY, COOLER

9016440050

Крепеж

9017906200

Крепеж

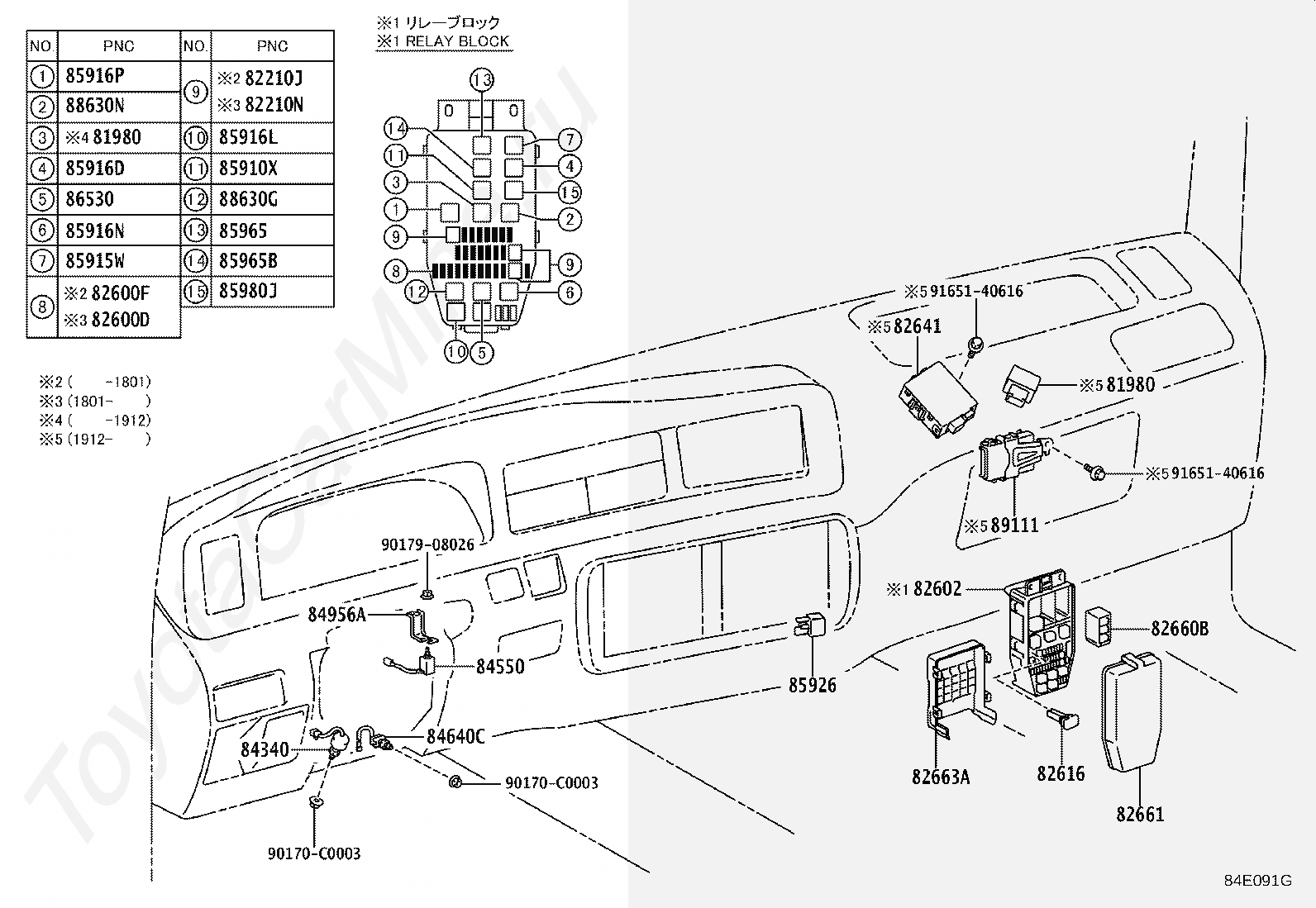

Код

Описание

81980

FLASHER ASSY, TURN SIGNAL

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600F

FUSE, FUSE BLOCK

82602

BLOCK SUB-ASSY, RELAY

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82663A

COVER, RELAY BLOCK, LOWER, NO.2

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84640C

SWITCH ASSY, EXHAUST RETARDER

84956A

BRACKET, HAND BRAKE SIGNAL SWITCH

85910X

RELAY, HEATER MIRROR

85915W

RELAY, AUTOMATIC DOOR

85916D

RELAY, FOG LAMP

85916L

RELAY, REAR FOG LAMP

85916N

RELAY, TAIL LAMP

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85965

RELAY, ROOM LAMP CONTROL

85965B

RELAY, ROOM LAMP CONTROL (REAR)

85980J

RELAY ASSY, DOOR LOCK, NO.1

86530

RELAY ASSY, HORN

88630G

RELAY ASSY, COOLER

88630N

RELAY ASSY, COOLER

89111

COMPUTER, NETWORK GATEWAY

90170C0003

Крепеж

90170C0003

Крепеж

9017908026

Крепеж

9165140616

Крепеж

9165140616

Крепеж

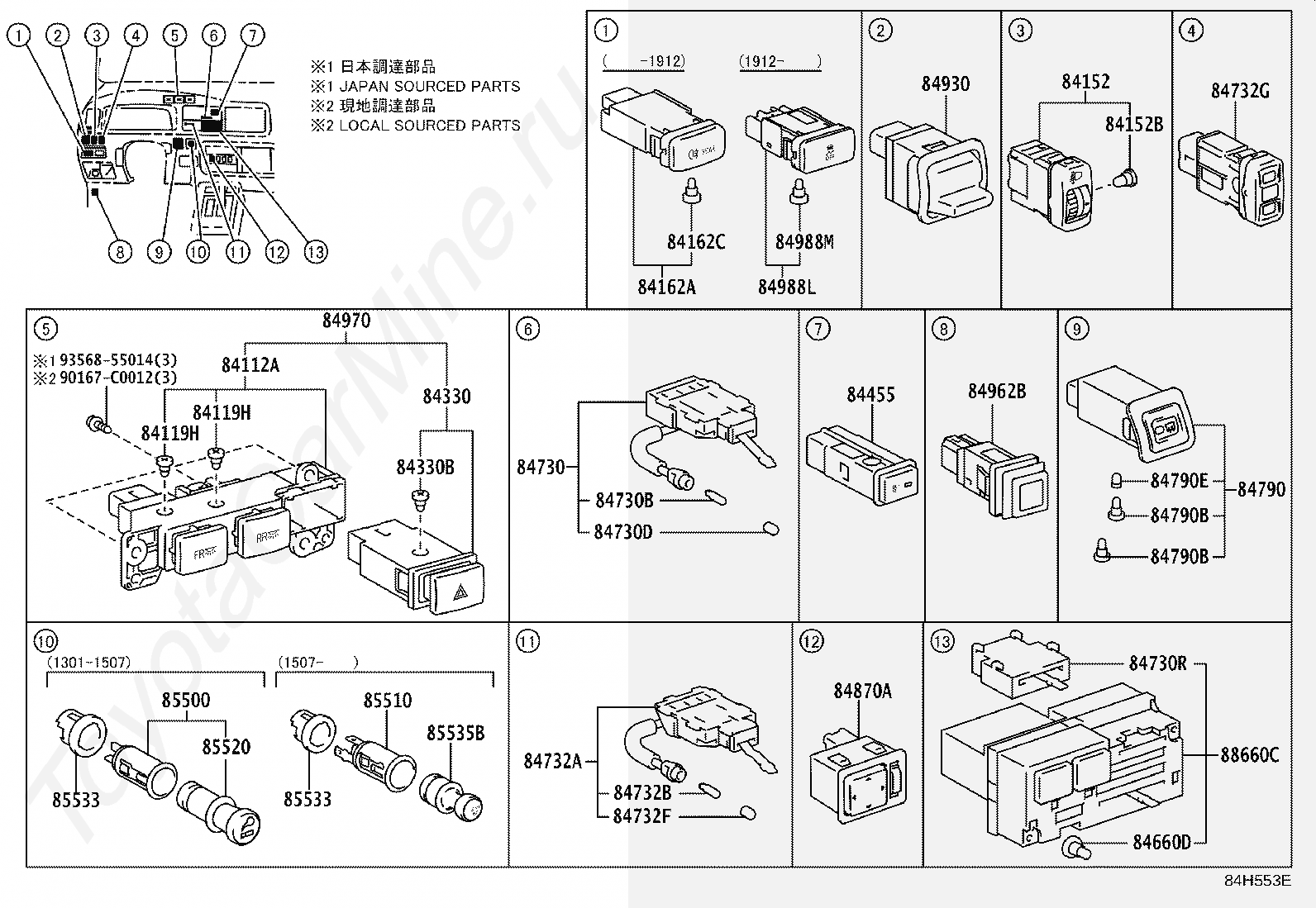

Код

Описание

84112A

SWITCH, LIGHT CONTROL

84119H

BLUB, NO.1

84119H

BLUB, NO.1

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84455

SWITCH, WARM UP

84660D

BULB(FOR COOLER SWITCH)

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730D

CAP, HEATER BLOWER SWITCH BULB

84730R

SWITCH ASSY, HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732B

BULB, REAR HEATER BLOWER SWITCH

84732F

CAP, REAR HEATER BLOWER SWITCH

84732G

SWITCH, VENTILATOR

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790E

CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

84962B

SWITCH, POWER SLIDE DOOR MAIN, NO.2

84970

SWITCH ASSY, COMBINATION

84988L

SWITCH, VSC OFF

84988M

BULB, VSC OFF SWITCH

85500

LIGHTER ASSY, CIGARETTE

85510

SOCKET & RETAINER ASSY, CIGARLIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85533

LENS, CIGARETTE LIGHTER INDICATOR

85533

LENS, CIGARETTE LIGHTER INDICATOR

85535B

COVER, POWER OUTLET SOCKET, NO.1

88660C

SWITCH ASSY, COOLER CONTROL

90167C0012

Крепеж

9356855014

Крепеж

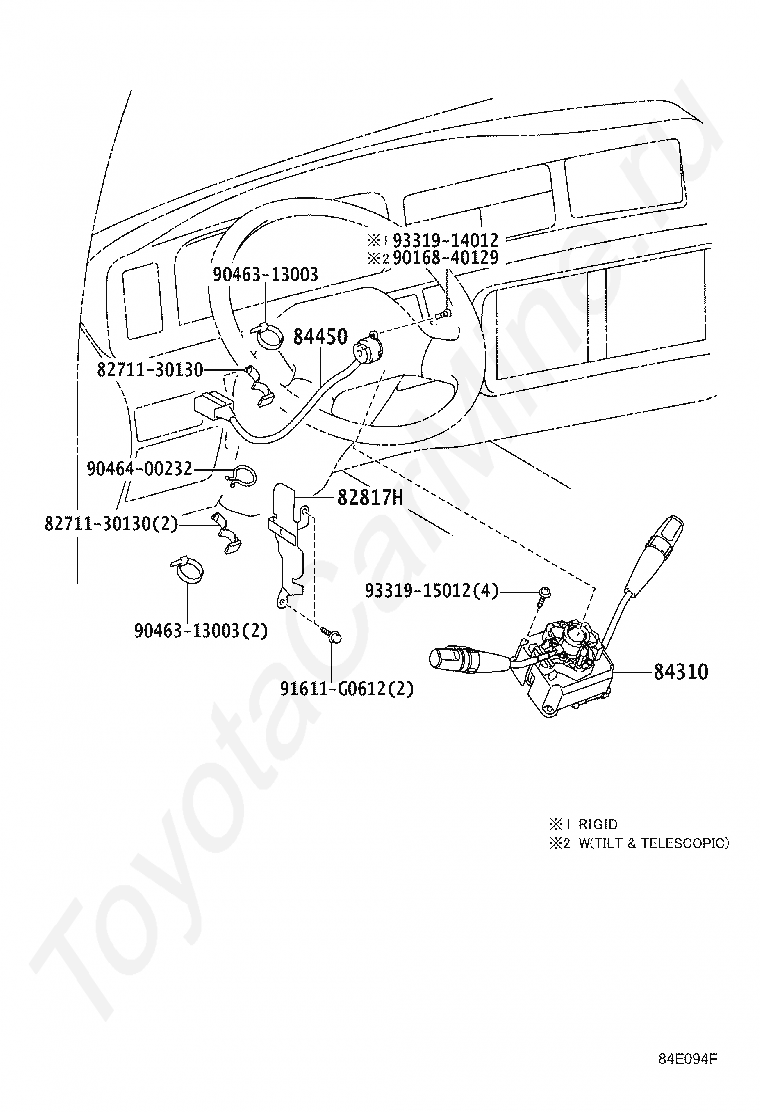

Код

Описание

8271130130

Крепеж

8271130130

Крепеж

82817H

PROTECTOR, WIRING HARNESS

84310

SWITCH ASSY, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

9016840129

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9046400232

Крепеж

91611G0612

Крепеж

9331914012

Крепеж

9331915012

Крепеж

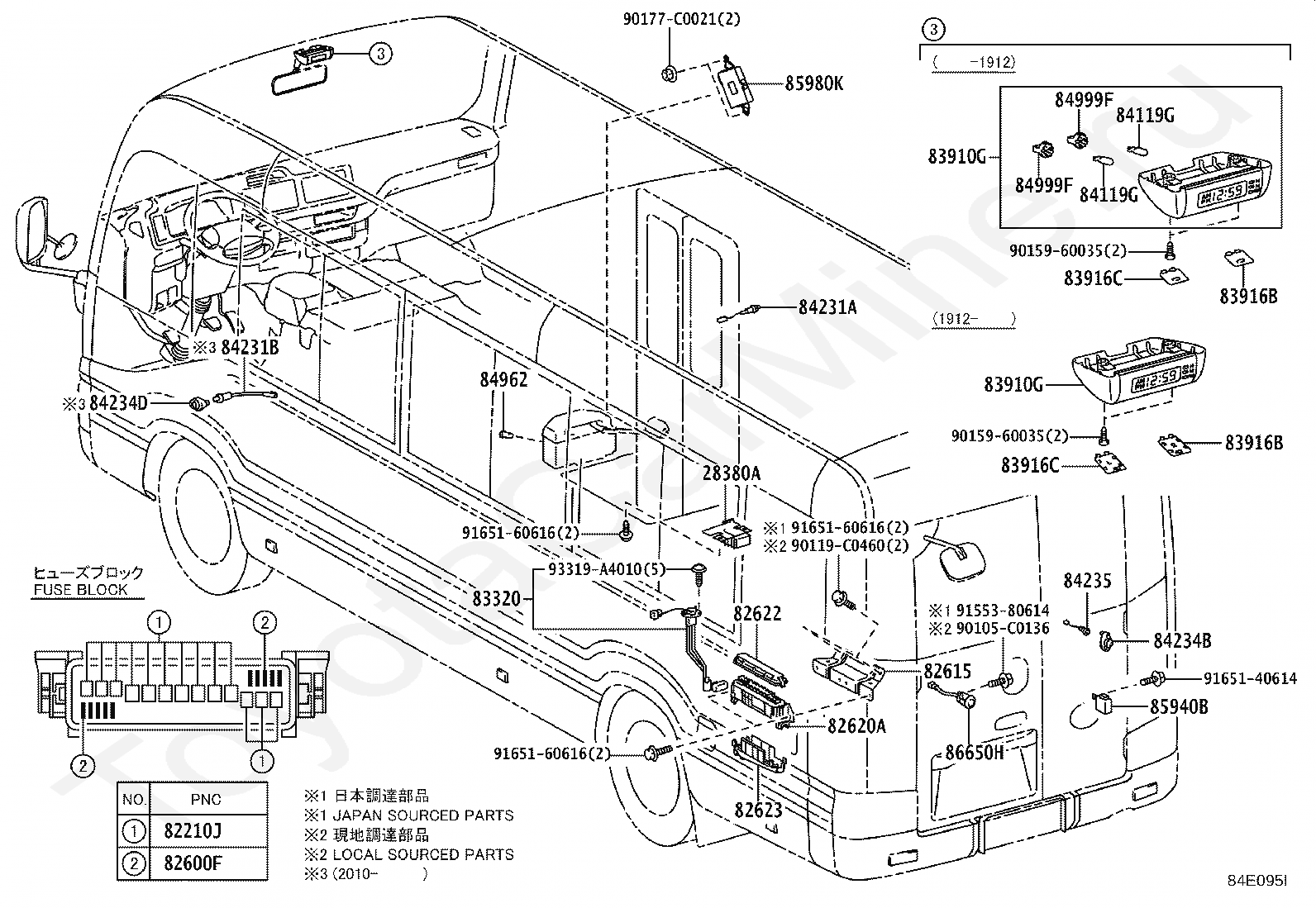

Код

Описание

28380A

RESISTER, FUEL PUMP

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82615

BRACKET, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82622

COVER, FUSIBLE LINK, UPPER

82623

COVER, FUSIBLE LINK, LOWER

83320

GAGE ASSY, FUEL SENDER

83910G

CLOCK ASSY

83910G

CLOCK ASSY

83916B

CLIP, CLOCK, NO.1

83916B

CLIP, CLOCK, NO.1

83916C

CLIP, CLOCK, NO.2

83916C

CLIP, CLOCK, NO.2

84119G

BLUB

84119G

BLUB

84231A

SWITCH, COURTESY LAMP

84231B

SWITCH, COURTESY LAMP

84234B

CUSHION, COURTESY SWITCH (FOR REAR DOOR)

84234D

CUSHION, COURTESY SWITCH

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84962

SWITCH, POWER SLIDE DOOR MAIN

84999F

SOCKET, CLOCK BULB

84999F

SOCKET, CLOCK BULB

85940B

RELAY ASSY, REAR WIPER

85980K

RELAY ASSY, DOOR LOCK, NO.2

86650H

BUZZER ASSY, BACK

90105C0136

Крепеж

90119C0460

Крепеж

9015960035

Крепеж

9015960035

Крепеж

90177C0021

Крепеж

9155380614

Крепеж

9165140614

Крепеж

9165160616

Крепеж

9165160616

Крепеж

9165160616

Крепеж

93319A4010

Крепеж
