Каталог

Ближний Восток

Модель

COASTER (CHINA)

VIN

Дата

2013/01

Двигатель

2,7 литра, 32 клапана, DOHC, EFI

Класс

STANDARD TYPE

Фрейм

TRB53

КПП

механика

Опции

для 23 пассажиров HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 560W

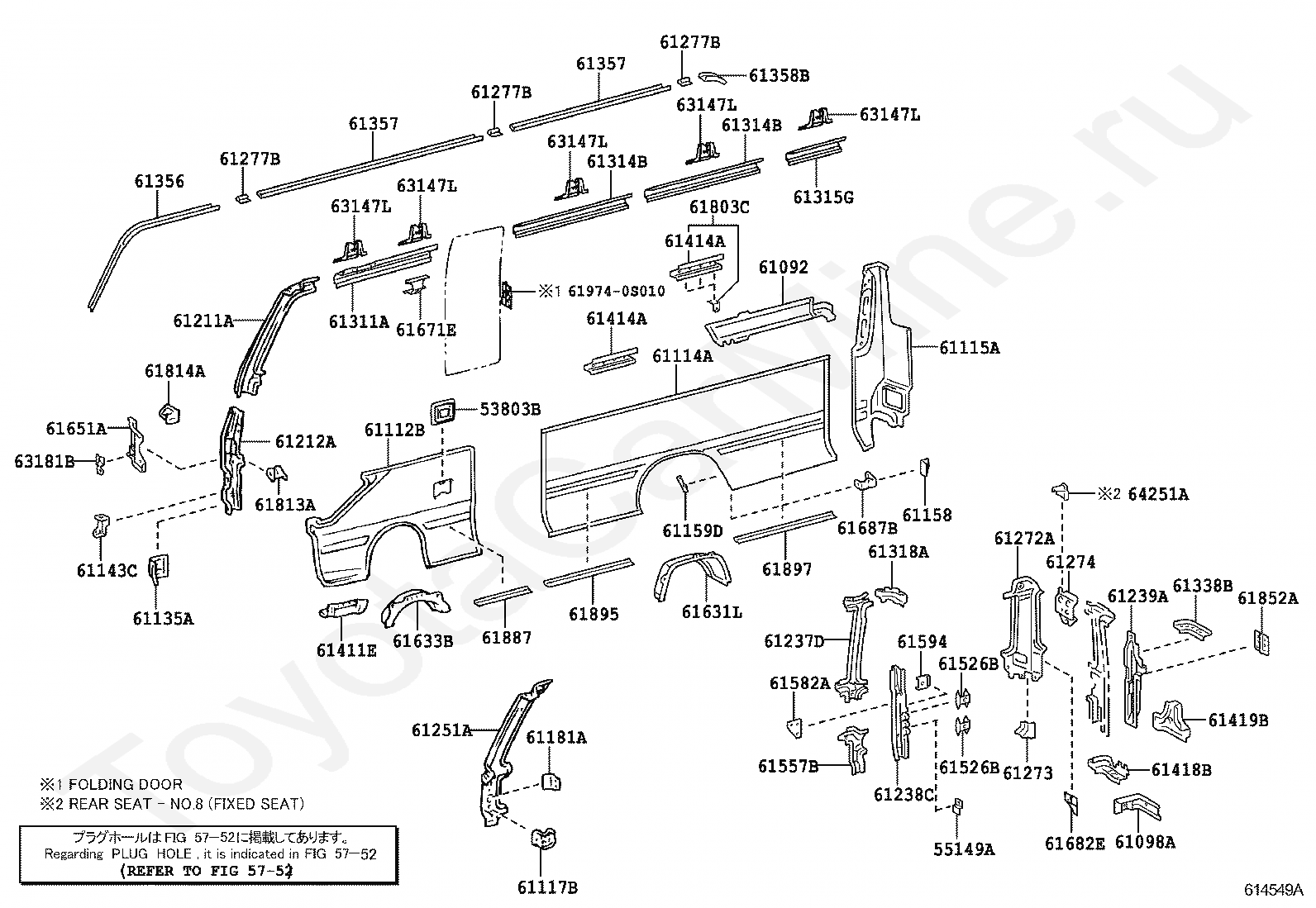

Боковая панель кузова TOYOTA COASTER (CHINA)







Код

Описание

53803B

BRACKET SUB-ASSY, FRONT SIDE PANEL, RH

55149A

BRACKET, DASH WIRING HARNESS

5752

переход к группе запчастей

61092

RAIL SUB-ASSY, NO.3 LOWER INNER, RH

61098A

STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH

61112B

PANEL, NO.2 SIDE, RH

61114A

PANEL, NO.3 SIDE, RH

61115A

PANEL, NO.4 SIDE, RH

61117B

RETAINER, WASHER TANK

61135A

REINFORCEMENT, FRONT BODY PILLAR, OUTER

61143C

SUPPORT, FRONT BUMPER SIDE, RH

61158

RETAINER, SIDE PANEL, NO.1

61159D

RETAINER, SIDE PANEL, NO.2 RH

61181A

BRACKET, INSTRUMENT SIDE, RH

61211A

PILLAR, NO.1 OUTER, UPPER RH

61212A

PILLAR, NO.1 OUTER, LOWER RH

61237D

PILLAR, NO.9 OUTER, UPPER RH

61238C

RAIL, ROOF SIDE, INNER NO.4 LH

61239A

PILLAR, NO.10 RH

61251A

PILLAR, NO.1 INNER, RH

61272A

PILLAR, NO.9 INNER, RH

61273

PILLAR, NO.9 INNER, LOWER RH

61274

PILLAR, NO.10 INNER, RH

61277B

JOINT, ROOF DRIP CHANNEL

61277B

JOINT, ROOF DRIP CHANNEL

61277B

JOINT, ROOF DRIP CHANNEL

61311A

RAIL, NO.1 UPPER OUTER, RH

61314B

RAIL, NO.2 UPPER OUTER, RH

61314B

RAIL, NO.2 UPPER OUTER, RH

61315G

RAIL, NO.3 UPPER OUTER, RH

61318A

RAIL, NO.6 UPPER OUTER, RH

61338B

RAIL, REAR SIDE NO.2, RH

61356

CHANNEL, ROOF DRIP SIDE, FRONT RH

61357

CHANNEL, ROOF DRIP SIDE, CENTER NO.1

61357

CHANNEL, ROOF DRIP SIDE, CENTER NO.1

61358B

CHANNEL, ROOF DRIP SIDE, REAR RH

61411E

RAIL, NO.1 LOWER OUTER, RH

61414A

RAIL,NO.4 LOWER OUTER, RH

61414A

RAIL,NO.4 LOWER OUTER, RH

61418B

RAIL, NO.8 LOWER OUTER, RH

61419B

RAIL, NO.9 LOWER OUTER

61526B

BRACKET, SEAT ANCHOR, NO.2 RH

61526B

BRACKET, SEAT ANCHOR, NO.2 RH

61557B

GUSSET, PILLAR TO RAIL, NO.2

61582A

BRACKET, REAR SEAT, NO.2

61594

BRACKET, STIFFENER, NO.4

61631L

PANEL, REAR WHEEL HOUSE, OUTER RH

61633B

PANEL, WHEEL HOUSE

61651A

GUSSET, PILLAR SHEAR, NO.1 RH

61671E

REINFORCEMENT, SEAT BELT ANCHOR, UPPER

61682E

PLATE, QUARTER PANEL, LOWER NO.2

61687B

BRACKET, MUDGUARD, REAR RH

61803C

RAIL SUB-ASSY, NO.4 LOWER OUTER, RH

61813A

PLATE, DUSTPROOF, NO.1 RH

61814A

PLATE, DUST PROOF, NO.2 RH

61852A

PLATE, NO.5 PILLAR BOARD SET

61887

RAIL, SIDE PANEL DUST PROOF, NO.1 RH

61895

RAIL, SIDE PANEL DUST PROOF, NO.2 RH

61897

RAIL, SIDE PANEL DUST PROOF, NO.3 RH

619740S010

Крепеж

63147L

BRACKET, ROOF PANEL REINFORCEMENT

63147L

BRACKET, ROOF PANEL REINFORCEMENT

63147L

BRACKET, ROOF PANEL REINFORCEMENT

63147L

BRACKET, ROOF PANEL REINFORCEMENT

63147L

BRACKET, ROOF PANEL REINFORCEMENT

63181B

BRACKET, SIGNAL, FRONT RH

64251A

BRACKET, REAR SEAT BACK STOP

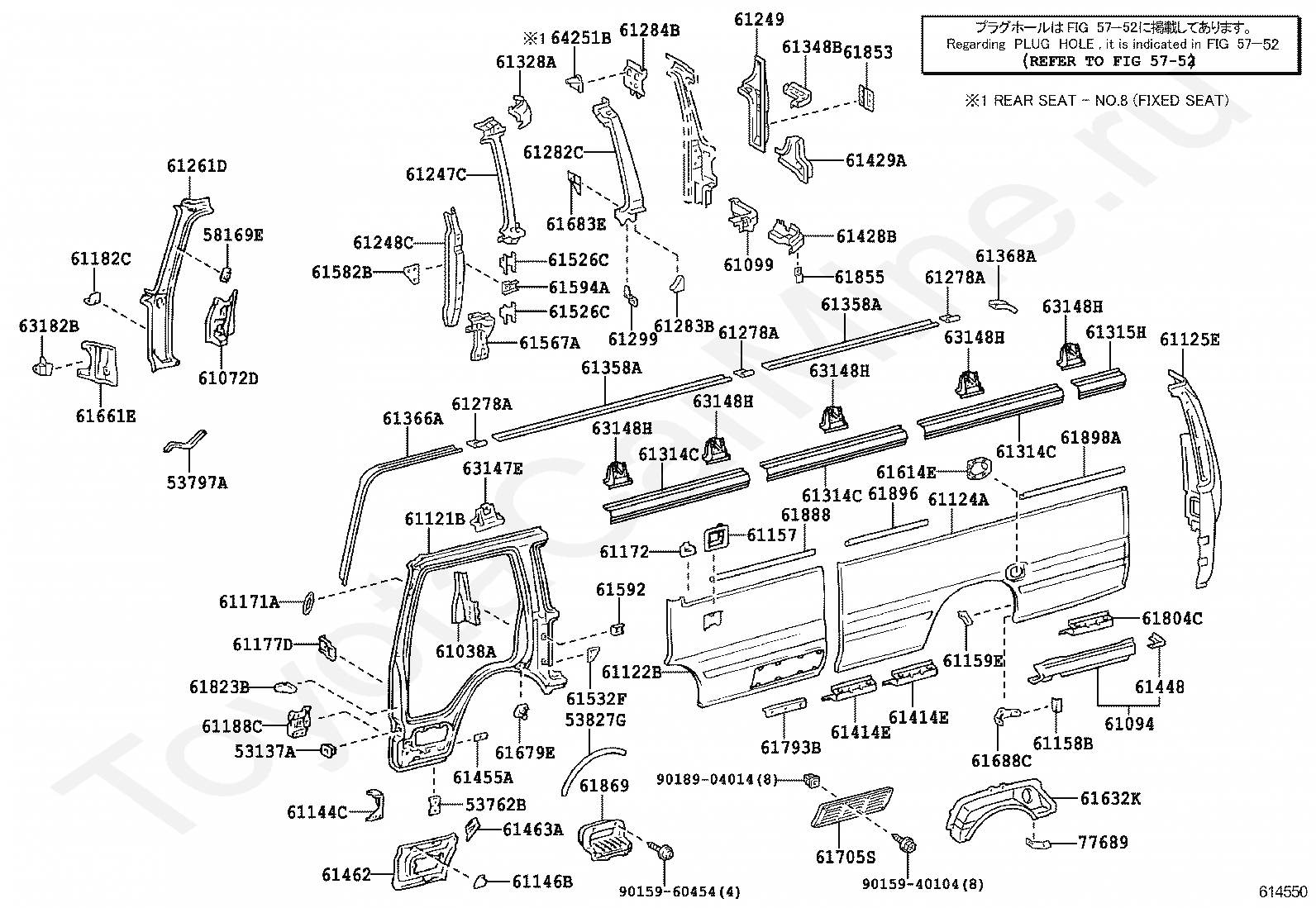

Код

Описание

53137A

RETAINER, HEADLAMP DOOR

53762B

REINFORCEMENT, RADIATOR RESERVE TANK MOUNT

53797A

PROTECTOR, SIDE TURN SIGNAL LAMP

53827G

PROTECTOR, FRONT FENDER SIDE PANEL, RH

5752

переход к группе запчастей

58169E

RETAINER, REAR HEATER MOUNTING

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61072D

REINFORCE SUB-ASSY, NO.1 PILLAR, UPPER LH

61094

RAIL SUB-ASSY, NO.3 LOWER INNER, LH

61099

STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH

61121B

PANEL, NO.1 SIDE, LH

61122B

PANEL, NO.2 SIDE, LH

61124A

PANEL, NO.3 SIDE, LH

61125E

PANEL, NO.4 SIDE, LH

61144C

SUPPORT, FRONT BUMPER SIDE, LH

61146B

GUSSET, FRONT BODY PILLAR, LOWER LH

61157

BRACKET, NO.2 SIDE PANEL

61158B

RETAINER, SIDE PANEL, NO.1

61159E

RETAINER, SIDE PANEL, NO.2 LH

61171A

BRACKET, ANTENNA POLE MOUNTING

61172

STIFFENER, SIDE PANEL, NO.2

61177D

REINFORCEMENT, NO.1 PILLAR, CENTER

61182C

BRACKET, INSTRUMENT SIDE, LH

61188C

REINFORCEMENT, NO.1 PILLAR, LOWER LH

61247C

PILLAR, NO.9 OUTER, UPPER LH

61248C

PILLAR, NO.9 OUTER, LOWER LH

61249

RETAINER, ROOF SIDE RAIL, OUTER LH

61261D

PILLAR, NO.1 INNER, LH

61278A

JOINT, ROOF DRIP CHANNEL, LH

61278A

JOINT, ROOF DRIP CHANNEL, LH

61278A

JOINT, ROOF DRIP CHANNEL, LH

61282C

PILLAR, NO.9 INNER, LH

61283B

PILLAR, NO.9 INNER, LOWER LH

61284B

PILLAR, NO.10 INNER, LH

61299

BRACKET, NO.9 INNER PILLAR BLOWER

61314C

RAIL, NO.2 UPPER OUTER, RH

61314C

RAIL, NO.2 UPPER OUTER, RH

61314C

RAIL, NO.2 UPPER OUTER, RH

61315H

RAIL, NO.3 UPR OUTER, RH

61328A

RAIL, NO.6 UPPER OUTER, LH

61348B

RAIL, REAR SIDE NO.2, LH

61358A

CHANNEL, ROOF DRIP SIDE, CENTER NO.1

61358A

CHANNEL, ROOF DRIP SIDE, CENTER NO.1

61366A

CHANNEL, ROOF DRIP SIDE, FRONT LH

61368A

CHANNEL, ROOF DRIP SIDE, REAR LH

61414E

RAIL, NO.4 LOWER OUTER, LH

61414E

RAIL, NO.4 LOWER OUTER, LH

61428B

RAIL, NO.8 LOWER OUTER, LH

61429A

RAIL, NO.9 LOWER OUTER, LH

61448

RAIL, NO.7 LOWER INNER, LOWER LH

61455A

RETAINER, FRONT STEP, RH

61462

PANEL, ROCKER, INNER FRONT LH

61463A

PANEL, ROCKER, INNER REAR LH

61526C

BRACKET, SEAT ANCHOR, NO.2 LH

61526C

BRACKET, SEAT ANCHOR, NO.2 LH

61532F

GUSSET, SEAT ANCHOR, NO.1

61567A

GUSSET, PILLAR TO RAIL, NO.2 LH

61582B

BRACKET, REAR SEAT, NO.2 LH

61592

BRACKET, STIFFENER, NO.2

61594A

BRACKET, STIFFENER, NO.4 LH

61614E

PANEL, QUARTER, INNER LH

61632K

PANEL, REAR WHEEL HOUSE, OUTER LH

61661E

GUSSET, PILLAR SHEAR, NO.1 LH

61679E

RETAINER, FRONT DOOR OPEN SWITCH SET, LH

61683E

PLATE, QUARTER PANEL, LOWER NO.3

61688C

BRACKET, MUDGUARD, REAR LH

61705S

COVER SUB-ASSY, COOLER CONDENSER AIR INTAKE

61793B

BRACKET, COOLER CONDENSER, NO.1

61804C

RAIL SUB-ASSY, NO.4 LOWER OUTER, LH

61823B

PLATE, DUST PROOF, NO.1 LH

61853

CHANNEL, QUARTER INSIDE PANEL CENTER, RH

61855

BRACKET, REAR WASHER TANK, UPPER

61869

COVER, FRONT DOOR STEP, LH

61888

RAIL, SIDE PANEL DUST PROOF, NO.1 LH

61896

RAIL, SIDE PANEL DUST PROOF, NO.2 LH

61898A

RAIL, SIDE PANEL DUST PROOF, NO.3 LH

63147E

BRACKET, ROOF PANEL REINFORCEMENT

63148H

BRACKET, ROOF PANEL REINFORCEMENT

63148H

BRACKET, ROOF PANEL REINFORCEMENT

63148H

BRACKET, ROOF PANEL REINFORCEMENT

63148H

BRACKET, ROOF PANEL REINFORCEMENT

63148H

BRACKET, ROOF PANEL REINFORCEMENT

63182B

BRACKET, SIGNAL, FRONT LH

64251B

BRACKET, REAR SEAT BACK STOP, LH

77689

BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.3

9015940104

Крепеж

9015960454

Крепеж

9018904014

Крепеж

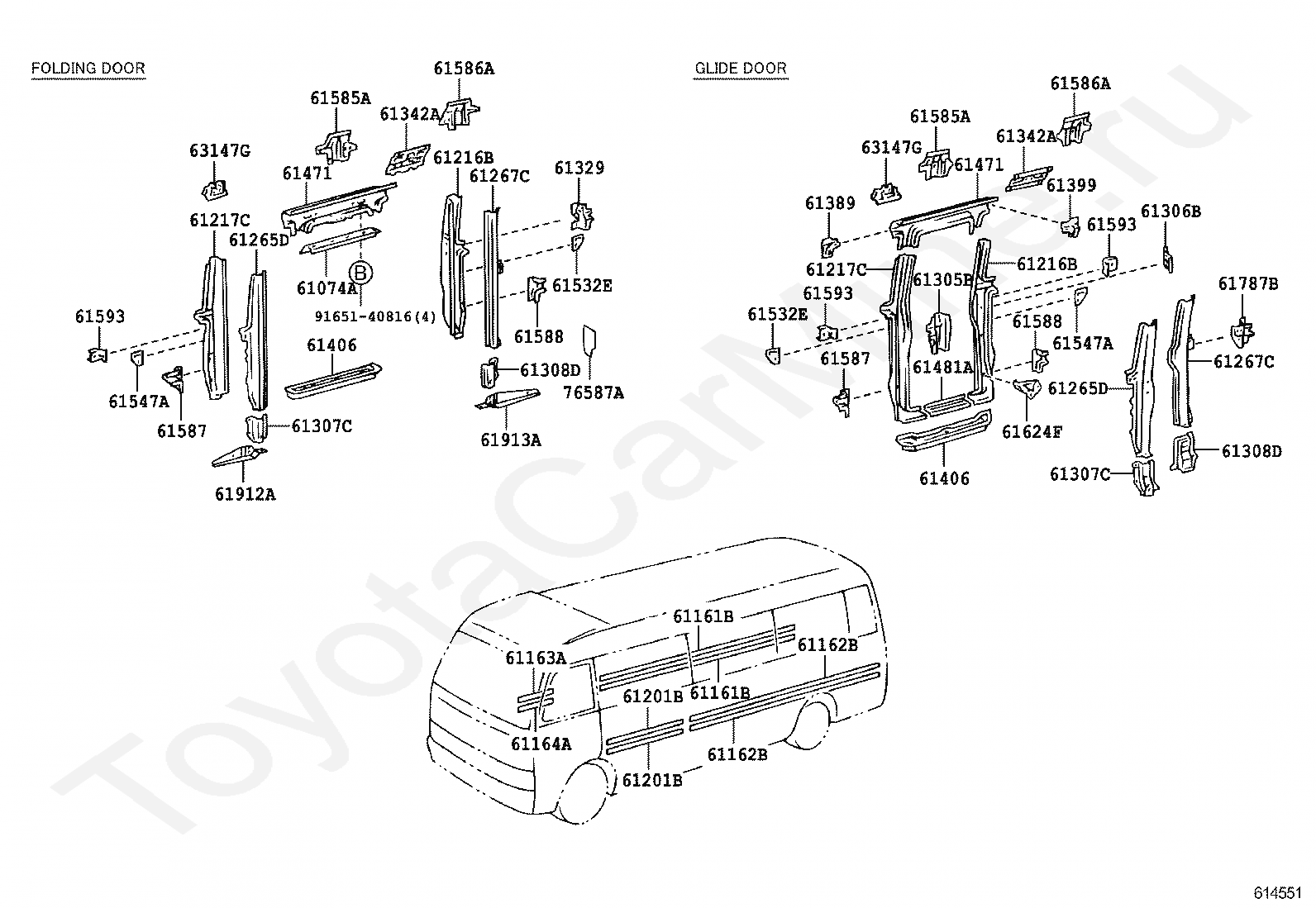

Код

Описание

61074A

RAIL SUB-ASSY, CENTER DOOR, RH

61161B

STIFFENER, SIDE PANEL, UPPER NO.1

61161B

STIFFENER, SIDE PANEL, UPPER NO.1

61162B

STIFFENER, SIDE PANEL, UPPER NO.2

61162B

STIFFENER, SIDE PANEL, UPPER NO.2

61163A

STIFFENER, SIDE PANEL, UPPER NO.3

61164A

STIFFENER, SIDE PANEL, UPPER NO.4

61201B

STIFFENER SUB-ASSY, SIDE PANEL, LH NO.1

61201B

STIFFENER SUB-ASSY, SIDE PANEL, LH NO.1

61216B

PILLAR, NO.3

61216B

PILLAR, NO.3

61217C

PILLAR, NO.4

61217C

PILLAR, NO.4

61265D

PILLAR, NO.3 INNER, UPPER LH

61265D

PILLAR, NO.3 INNER, UPPER LH

61267C

PILLAR, NO.4 INNER, UPPER LH

61267C

PILLAR, NO.4 INNER, UPPER LH

61305B

REINFORCE SUB-ASSY, CENTER BODY PILLER, LOWER FRONT

61306B

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER REAR

61307C

PILLAR SUB-ASSY, CENTER BODY, INNER FRONT

61307C

PILLAR SUB-ASSY, CENTER BODY, INNER FRONT

61308D

PILLAR SUB-ASSY, CENTER BODY, INNER REAR

61308D

PILLAR SUB-ASSY, CENTER BODY, INNER REAR

61329

PLATE, CENTER BODY PILLAR, OUTER LH

61342A

RAIL, NO.1 UPPER INNER, REAR LH

61342A

RAIL, NO.1 UPPER INNER, REAR LH

61389

PATCH, CENTER BODY PILLAR, OUTER

61399

PATCH, CENTER BODY PILLAR, OUTER NO.2

61406

RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH

61406

RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH

61471

RAIL, CENTER DOOR, OUTER

61471

RAIL, CENTER DOOR, OUTER

61481A

RAIL, CENTER DOOR, LOWER OUTER

61532E

GUSSET, SEAT ANCHOR, NO.2

61532E

GUSSET, SEAT ANCHOR, NO.2

61547A

GUSSET, SEAT ANCHOR, NO.7 LH

61547A

GUSSET, SEAT ANCHOR, NO.7 LH

61585A

GUSSET, REAR DOOR PILLAR, FRONT

61585A

GUSSET, REAR DOOR PILLAR, FRONT

61586A

GUSSET, REAR DOOR PILLAR, REAR

61586A

GUSSET, REAR DOOR PILLAR, REAR

61587

GUSSET, CENTER DOOR PILLAR, FRONT LH

61587

GUSSET, CENTER DOOR PILLAR, FRONT LH

61588

GUSSET, CENTER DOOR PILLAR, REAR LH

61588

GUSSET, CENTER DOOR PILLAR, REAR LH

61593

BRACKET, STIFFENER, NO.3

61593

BRACKET, STIFFENER, NO.3

61593

BRACKET, STIFFENER, NO.3

61624F

PLATE, CENTER DOOR PILLER DUST PROOF, REAR LH

61787B

RETAINER, SLIDE DOOR ARM, UPPER REAR

61912A

PLATE, LOWER RAIL, INNER NO.2

61913A

PLATE, LOWER RAIL, INNER NO.3

63147G

BRACKET, ROOF PANEL REINFORCEMENT

63147G

BRACKET, ROOF PANEL REINFORCEMENT

76587A

PROTECTOR, CENTER PILLAR OUTER

9165140816

Крепеж

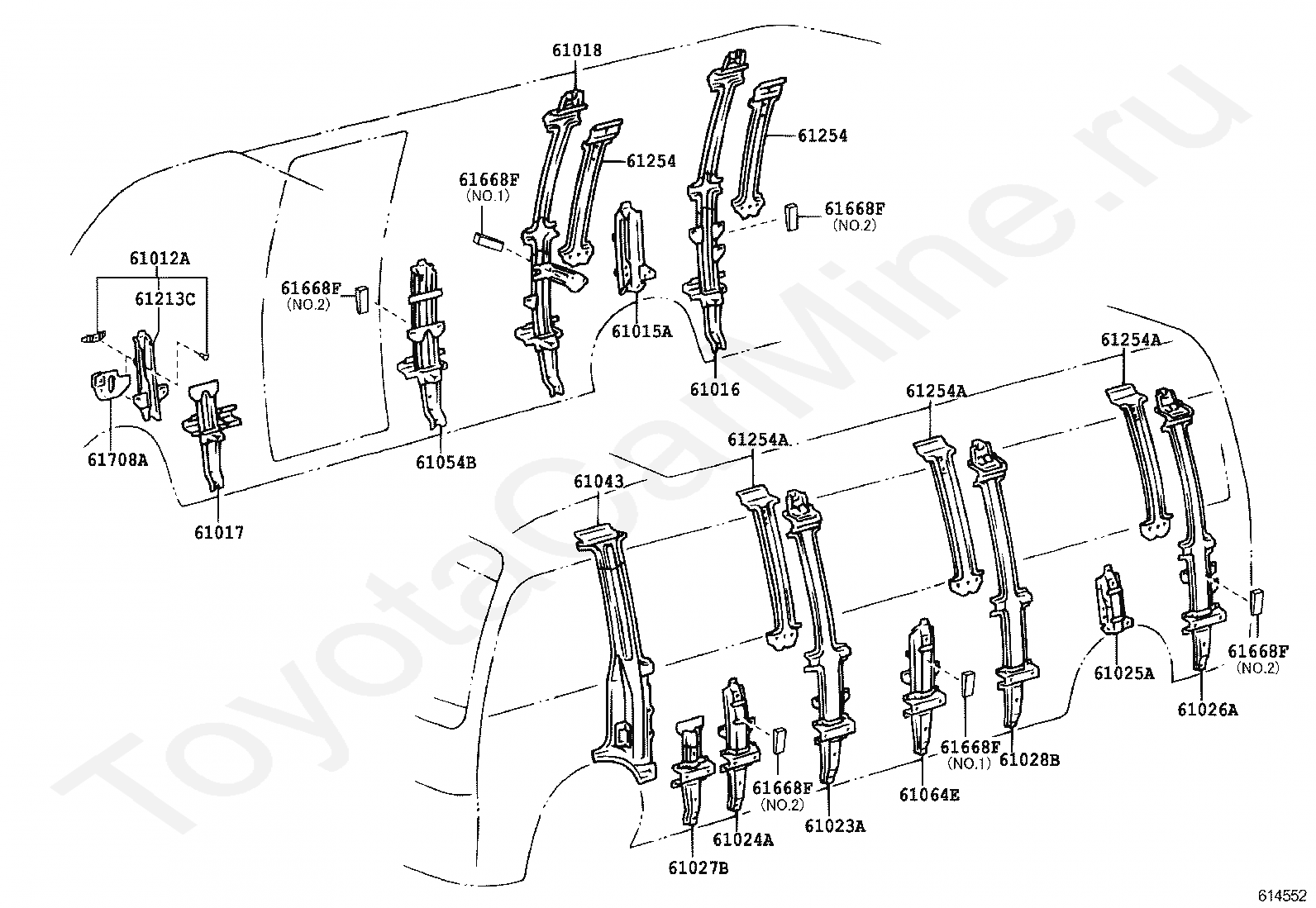

Код

Описание

61012A

PILLAR SUB-ASSY, NO.2 RH

61015A

PILLAR SUB-ASSY, NO.5 RH

61016

PILLAR SUB-ASSY, NO.6 RH

61017

PILLAR SUB-ASSY, NO.7 RH

61018

PILLAR SUB-ASSY, NO.8 RH

61023A

PILLAR SUB-ASSY, NO.3 LH

61024A

PILLAR SUB-ASSY, NO.4 LH

61025A

PILLAR SUB-ASSY, NO.5 LH

61026A

PILLAR SUB-ASSY, NO.6 LH

61027B

PILLAR SUB-ASSY, NO.7, LH

61028B

PILLAR SUB-ASSY, NO.8 LH

61043

PILLAR SUB-ASSY, NO.2 INNER, LH

61054B

PILLAR SUB-ASSY, NO.12 RH

61064E

PILLAR SUB-ASSY, NO.12 LH

61213C

PILLAR, NO.2 OUTER, RH

61254

PILLAR, NO.3 INNER, RH

61254

PILLAR, NO.3 INNER, RH

61254A

PILLAR, NO.3 INNER, LH

61254A

PILLAR, NO.3 INNER, LH

61254A

PILLAR, NO.3 INNER, LH

61668F

SPACER, QUARTER PANEL, NO.2

61668F

SPACER, QUARTER PANEL, NO.2

61668F

SPACER, QUARTER PANEL, NO.2

61668F

SPACER, QUARTER PANEL, NO.2

61668F

SPACER, QUARTER PANEL, NO.2

61668F

SPACER, QUARTER PANEL, NO.2

61708A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH

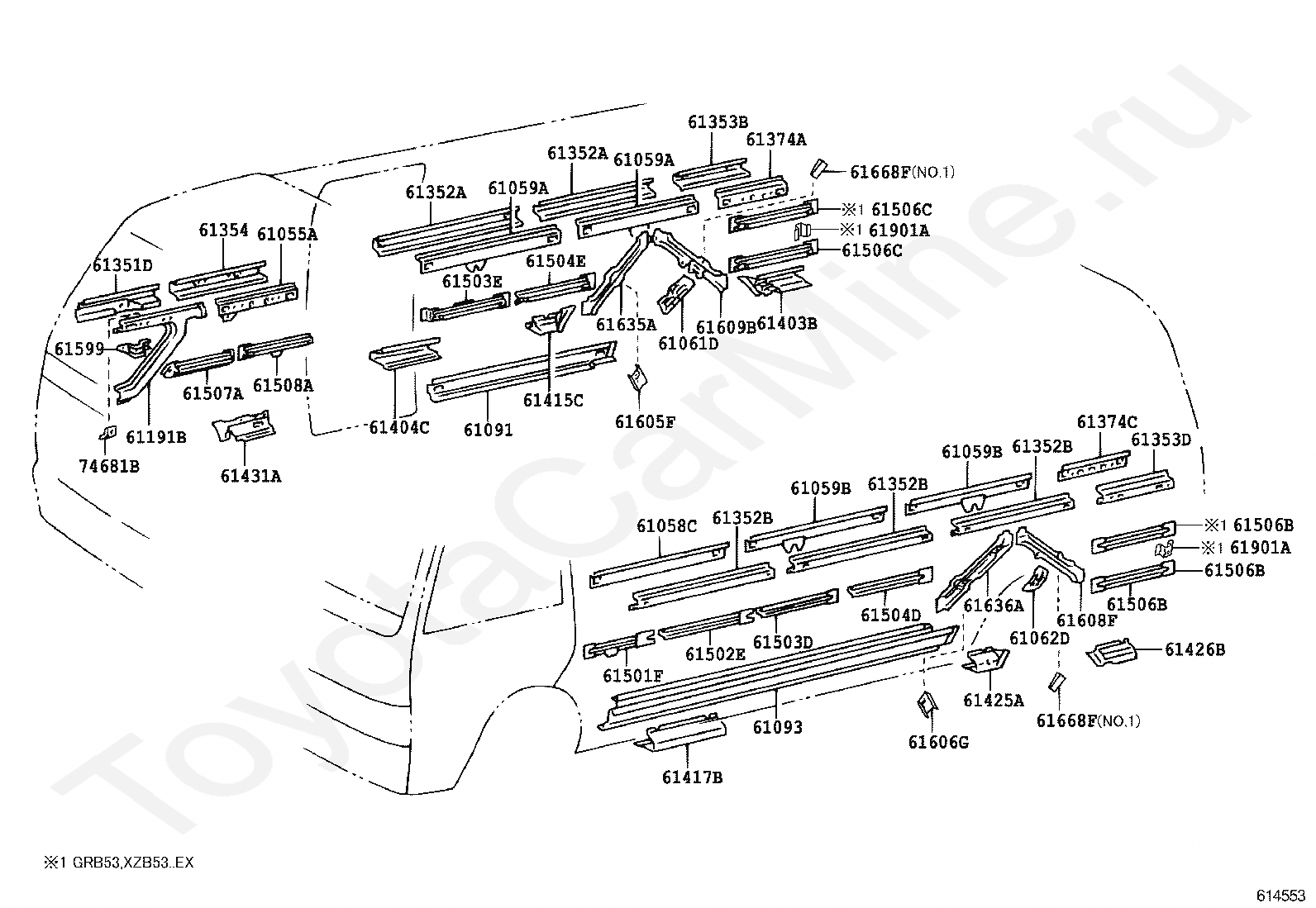

Код

Описание

61055A

RAIL, SUB-AASY, NO.2 CENTER, INNER, RH

61058C

RAIL SUB-ASSY, NO.3 CENTER, INNER, LH

61059A

RAIL SUB-ASSY, NO.4 CENTER, INNER, RH

61059A

RAIL SUB-ASSY, NO.4 CENTER, INNER, RH

61059B

RAIL SUB-ASSY, NO.4 CENTER, INNER, LH

61059B

RAIL SUB-ASSY, NO.4 CENTER, INNER, LH

61061D

GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH

61062D

GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2

61091

RAIL SUB-ASSY, NO.2 LOWER INNER, RH

61093

RAIL SUB-ASSY, NO.2 LOWER INNER, LH

61191B

REINFORCEMENT, SIDE LOWER, RH

61351D

RAIL, NO.1 CENTER OUTER, RH

61352A

RAIL, NO.2 CENTER OUTER, RH

61352A

RAIL, NO.2 CENTER OUTER, RH

61352B

RAIL, NO.2 CENTER OUTER, LH

61352B

RAIL, NO.2 CENTER OUTER, LH

61352B

RAIL, NO.2 CENTER OUTER, LH

61353B

RAIL, NO.3 CENTER OUTER, RH

61353D

RAIL, NO.3 CENTER, LH

61354

RAIL, NO.4 CENTER OUTER, RH

61374A

RAIL, NO.4 CENTER INNER

61374C

RAIL, NO.4 CENTER INNER, LH

61403B

RAIL SUB-ASSY, NO.6 LOWER OUTER, RH

61404C

RAIL SUB-ASSY, NO.6 LOWER OUTER, RH

61415C

RAIL, NO.5 LOWER OUTER, RH

61417B

RAIL, NO.7 LOWER OUTER, LH

61425A

RAIL, NO.5 LOWER OUTER, LH

61426B

RAIL, NO.6 LOWER OUTER, LH

61431A

RAIL, NO.1 LOWER INNER, RH

61501F

RAIL SUB-ASSY, SEAT ANCHOR, LH

61502E

RAIL SUB-ASSY, NO.2 SEAT ANCHOR, LH

61503D

RAIL SUB-ASSY, NO.3 SEAT ANCHOR

61503E

RAIL SUB-ASSY, NO.3 SEAT ANCHOR, RH

61504D

RAIL SUB-ASSY, NO.4 SEAT ANCHOR

61504E

RAIL SUB-ASSY, NO.4 SEAT ANCHOR, RH

61506B

RAIL SUB-ASSY, NO.6

61506B

RAIL SUB-ASSY, NO.6

61506B

RAIL SUB-ASSY, NO.6

61506C

RAIL SUB-ASSY, NO.6, RH

61506C

RAIL SUB-ASSY, NO.6, RH

61507A

RAIL SUB-ASSY, NO.7 SEAT ANCHOR, RH

61508A

RAIL SUB-ASSY, NO.8 SEAT ANCHOR

61599

BRACKET, STIFFENER, NO.6, RH

61605F

BRACKET SUB-ASSY, REAR SEAT BACK STOP, RH

61606G

BRACKET SUB-ASSY, REAR SEAT BACK STOP, LH

61608F

BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH

61609B

BRACE SUB-ASSY, QUARTER PANEL

61635A

BRACE, QUARTER WHEEL HOUSE, RH

61636A

BRACE, QUARTER WHEEL HOUSE, LH

61668F

SPACER, QUARTER PANEL, NO.2

61668F

SPACER, QUARTER PANEL, NO.2

61901A

RAIL SUB-ASSY, NO.2 UPPER INNER, RH

61901A

RAIL SUB-ASSY, NO.2 UPPER INNER, RH

74681B

RETAINER, ASSIST GRIP

> Запчасти COASTER (CHINA) > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
