Каталог

Европа

Модель

COASTER

VIN

Дата

1979/11

Двигатель

2,2 литра

Класс

WITH BATH COOLER

Фрейм

RB11

КПП

МКПП, 4 ступени

Опции

правый руль для 21 пассажира высокая крыша GENERAL COUNTRIES

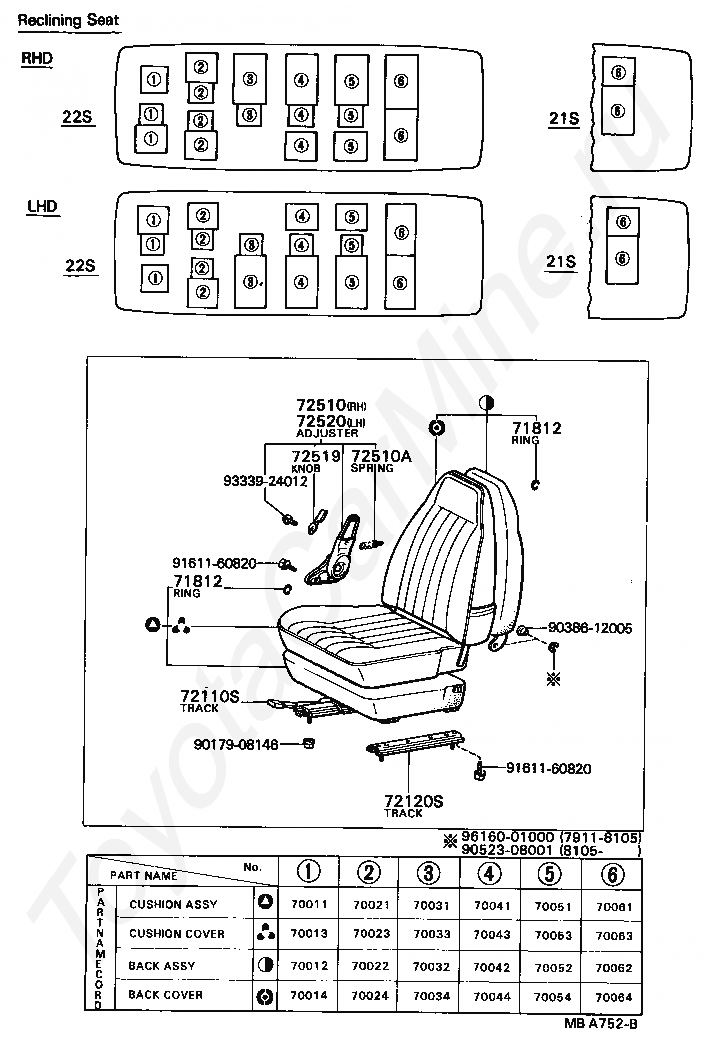

Кресла TOYOTA COASTER







Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

70031

CUSHION ASSY, NO.3 SEAT

70032

BACK ASSY, NO.3 SEAT

70033

COVER ASSY, NO.3 SEAT CUSHION

70034

COVER ASSY, NO.3 SEAT BACK

70041

CUSHION ASSY, NO.4 SEAT

70042

BACK ASSY, NO.4 SEAT

70043

COVER ASSY, NO.4 SEAT CUSHION

70044

COVER ASSY, NO.4 SEAT BACK

70051

CUSHION ASSY, NO.5 SEAT

70052

BACK ASSY, NO.5 SEAT

70053

COVER ASSY, NO.5 SEAT CUSHION

70054

COVER ASSY, NO.5 SEAT BACK

70061

CUSHION ASSY, NO.6 SEAT

70062

BACK ASSY, NO.6 SEAT

70063

COVER ASSY, NO.6 SEAT CUSHION

70064

COVER ASSY, NO.6 SEAT BACK

70071

CUSHION ASSY, NO.7 SEAT

70072

BACK ASSY, NO.7 SEAT

70073

COVER ASSY, NO.7 SEAT CUSHION

70074

COVER ASSY, NO.7 SEAT BACK

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72519

KNOB, RECLINING SEAT BACK ADJUSTING ARM

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

9017908146

Крепеж

9038612005

Крепеж

9052308001

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9333924012

Крепеж

9616001000

Крепеж

Код

Описание

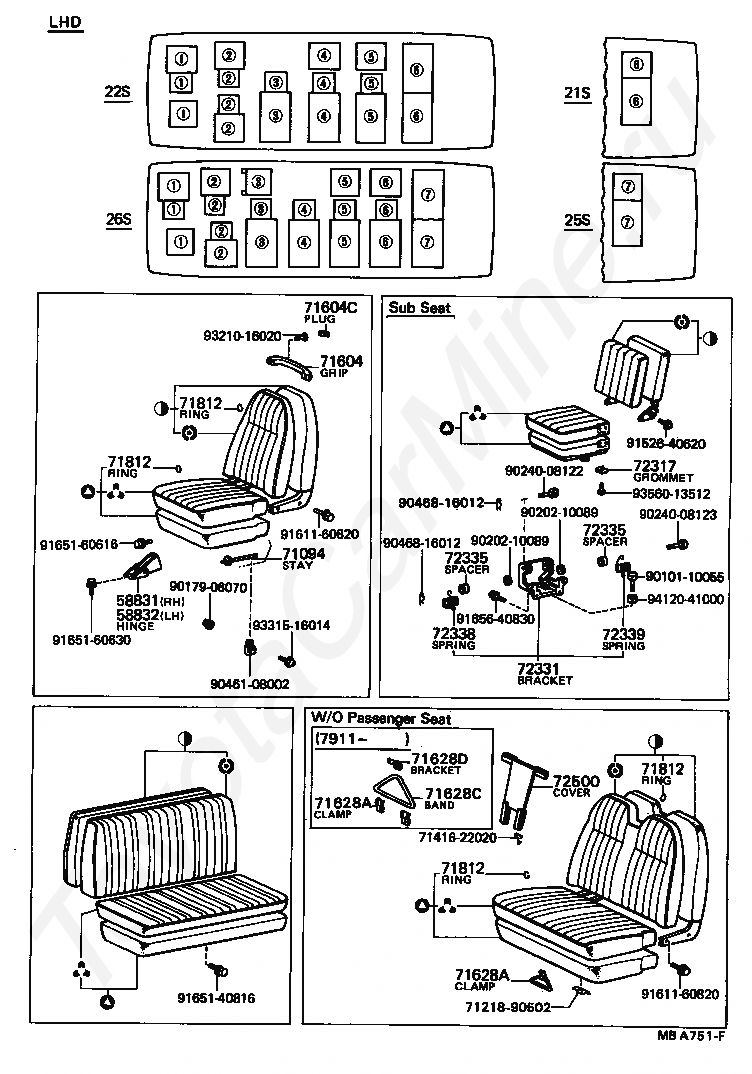

58831

HINGE, PASSENGER SINGLE SEAT LEG, RH

58832

HINGE, PASSENGER SINGLE SEAT LEG, LH

71094

STAY SUB-ASSY, BATTERY SERVICE HOLE COVER

7121890502

Крепеж

7141622020

Крепеж

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

71628A

CLAMP SUB-ASSY, TOOL BAG

71628A

CLAMP SUB-ASSY, TOOL BAG

71628C

BAND, TOOL BAG

71628D

BRACKET, TOOL BAG BAND

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

72317

GROMMET, SUB SEAT CUSHION

72331

BRACKET, SUB SEAT CUSHION

72335

SPACER, SUB SEAT LINK

72335

SPACER, SUB SEAT LINK

72338

SPRING, SUB SEAT LINK, RH

72339

SPRING, SUB SEAT LINK, LH

72500

COVER ASSY, LUGGAGE SPACE

9010110055

Крепеж

9017906070

Крепеж

9020210089

Крепеж

9020210089

Крепеж

9024008122

Крепеж

9024008123

Крепеж

9046108002

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9152640620

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9165140816

Крепеж

9165160616

Крепеж

9165160630

Крепеж

9165640830

Крепеж

9321016020

Крепеж

9331516014

Крепеж

9356013512

Крепеж

9412041000

Крепеж

Код

Описание

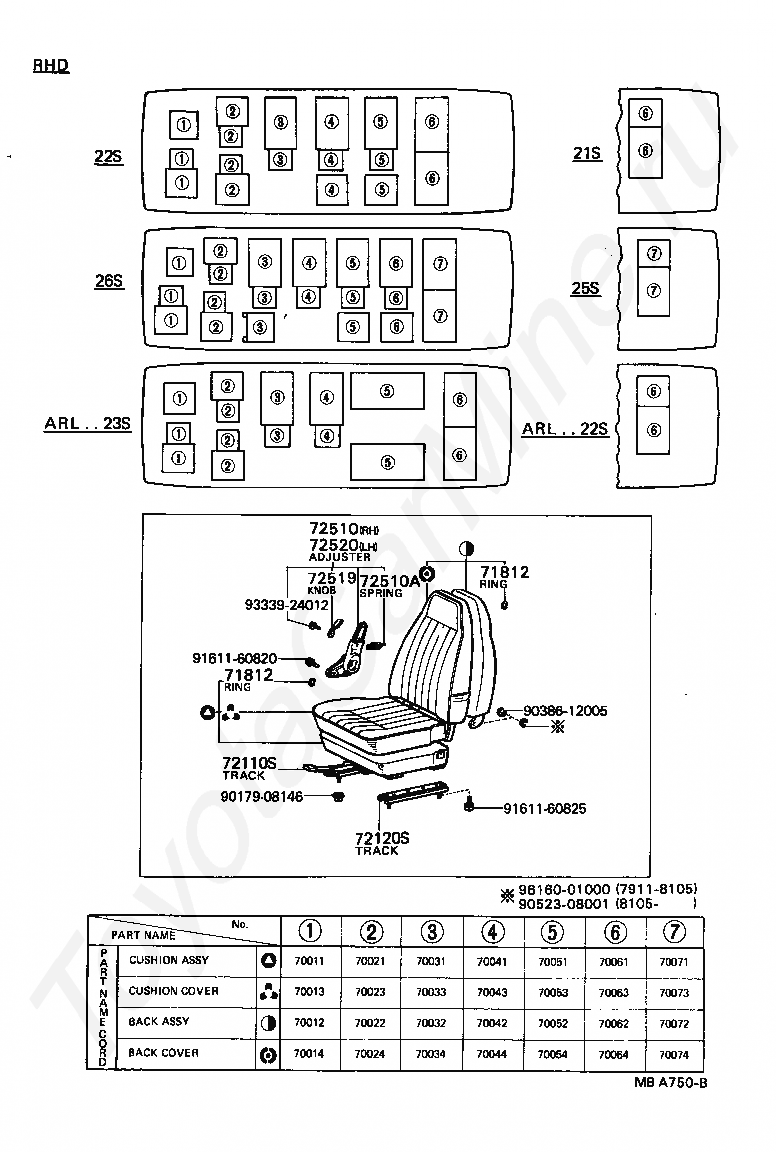

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

70031

CUSHION ASSY, NO.3 SEAT

70032

BACK ASSY, NO.3 SEAT

70033

COVER ASSY, NO.3 SEAT CUSHION

70034

COVER ASSY, NO.3 SEAT BACK

70041

CUSHION ASSY, NO.4 SEAT

70042

BACK ASSY, NO.4 SEAT

70043

COVER ASSY, NO.4 SEAT CUSHION

70044

COVER ASSY, NO.4 SEAT BACK

70051

CUSHION ASSY, NO.5 SEAT

70052

BACK ASSY, NO.5 SEAT

70053

COVER ASSY, NO.5 SEAT CUSHION

70054

COVER ASSY, NO.5 SEAT BACK

70061

CUSHION ASSY, NO.6 SEAT

70062

BACK ASSY, NO.6 SEAT

70063

COVER ASSY, NO.6 SEAT CUSHION

70064

COVER ASSY, NO.6 SEAT BACK

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72519

KNOB, RECLINING SEAT BACK ADJUSTING ARM

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

9017908146

Крепеж

9038612005

Крепеж

9052308001

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9333924012

Крепеж

9616001000

Крепеж

Код

Описание

5830560010

Крепеж

7121890502

Крепеж

7121890502

Крепеж

7141622022

Крепеж

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

71628A

CLAMP SUB-ASSY, TOOL BAG

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

72317

GROMMET, SUB SEAT CUSHION

72328

COVER, SUB SEAT HINGE

72331

BRACKET, SUB SEAT CUSHION

72335

SPACER, SUB SEAT LINK

72335

SPACER, SUB SEAT LINK

72338

SPRING, SUB SEAT LINK, RH

72339

SPRING, SUB SEAT LINK, LH

72500

COVER ASSY, LUGGAGE SPACE

72570

ADJUSTER ASSY, REAR RECLINING SEAT, RH

72570

ADJUSTER ASSY, REAR RECLINING SEAT, RH

72570A

SPRING, TENSION (FOR REAR RECLINING SEAT ADJUSTER)

72570A

SPRING, TENSION (FOR REAR RECLINING SEAT ADJUSTER)

72579

KNOB, REAR RECLINING SEAT ADJUSTING ARM

72579

KNOB, REAR RECLINING SEAT ADJUSTING ARM

72580

ADJUSTER ASSY, REAR RECLINING SEAT, LH

72580

ADJUSTER ASSY, REAR RECLINING SEAT, LH

9010110055

Крепеж

9020210089

Крепеж

9020210089

Крепеж

9024008122

Крепеж

9024008123

Крепеж

9038612005

Крепеж

9038612005

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9052308001

Крепеж

9152640620

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9165640830

Крепеж

9321016016

Крепеж

9321016020

Крепеж

9331515012

Крепеж

9333924012

Крепеж

9333924012

Крепеж

9354014010

Крепеж

9356013512

Крепеж

9412041000

Крепеж

9616001000

Крепеж

Код

Описание

9012208008

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9017908143

Крепеж

9017908143

Крепеж

9166160816

Крепеж

9166160835

Крепеж

9166160835

Крепеж

9166160835

Крепеж

9166160840

Крепеж

9461210800

Крепеж
