Каталог

Европа

Модель

COASTER

VIN

Дата

1977/08

Двигатель

2,2 литра

Класс

STANDARD TYPE

Фрейм

RB11

КПП

МКПП, 4 ступени, на руле

Опции

левый руль 22-местный STANDARD ROOF GENERAL COUNTRIES

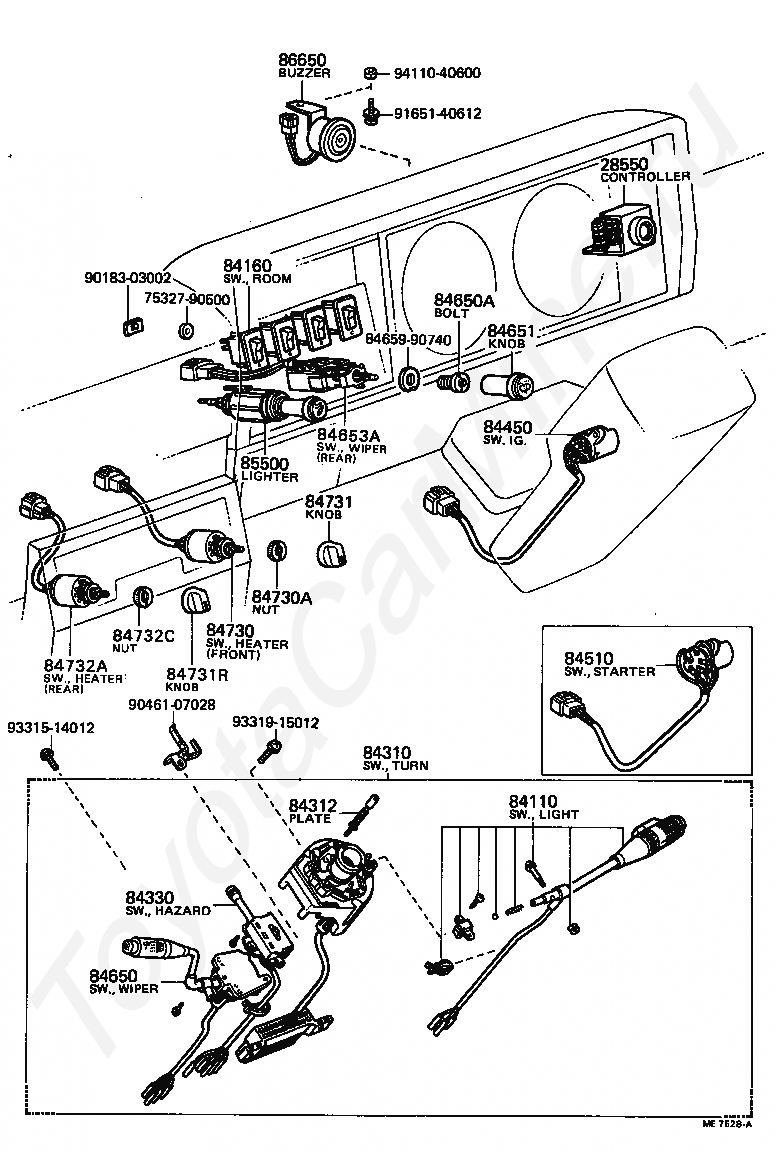

Реле и кнопки TOYOTA COASTER

Код

Описание

28550

CONTROLLER ASSY, GLOW PLUG

7532790500

Крепеж

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84160

SWITCH ASSY, ROOM LAMP

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84510

SWITCH ASSY, STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

84650A

BOLT OR NUT, WINDSHIELD WIPER SWITCH SET

84651

KNOB, WINDSHIELD WIPER SWITCH

84653A

SWITCH, REAR WIPER

8465990740

Крепеж

84730

SWITCH ASSY, HEATER BLOWER

84730A

NUT, HEATER BLOWER SWITCH

84731

KNOB, HEATER BLOWER SWITCH

84731R

KNOB, REAR HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84732C

NUT, REAR HEATER BLOWER SWITCH

85500

LIGHTER ASSY, CIGARETTE

86650

BUZZER ASSY, VACUUM INDICATOR

9018303002

Крепеж

9046107028

Крепеж

9165140612

Крепеж

9331514012

Крепеж

9331915012

Крепеж

9411040600

Крепеж

Код

Описание

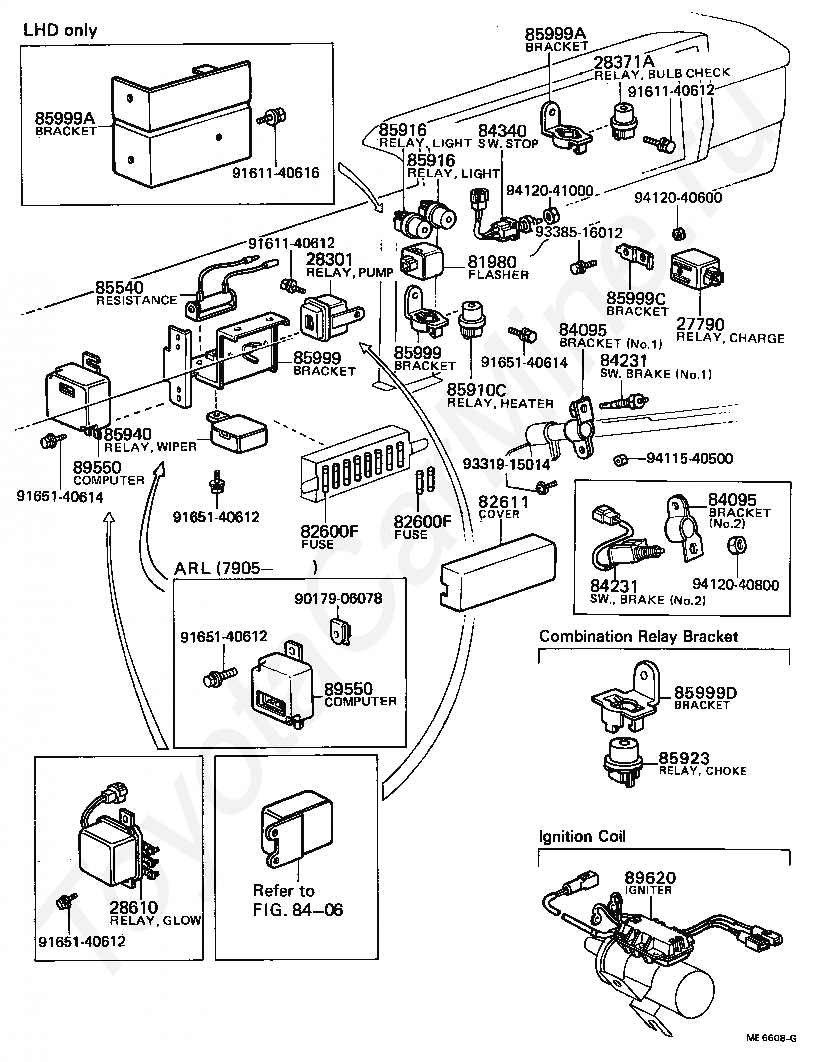

27790

RELAY ASSY, CHARGE LAMP

28301

RELAY ASSY, FUEL PUMP

28371A

RELAY, BULB CHECK

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82611

COVER, FUSE BLOCK

8406

переход к группе запчастей

84095

BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH

84095

BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH

84231

SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

84231

SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)

84340

SWITCH ASSY, STOP LAMP

85540

RESISTANCE ASSY, CIGARETTE LIGHTER

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85923

RELAY, CHOKE CONTROL

85940

RELAY ASSY, WINDSHIELD WIPER

85999

BRACKET, COMBINATION RELAY

85999

BRACKET, COMBINATION RELAY

85999A

BRACKET, RELAY, NO.2

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

85999D

BRACKET, RELAY, NO.4

89550

COMPUTER ASSY, EMISSION CONTROL

89550

COMPUTER ASSY, EMISSION CONTROL

89620

IGNITER ASSY

9017906078

Крепеж

9161140612

Крепеж

9161140612

Крепеж

9161140616

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140614

Крепеж

9165140614

Крепеж

9331915014

Крепеж

9338516012

Крепеж

9411540500

Крепеж

9412040600

Крепеж

9412040800

Крепеж

9412041000

Крепеж

Код

Описание

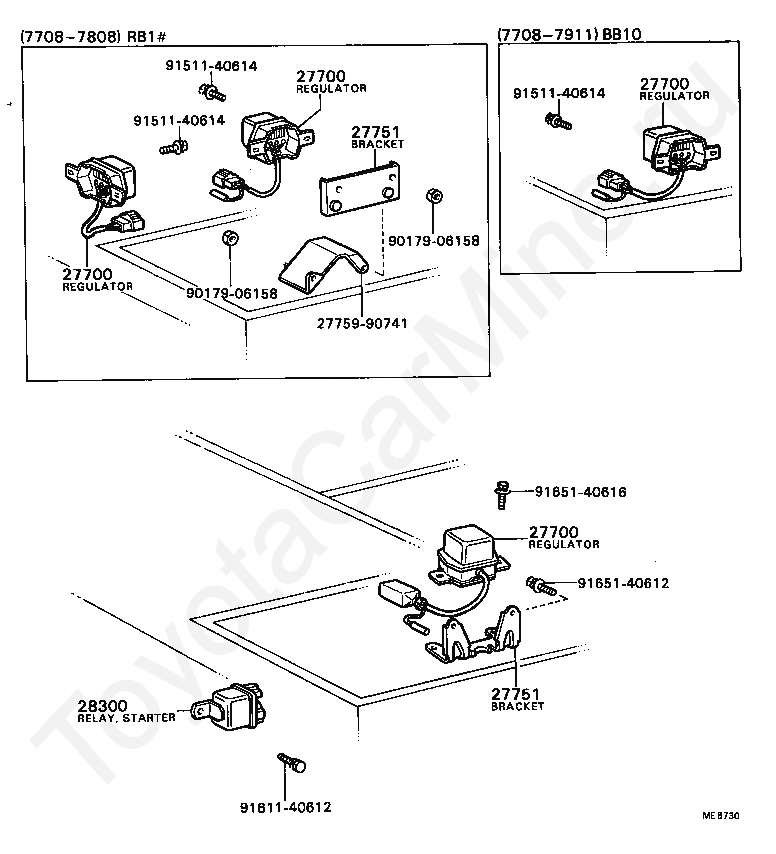

27700

REGULATOR ASSY, GENERATOR

27700

REGULATOR ASSY, GENERATOR

27700

REGULATOR ASSY, GENERATOR

27700

REGULATOR ASSY, GENERATOR

27751

BRACKET, GENERATOR REGULATOR

27751

BRACKET, GENERATOR REGULATOR

2775990741

Крепеж

28300

RELAY ASSY, STARTER

9017906158

Крепеж

9017906158

Крепеж

9151140614

Крепеж

9151140614

Крепеж

9151140614

Крепеж

9161140612

Крепеж

9165140612

Крепеж

9165140616

Крепеж

Код

Описание

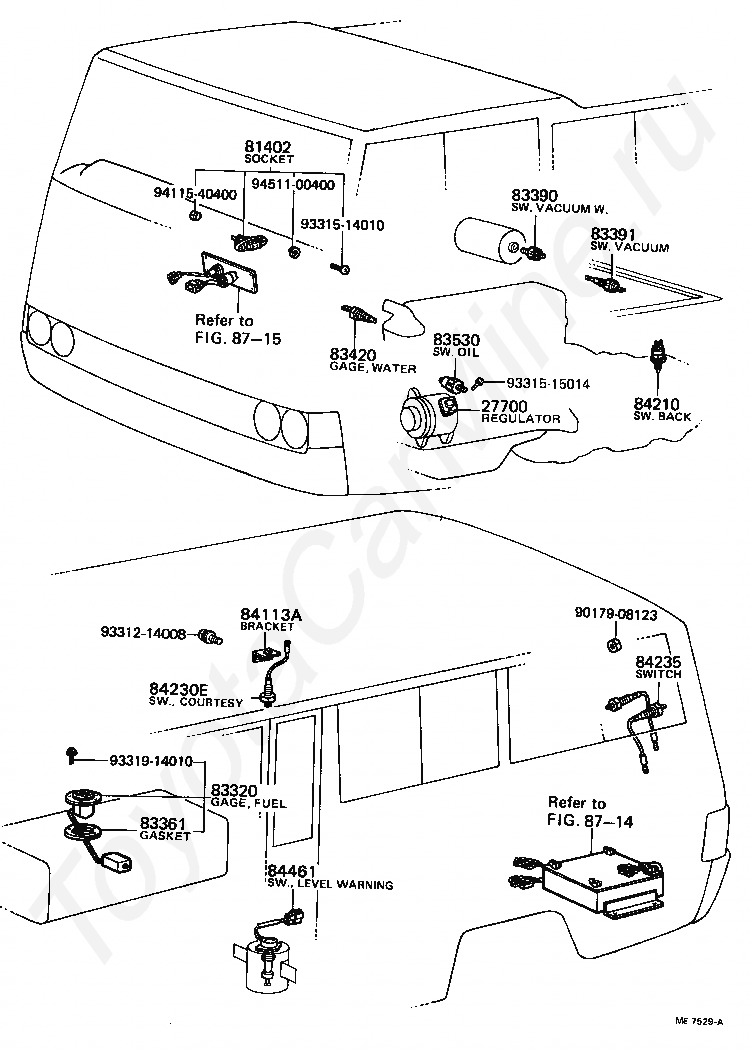

27700

REGULATOR ASSY, GENERATOR

81402

SOCKET SUB-ASSY, INSPECTION LAMP, NO.1

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

83390

SWITCH ASSY, VACUUM WARNING

83391

SWITCH, VACUUM

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84113A

BRACKET, SWITCH, NO.1

84210

SWITCH ASSY, BACK-UP LAMP

84230E

SWITCH ASSY, COURTESY LAMP (FOR CENTER DOOR INDICATOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84461

SWITCH, LEVEL WARNING

8714

переход к группе запчастей

8715

переход к группе запчастей

9017908123

Крепеж

9331214008

Крепеж

9331514010

Крепеж

9331515014

Крепеж

9331914010

Крепеж

9411540400

Крепеж

9451100400

Крепеж

Реле и кнопки TOYOTA COASTER
