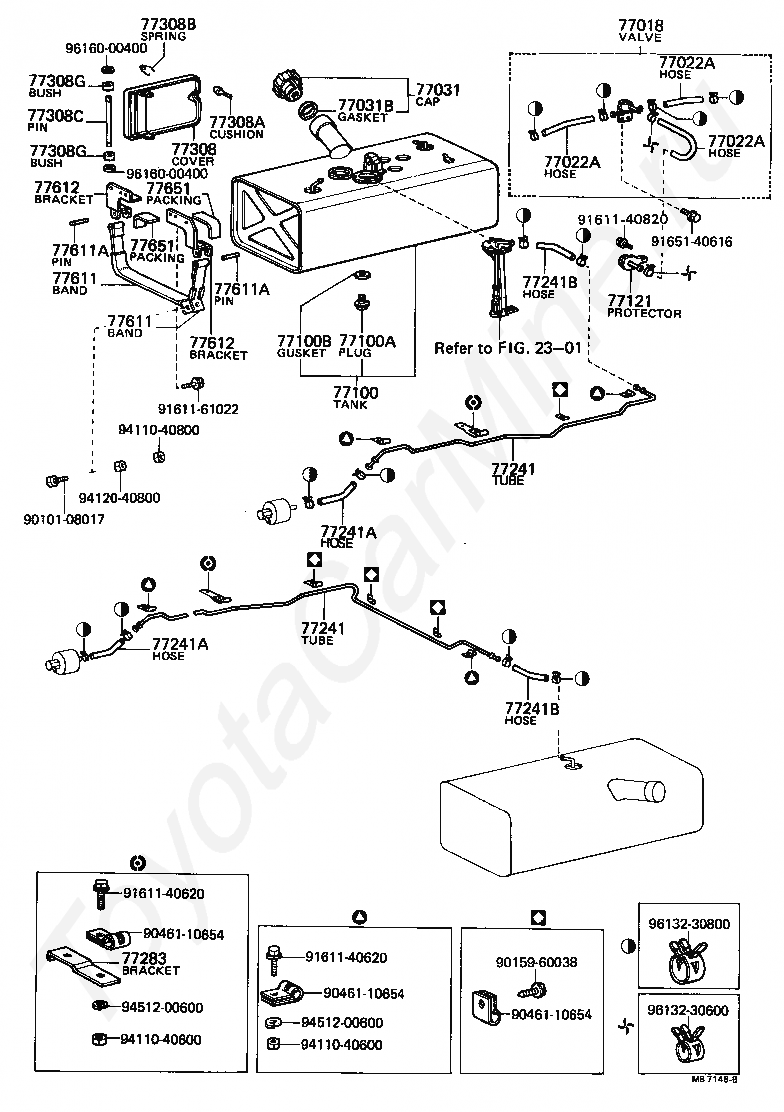

2301
переход к группе запчастей
77018
VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77121
PROTECTOR, FUEL TUBE
77241
TUBE, FUEL MAIN, NO.1
77241
TUBE, FUEL MAIN, NO.1
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77308
COVER SUB-ASSY, FUEL INLET BOX
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77308B
SPRING, TORSION(FOR FUEL INLET BOX COVER)
77308C
PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
77308G
BUSH(FOR FUEL INLET BOX COVER)
77308G
BUSH(FOR FUEL INLET BOX COVER)
77611A
PIN (FOR FUEL TANK BAND)
77611A
PIN (FOR FUEL TANK BAND)
77612
BRACKET SUB-ASSY, FUEL TANK
77612
BRACKET SUB-ASSY, FUEL TANK
77651
PACKING, FUEL TANK BRACKET
77651
PACKING, FUEL TANK BRACKET
