Каталог

Европа

Модель

COASTER

VIN

Дата

1977/08

Двигатель

2,2 литра

Класс

STANDARD TYPE

Фрейм

RB11

КПП

МКПП, 4 ступени, на руле

Опции

левый руль 22-местный STANDARD ROOF GENERAL COUNTRIES

Передние амортизаторы TOYOTA COASTER

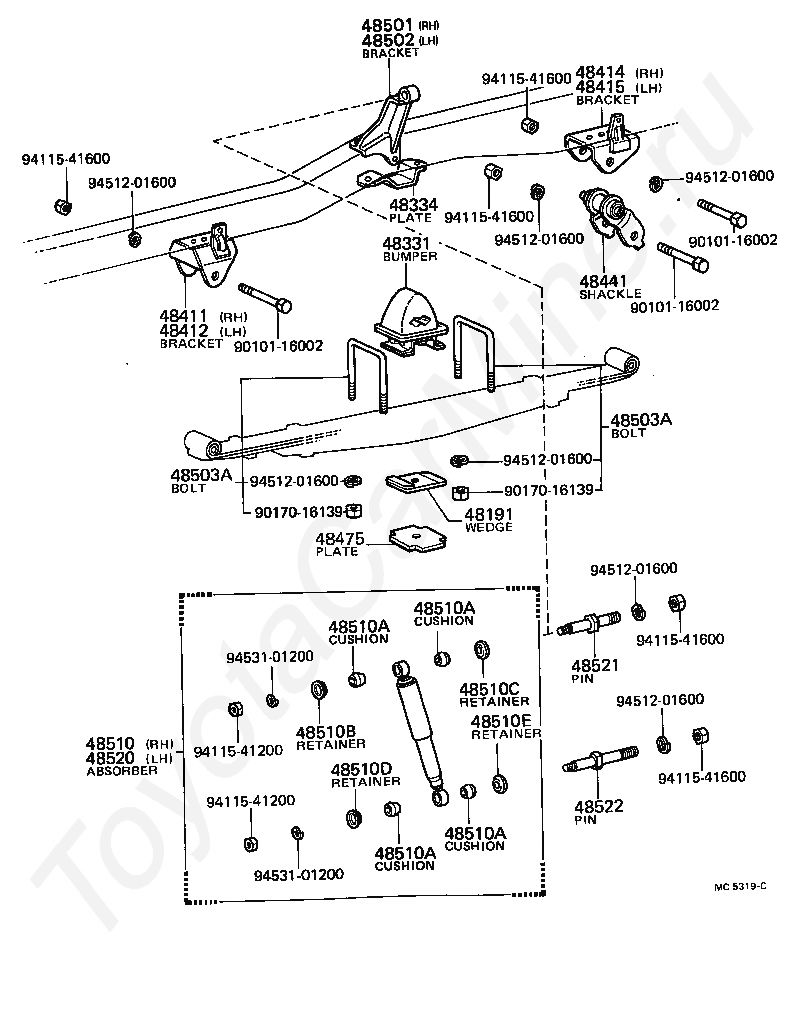

Код

Описание

48191

WEDGE, CASTER(FOR FRONT LEAF SPRING)

48331

BUMPER, FRONT SPRING, NO.1

48334

PLATE, BUMPER, FRONT

48411

BRACKET, FRONT SPRING(FOR FRONT RH)

48412

BRACKET, FRONT SPRING(FOR FRONT LH)

48414

BRACKET, FRONT SPRING(FOR REAR RH)

48415

BRACKET, FRONT SPRING(FOR REAR LH)

48441

SHACKLE, SPRING, NO.1

48475

PLATE, DISTANCE(FOR FRONT)

48501

BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

48502

BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

48503A

BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

48503A

BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510A

CUSHION, FRONT SHOCK ABSORBER

48510A

CUSHION, FRONT SHOCK ABSORBER

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510D

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48520

ABSORBER ASSY, SHOCK, FRONT LH

48521

PIN, FRONT SHOCK ABSORBER UPPER PIVOT

48522

PIN, FRONT SHOCK ABSORBER LOWER PIVOT

9010116002

Крепеж

9010116002

Крепеж

9010116002

Крепеж

9017016139

Крепеж

9017016139

Крепеж

9411541200

Крепеж

9411541200

Крепеж

9411541600

Крепеж

9411541600

Крепеж

9411541600

Крепеж

9411541600

Крепеж

9411541600

Крепеж

9451201600

Крепеж

9451201600

Крепеж

9451201600

Крепеж

9451201600

Крепеж

9451201600

Крепеж

9451201600

Крепеж

9451201600

Крепеж

9453101200

Крепеж

9453101200

Крепеж

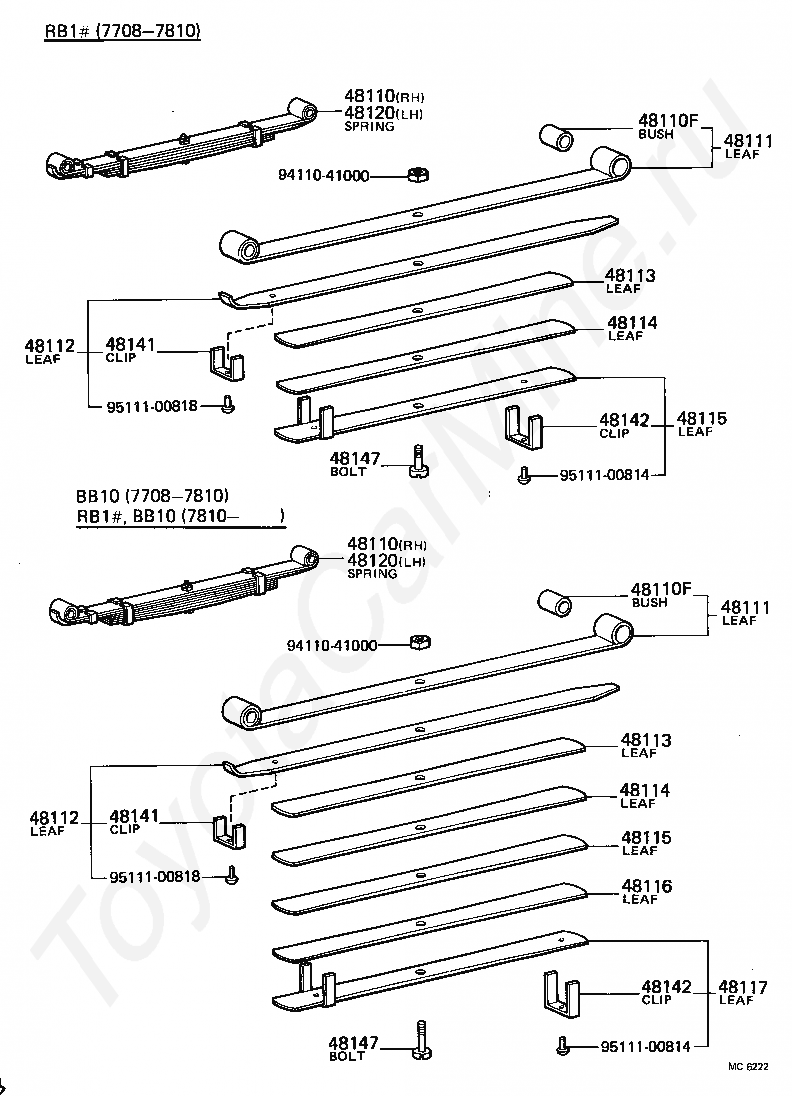

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48120

SPRING ASSY, FRONT, LH

48120

SPRING ASSY, FRONT, LH

48141

CLIP, FRONT SPRING, NO.1

48141

CLIP, FRONT SPRING, NO.1

48142

CLIP, FRONT SPRING, NO.2

48142

CLIP, FRONT SPRING, NO.2

48147

BOLT, FRONT SPRING, CENTER

48147

BOLT, FRONT SPRING, CENTER

9411041000

Крепеж

9411041000

Крепеж

9511100814

Крепеж

9511100814

Крепеж

9511100818

Крепеж

9511100818

Крепеж

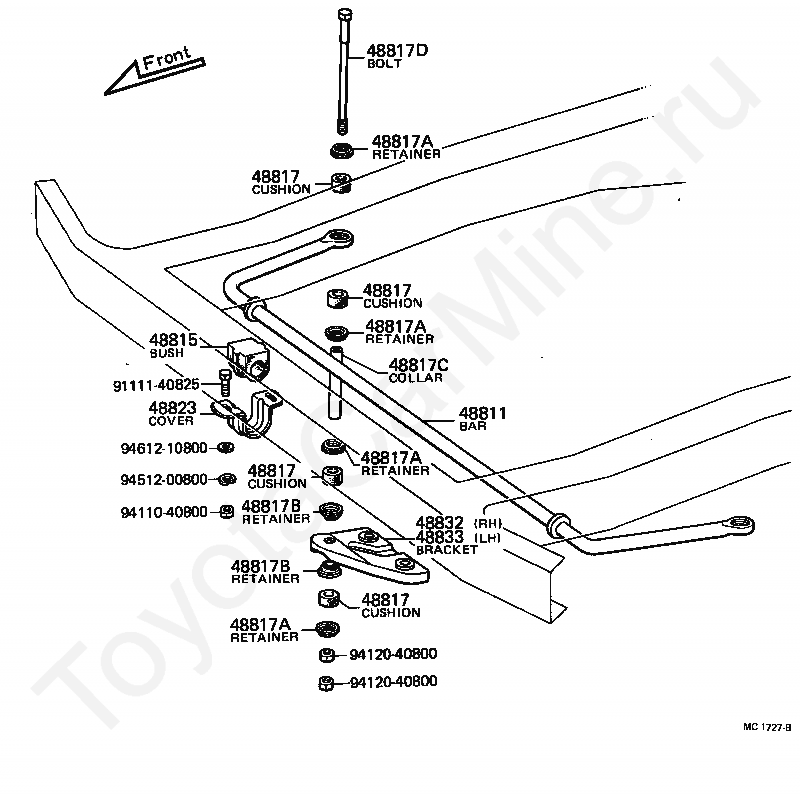

Код

Описание

48811

BAR, STABILIZER, FRONT

48815

BUSH, FRONT STABILIZER BAR, NO.1

48817

CUSHION, FRONT STABILIZER

48817

CUSHION, FRONT STABILIZER

48817

CUSHION, FRONT STABILIZER

48817

CUSHION, FRONT STABILIZER

48817A

RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

48817A

RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

48817A

RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

48817A

RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

48817B

RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

48817B

RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

48817C

COLLAR(FOR STABILIZER BAR)

48817D

BOLT(FOR FRONT STABILIZER)

48823

COVER, STABILIZER LINK(FOR FRONT)

48832

BRACKET, FRONT STABILIZER, LOWER RH

48833

BRACKET, FRONT STABILIZER, LOWER LH

9111140825

Крепеж

9411040800

Крепеж

9412040800

Крепеж

9412040800

Крепеж

9451200800

Крепеж

9461210800

Крепеж
