Каталог

Европа

Модель

COASTER

VIN

Дата

1977/08

Двигатель

2,2 литра

Класс

STANDARD TYPE

Фрейм

RB11

КПП

МКПП, 4 ступени, на руле

Опции

левый руль 22-местный STANDARD ROOF GENERAL COUNTRIES

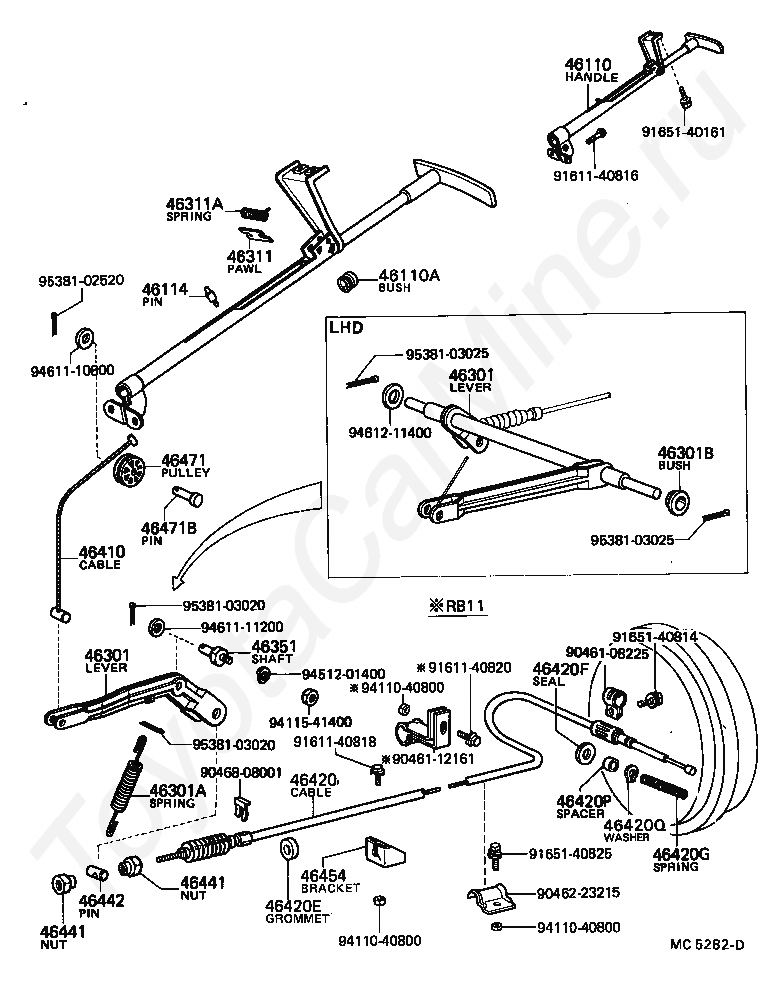

Ручной тормоз TOYOTA COASTER

Код

Описание

46110

HANDLE ASSY, PARKING BRAKE CONTROL

46110A

BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46301B

BUSH(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46351

SHAFT, INTERMEDIATE LEVER PIVOT

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420E

GROMMET(FOR PARKING BRAKE CABLE CLAMP)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46441

NUT, WIRE ADJUSTING, NO.1

46441

NUT, WIRE ADJUSTING, NO.1

46442

PIN, WIRE PIVOT

46454

BRACKET, CABLE RETAINER, FRONT

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9046108255

Крепеж

9046112161

Крепеж

9046223215

Крепеж

9046808001

Крепеж

9161140816

Крепеж

9161140818

Крепеж

9161140820

Крепеж

9165140161

Крепеж

9165140814

Крепеж

9165140825

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411541400

Крепеж

9451201400

Крепеж

9461110800

Крепеж

9461111200

Крепеж

9461211400

Крепеж

9538102520

Крепеж

9538103020

Крепеж

9538103020

Крепеж

9538103025

Крепеж

9538103025

Крепеж

Код

Описание

46110

HANDLE ASSY, PARKING BRAKE CONTROL

46110A

BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46301B

BUSH(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46351

SHAFT, INTERMEDIATE LEVER PIVOT

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420E

GROMMET(FOR PARKING BRAKE CABLE CLAMP)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46441

NUT, WIRE ADJUSTING, NO.1

46441

NUT, WIRE ADJUSTING, NO.1

46442

PIN, WIRE PIVOT

46454

BRACKET, CABLE RETAINER, FRONT

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9046108255

Крепеж

9046112161

Крепеж

9046223215

Крепеж

9046808001

Крепеж

9161140816

Крепеж

9161140818

Крепеж

9161140820

Крепеж

9165140161

Крепеж

9165140814

Крепеж

9165140825

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411541400

Крепеж

9451201400

Крепеж

9461110800

Крепеж

9461111200

Крепеж

9461211400

Крепеж

9538102520

Крепеж

9538103020

Крепеж

9538103020

Крепеж

9538103025

Крепеж

9538103025

Крепеж

Код

Описание

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46506

ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER

46520

PLATE SUB-ASSY, PARKING BRAKE

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46577

COVER, ADJUSTING CAM HOLE

46601

LEVER SUB-ASSY, PARKING BRAKE SHOE

9017011205

Крепеж

9020611085

Крепеж

9161161018

Крепеж

9461311200

Крепеж

Ручной тормоз TOYOTA COASTER
