Каталог

Япония

Модель

COASTER

VIN

Дата

1993/01

Двигатель

3,4 литра, дизель

Класс

DELUX SPECIFICATION

Фрейм

BB40

КПП

механика МКПП, 5 скоростей

Опции

STANDARD ROOF 26-местный WITH COOLER дизель, два клапана WT CBU

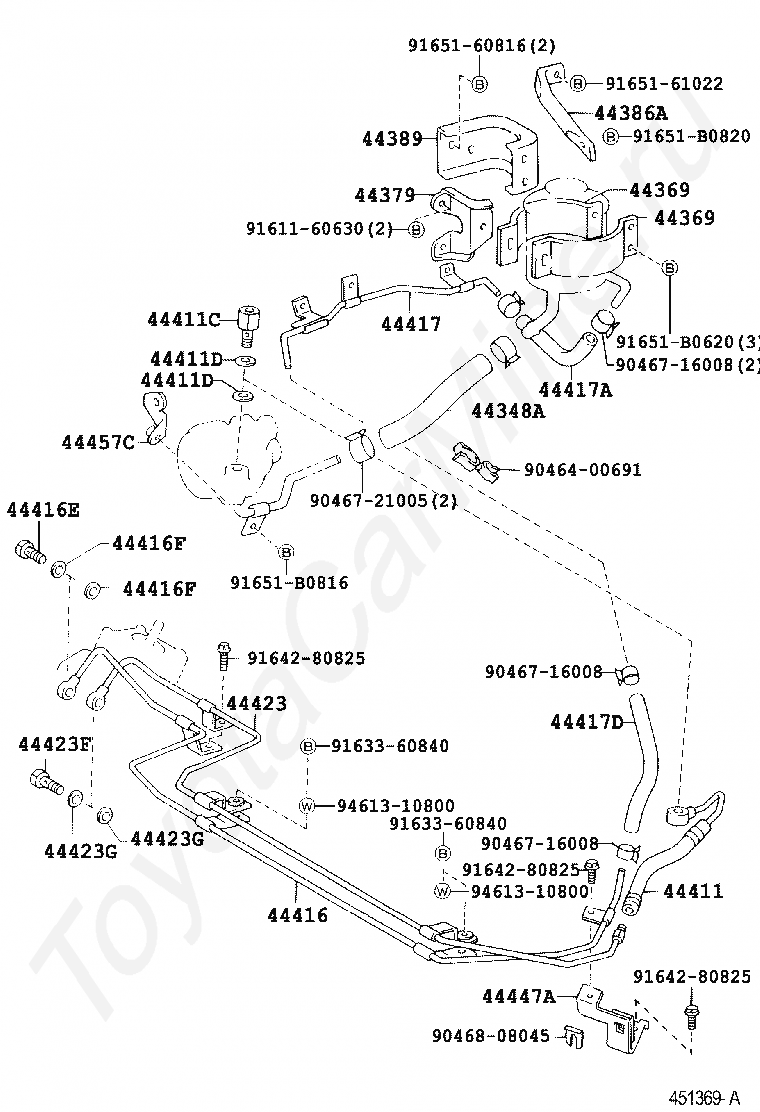

POWER STEERING TUBE TOYOTA COASTER

Код

Описание

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44369

BRACKET, OIL RESERVOIR, NO.1

44369

BRACKET, OIL RESERVOIR, NO.1

44379

BRACKET, OIL RESERVOIR, NO.2

44386A

SUPPORT, OIL RESERVOIR

44389

BRACKET, OIL RESERVOIR, NO.3

44411

HOSE, PRESSURE FEED

44411C

BOLT, UNION(FOR PRESSURE FEED HOSE)

44411D

GASKET(FOR PRESSURE FEED HOSE)

44411D

GASKET(FOR PRESSURE FEED HOSE)

44416

TUBE, RETURN(FOR STEERING GEAR OUTLET)

44416E

BOLT, UNION(FOR RETURN TUBE)

44416F

GASKET(FOR RETURN TUBE)

44416F

GASKET(FOR RETURN TUBE)

44417

TUBE, RETURN, NO.2

44417A

HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)

44417D

HOSE(FOR RETURN TUBE TO RESERVOIR)

44423

TUBE, OIL PUMP TO GEAR BOX

44423F

BOLT, UNION

44423G

GASKET, UNION BOLT

44423G

GASKET, UNION BOLT

44447A

BRACKET, HOSE SUPPORT, NO.1

44457C

BRACKET, POWER STEERING TUBE SUPPORT, NO.1

9046400691

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9046716008

Крепеж

9046721005

Крепеж

9046808045

Крепеж

9161160630

Крепеж

9163360840

Крепеж

9163360840

Крепеж

9164280825

Крепеж

9164280825

Крепеж

9164280825

Крепеж

9165160816

Крепеж

9165161022

Крепеж

91651B0620

Крепеж

91651B0816

Крепеж

91651B0820

Крепеж

9461310800

Крепеж

9461310800

Крепеж

POWER STEERING TUBE TOYOTA COASTER
