Япония

Модель

COASTER

VIN

Дата

2007/08

Двигатель

4 литра, дизель

Класс

LX SPECIFICATION

Фрейм

XZB50

КПП

автомат АКПП, 6 скоростей

Опции

высокая крыша 29-местный WITH COOLER система впрыска дизельного топлива WT CBU

Кресла TOYOTA COASTER







Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

66990

HOLDER ASSY, CUP

66990

HOLDER ASSY, CUP

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71149

WIRE, FRONT SEAT CUSHION CONNECTING

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71521

PAD, FRONT SEAT CUSHION SILENCER, A

71524

PAD, FRONT SEAT CUSHION SILENCER, D

71524

PAD, FRONT SEAT CUSHION SILENCER, D

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705B

CAP(FOR FRONT SEAT BACK BOARD)

71707A

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71707A

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71750A

TRAY ASSY, FRONT SEAT UNDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72830E

ARMREST ASSY, FRONT SEAT

9011905008

Крепеж

9011908079

Крепеж

9011908080

Крепеж

9011908873

Крепеж

9011910037

Крепеж

9011910428

Крепеж

9011910428

Крепеж

9016740044

Крепеж

9017608039

Крепеж

9017905004

Крепеж

9017906208

Крепеж

9020214007

Крепеж

9038612051

Крепеж

9038910008

Крепеж

9165161040

Крепеж

9324056014

Крепеж

9324955016

Крепеж

9353014025

Крепеж

9356054012

Крепеж

9454201400

Крепеж

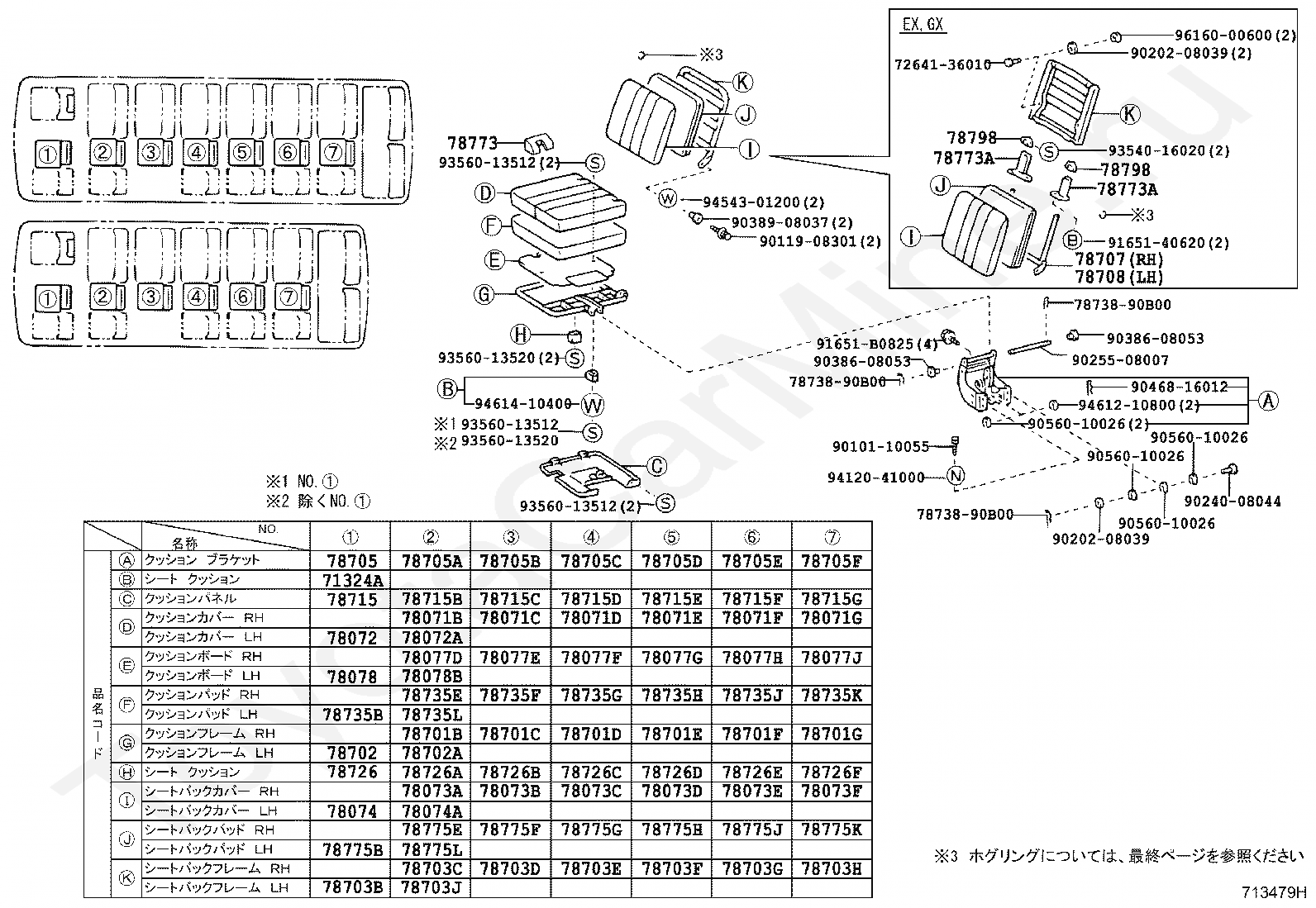

Код

Описание

71324A

CUSHION, REAR SEAT

7264136010

Крепеж

78071B

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.2

78071C

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.3

78071D

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.4

78071E

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.5

78071F

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.6

78071G

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.7

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78072A

COVER SUB-ASSY, SUB SEAT CUSHION, LH NO.2

78073A

COVER SUB-ASSY, SUB SEAT BACK, RH NO.2

78073B

COVER SUB-ASSY, SUB SEAT BACK, RH NO.3

78073C

COVER SUB-ASSY, SUB SEAT BACK, RH NO.4

78073D

COVER SUB-ASSY, SUB SEAT BACK, RH NO.5

78073E

COVER SUB-ASSY, SUB SEAT BACK, RH NO.6

78073F

COVER SUB-ASSY, SUB SEAT BACK, RH NO.7

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78074A

COVER SUB-ASSY, SUB SEAT BACK, LH NO.2

78077D

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.2

78077E

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.3

78077F

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.4

78077G

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.5

78077H

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.6

78077J

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.7

78078

BOARD SUB-ASSY, SUB SEAT CUSHION, LH

78078B

BOARD SUB-ASSY, SUB SEAT CUSHION, LH NO.2

78701B

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.2

78701C

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.3

78701D

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.4

78701E

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.5

78701F

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.6

78701G

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.7

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78702A

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703B

FRAME SUB-ASSY, SUB SEAT BACK, LH

78703C

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.2

78703D

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.3

78703E

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.4

78703F

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.5

78703G

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.6

78703H

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.7

78703J

FRAME SUB-ASSY, SUB SEAT BACK, LH NO.2

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78705A

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.2

78705B

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.3

78705C

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.4

78705D

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.5

78705E

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.6

78705F

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.7

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78708

FRAME SUB-ASSY, SUB SEAT BACK, LOWER LH

78715

PANEL, SUB SEAT CUSHION

78715B

PANEL, SUB SEAT CUSHION NO.2

78715C

PANEL, SUB SEAT CUSHION NO.3

78715D

PANEL, SUB SEAT CUSHION NO.4

78715E

PANEL, SUB SEAT CUSHION NO.5

78715F

PANEL, SUB SEAT CUSHION NO.6

78715G

PANEL, SUB SEAT CUSHION NO.7

78726

CUSHION, SUB SEAT CUSHION FRAME

78726A

CUSHION, SUB SEAT CUSHION FRAME, NO.2

78726B

CUSHION, SUB SEAT CUSHION FRAME, NO.3

78726C

CUSHION, SUB SEAT CUSHION FRAME, NO.4

78726D

CUSHION, SUB SEAT CUSHION FRAME, NO.5

78726E

CUSHION, SUB SEAT CUSHION FRAME, NO.6

78726F

CUSHION, SUB SEAT CUSHION FRAME, NO.7

78735B

PAD, SUB SEAT CUSHION, LH

78735E

PAD, SUB SEAT CUSHION, RH NO.2

78735F

PAD, SUB SEAT CUSHION, RH NO.3

78735G

PAD, SUB SEAT CUSHION, RH NO.4

78735H

PAD, SUB SEAT CUSHION, RH NO.5

78735J

PAD, SUB SEAT CUSHION, RH NO.6

78735K

PAD, SUB SEAT CUSHION, RH NO.7

78735L

PAD, SUB SEAT CUSHION, LH NO.2

7873890B00

Крепеж

7873890B00

Крепеж

7873890B00

Крепеж

78773

COVER, SUB SEAT HINGE, RH

78773A

HOOP, SUB SEAT BACK GUIDE

78773A

HOOP, SUB SEAT BACK GUIDE

78775B

PAD, SUB SEAT BACK, LH

78775E

PAD, SUB SEAT BACK, RH NO.2

78775F

PAD, SUB SEAT BACK, RH NO.3

78775G

PAD, SUB SEAT BACK, RH NO.4

78775H

PAD, SUB SEAT BACK, RH NO.5

78775J

PAD, SUB SEAT BACK, RH NO.6

78775K

PAD, SUB SEAT BACK, RH NO.7

78775L

PAD, SUB SEAT BACK, LH NO.2

78798

SPACER, SUB SEAT BACK FRAME

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011908301

Крепеж

9020208039

Крепеж

9020208039

Крепеж

9024008044

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038608053

Крепеж

9038908037

Крепеж

9046816012

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9165140620

Крепеж

91651B0825

Крепеж

9354016020

Крепеж

9356013512

Крепеж

9356013512

Крепеж

9356013512

Крепеж

9356013520

Крепеж

9356013520

Крепеж

9412041000

Крепеж

9454301200

Крепеж

9461210800

Крепеж

9461410400

Крепеж

9616000600

Крепеж

Код

Описание

71324A

CUSHION, REAR SEAT

7264136010

Крепеж

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78078

BOARD SUB-ASSY, SUB SEAT CUSHION, LH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703B

FRAME SUB-ASSY, SUB SEAT BACK, LH

78703B

FRAME SUB-ASSY, SUB SEAT BACK, LH

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78708

FRAME SUB-ASSY, SUB SEAT BACK, LOWER LH

78715

PANEL, SUB SEAT CUSHION

78726

CUSHION, SUB SEAT CUSHION FRAME

78735B

PAD, SUB SEAT CUSHION, LH

78773

COVER, SUB SEAT HINGE, RH

78773A

HOOP, SUB SEAT BACK GUIDE

78773A

HOOP, SUB SEAT BACK GUIDE

78775B

PAD, SUB SEAT BACK, LH

78798

SPACER, SUB SEAT BACK FRAME

78798

SPACER, SUB SEAT BACK FRAME

9011908301

Крепеж

9011908301

Крепеж

9020208039

Крепеж

9020208039

Крепеж

9020208039

Крепеж

9024008044

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038608053

Крепеж

9038908037

Крепеж

9038908037

Крепеж

9046814022

Крепеж

9046814022

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9165140620

Крепеж

91651B0820

Крепеж

9354016020

Крепеж

9354016020

Крепеж

9356013512

Крепеж

9356013512

Крепеж

9356013512

Крепеж

9356013520

Крепеж

9454301200

Крепеж

9454301200

Крепеж

9461210800

Крепеж

9461210800

Крепеж

9616000600

Крепеж

Код

Описание

7264136010

Крепеж

78071B

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.2

78071C

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.3

78071D

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.4

78071E

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.5

78071F

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.6

78071G

COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.7

78073A

COVER SUB-ASSY, SUB SEAT BACK, RH NO.2

78073B

COVER SUB-ASSY, SUB SEAT BACK, RH NO.3

78073C

COVER SUB-ASSY, SUB SEAT BACK, RH NO.4

78073D

COVER SUB-ASSY, SUB SEAT BACK, RH NO.5

78073E

COVER SUB-ASSY, SUB SEAT BACK, RH NO.6

78073F

COVER SUB-ASSY, SUB SEAT BACK, RH NO.7

78077D

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.2

78077E

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.3

78077F

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.4

78077G

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.5

78077H

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.6

78077J

BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.7

78701B

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.2

78701C

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.3

78701D

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.4

78701E

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.5

78701F

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.6

78701G

FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.7

78703C

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.2

78703D

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.3

78703E

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.4

78703F

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.5

78703G

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.6

78703H

FRAME SUB-ASSY, SUB SEAT BACK, RH NO.7

78705A

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.2

78705B

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.3

78705C

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.4

78705D

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.5

78705E

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.6

78705F

BRACKET SUB-ASSY, SUB SEAT CUSHION NO.7

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78715B

PANEL, SUB SEAT CUSHION NO.2

78715C

PANEL, SUB SEAT CUSHION NO.3

78715D

PANEL, SUB SEAT CUSHION NO.4

78715E

PANEL, SUB SEAT CUSHION NO.5

78715F

PANEL, SUB SEAT CUSHION NO.6

78715G

PANEL, SUB SEAT CUSHION NO.7

78726A

CUSHION, SUB SEAT CUSHION FRAME, NO.2

78726B

CUSHION, SUB SEAT CUSHION FRAME, NO.3

78726C

CUSHION, SUB SEAT CUSHION FRAME, NO.4

78726D

CUSHION, SUB SEAT CUSHION FRAME, NO.5

78726E

CUSHION, SUB SEAT CUSHION FRAME, NO.6

78726F

CUSHION, SUB SEAT CUSHION FRAME, NO.7

78735E

PAD, SUB SEAT CUSHION, RH NO.2

78735F

PAD, SUB SEAT CUSHION, RH NO.3

78735G

PAD, SUB SEAT CUSHION, RH NO.4

78735H

PAD, SUB SEAT CUSHION, RH NO.5

78735J

PAD, SUB SEAT CUSHION, RH NO.6

78735K

PAD, SUB SEAT CUSHION, RH NO.7

78773A

HOOP, SUB SEAT BACK GUIDE

78773A

HOOP, SUB SEAT BACK GUIDE

78775E

PAD, SUB SEAT BACK, RH NO.2

78775F

PAD, SUB SEAT BACK, RH NO.3

78775G

PAD, SUB SEAT BACK, RH NO.4

78775H

PAD, SUB SEAT BACK, RH NO.5

78775J

PAD, SUB SEAT BACK, RH NO.6

78775K

PAD, SUB SEAT BACK, RH NO.7

78798

SPACER, SUB SEAT BACK FRAME

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011908301

Крепеж

9020208039

Крепеж

9020208039

Крепеж

9020208039

Крепеж

9024008044

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038608053

Крепеж

9038908037

Крепеж

9046814022

Крепеж

9046814022

Крепеж

9046814022

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9165140620

Крепеж

91651B0825

Крепеж

9354016020

Крепеж

9354016020

Крепеж

9356013512

Крепеж

9356013512

Крепеж

9356013520

Крепеж

9412041000

Крепеж

9454301200

Крепеж

9461210800

Крепеж

9616000600

Крепеж

Код

Описание

7133236020

Крепеж

7162836010

Крепеж

7162836010

Крепеж

79119

BRACKET, NO.1 SEAT LEG, NO.2

79466

COVER, NO.4 SEAT LEG, NO.1

79466

COVER, NO.4 SEAT LEG, NO.1

79636

COVER, NO.6 SEAT LEG, RH

79636

COVER, NO.6 SEAT LEG, RH

79636A

COVER, NO.6 SEAT LEG, LH

79636A

COVER, NO.6 SEAT LEG, LH

9010908228

Крепеж

9011908A85

Крепеж

9020616001

Крепеж

9020616001

Крепеж

91611B0825

Крепеж

91611B0825

Крепеж

9163160845

Крепеж

9165161032

Крепеж

9165161032

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9166160825

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990C

HOLDER ASSY, CUP, NO.3 RH

66990D

HOLDER ASSY, CUP, NO.4 RH

66990F

HOLDER ASSY, CUP, NO.5 RH

66990G

HOLDER ASSY, CUP, NO.6 RH

66990H

HOLDER ASSY, CUP, NO.7 RH

66990J

HOLDER ASSY, CUP, NO.1 LH

66990M

HOLDER ASSY, CUP, NO.4 LH

66990N

HOLDER ASSY, CUP, NO.5 LH

66990P

HOLDER ASSY, CUP, NO.6 LH

66990Q

HOLDER ASSY, CUP, NO.7 LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79425A

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79525A

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 LH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79625A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79725A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH

Код

Описание

7133236020

Крепеж

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

79119

BRACKET, NO.1 SEAT LEG, NO.2

79466

COVER, NO.4 SEAT LEG, NO.1

79466

COVER, NO.4 SEAT LEG, NO.1

79636

COVER, NO.6 SEAT LEG, RH

79636

COVER, NO.6 SEAT LEG, RH

79636A

COVER, NO.6 SEAT LEG, LH

79636A

COVER, NO.6 SEAT LEG, LH

9010908227

Крепеж

9010908227

Крепеж

9010908227

Крепеж

9010908228

Крепеж

9010908228

Крепеж

9011908A85

Крепеж

9020616001

Крепеж

9020616001

Крепеж

9095903016

Крепеж

9095903016

Крепеж

9095903016

Крепеж

9161160825

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9166160825

Крепеж

9324955010

Крепеж

9324955010

Крепеж

9324955010

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990C

HOLDER ASSY, CUP, NO.3 RH

66990D

HOLDER ASSY, CUP, NO.4 RH

66990F

HOLDER ASSY, CUP, NO.5 RH

66990G

HOLDER ASSY, CUP, NO.6 RH

66990H

HOLDER ASSY, CUP, NO.7 RH

66990J

HOLDER ASSY, CUP, NO.1 LH

66990M

HOLDER ASSY, CUP, NO.4 LH

66990N

HOLDER ASSY, CUP, NO.5 LH

66990P

HOLDER ASSY, CUP, NO.6 LH

66990Q

HOLDER ASSY, CUP, NO.7 LH

72501H

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501L

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501N

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501Q

ARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 RH

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502D

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502E

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502F

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502G

ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502N

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502Q

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508E

SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

72508G

SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508N

SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

72508Q

SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79115A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79415B

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79515B

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 RH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79715A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH

Код

Описание

7133236020

Крепеж

7133236020

Крепеж

7162836010

Крепеж

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

79119

BRACKET, NO.1 SEAT LEG, NO.2

79466

COVER, NO.4 SEAT LEG, NO.1

79466

COVER, NO.4 SEAT LEG, NO.1

79636

COVER, NO.6 SEAT LEG, RH

79636

COVER, NO.6 SEAT LEG, RH

79636A

COVER, NO.6 SEAT LEG, LH

79636A

COVER, NO.6 SEAT LEG, LH

9010908227

Крепеж

9010908227

Крепеж

9010908227

Крепеж

9010908228

Крепеж

9010908228

Крепеж

9011908A85

Крепеж

9015750016

Крепеж

9015750016

Крепеж

9017905004

Крепеж

9017905004

Крепеж

9017906208

Крепеж

9018305043

Крепеж

9018305043

Крепеж

9020616001

Крепеж

9020616001

Крепеж

9038910036

Крепеж

9046708047

Крепеж

9046708047

Крепеж

9054010022

Крепеж

9095903016

Крепеж

9095903016

Крепеж

9095903016

Крепеж

91611B0825

Крепеж

91611B0825

Крепеж

9163160845

Крепеж

9165160830

Крепеж

9165161032

Крепеж

9165161032

Крепеж

9165161032

Крепеж

9165161040

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9166160825

Крепеж

9324056014

Крепеж

9324056016

Крепеж

9324955016

Крепеж

9326955016

Крепеж

9326955016

Крепеж

9454201400

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990C

HOLDER ASSY, CUP, NO.3 RH

66990D

HOLDER ASSY, CUP, NO.4 RH

66990F

HOLDER ASSY, CUP, NO.5 RH

66990G

HOLDER ASSY, CUP, NO.6 RH

66990H

HOLDER ASSY, CUP, NO.7 RH

66990J

HOLDER ASSY, CUP, NO.1 LH

66990M

HOLDER ASSY, CUP, NO.4 LH

66990N

HOLDER ASSY, CUP, NO.5 LH

66990P

HOLDER ASSY, CUP, NO.6 LH

66990Q

HOLDER ASSY, CUP, NO.7 LH

66995B

RETAINER, CUP HOLDER, NO.2 RH

66995C

RETAINER, CUP HOLDER, NO.3 RH

66995D

RETAINER, CUP HOLDER, NO.4 RH

66995F

RETAINER, CUP HOLDER, NO.5 RH

66995G

RETAINER, CUP HOLDER, NO.6 RH

66995H

RETAINER, CUP HOLDER, NO.7 RH

66995J

RETAINER, CUP HOLDER, NO.1 LH

66995M

RETAINER, CUP HOLDER, NO.4 LH

66995N

RETAINER, CUP HOLDER, NO.5 LH

66995P

RETAINER, CUP HOLDER, NO.6 LH

66995Q

RETAINER, CUP HOLDER, NO.7 LH

71780B

POCKET ASSY, SEAT BACK BOARD, NO.2 RH

71780C

POCKET ASSY, SEAT BACK BOARD, NO.3 RH

71780D

POCKET ASSY, SEAT BACK BOARD, NO.4 RH

71780F

POCKET ASSY, SEAT BACK BOARD, NO.5 RH

71780G

POCKET ASSY, SEAT BACK BOARD, NO.6 RH

71780H

POCKET ASSY, SEAT BACK BOARD, NO.7 RH

71780J

POCKET ASSY, SEAT BACK BOARD, NO.1 LH

71780M

POCKET ASSY, SEAT BACK BOARD, NO.4 LH

71780N

POCKET ASSY, SEAT BACK BOARD, NO.5 LH

71780P

POCKET ASSY, SEAT BACK BOARD, NO.6 LH

71780Q

POCKET ASSY, SEAT BACK BOARD, NO.7 LH

72501H

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501L

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501N

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502D

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502E

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502F

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502G

ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502N

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502Q

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508E

SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

72508G

SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508N

SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

72508Q

SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH

72830L

ARMREST ASSY, REAR NO.2 SEAT, RH

72830N

ARMREST ASSY, NO.3 SEAT, RH

72830P

ARMREST ASSY, NO.4 SEAT, RH

72830Q

ARMREST ASSY, NO.6 SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72840A

ARMREST ASSY, REAR NO.2 SEAT, LH

72840E

ARMREST ASSY, NO.4 SEAT, LH

72840F

ARMREST ASSY, NO.6 SEAT, LH

74631E

HOOK, COAT, NO.2 RH

74631F

HOOK, COAT, NO.3 RH

74631G

HOOK, COAT, NO.4 RH

74631H

HOOK, COAT, NO.5 RH

74631J

HOOK, COAT, NO.6 RH

74631K

HOOK, COAT, NO.7 RH

74631L

HOOK, COAT, NO.1 LH

74631P

HOOK, COAT, NO.4 LH

74631Q

HOOK, COAT, NO.5 LH

74631R

HOOK, COAT, NO.6 LH

74631S

HOOK, COAT, NO.7 LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79109C

BOARD SUB-ASSY, NO.1 SEAT BACK, LH

79115A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79209B

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79279

PAD, NO.2 SEAT BACK HEADREST

79279A

PAD, NO.1 SEAT BACK HEADREST, LH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79315A

PLATE, NO.3 SEAT CUSHION HINGE, NO.1 RH

79379

PAD, NO.3 SEAT BACK HEADREST

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79409

BOARD SUB-ASSY, NO.4 SEAT BACK

79409B

BOARD SUB-ASSY, NO.4 SEAT BACK, LH

79415B

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH

79425

PLATE, NO.4 SEAT CUSHION HINGE, NO.1 LH

79479

PAD, NO.4 SEAT BACK HEADREST, RH

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79509

BOARD SUB-ASSY, NO.5 SEAT BACK, RH

79509A

BOARD SUB-ASSY, NO.5 SEAT BACK, LH

79515B

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 RH

79579

PAD, NO.5 SEAT BACK HEADREST, RH

79579A

PAD, NO.5 SEAT BACK HEADREST, LH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79609

BOARD SUB-ASSY, NO.6 SEAT BACK, RH

79609A

BOARD SUB-ASSY, NO.6 SEAT BACK, LH

79615

PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79625

PLATE, NO.6 SEAT CUSHION HINGE, NO.1 LH

79679

PAD, NO.6 SEAT BACK HEADREST, RH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79709

BOARD SUB-ASSY, NO.7 SEAT BACK, RH

79709A

BOARD SUB-ASSY, NO.7 SEAT BACK, LH

79715

PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH

79715A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH

79725

PLATE, NO.7 SEAT CUSHION HINGE, NO.1 LH

79779

PAD, NO.7 SEAT BACK HEADREST, RH

79779A

PAD, NO.7 SEAT BACK HEADREST, LH

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7169536030

Крепеж

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502N

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502Q

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508K

SHAFT SUB-SEAT, NO.2 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508N

SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

72508Q

SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79119

BRACKET, NO.1 SEAT LEG, NO.2

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79246A

COVER, NO.2 SEAT LEG, NO.2

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79466

COVER, NO.4 SEAT LEG, NO.1

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79636A

COVER, NO.6 SEAT LEG, LH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79736D

COVER, NO.7 SEAT LEG, LH

9010908227

Крепеж

9010908227

Крепеж

9011908944

Крепеж

9011908A85

Крепеж

9011908C56

Крепеж

9011908C56

Крепеж

9095903016

Крепеж

91622B1025

Крепеж

91622B1025

Крепеж

9163160845

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7169536030

Крепеж

7169536030

Крепеж

72501H

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501L

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501N

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502D

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502E

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502F

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502G

ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508E

SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

72508G

SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH

78794

BRACKET, SUB SEAT, NO.1

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

9010908227

Крепеж

9010908227

Крепеж

9010908227

Крепеж

9010908227

Крепеж

9010908228

Крепеж

9010908228

Крепеж

9011908873

Крепеж

9011908873

Крепеж

9011908944

Крепеж

9011908944

Крепеж

9011908944

Крепеж

9011908944

Крепеж

9095903016

Крепеж

9095903016

Крепеж

9167281030

Крепеж

9167281030

Крепеж

9167281030

Крепеж

9167281030

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990C

HOLDER ASSY, CUP, NO.3 RH

66990D

HOLDER ASSY, CUP, NO.4 RH

66990F

HOLDER ASSY, CUP, NO.5 RH

66990G

HOLDER ASSY, CUP, NO.6 RH

66990H

HOLDER ASSY, CUP, NO.7 RH

66990J

HOLDER ASSY, CUP, NO.1 LH

66990M

HOLDER ASSY, CUP, NO.4 LH

66990N

HOLDER ASSY, CUP, NO.5 LH

66990P

HOLDER ASSY, CUP, NO.6 LH

66990Q

HOLDER ASSY, CUP, NO.7 LH

71780B

POCKET ASSY, SEAT BACK BOARD, NO.2 RH

71780C

POCKET ASSY, SEAT BACK BOARD, NO.3 RH

71780D

POCKET ASSY, SEAT BACK BOARD, NO.4 RH

71780F

POCKET ASSY, SEAT BACK BOARD, NO.5 RH

71780G

POCKET ASSY, SEAT BACK BOARD, NO.6 RH

71780H

POCKET ASSY, SEAT BACK BOARD, NO.7 RH

71780J

POCKET ASSY, SEAT BACK BOARD, NO.1 LH

71780M

POCKET ASSY, SEAT BACK BOARD, NO.4 LH

71780N

POCKET ASSY, SEAT BACK BOARD, NO.5 LH

71780P

POCKET ASSY, SEAT BACK BOARD, NO.6 LH

71780Q

POCKET ASSY, SEAT BACK BOARD, NO.7 LH

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

74631E

HOOK, COAT, NO.2 RH

74631F

HOOK, COAT, NO.3 RH

74631G

HOOK, COAT, NO.4 RH

74631H

HOOK, COAT, NO.5 RH

74631J

HOOK, COAT, NO.6 RH

74631K

HOOK, COAT, NO.7 RH

74631L

HOOK, COAT, NO.1 LH

74631P

HOOK, COAT, NO.4 LH

74631Q

HOOK, COAT, NO.5 LH

74631R

HOOK, COAT, NO.6 LH

74631S

HOOK, COAT, NO.7 LH

79109C

BOARD SUB-ASSY, NO.1 SEAT BACK, LH

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79209B

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79409

BOARD SUB-ASSY, NO.4 SEAT BACK

79409B

BOARD SUB-ASSY, NO.4 SEAT BACK, LH

79509

BOARD SUB-ASSY, NO.5 SEAT BACK, RH

79509A

BOARD SUB-ASSY, NO.5 SEAT BACK, LH

79609

BOARD SUB-ASSY, NO.6 SEAT BACK, RH

79609A

BOARD SUB-ASSY, NO.6 SEAT BACK, LH

79709

BOARD SUB-ASSY, NO.7 SEAT BACK, RH

79709A

BOARD SUB-ASSY, NO.7 SEAT BACK, LH

9015750016

Крепеж

9017905004

Крепеж

9017906208

Крепеж

9018305043

Крепеж

9046708047

Крепеж

9324056014

Крепеж

9326955016

Крепеж

Код

Описание

66990J

HOLDER ASSY, CUP, NO.1 LH

71308F

LEG SUB-ASSY, REAR SEAT, RH

71308F

LEG SUB-ASSY, REAR SEAT, RH

71308F

LEG SUB-ASSY, REAR SEAT, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812C

COVER, RECLINING ADJUSTER, LH

71862A

SHIELD, REAR SEAT CUSHION, INNER LH

71868B

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72345A

PIPE, RECLINING CONNECTING

72345A

PIPE, RECLINING CONNECTING

72379

BELT, SEAT RECLINING HANDLE

73375B

COVER, REAR SEAT SHOULDER BELT HOLE, LH

73375D

COVER, REAR SEAT SHOULDER BELT, LH

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

74631L

HOOK, COAT, NO.1 LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79109C

BOARD SUB-ASSY, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

79967K

COVER, REAR SEAT LEG SIDE, NO.4

79968

COVER, REAR SEAT LEG SIDE, NO.5

9010511058

Крепеж

9010511058

Крепеж

9015750016

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017905004

Крепеж

9017906208

Крепеж

9018305043

Крепеж

91672G1035

Крепеж

91672G1035

Крепеж

91672G1035

Крепеж

9324056014

Крепеж

9356855014

Крепеж

Код

Описание

71148L

COVER, REAR SEAT LEG, OUTER

71149H

COVER, REAR SEAT LEG, INNER

71308G

LEG SUB-ASSY, REAR SEAT, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812E

COVER, RECLINING ADJUSTER, LH

71862C

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868C

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72345A

PIPE, RECLINING CONNECTING

72379

BELT, SEAT RECLINING HANDLE

73173G

COVER, REAR SEAT SHOULDER BELT, RH

73373D

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73373F

COVER, REAR SEAT SHOULDER BELT HOLE

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79026A

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79290A

SPRING ASSY, NO.2 SEAT BACK, LH

79967L

COVER, REAR SEAT LEG SIDE, NO.4

79968A

COVER, REAR SEAT LEG SIDE, NO.5

9010511058

Крепеж

9010511058

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9356855014

Крепеж

Код

Описание

71148N

COVER, REAR SEAT LEG, OUTER

71148P

COVER, REAR SEAT LEG, OUTER

71148R

COVER, REAR SEAT LEG, OUTER

71149K

COVER, REAR SEAT LEG, INNER

71149L

COVER, REAR SEAT LEG, INNER

71149N

COVER, REAR SEAT LEG, INNER

7152

переход к группе запчастей

7152

переход к группе запчастей

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812K

COVER, RECLINING ADJUSTER, LH

71812M

COVER, RECLINING ADJUSTER, LH

71812N

COVER, RECLINING ADJUSTER, LH

71812P

COVER, RECLINING ADJUSTER, LH

71862E

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71862F

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71862G

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71862H

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868E

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868F

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868G

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868H

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71876J

COVER, RECLINING ADJUSTER INSIDE, LH

71876K

COVER, RECLINING ADJUSTER INSIDE, LH

71876Y

COVER, RECLINING ADJUSTER INSIDE, LH

72345A

PIPE, RECLINING CONNECTING

72379

BELT, SEAT RECLINING HANDLE

73375B

COVER, REAR SEAT SHOULDER BELT HOLE, LH

73375G

COVER, REAR SEAT SHOULDER BELT, LH

73375H

COVER, REAR SEAT SHOULDER BELT, LH

73375J

COVER, REAR SEAT SHOULDER BELT, LH

73375K

COVER, REAR SEAT SHOULDER BELT, LH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79108A

LEG SUB-ASSY, NO.6 SEAT, REAR

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79490A

SPRING ASSY, NO.4 SEAT BACK, LH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79590A

SPRING ASSY, NO.5 SEAT BACK, LH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79690A

SPRING ASSY, NO.6 SEAT BACK, LH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79790A

SPRING ASSY, NO.7 SEAT BACK, LH

79959D

COVER, SEAT LEG

79967N

COVER, REAR SEAT LEG SIDE, NO.4

79967P

COVER, REAR SEAT LEG SIDE, NO.4

79967Q

COVER, REAR SEAT LEG SIDE, NO.4

79967R

COVER, REAR SEAT LEG SIDE, NO.4

79968G

COVER, REAR SEAT LEG SIDE, NO.5

79968H

COVER, REAR SEAT LEG SIDE, NO.5

79968J

COVER, REAR SEAT LEG SIDE, NO.5

79968K

COVER, REAR SEAT LEG SIDE, NO.5

9010511058

Крепеж

9010511058

Крепеж

9011910578

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9356855014

Крепеж

Код

Описание

66990M

HOLDER ASSY, CUP, NO.4 LH

66990N

HOLDER ASSY, CUP, NO.5 LH

66990P

HOLDER ASSY, CUP, NO.6 LH

66990Q

HOLDER ASSY, CUP, NO.7 LH

71846B

CAP, REAR SEAT BACK BOARD, NO.1

71846B

CAP, REAR SEAT BACK BOARD, NO.1

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

74631P

HOOK, COAT, NO.4 LH

74631Q

HOOK, COAT, NO.5 LH

74631R

HOOK, COAT, NO.6 LH

74631S

HOOK, COAT, NO.7 LH

79409B

BOARD SUB-ASSY, NO.4 SEAT BACK, LH

79509A

BOARD SUB-ASSY, NO.5 SEAT BACK, LH

79609A

BOARD SUB-ASSY, NO.6 SEAT BACK, LH

79709A

BOARD SUB-ASSY, NO.7 SEAT BACK, LH

9015750016

Крепеж

9017905004

Крепеж

9017906208

Крепеж

9018305043

Крепеж

9321016025

Крепеж

9324056014

Крепеж

Код

Описание

71148C

COVER, REAR SEAT LEG, OUTER

71148D

COVER, REAR SEAT LEG, OUTER

71148E

COVER, REAR SEAT LEG, OUTER

71148F

COVER, REAR SEAT LEG, OUTER

71148G

COVER, REAR SEAT LEG, OUTER

71148H

COVER, REAR SEAT LEG, OUTER

71149R

COVER, REAR SEAT LEG, INNER

71149S

COVER, REAR SEAT LEG, INNER

71149T

COVER, REAR SEAT LEG, INNER

71149U

COVER, REAR SEAT LEG, INNER

71149V

COVER, REAR SEAT LEG, INNER

71149W

COVER, REAR SEAT LEG, INNER

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71811F

COVER, RECLINING ADJUSTER, RH

71811H

COVER, RECLINING ADJUSTER, RH

71811J

COVER, RECLINING ADJUSTER, RH

71811L

COVER, RECLINING ADJUSTER, RH

71811M

COVER, RECLINING ADJUSTER, RH

71811N

COVER, RECLINING ADJUSTER, RH

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71861C

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71861D

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71861E

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71861F

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71861G

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71861H

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71867N

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71867P

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71867Q

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71867R

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71867S

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71867T

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71873D

SHIELD, REAR SEAT CUSHION, LOWER RH

71873E

SHIELD, REAR SEAT CUSHION, LOWER RH

71873F

SHIELD, REAR SEAT CUSHION, LOWER RH

71873G

SHIELD, REAR SEAT CUSHION, LOWER RH

71873H

SHIELD, REAR SEAT CUSHION, LOWER RH

71873J

SHIELD, REAR SEAT CUSHION, LOWER RH

71874M

SHIELD, REAR SEAT CUSHION, LOWER LH

71874N

SHIELD, REAR SEAT CUSHION, LOWER LH

71874P

SHIELD, REAR SEAT CUSHION, LOWER LH

71874Q

SHIELD, REAR SEAT CUSHION, LOWER LH

71874R

SHIELD, REAR SEAT CUSHION, LOWER LH

71874S

SHIELD, REAR SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71875J

COVER, RECLINING ADJUSTER INSIDE, RH

71875K

COVER, RECLINING ADJUSTER INSIDE, RH

71875V

COVER, RECLINING ADJUSTER INSIDE, RH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72345A

PIPE, RECLINING CONNECTING

72379

BELT, SEAT RECLINING HANDLE

72379

BELT, SEAT RECLINING HANDLE

72995A

COVER, REAR SEAT

73175A

COVER, REAR SEAT SHOULDER BELT, LH

73175B

COVER, REAR SEAT SHOULDER BELT, LH

73175C

COVER, REAR SEAT SHOULDER BELT, LH

73175D

COVER, REAR SEAT SHOULDER BELT, LH

73175E

COVER, REAR SEAT SHOULDER BELT, LH

73175F

COVER, REAR SEAT SHOULDER BELT, LH

73373D

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73373M

COVER, REAR SEAT SHOULDER BELT, RH

73373N

COVER, REAR SEAT SHOULDER BELT, RH

73373P

COVER, REAR SEAT SHOULDER BELT, RH

73373Q

COVER, REAR SEAT SHOULDER BELT, RH

73373R

COVER, REAR SEAT SHOULDER BELT, RH

73373S

COVER, REAR SEAT SHOULDER BELT, RH

73375B

COVER, REAR SEAT SHOULDER BELT HOLE, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79280A

SPRING ASSY, NO.2 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79480A

SPRING ASSY, NO.4 SEAT BACK, RH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79580A

SPRING ASSY, NO.5 SEAT BACK, RH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79680B

SPRING ASSY, NO.6 SEAT BACK, RH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79780A

SPRING ASSY, NO.7 SEAT BACK, RH

79959A

COVER, REAR SEAT LEG, RH

79967C

COVER, REAR SEAT LEG SIDE, NO.4

79967D

COVER, REAR SEAT LEG SIDE, NO.4

79967E

COVER, REAR SEAT LEG SIDE, NO.4

79967F

COVER, REAR SEAT LEG SIDE, NO.4

79967G

COVER, REAR SEAT LEG SIDE, NO.4

79967H

COVER, REAR SEAT LEG SIDE, NO.4

79968N

COVER, REAR SEAT LEG SIDE, NO.5

79968P

COVER, REAR SEAT LEG SIDE, NO.5

79968Q

COVER, REAR SEAT LEG SIDE, NO.5

79968R

COVER, REAR SEAT LEG SIDE, NO.5

79968S

COVER, REAR SEAT LEG SIDE, NO.5

79968T

COVER, REAR SEAT LEG SIDE, NO.5

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9356855014

Крепеж

9356855014

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990C

HOLDER ASSY, CUP, NO.3 RH

66990D

HOLDER ASSY, CUP, NO.4 RH

66990F

HOLDER ASSY, CUP, NO.5 RH

66990G

HOLDER ASSY, CUP, NO.6 RH

66990H

HOLDER ASSY, CUP, NO.7 RH

71846B

CAP, REAR SEAT BACK BOARD, NO.1

71846B

CAP, REAR SEAT BACK BOARD, NO.1

71846B

CAP, REAR SEAT BACK BOARD, NO.1

71846B

CAP, REAR SEAT BACK BOARD, NO.1

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7451

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

7456

переход к группе запчастей

74631E

HOOK, COAT, NO.2 RH

74631F

HOOK, COAT, NO.3 RH

74631G

HOOK, COAT, NO.4 RH

74631H

HOOK, COAT, NO.5 RH

74631J

HOOK, COAT, NO.6 RH

74631K

HOOK, COAT, NO.7 RH

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79409

BOARD SUB-ASSY, NO.4 SEAT BACK

79509

BOARD SUB-ASSY, NO.5 SEAT BACK, RH

79609

BOARD SUB-ASSY, NO.6 SEAT BACK, RH

79709

BOARD SUB-ASSY, NO.7 SEAT BACK, RH

9015750016

Крепеж

9015750016

Крепеж

9017905004

Крепеж

9017905004

Крепеж

9017906208

Крепеж

9017906208

Крепеж

9018305043

Крепеж

9018305043

Крепеж

9321016025

Крепеж

9321016025

Крепеж

9324056014

Крепеж

9324056014

Крепеж

Код

Описание

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79860

SPRING ASSY, NO.8 SEAT CUSHION

79915

BRACKET, SEAT LEG

79915

BRACKET, SEAT LEG

79974

BRACKET, SEAT BACK ASSIST, RH

79974

BRACKET, SEAT BACK ASSIST, RH

79984

BRACKET, SEAT BACK ASSIST, LH

79984

BRACKET, SEAT BACK ASSIST, LH

9010908277

Крепеж

9015960589

Крепеж

9016735014

Крепеж

9017910033

Крепеж

9017910033

Крепеж

9017910033

Крепеж

9017910033

Крепеж

91622B1025

Крепеж

91622B1025

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165161020

Крепеж

9165161020

Крепеж

9165161020

Крепеж

9165161020

Крепеж

9165161028

Крепеж

9165161028

Крепеж

9165161030

Крепеж

9165161030

Крепеж

Код

Описание

6477790A00

Крепеж

72665C

COVER, REAR SEAT LOCK, RH

72666B

COVER, REAR SEAT LOCK, LH

7296960010

Крепеж

7296960010

Крепеж

78903

STRIKER SUB-ASSY, FOLD SEAT LEG LOCK

78904

STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78910A

LOCK ASSY, FOLD SEAT, RH

78920A

LOCK ASSY, FOLD SEAT, LH

78930

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

78970

BAND ASSY, SEAT LOCK

78970

BAND ASSY, SEAT LOCK

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79806B

LEG SUB ASSY, FOLD SEAT REAR

79806B

LEG SUB ASSY, FOLD SEAT REAR

79860

SPRING ASSY, NO.8 SEAT CUSHION

79885

HINGE, FOLD SEAT BACK SET, RH

79886

HINGE, FOLD SEAT BACK SET, LH

79915

BRACKET, SEAT LEG

79916

BRACKET, SEAT LEG, NO.2

8271112120

Крепеж

9010908277

Крепеж

9010908277

Крепеж

9010908277

Крепеж

9011910493

Крепеж

9015960035

Крепеж

9015960058

Крепеж

9015960058

Крепеж

9015960589

Крепеж

9016735014

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9017908204

Крепеж

9017908204

Крепеж

9020507002

Крепеж

9020507002

Крепеж

9020612003

Крепеж

9020612003

Крепеж

9020615002

Крепеж

9020615002

Крепеж

9020615002

Крепеж

9038710070

Крепеж

9038910031

Крепеж

9038910031

Крепеж

9050608035

Крепеж

9163160825

Крепеж

9163160825

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165161020

Крепеж

9165161020

Крепеж

9165161022

Крепеж

9165161022

Крепеж

9165161030

Крепеж

9165161030

Крепеж

Код

Описание

71033C

LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH

71034B

LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

73139A

COVER, SEAT BELT ANCHOR

73139A

COVER, SEAT BELT ANCHOR

73178B

CAP, SEAT BELT ANCHOR COVER

73178B

CAP, SEAT BELT ANCHOR COVER

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79806B

LEG SUB ASSY, FOLD SEAT REAR

79806B

LEG SUB ASSY, FOLD SEAT REAR

79860

SPRING ASSY, NO.8 SEAT CUSHION

79915

BRACKET, SEAT LEG

79916

BRACKET, SEAT LEG, NO.2

79974

BRACKET, SEAT BACK ASSIST, RH

79974

BRACKET, SEAT BACK ASSIST, RH

79984

BRACKET, SEAT BACK ASSIST, LH

79984

BRACKET, SEAT BACK ASSIST, LH

9010908227

Крепеж

9010908227

Крепеж

9010908277

Крепеж

9010908277

Крепеж

9015960589

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9017910033

Крепеж

9017910033

Крепеж

9020510008

Крепеж

9020510008

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9165161020

Крепеж

9165161020

Крепеж

9167381022

Крепеж

9167381022

Крепеж

9167381022

Крепеж

Код

Описание

6477790A00

Крепеж

6477836020

Крепеж

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

72665C

COVER, REAR SEAT LOCK, RH

72666B

COVER, REAR SEAT LOCK, LH

7296960010

Крепеж

7296960010

Крепеж

73139A

COVER, SEAT BELT ANCHOR

73139A

COVER, SEAT BELT ANCHOR

73178B

CAP, SEAT BELT ANCHOR COVER

73178B

CAP, SEAT BELT ANCHOR COVER

7455

переход к группе запчастей

78903

STRIKER SUB-ASSY, FOLD SEAT LEG LOCK

78904

STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78910A

LOCK ASSY, FOLD SEAT, RH

78920A

LOCK ASSY, FOLD SEAT, LH

78930

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

7896736020

Крепеж

78970

BAND ASSY, SEAT LOCK

78970

BAND ASSY, SEAT LOCK

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79806B

LEG SUB ASSY, FOLD SEAT REAR

79806B

LEG SUB ASSY, FOLD SEAT REAR

79860

SPRING ASSY, NO.8 SEAT CUSHION

79885

HINGE, FOLD SEAT BACK SET, RH

79886

HINGE, FOLD SEAT BACK SET, LH

79915

BRACKET, SEAT LEG

79916

BRACKET, SEAT LEG, NO.2

8271112120

Крепеж

9010908227

Крепеж

9010908227

Крепеж

9010908277

Крепеж

9011910493

Крепеж

9015960035

Крепеж

9015960589

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9017908200

Крепеж

9020507002

Крепеж

9020507002

Крепеж

9020510008

Крепеж

9020510008

Крепеж

9020615002

Крепеж

9020615002

Крепеж

9020615002

Крепеж

9038710070

Крепеж

9038910031

Крепеж

9038910031

Крепеж

9050608035

Крепеж

9155281025

Крепеж

9163160825

Крепеж

9163160825

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9164180835

Крепеж

9165161020

Крепеж

9165161020

Крепеж

9165161022

Крепеж

9165161022

Крепеж

9165161030

Крепеж

9165161030

Крепеж

9165161030

Крепеж

9165161030

Крепеж

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71812Q

COVER, RECLINING ADJUSTER, LH

71861J

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71861J

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71862J

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71867U

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71868L

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868L

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71873K

SHIELD, REAR SEAT CUSHION, LOWER RH

71873T

SHIELD, REAR SEAT CUSHION, LOWER RH

71874K

SHIELD, REAR SEAT CUSHION, LOWER LH

71874T

SHIELD, REAR SEAT CUSHION, LOWER LH

71875W

COVER, RECLINING ADJUSTER INSIDE, RH

72345A

PIPE, RECLINING CONNECTING

72345A

PIPE, RECLINING CONNECTING

72995A

COVER, REAR SEAT

72995A

COVER, REAR SEAT

73173N

COVER, REAR SEAT SHOULDER BELT, RH

73175G

COVER, REAR SEAT SHOULDER BELT, LH

73373D

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73373D

COVER, REAR SEAT SHOULDER BELT HOLE, RH

73373F

COVER, REAR SEAT SHOULDER BELT HOLE

73373F

COVER, REAR SEAT SHOULDER BELT HOLE

73373T

COVER, REAR SEAT SHOULDER BELT, RH

73375B

COVER, REAR SEAT SHOULDER BELT HOLE, LH

73375B

COVER, REAR SEAT SHOULDER BELT HOLE, LH

73375L

COVER, REAR SEAT SHOULDER BELT, LH

73375M

COVER, REAR SEAT SHOULDER BELT HOLE

73375M

COVER, REAR SEAT SHOULDER BELT HOLE

79081

COVER SUB-ASSY, NO.8 SEAT CUSHION, RH

79082

COVER SUB-ASSY, NO.8 SEAT CUSHION, LH

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085B

PAD SUB-ASSY, NO.8 SEAT CUSHION, RH

79086B

PAD SUB-ASSY, NO.8 SEAT CUSHION, LH

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79805

LEG SUB-ASSY, NO.8 SEAT, RH

79806A

LEG SUB-ASSY, NO.8 SEAT, LH

79880B

SPRING ASSY, NO.8 SEAT BACK, RH

79880B

SPRING ASSY, NO.8 SEAT BACK, RH

79890B

SPRING ASSY, NO.8 SEAT BACK, LH

79890B

SPRING ASSY, NO.8 SEAT BACK, LH

79915

BRACKET, SEAT LEG

79915

BRACKET, SEAT LEG

79915

BRACKET, SEAT LEG

79915

BRACKET, SEAT LEG

79967J

COVER, REAR SEAT LEG SIDE, NO.4

79967S

COVER, REAR SEAT LEG SIDE, NO.4

9010510494

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9010511058

Крепеж

9011910875

Крепеж

9011910875

Крепеж

9015940223

Крепеж

9015940223

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

91673L1035

Крепеж

91673L1035

Крепеж

91673L1035

Крепеж

91673L1035

Крепеж

91673L1035

Крепеж

91673L1035

Крепеж

91673L1035

Крепеж

91673L1035

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

Код

Описание

7270236010

Крепеж

9011908A54

Крепеж

9011908A54

Крепеж

9011908A84

Крепеж

9011908A85

Крепеж

91622B1025

Крепеж

91622B1025

Крепеж

9165160830

Крепеж

9165160835

Крепеж

9165160835

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9166160825

Крепеж

9166160835

Крепеж

9166160835

Крепеж

Код

Описание

7270236010

Крепеж

9011908A54

Крепеж

9011908A85

Крепеж

91622B1025

Крепеж

9164180835

Крепеж

9166160825

Крепеж

Код

Описание

79956C

COVER, REAR SEAT LEG SIDE, LH

79956S

COVER, REAR SEAT LEG SIDE

79956T

COVER, REAR SEAT LEG SIDE

79956U

COVER, REAR SEAT LEG SIDE

9011910578

Крепеж

9011910875

Крепеж

9017610008

Крепеж

9046712080

Крепеж

91673L1035

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти COASTER > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
