Каталог

Европа

Модель

COASTER

VIN

Дата

2007/08

Двигатель

4 литра, дизель

Класс

DELUX SPECIFICATION

Фрейм

XZB50

КПП

автомат АКПП, 4 ступени

Опции

правый руль высокая крыша для 21 пассажира WITH COOLER ARL CBU DCR

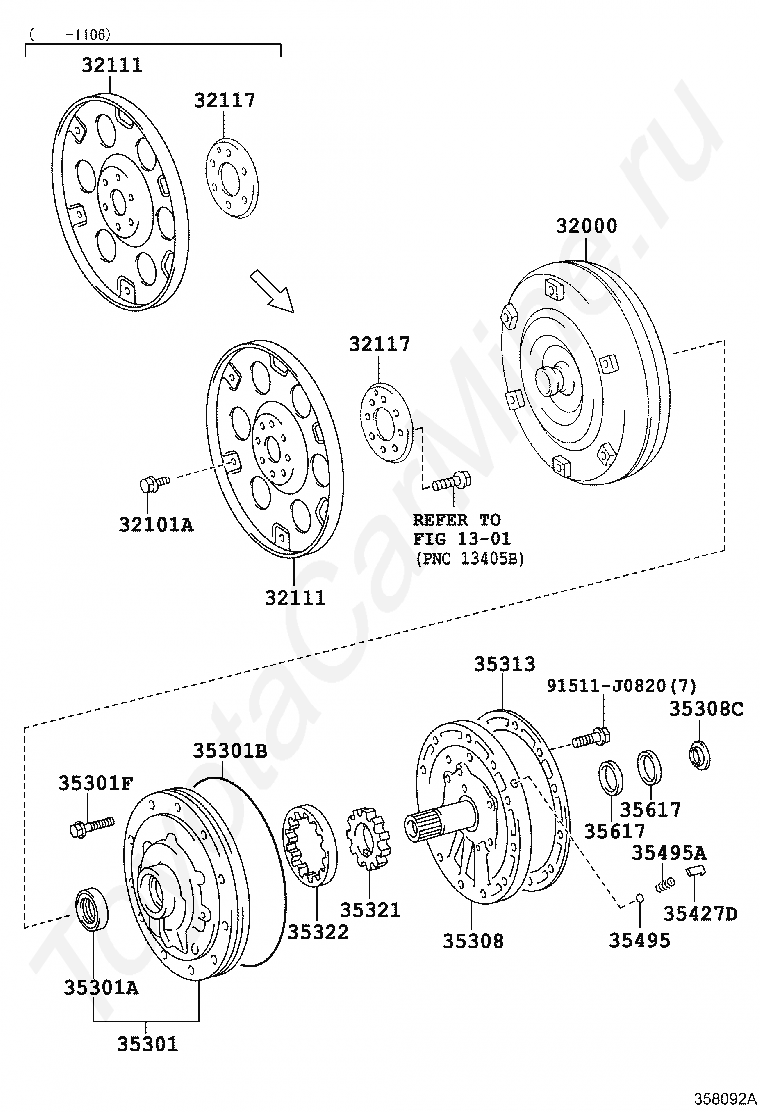

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA COASTER

Код

Описание

1301

переход к группе запчастей

32000

CONVERTER ASSY, TORQUE

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32111

PLATE, PUMP IMPELLER DRIVE

32111

PLATE, PUMP IMPELLER DRIVE

32117

SPACER, DRIVE PLATE, REAR

32117

SPACER, DRIVE PLATE, REAR

35301

BODY SUB-ASSY, FRONT OIL PUMP

35301A

SEAL, OIL (FOR FRONT OIL PUMP)

35301B

RING, O (FOR FRONT OIL PUMP BODY)

35301F

BOLT (FOR FRONT OIL PUMP SETTING)

35308

COVER SUB-ASSY, FRONT OIL PUMP

35308C

RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

35313

GASKET, FRONT OIL PUMP COVER

35321

GEAR, FRONT OIL PUMP DRIVE

35322

GEAR, FRONT OIL PUMP DRIVEN

35427D

SEAT, CHECK VALVE SPRING

35495

BALL, CHECK

35495A

SPRING, COMPRESSION (FOR CHECK BALL)

35617

RING, CLUTCH DRUM OIL SEAL

35617

RING, CLUTCH DRUM OIL SEAL

91511J0820

Крепеж

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA COASTER
