Каталог

Европа

Модель

COASTER

VIN

Дата

1986/10

Двигатель

4 литра, дизель

Класс

DELUX SPECIFICATION

Фрейм

HB30

КПП

МКПП, 5 скоростей

Опции

правый руль высокая крыша для 23 пассажиров WITH COOLER Австралия

Кондиционер: компрессор TOYOTA COASTER

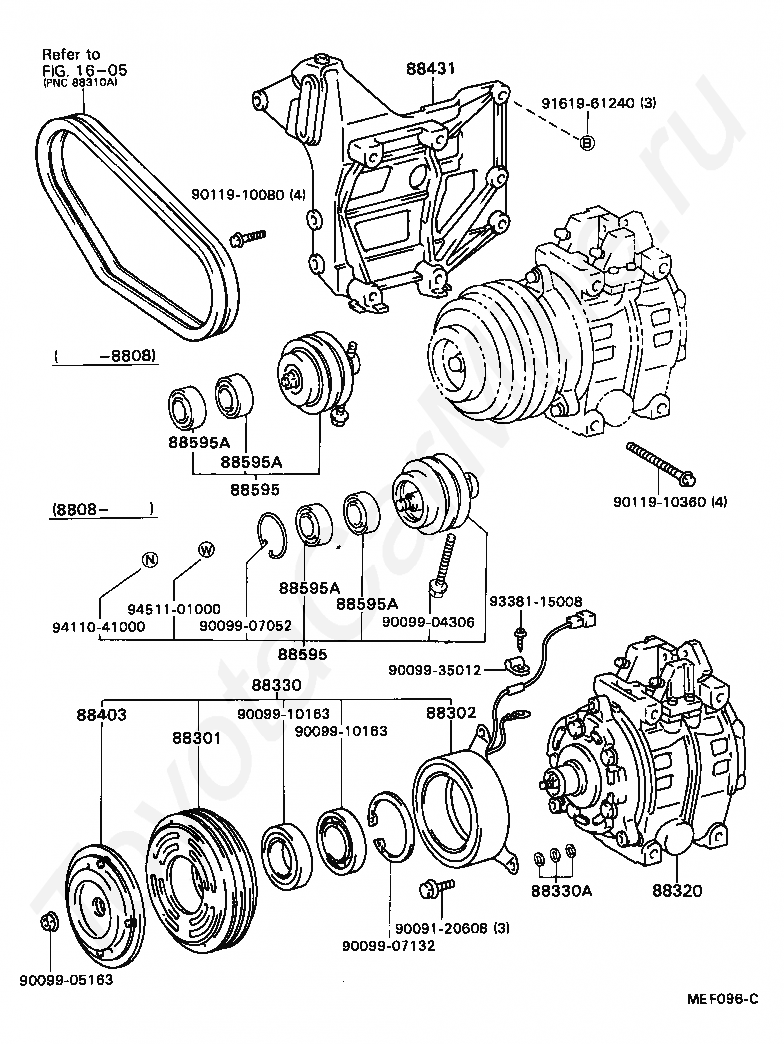

Код

Описание

1605

переход к группе запчастей

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88302

STATOR SUB-ASSY, MAGNET CLUTCH

88320

COMPRESSOR ASSY, COOLER

88330

CLUTCH ASSY, MAGNET

88330A

WASHER (FOR MAGNET CLUTCH)

88403

HUB SUB-ASSY, MAGNET CLUTCH

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88595

PULLEY, COOLER COMPRESSOR IDLE

88595

PULLEY, COOLER COMPRESSOR IDLE

88595A

BEARING (FOR COOLER IDLE PULLEY)

88595A

BEARING (FOR COOLER IDLE PULLEY)

88595A

BEARING (FOR COOLER IDLE PULLEY)

88595A

BEARING (FOR COOLER IDLE PULLEY)

9009120608

Крепеж

9009904306

Крепеж

9009905163

Крепеж

9009907052

Крепеж

9009907132

Крепеж

9009910163

Крепеж

9009910163

Крепеж

9009935012

Крепеж

9011910080

Крепеж

9011910360

Крепеж

9161961240

Крепеж

9338115008

Крепеж

9411041000

Крепеж

9451101000

Крепеж

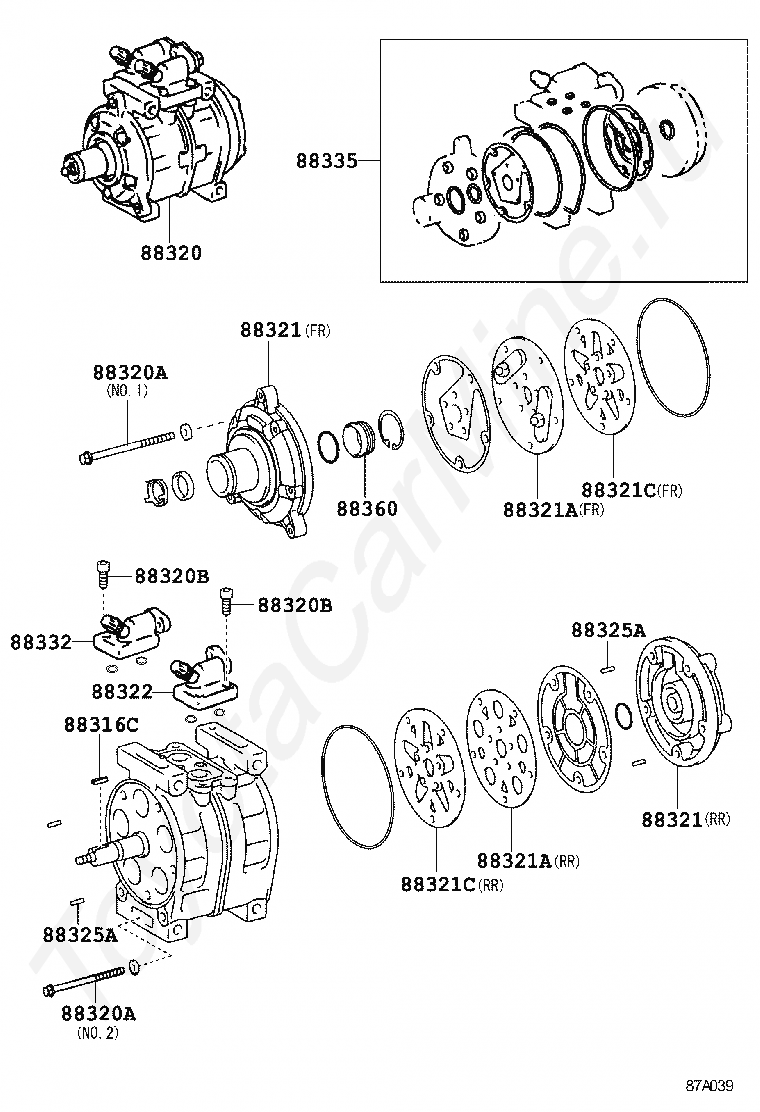

Код

Описание

88304

CYLINDER SUB-ASSY, COOLER COMPRESSOR

88308

PUMP ASSY, COOLER COMPRESSOR

88316

CRANKSHAFT, COOLER COMPRESSOR

88316A

BEARING, COMPRESSOR CRANKSHAFT, FRONT

88316C

KEY, COMPRESSOR CRANKSHAFT

88320

COMPRESSOR ASSY, COOLER

88320A

BOLT, THROUGH

88320A

BOLT, THROUGH

88320B

BOLT, SERVICE VALVE

88320B

BOLT, SERVICE VALVE

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321A

PLATE SUB-ASSY, VALVE

88321A

PLATE SUB-ASSY, VALVE

88321C

REED, SUCTION VALVE

88321C

REED, SUCTION VALVE

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88323A

GASKET, COMPRESSOR

88323A

GASKET, COMPRESSOR

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88329

PISTON SUB-ASSY, COOLER COMPRESSOR

88332

VALVE, COOLER COMPRESSOR DISCHARGE SERVICE

88335

GASKET KIT, OVERHAUL

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT

88364

BEARING, COMPRESSOR CRANKSHAFT, REAR

Код

Описание

88316C

KEY, COMPRESSOR CRANKSHAFT

88320

COMPRESSOR ASSY, COOLER

88320A

BOLT, THROUGH

88320A

BOLT, THROUGH

88320B

BOLT, SERVICE VALVE

88320B

BOLT, SERVICE VALVE

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321A

PLATE SUB-ASSY, VALVE

88321A

PLATE SUB-ASSY, VALVE

88321C

REED, SUCTION VALVE

88321C

REED, SUCTION VALVE

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88332

VALVE, COOLER COMPRESSOR DISCHARGE SERVICE

88335

GASKET KIT, OVERHAUL

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT
