Каталог

Ближний Восток

Модель

COASTER

VIN

Дата

2022/01

Двигатель

2,8 литра, турбо-дизель

Класс

DELUX SPECIFICATION

Фрейм

GDB70

КПП

автомат АКПП, 6 скоростей

Опции

правый руль высокая крыша 22-местный WITH COOLER DCR ARL CBU 859W

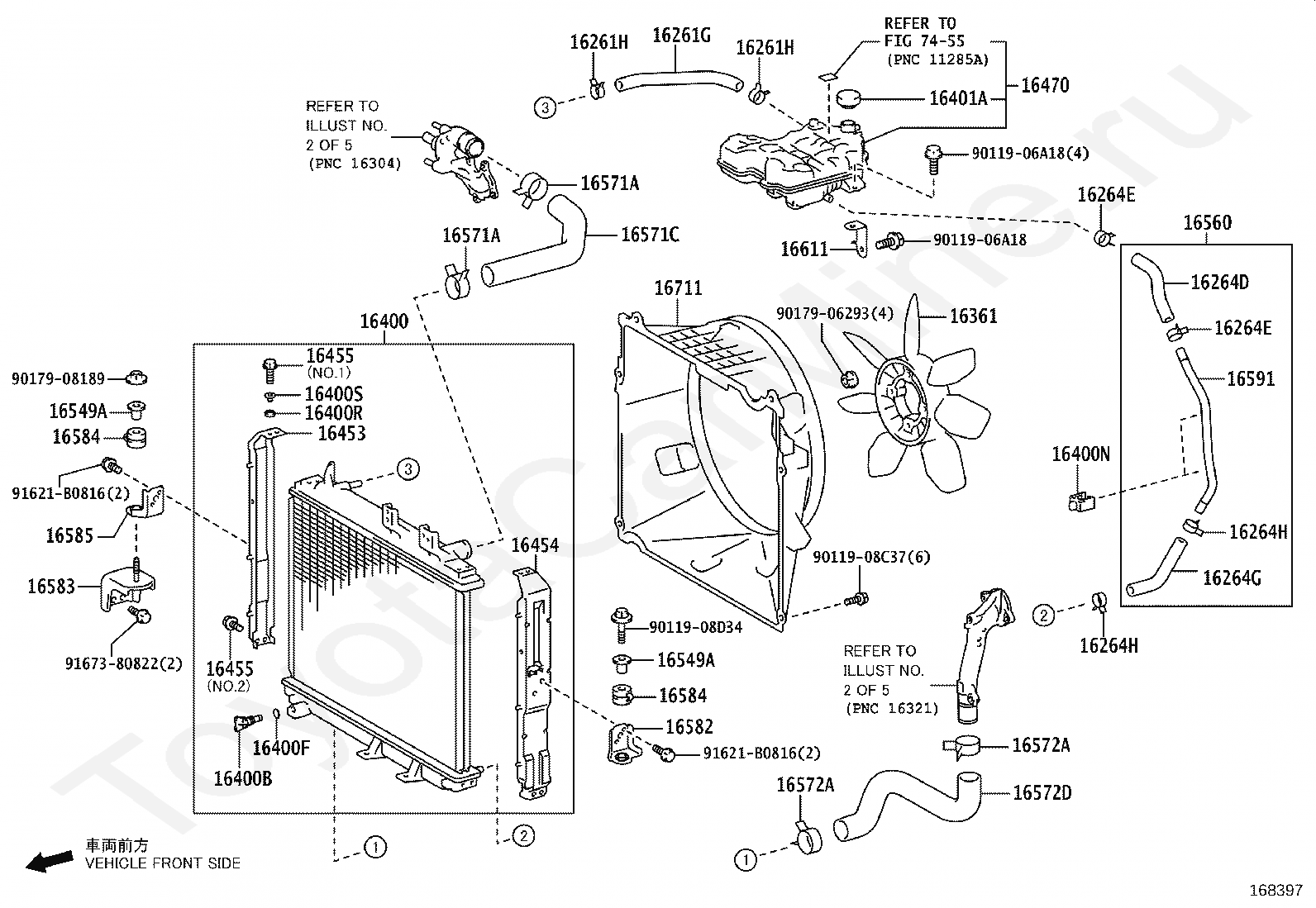

Радиатор и шланги TOYOTA COASTER

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264G

HOSE, WATER BY-PASS, NO.3

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400N

CLAMP, NO.2

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16401A

CAP SUB-ASSY, RADIATOR RESERVE TANK

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16470

TANK ASSY, RADIATOR RESERVE

16549A

COLLAR, RADIATOR SUPPORT, NO.1

16549A

COLLAR, RADIATOR SUPPORT, NO.1

16560

PIPE ASSY, RADIATOR TO RESERVE TANK, NO.1

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16582

BRACKET, RADIATOR, NO.1

16583

BRACKET, RADIATOR, NO.2

16584

INSULATOR, RADIATOR MOUNTING

16584

INSULATOR, RADIATOR MOUNTING

16585

BRACKET, RADIATOR, NO.3

16591

PIPE, RADIATOR

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

7455

переход к группе запчастей

9011906A18

Крепеж

9011906A18

Крепеж

9011908C37

Крепеж

9011908D34

Крепеж

9017906293

Крепеж

9017908189

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

9167380822

Крепеж

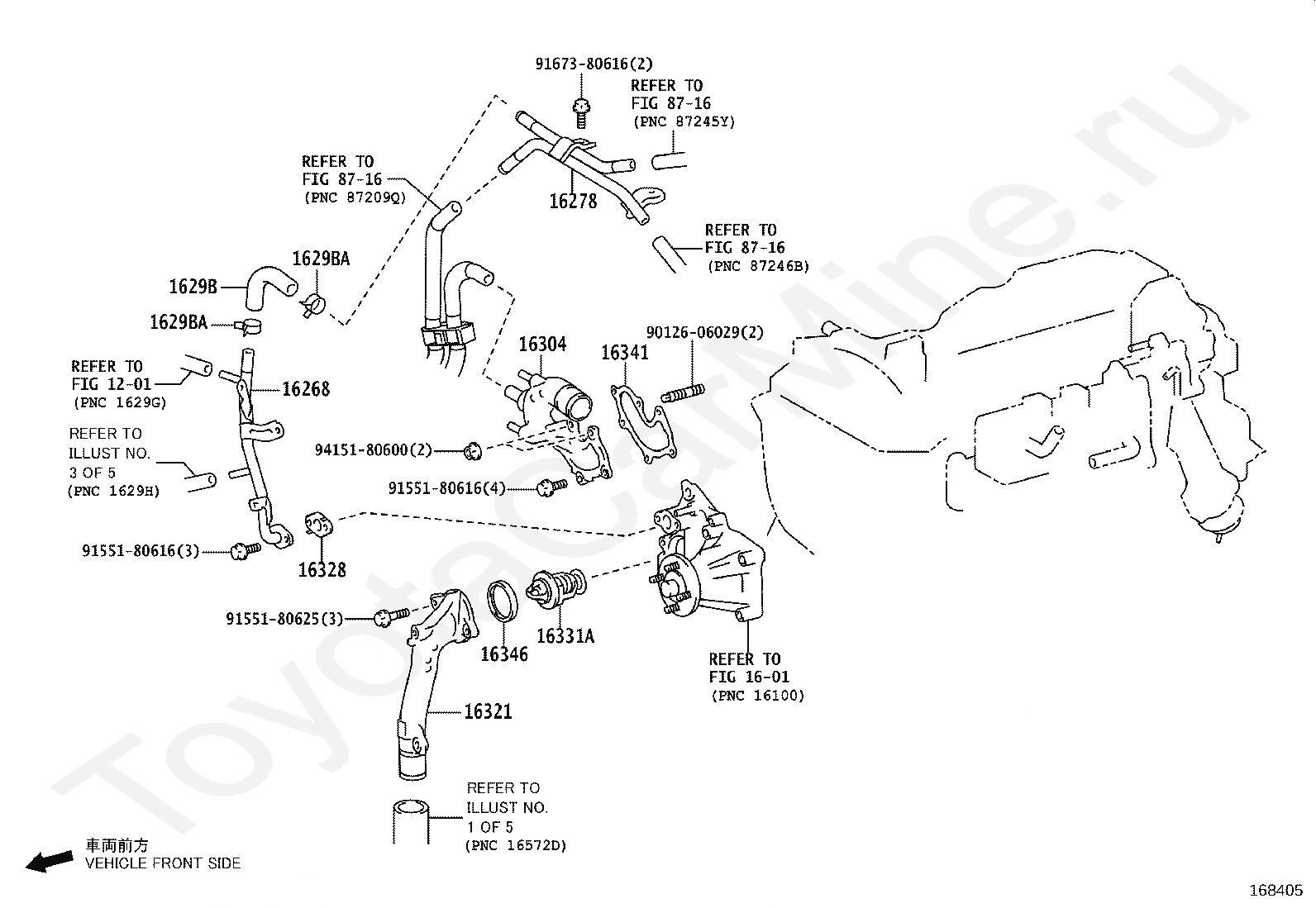

Код

Описание

1201

переход к группе запчастей

1601

переход к группе запчастей

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

1629B

HOSE, WATER BY-PASS, NO.15

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

16304

OUTLET SUB-ASSY, WATER

16321

INLET, WATER

16328

GASKET, WATER INLET PIPE

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9012606029

Крепеж

9155180616

Крепеж

9155180616

Крепеж

9155180625

Крепеж

9167380616

Крепеж

9415180600

Крепеж

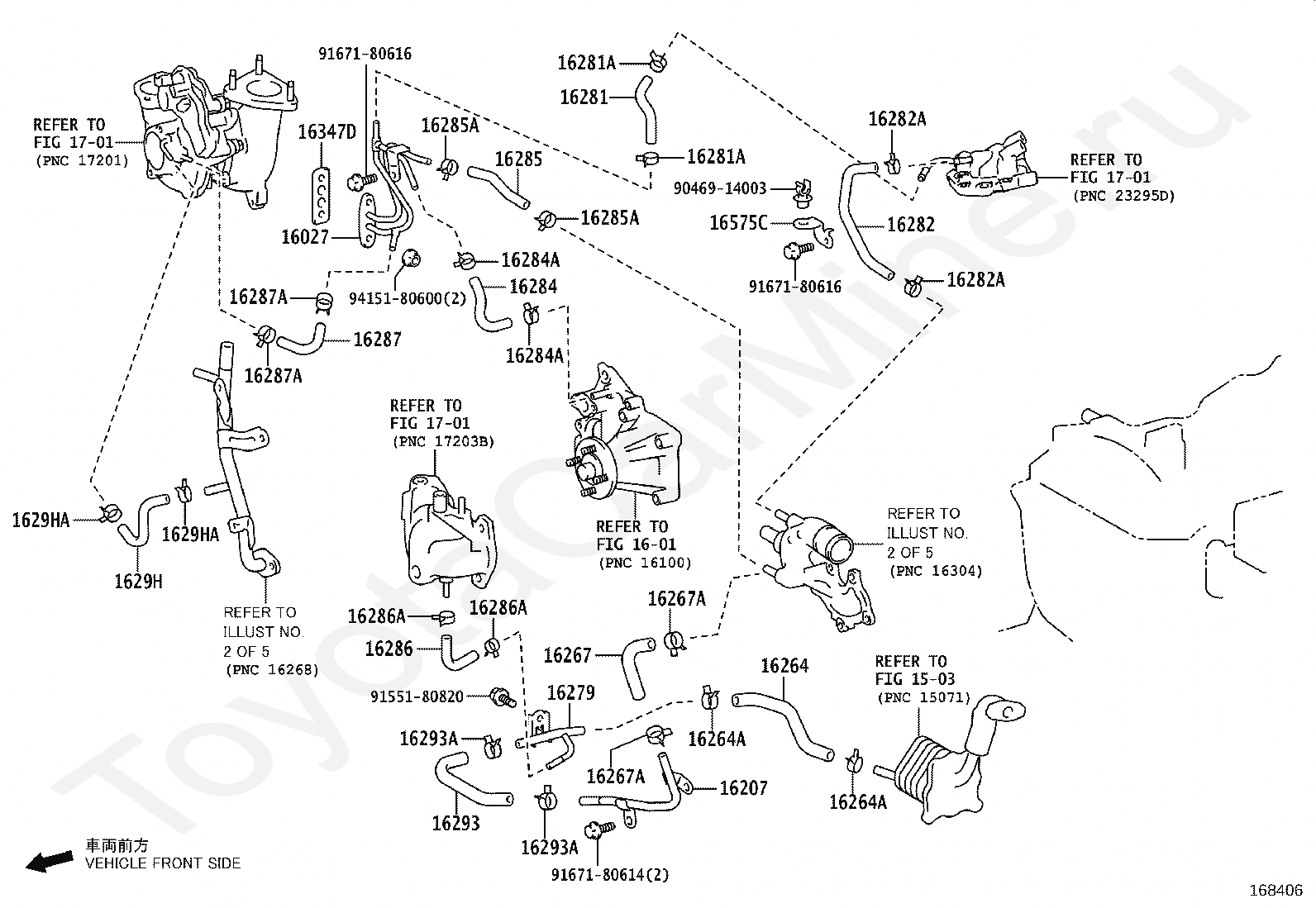

Код

Описание

1503

переход к группе запчастей

1601

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

1629H

HOSE, WATER BY-PASS, NO.21

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

16347D

GASKET, WATER BY-PASS

16575C

BRACKET, WATER HOSE CLAMP, NO.1

1701

переход к группе запчастей

1701

переход к группе запчастей

1701

переход к группе запчастей

9046914003

Крепеж

9155180820

Крепеж

9167180614

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9415180600

Крепеж

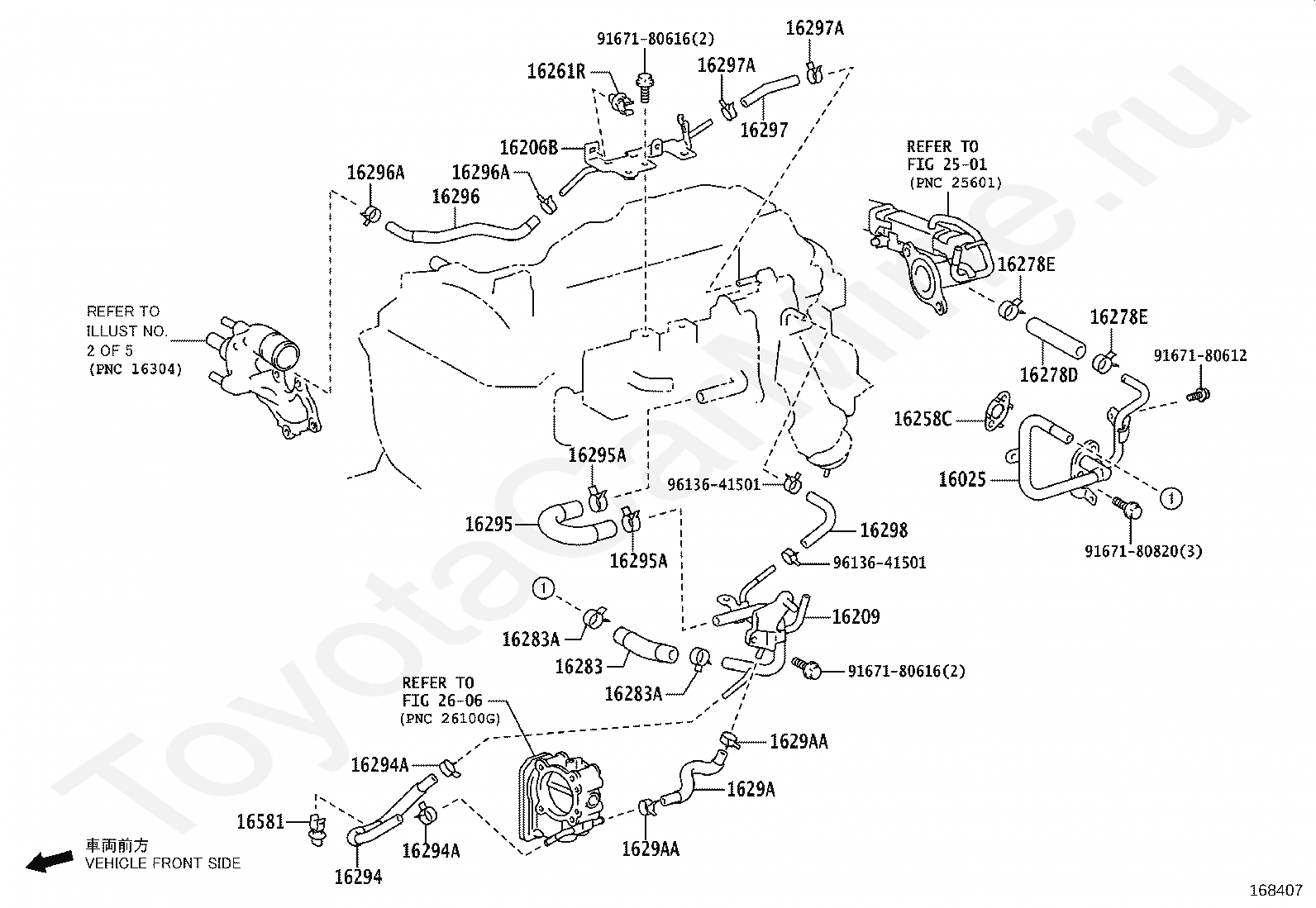

Код

Описание

16025

PIPE SUB-ASSY, WATER BY-PASS, NO.5

16206B

PIPE SUB-ASSY, WATER BY-PASS, NO.3

16209

PIPE SUB-ASSY, WATER BY-PASS, NO.4

16258C

GASKET(FOR WATER BY-PASS PIPE)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16278D

HOSE, WATER BY-PASS

16278E

CLIP(FOR WATER BY-PASS HOSE)

16278E

CLIP(FOR WATER BY-PASS HOSE)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16294

HOSE, WATER BY-PASS, NO.11

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16298

HOSE, WATER BY-PASS, NO.12

1629A

HOSE, WATER BY-PASS, NO.14

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

16581

CLAMP, HOSE(FOR WATER HOSE)

2501

переход к группе запчастей

2606

переход к группе запчастей

9167180612

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9167180820

Крепеж

9613641501

Крепеж

9613641501

Крепеж

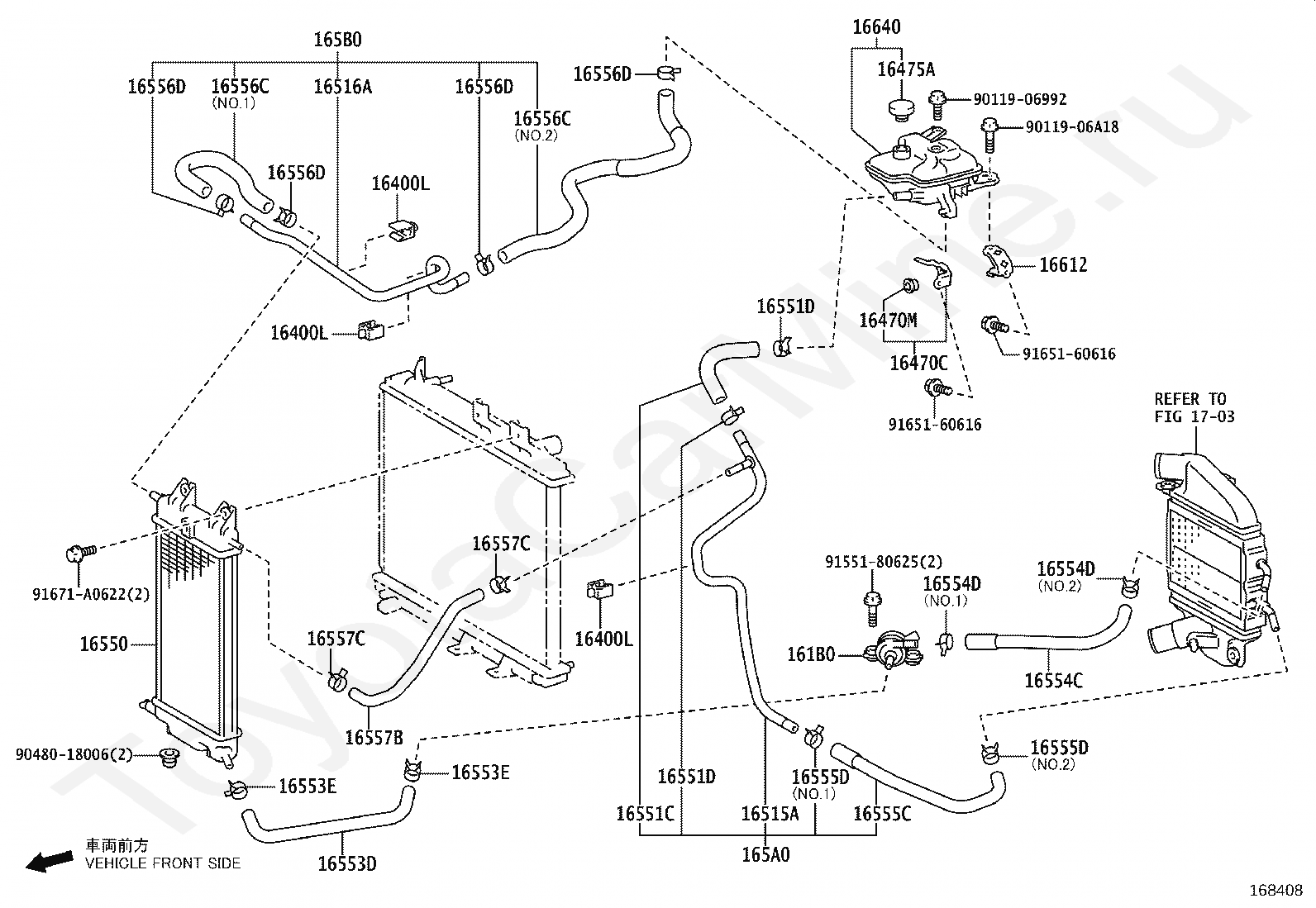

Код

Описание

161B0

PUMP ASSY, ELECTRIC WATER

16400L

CLAMP, NO.1

16400L

CLAMP, NO.1

16400L

CLAMP, NO.1

16470C

BRACKET(FOR RADIATOR RESERVE TANK)

16470M

GROMMET

16475A

CAP, RESERVE TANK

16515A

PIPE, INTERCOOLER COOLING WATER, NO.1

16516A

PIPE, INTERCOOLER COOLING WATER, NO.2

16550

RADIATOR ASSY, INTERCOOLER COOLING

16551C

HOSE, INTERCOOLER COOLING WATER, NO.1

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16553D

HOSE, INTERCOOLER COOLING WATER, NO.3

16553E

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)

16553E

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)

16554C

HOSE, INTERCOOLER COOLING WATER, NO.4

16554D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)

16554D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)

16555C

HOSE, INTERCOOLER COOLING WATER, NO.5

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16556C

HOSE, INTERCOOLER COOLING WATER, NO.6

16556C

HOSE, INTERCOOLER COOLING WATER, NO.6

16556D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)

16556D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)

16556D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)

16556D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)

16557B

HOSE, INTERCOOLER COOLING WATER, NO.7

16557C

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7)

16557C

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7)

165A0

HOSE ASSY, INTERCOOLER COOLING WATER, NO.1

165B0

HOSE ASSY, INTERCOOLER COOLING WATER, NO.2

16612

BRACKET, RADIATOR RESERVE TANK, NO.2

16640

TANK ASSY, INTERCOOLER RESERVE

1703

переход к группе запчастей

9011906992

Крепеж

9011906A18

Крепеж

9048018006

Крепеж

9155180625

Крепеж

9165160616

Крепеж

9165160616

Крепеж

91671A0622

Крепеж

Радиатор и шланги TOYOTA COASTER
